EE105L-AWMDS (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Oct 1999
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )

Click highlighted areas on diagram

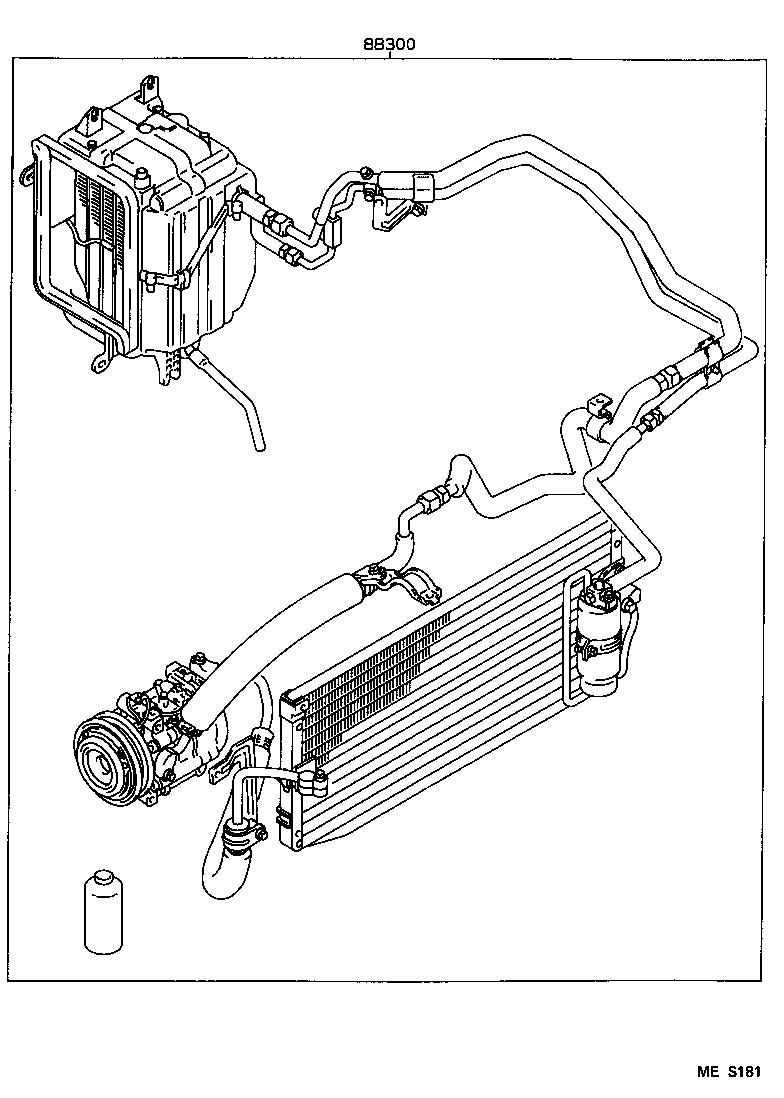

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-1T380

EE100,105..LHD..MTM..GEN

MANUAL,W(HEATER)

 1
88300-1T420

EE100,105..LHD..MTM..GEN

MANUAL,W(POWER STEERING & HEATER)

 1
88300-1T400

EE100,105..LHD..MTM..GEN

MANUAL,W/O(HEATER)

 1
88300-1T440

EE100,105..LHD..MTM..GEN

MANUAL,W(POWER STEERING) & W/O(HEATER)

 1
88300-1X600

EE100,105..LHD..MTM..GEN

MANUAL,W/O(HEATER)

 1
88300-1X640

EE100,105..LHD..MTM..GEN

MANUAL,W(POWER STEERING) & W/O(HEATER)

 1
88300-1X340

EE100,105..LHD..MTM..(GEN,TUR)

MANUAL,W(HEATER)

 1
88300-1X620

EE100,105..LHD..MTM..(GEN,TUR)

MANUAL,W(POWER STEERING & HEATER)

 1
