EE105L-AWMDS (1992)
Toyota Corolla Sed/Cp/Wg

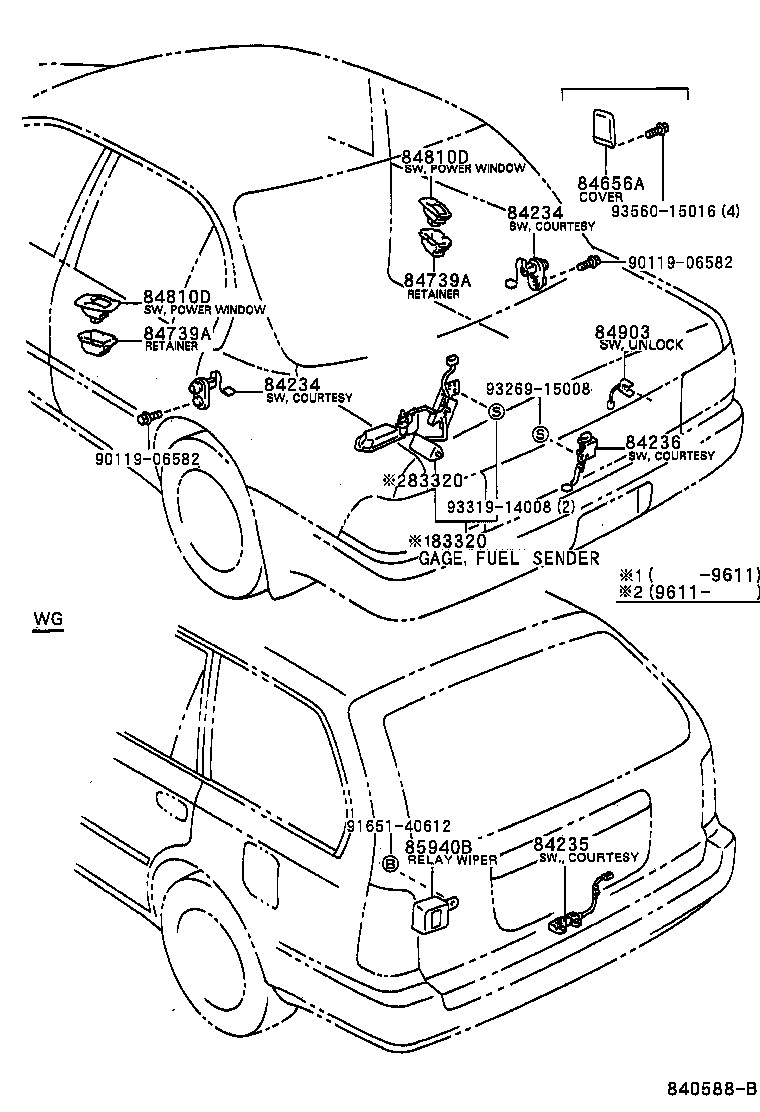

ILLUST NO. 8 OF 8(9108- )SED,WG
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE101,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE101,102,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE101,102,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE10#,EE100,101,105 |
1 | ||
| 83320-12511 |
AE10#,EE100,105 |
1 | ||
| 83320-12512 |
AE101,EE10# |
1 | ||
| 83320-12512 |
AE101,EE10# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE101,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE101,102,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE101,102,EE100,101,105..SED,WG |
1 | ||
| 83320-80269 |
AE10#,EE100,101,105 |
1 | ||
| 83320-12511 |
AE10#,EE100,105 |
1 | ||
| 83320-12512 |
AE101,EE10# |
1 | ||
| 83320-12512 |
AE101,EE10# |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AE10#,EE10#..SED,WG |
2 | ||
| 84231-12080 |
EE104,105,108 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
EE105 |
2 | ||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AE10#,EE10#..SED,WG |
2 | ||
| 84231-12080 |
EE104,105,108 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
EE105 |
2 | ||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-13040 |
AE101,EE100,104,105..WG |
1 | ||
| 84231-13041 |
AE101,EE10#..WG |
1 | ||
| 84231-13040 |
AE101,EE100,104,105..WG |
1 | ||
| 84231-13020 |
EE105,108 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12072 |
AE101,EE100,105..WG |
1 | ||
| 85940-12072 |
AE101,EE100,105..WG |
1 | ||
| 85940-12070 |
AE101,EE100,105..WG |
1 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93560-15016 | ||||

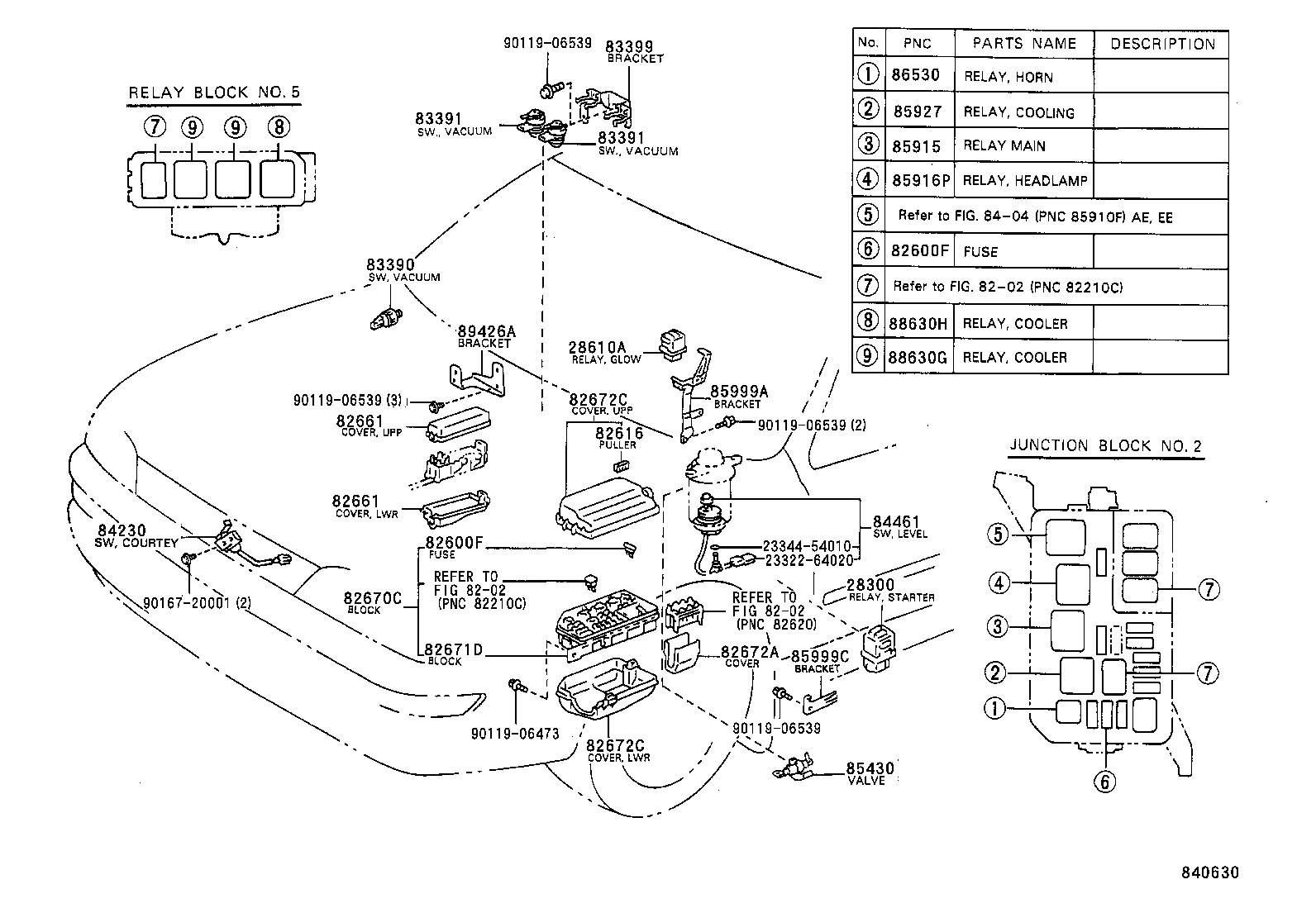

ILLUST NO. 2 OF 8(9108- )SED,WG
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#,CE100,EE10# |
1 | ||
| 82616-12020 |
AE10#,CE100,EE10# |
1 | ||
| 82616-12020 |
AE10#,CE100,EE10# |
1 | ||
| 82616-12020 |
AE10#,CE100,EE10# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE100,EE10# LWR |
1 | ||
| 82661-12220 |
CE100..LHD;AE10#,EE10# LWR |
1 | ||
| 82661-12200 |
AE10#,EE10# UPR |
1 | ||
| 82661-12200 |
CE100..LHD;AE10#,EE10# UPR |
1 | ||
| 82661-12200 |
EE10#;AE10#..LHD UPR |
1 | ||
| 82661-12220 |
AE10#,CE100,EE10# LWR |
1 | ||
| 82661-12220 |
AE101..LHD;AE102,EE10#;AE101..4FC..GEN LWR |
1 | ||
| 82661-12200 |
AE10#,CE100,EE10# UPR |
1 | ||
| 82661-12200 |
AE10#,CE100,EE10# UPR |
1 | ||
| 82661-12220 |
EE10#;AE10#..LHD LWR |
1 | ||
| 82661-12200 |
AE101..LHD;AE102,EE10#;AE101..4FC..GEN UPR |
1 | ||
| 82661-12220 |
AE10#,EE10# LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE100,EE10# LWR |
1 | ||
| 82661-12220 |
CE100..LHD;AE10#,EE10# LWR |
1 | ||
| 82661-12200 |
AE10#,EE10# UPR |
1 | ||
| 82661-12200 |
CE100..LHD;AE10#,EE10# UPR |
1 | ||
| 82661-12200 |
EE10#;AE10#..LHD UPR |
1 | ||
| 82661-12220 |
AE10#,CE100,EE10# LWR |
1 | ||
| 82661-12220 |
AE101..LHD;AE102,EE10#;AE101..4FC..GEN LWR |
1 | ||
| 82661-12200 |
AE10#,CE100,EE10# UPR |
1 | ||
| 82661-12200 |
AE10#,CE100,EE10# UPR |
1 | ||
| 82661-12220 |
EE10#;AE10#..LHD LWR |
1 | ||
| 82661-12200 |
AE101..LHD;AE102,EE10#;AE101..4FC..GEN UPR |
1 | ||
| 82661-12220 |
AE10#,EE10# LWR |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12260 |
AE101,EE100,105..GL,STD,XL |
1 | ||
| 82670-12260 |
AE101,EE10#..GL,XL |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12120 |
AE101,EE10#..GL,XL |
1 | ||
| 82671-12120 |
AE101,EE100,105..GL,STD,XL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
EE100;AE10#,CE100,EE101,104,105,108..GCC,GEN |
1 | ||
| 82672-12220 |
EE100;AE10#,CE100,EE104,105..GCC,GEN |
1 | ||
| 82623-12010 |
EE105 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12240 |
AE101,EE100,105..GL,STD,XL UPPER |
1 | ||
| 82672-12241 |
AE101,EE100,105..GL,STD,XL UPPER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12241 |
AE101,EE10#..GL,XL UPPER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12240 |
AE101,EE100,105..GL,STD,XL UPPER |
1 | ||
| 82672-12241 |
AE101,EE100,105..GL,STD,XL UPPER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12241 |
AE101,EE10#..GL,XL UPPER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#,CE100,EE10#..GCC,GEN |
1 | ||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02006 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02006 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02006 |
AE10#,CE100,EE10# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10#,CE100,EE10# |
1 | ||
| 90987-03003 |
EE105 |
1 | ||
| 90084-98011 |
AE10#,CE100,EE10# BOSCH |
1 | ||
| 90987-03003 |
AE10#,CE100,EE10# NIPPONDENSO |
1 | ||
| 90084-98011 |
AE101,CE100,EE10# BOSCH |
1 | ||
| 90987-03003 |
AE101,CE100,EE10# NIPPONDENSO |
1 | ||
| 90987-03003 |
AE10#,CE100,EE10# NIPPONDENSO |
1 | ||
| 90987-03003 |
AE10#,CE100,EE10# |
1 | ||
| 90084-98011 |
AE10#,CE100,EE10# BOSCH |
1 | ||
| 90987-03003 |
AE10#,CE100,EE10# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10#,CE100,EE10# |
1 | ||
| 86530-20070 |
AE10#,CE100,EE10# |
1 | ||
| 86530-20070 |
AE10#,CE100,EE10# |
1 | ||
| 86530-20070 |
AE101,CE100,EE10# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE10#,CE100,EE10# |
2 | ||
| 90987-02009 |
AE10#,CE100,EE10# |
2 | ||
| 90987-02009 |
AE10#,CE100,EE10# |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04003 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04003 |
AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 90987-04003 |
AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE10#..GLI,XL |
1 | ||
| 90084-98010 |
AE10#,CE100,EE10# BOSCH |
1 | ||
| 90987-04003 |
AE10#,CE100,EE10# NIPPONDENSO |
1 | ||
| 90987-04003 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06473 | ||||
| 90119-06539 | ||||
| 90167-20001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 8(9205- )LHD
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10#,CE100,EE10# |
1 | ||
| 81980-12110 |
EE105 DENSO |
1 | ||
| 81980-12070 |
AE10#,CE100,EE10# |
1 | ||
| 81980-32010 |
EE105 DENSO |
1 | ||
| 81980-12070 |
AE10#,CE100,EE10# |
1 | ||
| 81980-0W010 |
EE105 TRIDON |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#,CE100,EE10# |
1 | ||
| 82223-12530 |
AE101,CE100,EE10# |
1 | ||
| 82223-12530 |
AE10#,CE100,EE10# |
1 | ||
| 82223-12530 |
AE10#,CE100,EE10# |
1 | ||
| 82223-16030 |
AE101,CE100,EE10# |
1 | ||
| 82223-12530 |
AE10#,CE100,EE10# |
1 | ||
| 82223-16030 |
AE101,CE100,EE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||

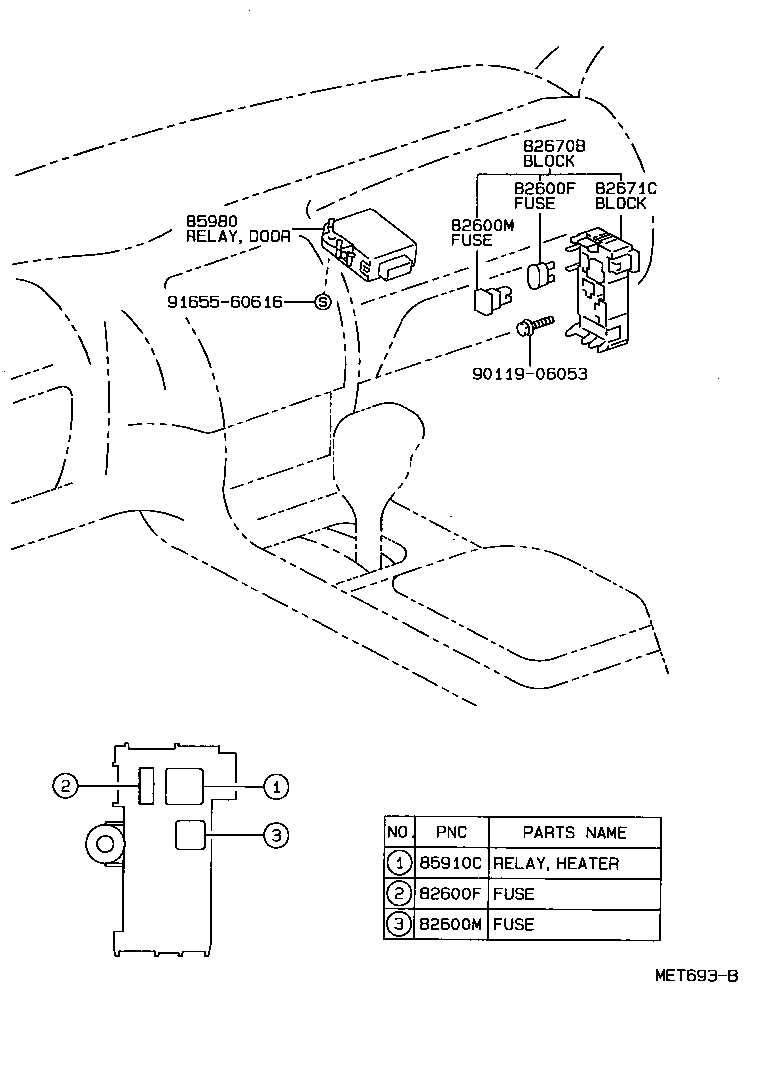

| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12181 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 82683-12181 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 82683-12180 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82683-12180 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#..LHD;CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#..LHD;CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12360 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82670-12360 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82670-12360 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12190 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82671-12190 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82671-12190 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#,CE100,EE10# |
1 | ||
| 82671-12150 |
AE10#,CE100,EE10# |
1 | ||
| 82671-12150 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# |
1 | ||
| 82671-12150 |
AE10#,CE100,EE10# |
1 | ||
| 82671-12150 |
AE10#,CE100,EE10# |
1 | ||
| 82671-12150 |
AE10#..LHD;CE100,EE10# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE101,102,CE100,EE100,105..LHD LWR |
1 | ||
| 82672-12300 |
AE101,102,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12300 |
AE101,102,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12300 |
AE10#,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12290 |
AE101,102,CE100,EE100,105..LHD LWR |
1 | ||
| 82672-12290 |
AE10#,CE100,EE100,105..LHD LWR |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE101,102,CE100,EE100,105..LHD LWR |
1 | ||
| 82672-12300 |
AE101,102,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12300 |
AE101,102,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12300 |
AE10#,CE100,EE100,105..LHD UPR |
1 | ||
| 82672-12290 |
AE101,102,CE100,EE100,105..LHD LWR |
1 | ||
| 82672-12290 |
AE10#,CE100,EE100,105..LHD LWR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE10#,CE100,EE10# |
1 | ||
| 84340-32090 |
AE10#,CE100,EE10# |
1 | ||
| 84340-32050 |
AE10#,CE100,EE10# |
1 | ||
| 84340-32050 |
AE101,CE100,EE10# |
1 | ||
| 84340-32050 |
AE10#,CE100,EE10# |
1 | ||
| 84340-32050 |
AE10#,CE100,EE10# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#,CE100,EE10# |
1 | ||
| 84550-33010 |
AE10#,CE100,EE10# |
1 | ||
| 84550-33010 |
AE101,CE100,EE10# |
1 | ||
| 84550-33010 |
AE10#,CE100,EE10# |
1 | ||
| 84550-33010 |
AE10#,CE100,EE10# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 90987-02009 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 90987-02009 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02009 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02009 |
AE10#,CE100,EE10# |
1 | ||
| 90987-02009 |
AE10#,CE100,EE10# |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-13020 |
EE100,105..LHD..5F..XL..(GEN,TUR) |
1 | ||
| 85931-13010 |
EE10#..MTM |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 90179-06216 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93319-14006 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 7 OF 8(9108- )SED,WG
ROOF,FRONT DOOR & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,EE10#..SED,WG |
2 | ||
| 84231-12080 |
EE104,105,108 |
2 | ||
| 84231-12080 |
AE101,EE104,105..WG..GEN |
2 | ||
| 84231-12080 |
AE101,EE100,104,105..WG..(GCC,GEN) |
2 | ||
| 84231-12080 |
EE105 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,EE10#..SED,WG |
2 | ||
| 84231-12080 |
EE104,105,108 |
2 | ||
| 84231-12080 |
AE101,EE104,105..WG..GEN |
2 | ||
| 84231-12080 |
AE101,EE100,104,105..WG..(GCC,GEN) |
2 | ||
| 84231-12080 |
EE105 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-06582 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93540-54012 | ||||
ILLUST NO. 3 OF 8(9205- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12150 |
AE101,CE100,EE10# |
1 | ||
| 84119-12150 |
AE101,102,CE100,EE100,101,105..GL,GLI,SEG,XL,XLI |
1 | ||
| 84119-12150 |
AE10#,CE100,EE100,101,105..3FC,4FC,5F |
1 | ||
| 84119-12150 |
AE101,102,CE100,EE100,101,105..GL,GLI,SEG,XL,XLI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12340 |
AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 84332-12331 |
AE101,CE100,EE100,105..GCC,GEN W(*RWD) |
1 | ||
| 84332-12330 |
AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN) W(*RWD) |
1 | ||
| 84332-12332 |
AE101,CE100,EE10# W(*RWD) |
1 | ||
| 84332-12342 |
AE101,CE100,EE10# |
1 | ||
| 84332-12342 |
AE101,CE100,EE100,105..GCC,GEN |
1 | ||
| 84332-12332 |
AE101,CE100,EE100,105..GCC,GEN W(*RWD) |
1 | ||
| 84332-12341 |
AE101,CE100,EE100,105..GCC,GEN |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#,CE100,EE10# 14V 0.84W |
1 | ||
| 84999-10320 |
AE101,CE100,EE10# 14V 0.84W |
1 | ||
| 84999-10470 |
EE105 14V 1.12W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10610 |
AE101,CE100,EE10# |
1 | ||
| 84998-10610 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 84998-10610 |
AE10#,CE100,EE10# |
1 | ||
| 84998-10610 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12180 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE101..GLI;AE100,EE10#..GL,L,LX,STD,XL 14V 0.08A |
1 | ||
| 88607-20060 |
AE10#,CE100,EE10#..GL,GLI,L,LX,STD,XL,XLI 14V 0.08A |
1 | ||
| 88607-16010 |
AE101,102,CE100,EE100,105..LHD 14V 0.065A |
1 | ||
| 88607-20060 |
AE102..4FC;AE101..RHD..WG;EE100..SED..TUR;AE101..WG..(GCC,TUR);AE100,CE100,EE10#..GCC,GEN;AE101..(CP,SED)..(GL,GLI,SJ,STD,XL,XLI) 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 84732-12200 |
AE101,102..SED,WG;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI |
1 | ||
| 84732-12200 |
AE10#,CE100,EE10# |
1 | ||
| 84732-12200 |
AE101,102..SED,WG;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 12V 2W |
1 | ||
| 90981-11040 |
AE10#,CE100,EE10# 12V 2W |
1 | ||
| 90981-11040 |
AE10#,CE100,EE10#..SED,WG 12V 2W |
1 | ||
| 90981-11040 |
AE10#,CE100,EE10#..SED,WG 12V 2W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 84998-10100 |
AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 84998-10100 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 84998-10100 |
AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 84998-10100 |
AE10#,CE100,EE10# |
1 | ||
| 84998-10100 |
AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EE105 14V 0.84W |
1 | ||
| 84999-10470 |
AE10#,CE100,EE10#..SED,WG 14V 1.12W |
1 | ||
| 84999-10470 |
AE101,CE100,EE10# 14V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE10#,CE100,EE10#..(SED,WG)..GEN |
1 | ||
| 85500-89106 |
AE10#,CE100,EE100,101,105,108..SED,WG |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE10#,CE100,EE10#..SED,WG 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12080 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
AE10#,CE100,EE100,101,105,108..SED,WG |
1 | ||
| 85520-28010 |
AE10#,CE100,EE10#..GEN |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||
ILLUST NO. 6 OF 8(9205- )LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12060 |
AE10#,CE100,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE100,EE10# |
1 | ||
| 84052-20030 |
AE10#,CE100,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE100,EE10# |
1 | ||
| 84052-12060 |
AE101,CE100,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE100,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80117 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 84112-80116 |
AE101,CE100,EE100,105..LHD..(STD,XL,XLI) W(*IW) |
1 | ||
| 84112-80117 |
AE101,EE100,105..LHD..WG..(GCC,GEN) W(*IW & *RW) |
1 | ||
| 84112-80125 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) W(*IW) |
1 | ||
| 84112-80117 |
EE100..WG;AE101..WG..TUR;AE101..GLI..GCC;EE100..LHD..SED..(STD,XL)..(GCC,GEN);AE101,CE100,EE105..LHD..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 84112-80117 |
EE105..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12360 |
AE101..GLI..(GCC,TUR);AE101,CE100,EE100,105..LHD..(STD,XL,XLI) |
1 | ||
| 84140-12360 |
AE101..GLI..(GCC,TUR);AE101,CE100,EE100,105..LHD..(STD,XL,XLI) |
1 | ||
| 84140-12360 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI) |
1 | ||
| 84140-12340 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) W(*IW) |
1 | ||
| 84140-12360 |
AE101,EE100,105..LHD..WG..(GCC,GEN) W(*IW & *RW) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A670 |
AE101,EE100,105..LHD..WG..(GCC,GEN) W(*IW & *RW) |
1 | ||
| 84310-1A660 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) W(*IW) |
1 | ||
| 84310-1A760 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE101,EE100,105..LHD..WG..(GCC,GEN) W(*IW & *RW) |
1 | ||
| 84312-12050 |
AE101..GLI..(GCC,TUR);AE101,EE100..RHD..(GL,GLI);AE101,CE100,EE10#..L,STD,XL,XLI |
1 | ||
| 84312-12040 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) W(*IW) |
1 | ||
| 84312-12050 |
AE101..GLI..GCC;AE101,EE100..RHD..(GL,GLI);AE10#,CE100,EE10#..L,LX,STD,XL,XLI |
1 | ||
| 84312-12050 |
AE101..GLI..GCC;AE101,EE100..RHD..(GL,GLI);AE101,CE100,EE10#..L,STD,XL,XLI |
1 | ||
| 84312-12050 |
CE100,EE10#;AE101..XL,XLI;AE101..RHD..GLI;AE101..GLI..TUR |
1 | ||
| 84312-12050 |
AE101..GLI..(GCC,TUR);AE101,EE100..RHD..(GL,GLI);AE101,CE100,EE10#..L,STD,XL,XLI |
1 | ||
| 84312-12050 |
AE101,CE100,EE10# |
1 | ||
| 84312-20070 |
EE100..GL;EE100..LHD..GEN;AE10#,EE105..(GL,GLI,XL)..GEN W(*IW) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12070 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 84329-12070 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 84329-12070 |
EE105..LHD |
1 | ||
| 84329-12070 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10#,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE100,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE100,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE100,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE100,EE10# |
1 | ||
| 84450-20260 |
AE101,CE100,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A240 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) W(*IW) |
1 | ||
| 84652-1A330 |
AE101..GLI..GCC;AE101,CE100,EE100,105..LHD..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 84652-1A340 |
AE101,EE100,105..LHD..WG..(GCC,GEN) W(*IW & *RW) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

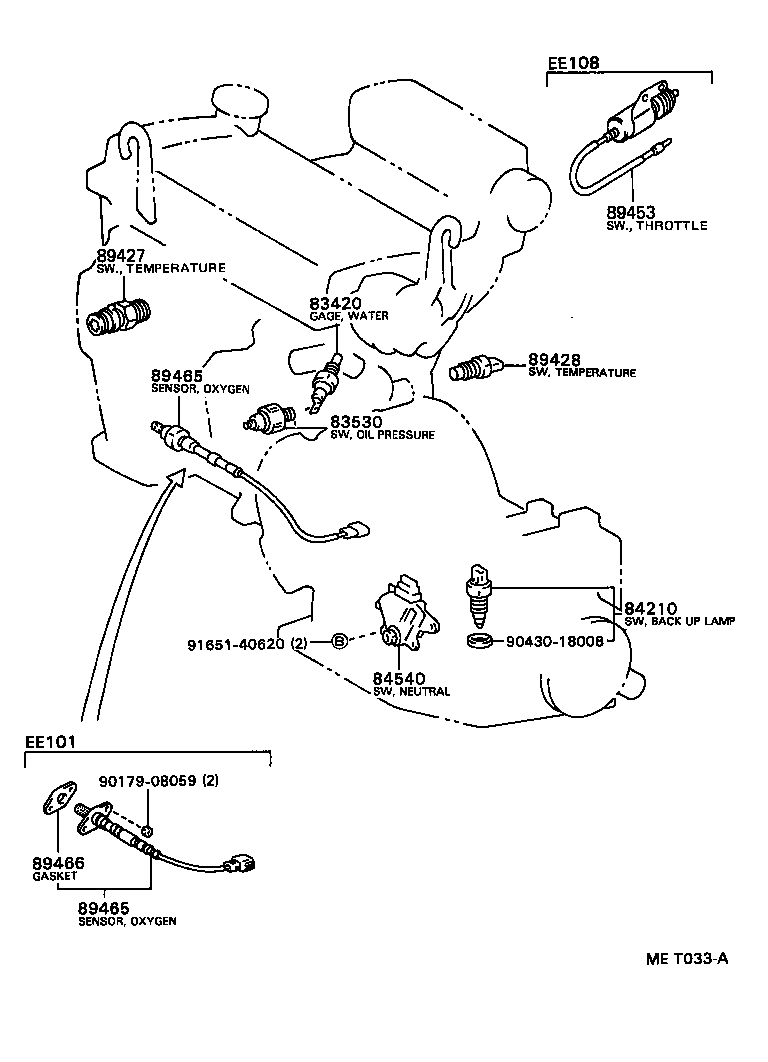

ILLUST NO. 1 OF 8(9108- )EE10#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE10#,EE10# |
1 | ||
| 83420-16020 |
EE10# |
1 | ||
| 83420-16020 |
EE101;AE101,EE100,104,105,108..GL,GTAPX,L,STD,XL |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
AE101,EE10#..GL,GTAPX,L,STD,XL |
1 | ||
| 83530-30090 |
EE10# YAZAKI |
1 | ||
| 83530-14060 |
EE10# NIPPONDENSO |
1 | ||
| 83530-30090 |
EE100,105;AE10#,EE101,104..GLI,L,LX,SEG,SJ,XLI |
1 | ||
| 83530-60020 |
EE10# YAZAKI |
1 | ||
| 83530-28020 |
EE10# DENSO |
1 | ||
| 83530-30090 |
EE100,105;AE10#,EE101,104..GLI,L,SEG,XLI |
1 | ||
| 83530-28020 |
EE10# DENSO |
1 | ||
| 83530-60020 |
EE10# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE101,CE100,EE10#..5F |
1 | ||
| 84210-12040 |
AE100,101,CE100,EE10#..MTM |
1 | ||
| 84210-12040 |
AE100,101,CE100,EE10#..MTM |
1 | ||
| 84210-12040 |
AE10#,CE100,EE10#..MTM |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
EE100,108..RHD..5F;EE100,105..LHD..5F..XL..(GEN,TUR) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10#,EE10# |
1 | ||
| 89428-12160 |
AE10#,EE10# |
1 | ||
| 89428-12160 |
AE101,EE10# |
1 | ||
| 89428-12160 |
AE10#,EE10# |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 5 OF 8(9205- )LHD
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
3 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
5 | ||
| 90982-09003 |
AE10#..LHD;CE100,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#..LHD;CE100,EE10# 10A |
4 | ||
| 90982-09003 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 15A |
5 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#..LHD;CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#..LHD;CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE101..LHD;AE101..4FC..GEN;AE102,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,102,CE100,EE100,105..LHD 30A,PINK |
2 | ||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12380 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82670-12380 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 82670-12380 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12200 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82671-12200 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 82671-12200 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 91655-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
