Toyota Corolla sed/cp/wg EE105 FRONT TURN SIGNAL LAMP

EE105L-AWMDS (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Oct 1999

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9108-9305)SED,WG ; (9305-9508)SED,WG ; (9508-9704)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81510-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81510-12771	EE105	04/1997 - 10/1999	1
81510-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81510-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81510-12771	EE105	04/1997 - 10/1999	1
81510-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	EE105;AE101,EE100..TUR 12V 21W	05/1998 - 10/1999	2
99132-11210	AE10#,CE100,EE10#..SED,WG 12V 21W	05/1993 - 04/1997	2
99132-11210	AE10#,CE100,EE10# 12V 21W	08/1991 - 05/1993	2
99132-11210	EE10#..XL;AE101..XLI;AE101..4FC..GLI;AE101..LHD..5F..GLI 12V 21W	04/1997 - 05/1998	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81511-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81511-12770	EE105	04/1997 - 10/1999	1
81511-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99092	EE10#..XL;AE101..XLI;AE101..4FC..GLI;AE101..LHD..5F..GLI	04/1997 - 05/1998	2
81515-12520	AE10#,CE100,EE10#..(SED,WG)..(GCC,GEN)	08/1991 - 03/1995	2
90075-99092	AE10#,CE100,EE10#	09/1995 - 04/1997	2
90075-99092	AE10#,CE100,EE10#..SED,WG	03/1995 - 09/1995	2
90075-99092	EE105;AE101,EE100..TUR	05/1998 - 10/1999	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81520-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81520-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81520-12751	EE105	04/1997 - 10/1999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81520-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81520-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81520-12751	EE105	04/1997 - 10/1999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81521-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81521-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81521-12750	EE105	04/1997 - 10/1999	1
Common parts
90168-50059
90189-05050

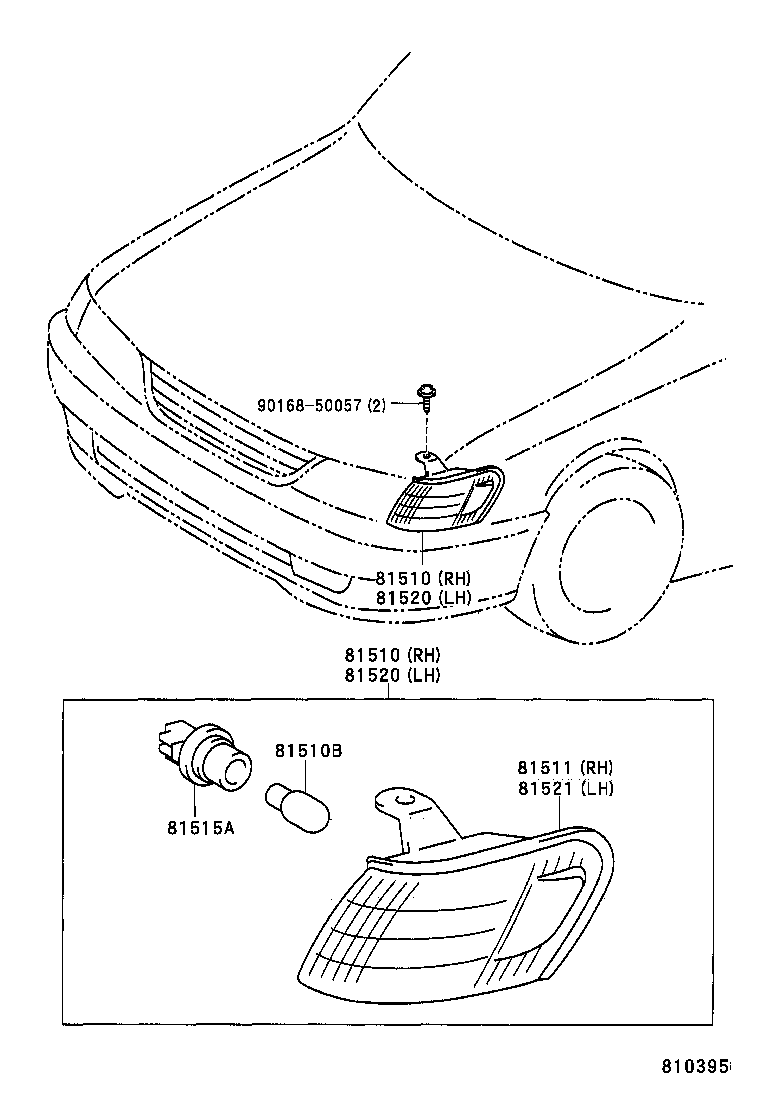

(9907- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81510-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81510-12771	EE105	04/1997 - 10/1999	1
81510-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81510-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81510-12771	EE105	04/1997 - 10/1999	1
81510-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	EE105;AE101,EE100..TUR 12V 21W	05/1998 - 10/1999	2
99132-11210	AE10#,CE100,EE10#..SED,WG 12V 21W	05/1993 - 04/1997	2
99132-11210	AE10#,CE100,EE10# 12V 21W	08/1991 - 05/1993	2
99132-11210	EE10#..XL;AE101..XLI;AE101..4FC..GLI;AE101..LHD..5F..GLI 12V 21W	04/1997 - 05/1998	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12670	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81511-12670	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81511-12770	EE105	04/1997 - 10/1999	1
81511-12670	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81520-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81520-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81520-12751	EE105	04/1997 - 10/1999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81520-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81520-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81520-12751	EE105	04/1997 - 10/1999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12520	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	1
81521-12520	AE101,102,CE100,EE100,101,105,108..(SED,WG)..(GCC,GEN)	05/1993 - 08/1995	1
81521-12520	AE10#,CE100,EE100,101,105..GEN	08/1995 - 04/1997	1
81521-12750	EE105	04/1997 - 10/1999	1
Common parts
90168-50057
