EE105L-AWMDS (1992)
Toyota Corolla Sed/Cp/Wg
ILLUST NO. 2 OF 2(9108- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-13150J0 |
EE105..LHD W(VINYL VISOR & MIRROR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-13140J0 |
EE105 LIGHT BLUE,TRIM8# |
1 | ||
| 74310-13150B0 |
EE105..LHD W(VINYL VISOR & MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13140B0 |
EE105 LIGHT GRAY,TRIM1# |
1 | ||
| 74310-13150B2 |
EE105..LHD W(VINYL VISOR & MIRROR),LT.GRAY,TRIM1# |
1 | ||
| 74310-13140B2 |
EE105 LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-13060J0 |
EE105 LIGHT BLUE,TRIM8# |
1 | ||
| 74320-13060B2 |
EE105 W(*80 DRIVER SIDE & FRONT PASSENGER SIDE),LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-13010J0 |
EE105 LIGHT BLUE,TRIM8# |
2 | ||
| 74348-13010B1 |
EE105 LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12060S3 |
EE10#..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090J0 |
AE101,102,CE100,EE100,101,105..(3FC,4FC,5F)..(GL,GLI,STD,XL,XLI) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-12090B0 |
EE100,104,105,108..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
AE10#,EE10# LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12090B2 |
EE105 LT.GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12060S3 |
EE10#..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090J0 |
AE101,102,CE100,EE100,101,105..(3FC,4FC,5F)..(GL,GLI,STD,XL,XLI) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-12090B0 |
EE100,104,105,108..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
AE10#,EE10# LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12090B2 |
EE105 LT.GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12060S3 |
EE10#..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090J0 |
AE101,102,CE100,EE100,101,105..(3FC,4FC,5F)..(GL,GLI,STD,XL,XLI) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-12090B0 |
EE100,104,105,108..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
AE10#,EE10# LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12090B2 |
EE105 LT.GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-12060S3 |
EE10#..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090J0 |
AE101,102,CE100,EE100,101,105..(3FC,4FC,5F)..(GL,GLI,STD,XL,XLI) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-12090B0 |
EE100,104,105,108..L,STD LIGHT GRAY,TRIM1# |
1 | ||
| 74610-12090B0 |
AE10#,EE10# LIGHT GRAY,TRIM1# |
3 | ||
| 74610-12090B2 |
EE105 LT.GRAY,TRIM1# |
3 | ||
| Common parts | ||||
| 90152-60046 | ||||
| 90159-60367 | ||||
| 90159-60503 | ||||
| 90189-06097 | ||||
| 90202-05005 | ||||
| 93530-45016 | ||||
| 93530-45020 | ||||
| 93540-56025 | ||||

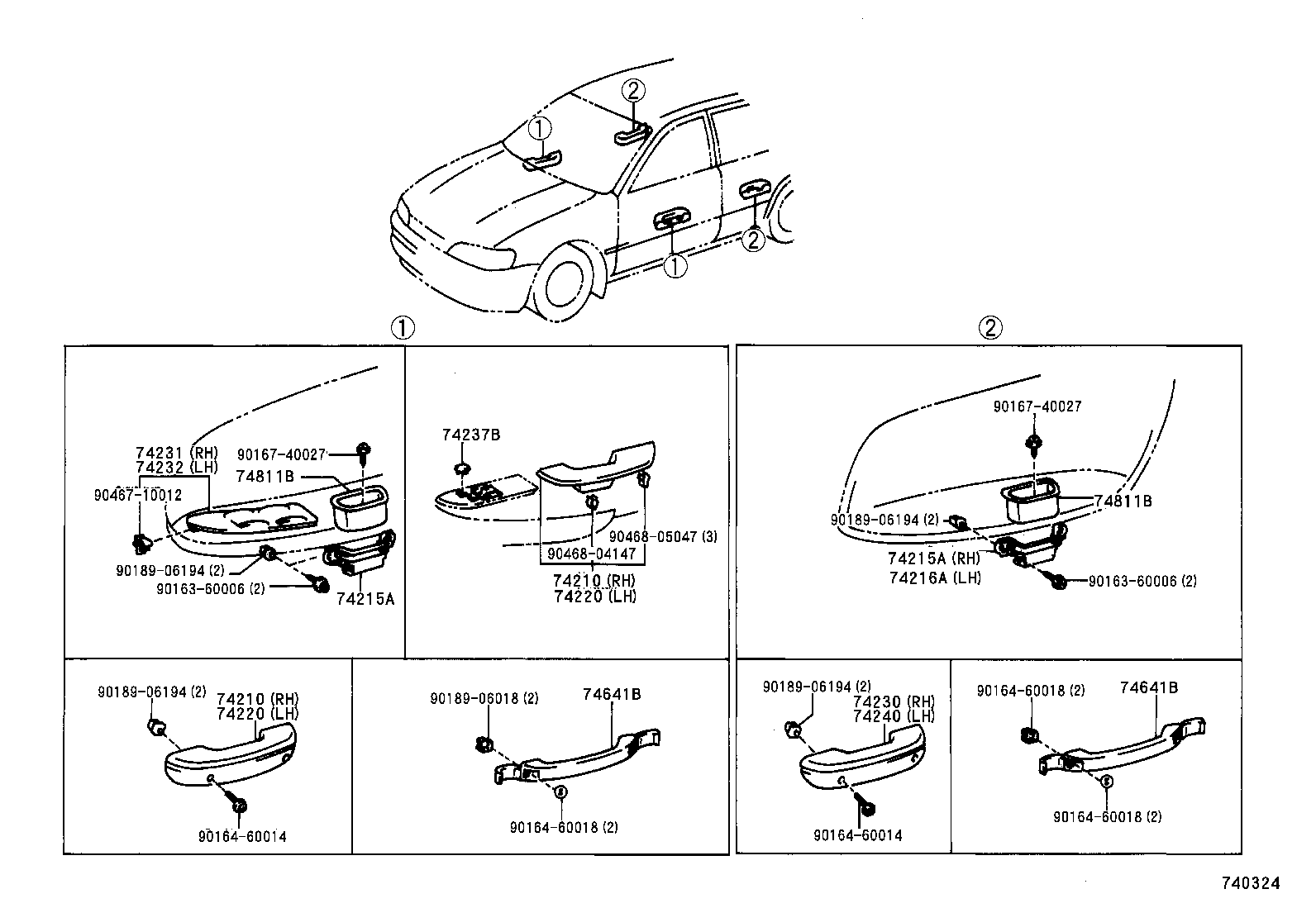

ILLUST NO. 1 OF 2(9108- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-16010W3 |
EE105..XL DARK BLUE,TRIM8# |
2 | ||
| 74641-16010P0 |
EE105 SHADOW GRAY,TRIM1# |
2 | ||
| 74641-16010W3 |
EE105..XL;EE105..LHD..STD DARK BLUE,TRIM8# |
2 | ||
| 74641-1601023 |
EE104,105..5F;EE105..LHD..STD GRAY,TRIM1# |
2 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-16010W3 |
EE105..XL DARK BLUE,TRIM8# |
2 | ||
| 74641-16010P0 |
EE105 SHADOW GRAY,TRIM1# |
2 | ||
| 74641-16010W3 |
EE105..XL;EE105..LHD..STD DARK BLUE,TRIM8# |
2 | ||
| 74641-1601023 |
EE104,105..5F;EE105..LHD..STD GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90163-60006 | ||||
| 90164-60014 | ||||
| 90164-60018 | ||||
| 90167-40027 | ||||
| 90189-06018 | ||||
| 90189-06194 | ||||
| 90467-10012 | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
ILLUST NO. 2 OF 2(9401- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-16060W3 |
AE10#,CE100,EE100,101,105..LX,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060P0 |
AE100,101,CE100,EE10#..L,LX,XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 74210-16060W3 |
AE101,CE100,EE100,101,105..XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74210-16060W3 |
EE105..XL;EE105..LHD..STD;AE101,CE100,EE100,101..STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-16010W3 |
EE105..XL DARK BLUE,TRIM8# |
2 | ||
| 74641-16010P0 |
EE105 SHADOW GRAY,TRIM1# |
2 | ||
| 74641-16010W3 |
EE105..XL;EE105..LHD..STD DARK BLUE,TRIM8# |
2 | ||
| 74641-1601023 |
EE104,105..5F;EE105..LHD..STD GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06194 | ||||
