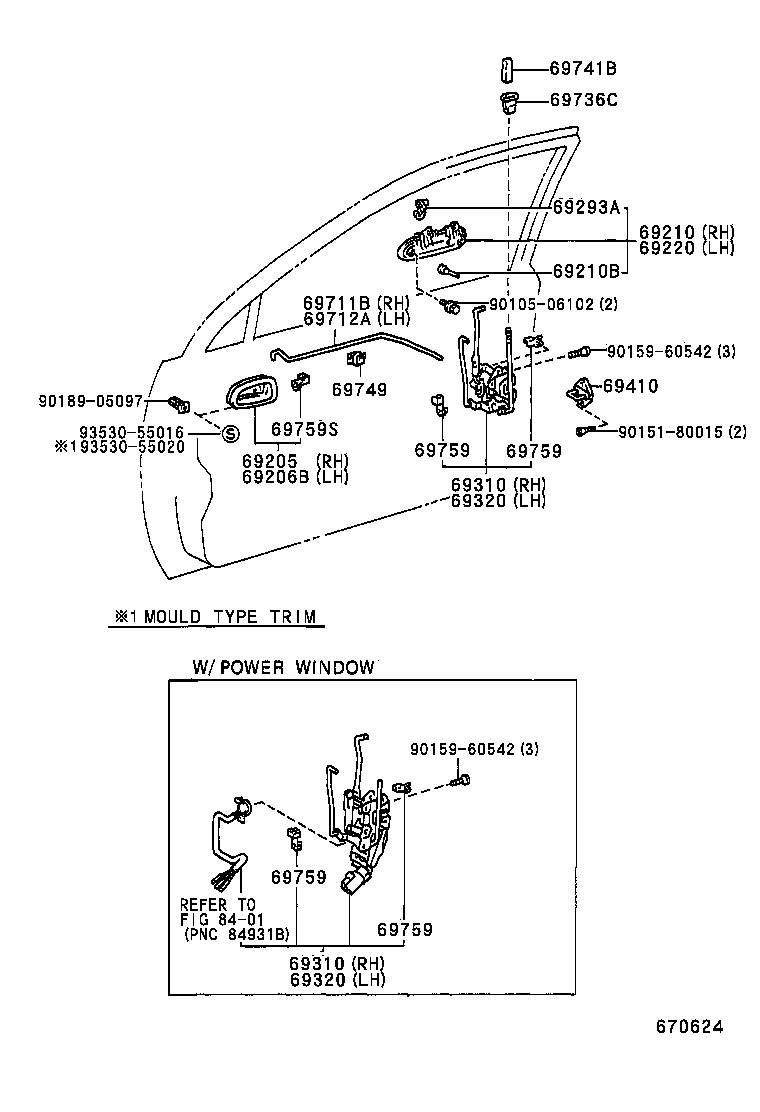

Toyota Corolla sed/cp/wg EE105 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1213004	AE10#,CE100,EE100,101,105..LX,STD,XL,XLI DARK BLUE,TRIM8#	08/1991 - 05/1993	1
69205-1213004	AE101,CE100,EE100,101,105..STD,XL,XLI DARK BLUE,TRIM8#	05/1993 - 08/1994	1
69205-1213003	AE101..GLI..TUR;AE100,101,CE100,EE10#..L,LX,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 04/1997	1
69205-12130P0	EE105 SHADOW GRAY,TRIM1#	04/1997 - 10/1999	1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1213004	AE10#,CE100,EE100,101,105..LX,STD,XL,XLI DARK BLUE,TRIM8#	08/1991 - 05/1993	1
69206-1213003	AE101..GLI..TUR;AE100,101,CE100,EE10#..L,LX,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 04/1997	1
69206-1213004	AE101,CE100,EE100,101,105..STD,XL,XLI DARK BLUE,TRIM8#	05/1993 - 08/1994	1
69206-12130P0	EE105 SHADOW GRAY,TRIM1#	04/1997 - 10/1999	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12160	AE101..XLI..GCC;AE101..(GL,GLI,STD,XL,XLI)..GEN;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI	08/1991 - 05/1993	1
69210-12160	EE105 (J)	04/1997 - 10/1999	1
69210-12160	AE101..XLI..GCC;AE102,CE100,EE10#;AE101..(GL,GLI,STD,XL,XLI)..(GEN,TUR)	05/1993 - 04/1997	1
69210-02010	EE105 (L)	04/1997 - 10/1999	1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014	AE10#,CE100,EE10#	08/1991 - 09/1994	4
90541-04014	AE10#,CE100,EE10#	09/1994 - 09/1995	4
90080-54005	EE105 (L)	04/1997 - 10/1999	4
90541-04014	AE10#,CE100,EE10#	09/1995 - 04/1997	4
90541-04014	EE105 (J)	04/1997 - 10/1999	4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12160	AE101..XLI..GCC;AE101..(GL,GLI,STD,XL,XLI)..GEN;AE100,CE100,EE10#..GL,L,LX,STD,XL,XLI	08/1991 - 05/1993	1
69220-02010	EE105 (L)	04/1997 - 10/1999	1
69220-12160	AE101..XLI..GCC;AE102,CE100,EE10#;AE101..(GL,GLI,STD,XL,XLI)..(GEN,TUR)	05/1993 - 04/1997	1
69220-12160	EE105 (J)	04/1997 - 10/1999	1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040	AE10#,CE100,EE10# LH	09/1994 - 09/1995	1
69293-12030	AE10#,CE100,EE10# RH	08/1991 - 09/1994	1
69293-12040	AE10#,CE100,EE10# LH	08/1991 - 09/1994	1
69293-01060	EE105 (L),LH	04/1997 - 10/1999	1
69293-12030	AE10#,CE100,EE10# RH	09/1994 - 09/1995	1
69293-12030	AE10#,CE100,EE10# (J),RH	09/1995 - 04/1997	1
69293-12040	AE10#,CE100,EE10# (J),LH	04/1997 - 12/2999	1
69293-01050	EE105 (L),RH	04/1997 - 10/1999	1
69293-12040	AE10#,CE100,EE10# (J),LH	09/1995 - 04/1997	1
69293-12030	AE10#,CE100,EE10# (J),RH	04/1997 - 12/2999	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12450	AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)	08/1991 - 04/1997	1
69310-12450	EE100..XL..GEN;AE101..4FC..GLI..GEN;AE101..LHD..5F..GLI..GEN;AE101,CE100,EE105..(GL,XL,XLI)..GEN	04/1997 - 12/2999	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12450	AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)	08/1991 - 04/1997	1
69310-12450	EE100..XL..GEN;AE101..4FC..GLI..GEN;AE101..LHD..5F..GLI..GEN;AE101,CE100,EE105..(GL,XL,XLI)..GEN	04/1997 - 12/2999	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12460	AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)	08/1991 - 04/1997	1
69320-12460	EE100..XL..GEN;AE101..4FC..GLI..GEN;AE101..LHD..5F..GLI..GEN;AE101,CE100,EE105..(GL,XL,XLI)..GEN	04/1997 - 12/2999	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12460	AE101,CE100,EE100,101,105..(GL,GLI,STD,XL,XLI)..(GCC,GEN)	08/1991 - 04/1997	1
69320-12460	EE100..XL..GEN;AE101..4FC..GLI..GEN;AE101..LHD..5F..GLI..GEN;AE101,CE100,EE105..(GL,XL,XLI)..GEN	04/1997 - 12/2999	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20070	AE10#,CE100,EE10#..SED,WG	08/1991 - 05/1993	2
69410-87001	AE10#,CE100,EE10#..SED,WG	05/1993 - 09/1994	2
69410-87001	AE10#,CE100,EE10#	04/1997 - 12/2999	2
69410-87001	AE10#,CE100,EE10#..SED,WG	09/1994 - 09/1995	2
69410-87001	AE10#,CE100,EE10#	09/1995 - 04/1997	2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-12130	AE10#,CE100,EE10#..SED,WG	08/1991 - 09/1994	1
69711-12130	AE10#,CE100,EE10#..SED,WG	09/1994 - 09/1995	1
69711-12130	AE10#,CE100,EE10#	04/1997 - 12/2999	1
69711-12130	AE10#,CE100,EE10#	09/1995 - 04/1997	1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-12140	AE10#,CE100,EE10#..SED,WG	08/1991 - 09/1994	1
69712-12140	AE10#,CE100,EE10#..SED,WG	09/1994 - 09/1995	1
69712-12140	AE10#,CE100,EE10#	04/1997 - 12/2999	1
69712-12140	AE10#,CE100,EE10#	09/1995 - 04/1997	1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12100	EE105..XL;AE10#,CE100,EE100,101..SED,WG	08/1991 - 09/1994	2
69736-12100	EE105..XL;AE10#,CE100,EE100,101	09/1995 - 04/1997	2
69736-12100	AE10#,CE100,EE10#	04/1997 - 12/2999	2
69736-12100	EE105..XL;AE10#,CE100,EE100,101..SED,WG	09/1994 - 09/1995	2
69751-12060B0	EE104,105,108..L,STD SHADOW GRAY,TRIM1#	06/1992 - 04/1997	2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-8700313	AE101,EE105..(SED,WG)..(3FC,4FC,5F);AE100,CE100,EE100,101..GL,LX,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 05/1993	2
69741-8700314	EE105..XL;AE10#,CE100,EE100,101..SED,WG DARK BLUE,TRIM8#	08/1991 - 05/1993	2
69741-8700313	EE105..XL;AE10#,CE100,EE100,101..SED,WG SHADOW GRAY,TRIM1#	05/1993 - 04/1997	2
69741-8700314	EE105..XL;AE101,102,CE100,EE100,101..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8#	05/1993 - 08/1994	2
69741-87003P0	EE105 SHADOW GRAY,TRIM1#	04/1997 - 10/1999	2
69741-90K00B2	EE104,105..L,STD SHADOW GRAY,TRIM1#	05/1996 - 04/1997	2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-50020	AE10#,EE10#	08/1991 - 05/1992	2
69749-50020	AE10#,CE100,EE10#..SED,WG YELLOW	05/1992 - 03/1993	2
69749-12070	EE105	04/1997 - 10/1999	2
69749-50020	AE10#,CE100,EE10#	03/1993 - 09/1994	2
69749-12070	AE10#,CE100,EE10# BLUE	09/1995 - 04/1997	2
69749-12070	EE100;EE105..LHD..STD;AE101,102,CE100,EE101,104,105..GL,GLI,L,SEG,XL,XLI BLUE	09/1994 - 09/1995	2
69749-50020	AE10#,CE100,EE10# YELLOW	09/1995 - 05/1997	2
69749-50020	AE10#,CE100,EE10# YELLOW	09/1994 - 09/1995	2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	08/1991 - 09/1994	1
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	09/1994 - 09/1995	2
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	08/1991 - 09/1994	2
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	08/1991 - 09/1994	2
69759-24020	AE10#,CE100,EE10# BLUE	09/1995 - 04/1997	1
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	09/1994 - 09/1995	2
69759-24010	AE10#,CE100,EE10# NATURAL	09/1995 - 04/1997	1
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	08/1991 - 09/1994	1
69759-24020	AE10#,CE100,EE10# BLUE	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	09/1995 - 04/1997	2
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	09/1994 - 09/1995	1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	09/1994 - 09/1995	1
69759-24010	AE10#,CE100,EE10# NATURAL	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	09/1995 - 04/1997	2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	08/1991 - 09/1994	1
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	09/1994 - 09/1995	2
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	08/1991 - 09/1994	2
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	08/1991 - 09/1994	2
69759-24020	AE10#,CE100,EE10# BLUE	09/1995 - 04/1997	1
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	09/1994 - 09/1995	2
69759-24010	AE10#,CE100,EE10# NATURAL	09/1995 - 04/1997	1
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	08/1991 - 09/1994	1
69759-24020	AE10#,CE100,EE10# BLUE	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	09/1995 - 04/1997	2
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	09/1994 - 09/1995	1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	09/1994 - 09/1995	1
69759-24010	AE10#,CE100,EE10# NATURAL	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	09/1995 - 04/1997	2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	08/1991 - 09/1994	1
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	09/1994 - 09/1995	2
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	08/1991 - 09/1994	2
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	08/1991 - 09/1994	2
69759-24020	AE10#,CE100,EE10# BLUE	09/1995 - 04/1997	1
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	09/1994 - 09/1995	2
69759-24010	AE10#,CE100,EE10# NATURAL	09/1995 - 04/1997	1
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	08/1991 - 09/1994	1
69759-24020	AE10#,CE100,EE10# BLUE	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	09/1995 - 04/1997	2
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	09/1994 - 09/1995	1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	09/1994 - 09/1995	1
69759-24010	AE10#,CE100,EE10# NATURAL	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	09/1995 - 04/1997	2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	08/1991 - 09/1994	1
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	09/1994 - 09/1995	2
69759-24050	AE10#,CE100,EE10#..SED,WG GREEN	08/1991 - 09/1994	2
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	08/1991 - 09/1994	2
69759-24020	AE10#,CE100,EE10# BLUE	09/1995 - 04/1997	1
69759-24060	AE10#,CE100,EE10#..SED,WG GRAY	09/1994 - 09/1995	2
69759-24010	AE10#,CE100,EE10# NATURAL	09/1995 - 04/1997	1
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	08/1991 - 09/1994	1
69759-24020	AE10#,CE100,EE10# BLUE	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	09/1995 - 04/1997	2
69759-24010	AE10#,CE100,EE10#..SED,WG NATURAL	09/1994 - 09/1995	1
69759-24020	AE10#,CE100,EE10#..SED,WG BLUE	09/1994 - 09/1995	1
69759-24010	AE10#,CE100,EE10# NATURAL	04/1997 - 12/2999	1
69759-24060	AE10#,CE100,EE10# GRAY	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	04/1997 - 12/2999	2
69759-24050	AE10#,CE100,EE10# GREEN	09/1995 - 04/1997	2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22040	AE10#,CE100,EE10#..SED,WG LH	08/1991 - 09/1994	1
69759-22040	AE10#,CE100,EE10# LH	04/1997 - 12/2999	1
69759-22040	AE10#,CE100,EE10#..SED,WG LH	09/1994 - 09/1995	1
69759-22050	AE10#,CE100,EE10#..SED,WG RH	08/1991 - 09/1994	1
69759-22040	AE10#,CE100,EE10# LH	09/1995 - 04/1997	1
69759-22050	AE10#,CE100,EE10#..SED,WG RH	09/1994 - 09/1995	1
69759-22050	AE10#,CE100,EE10# RH	04/1997 - 12/2999	1
69759-22050	AE10#,CE100,EE10# RH	09/1995 - 04/1997	1
Common parts
90105-06102
90151-80015
90159-60542
90189-05097
93530-55016
93530-55020
Linked diagrams
8401

EE105L-AWMDS (1992)

(9108- )SED,WG
