EE105L-AWMDS (1992)
Toyota Corolla Sed/Cp/Wg

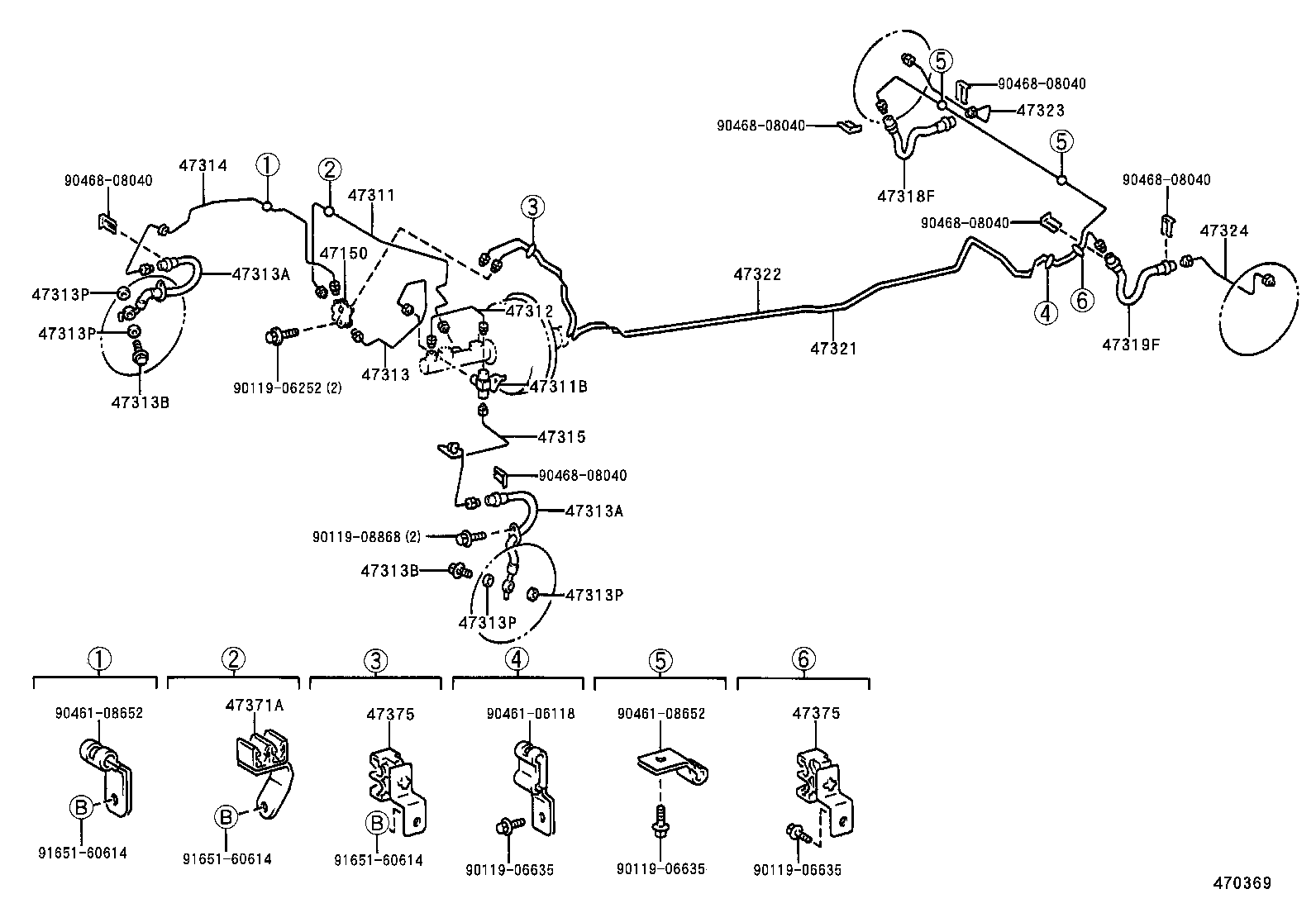

(9704- )EE105..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105 |
1 | ||
| 47150-12270 |
CE100,EE10#;AE10#..GLI,XLI |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 47150-12270 |
AE101,CE100,EE10# |
1 | ||
| 47150-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12610 |
EE105..LHD |
1 | ||
| 47311-12490 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10159 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12350 |
EE105..LHD |
1 | ||
| 47312-12260 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12300 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313-12300 |
AE102,EE105..LHD;AE101..LHD..(GLI,XLI) |
1 | ||
| 47313-12410 |
AE101,EE10#..LHD..XL |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02913 |
EE105 LH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02910 |
EE105 RH |
1 | ||
| 90947-02914 |
EE105 ROUGH ROAD PACKAGE,RH |
1 | ||
| 90947-02917 |
EE105 ROUGH ROAD PACKAGE,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02913 |
EE105 LH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02910 |
EE105 RH |
1 | ||
| 90947-02914 |
EE105 ROUGH ROAD PACKAGE,RH |
1 | ||
| 90947-02917 |
EE105 ROUGH ROAD PACKAGE,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE101,CE100,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 90401-10058 |
EE105 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE101,CE100,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 90401-10058 |
EE105 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47314-12371 |
AE10#,EE10#..LHD |
1 | ||
| 47314-12371 |
EE105..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12420 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02908 |
EE105 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02908 |
EE105 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13070 |
EE105..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13110 |
EE105..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12120 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47371-12200 |
EE105..LHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
EE105..LHD |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
EE105..LHD |
2 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90461-08652 | ||||
| 90468-08040 | ||||
| 91651-60614 | ||||

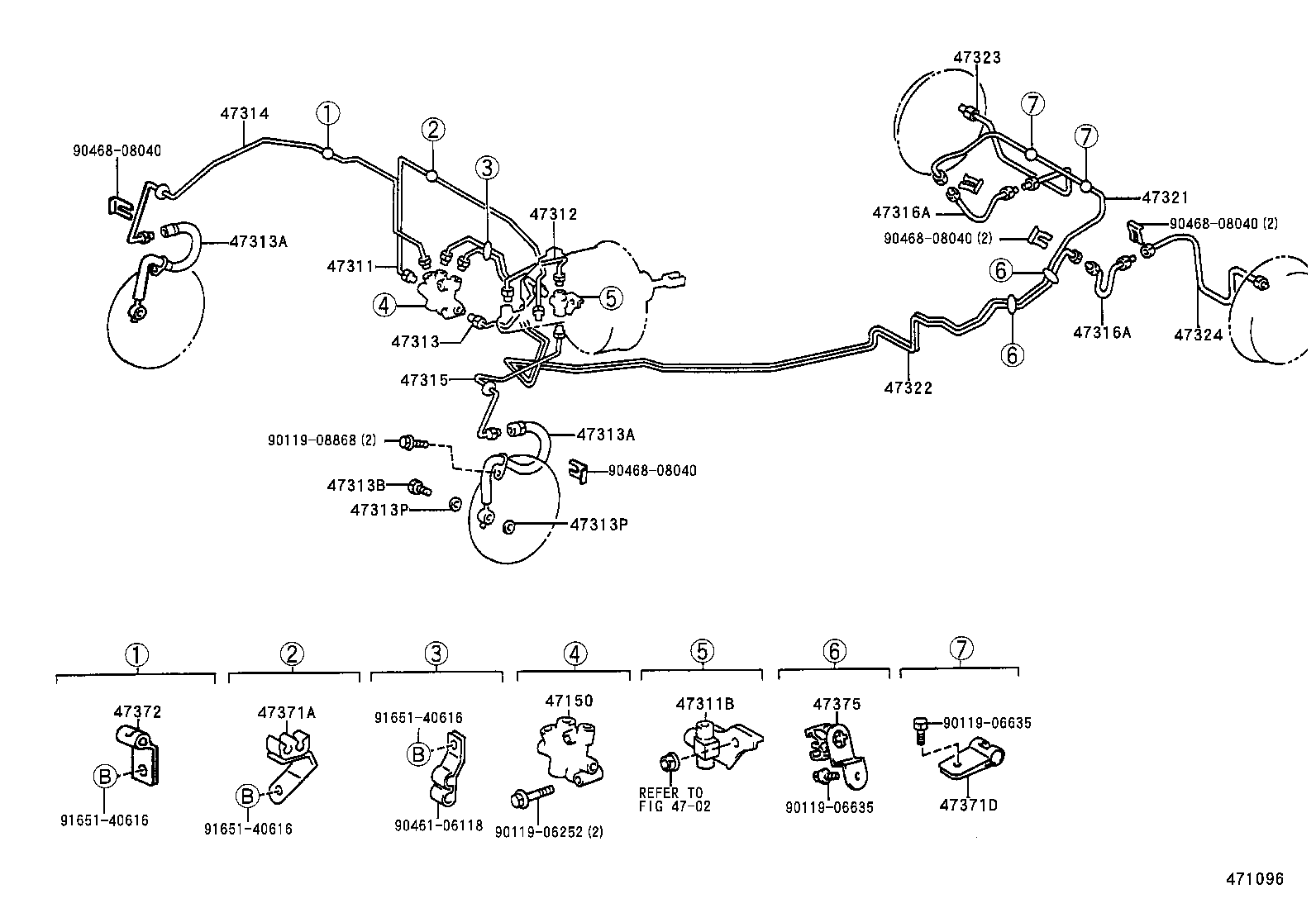

(9205-9704)EE105..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105 |
1 | ||
| 47150-12270 |
CE100,EE10#;AE10#..GLI,XLI |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 47150-12270 |
AE101,CE100,EE10# |
1 | ||
| 47150-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12610 |
EE105..LHD |
1 | ||
| 47311-12490 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10159 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12350 |
EE105..LHD |
1 | ||
| 47312-12260 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12300 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313-12300 |
AE102,EE105..LHD;AE101..LHD..(GLI,XLI) |
1 | ||
| 47313-12410 |
AE101,EE10#..LHD..XL |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02913 |
EE105 LH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02910 |
EE105 RH |
1 | ||
| 90947-02914 |
EE105 ROUGH ROAD PACKAGE,RH |
1 | ||
| 90947-02917 |
EE105 ROUGH ROAD PACKAGE,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02913 |
EE105 LH |
1 | ||
| 90947-02913 |
AE101,CE100,EE10# LH |
1 | ||
| 90947-02910 |
AE101,CE100,EE10# RH |
1 | ||
| 90947-02910 |
EE105 RH |
1 | ||
| 90947-02914 |
EE105 ROUGH ROAD PACKAGE,RH |
1 | ||
| 90947-02917 |
EE105 ROUGH ROAD PACKAGE,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE101,CE100,EE10# |
2 | ||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 90401-10058 |
EE105 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE101,CE100,EE10# |
4 | ||
| 47389-50020 |
EE105 |
2 | ||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47314-12371 |
AE10#,EE10#..LHD |
1 | ||
| 47314-12371 |
EE105..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12420 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
EE104,105 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02830 |
EE104,105 |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13070 |
EE105..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13110 |
EE105..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12120 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47371-12200 |
EE105..LHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-08652 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 90461-06119 |
AE10#,CE100,EE10# |
1 | ||
| 90461-06119 |
AE101,CE100,EE10# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
EE105..LHD |
2 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90461-06118 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
