Toyota Corolla sed/cp/wg EE105 PARKING BRAKE & CABLE

EE105L-AWMDS (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Oct 1999

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )

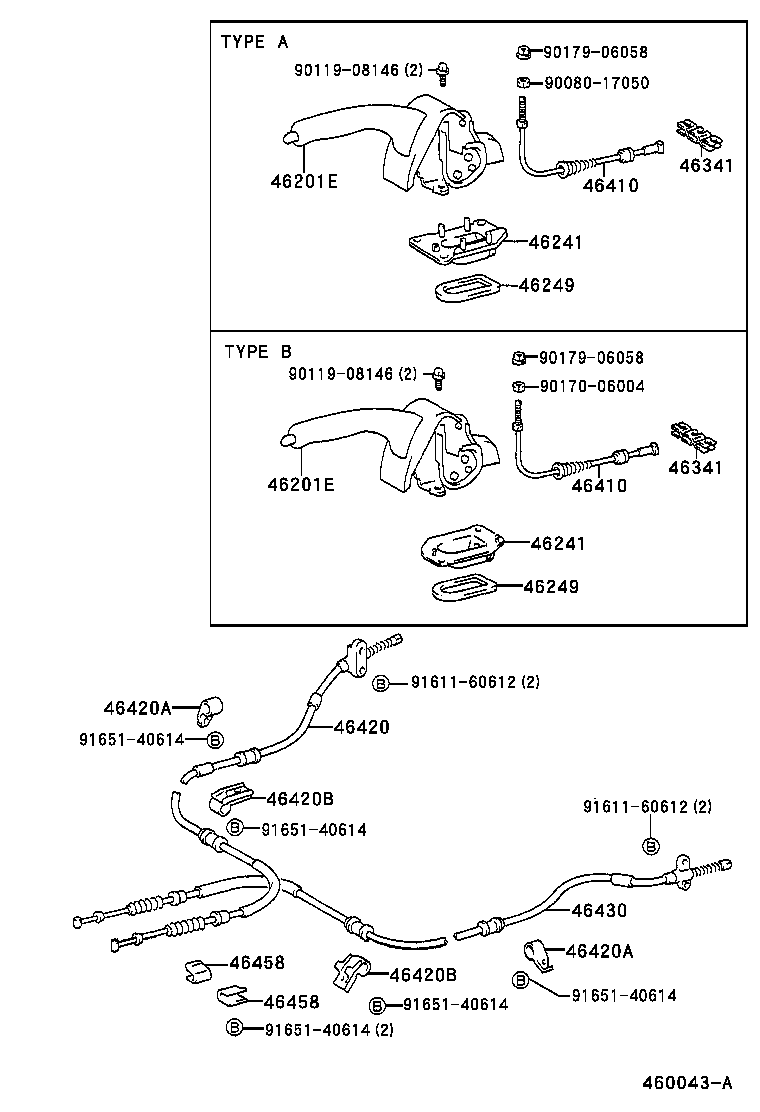

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12150J0	AE101,CE100,EE100,101,105..STD,XL,XLI DARK BLUE,TRIM8#	08/1991 - 08/1994	1
46201-12150B0	AE101,CE100,EE10#..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 05/1995	1
46201-12180B0	AE101,CE100,EE100,104,105..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	05/1995 - 08/1995	1
46201-12180B0	AE101,EE100..SED..(XL,XLI)..TUR;AE101,CE100,EE10#..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	08/1996 - 04/1997	1
46201-12180B0	AE101,CE100,EE100,104,105..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12150J0	AE101,CE100,EE100,101,105..STD,XL,XLI DARK BLUE,TRIM8#	08/1991 - 08/1994	1
46201-12150B0	AE101,CE100,EE10#..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 05/1995	1
46201-12180B0	AE101,CE100,EE100,104,105..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	05/1995 - 08/1995	1
46201-12180B0	AE101,EE100..SED..(XL,XLI)..TUR;AE101,CE100,EE10#..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	08/1996 - 04/1997	1
46201-12180B0	AE101,CE100,EE100,104,105..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
46241 - BOOT, PARKING BRAKE LEVER
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46241-12090	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46241-12090	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	06/1993 - 09/1994	1
46241-12090	AE10#,CE100,EE10#	08/1991 - 06/1993	1
46241-12110	CE100,EE10#..XL	05/1999 - 12/2999	1
46241 - BOOT, PARKING BRAKE LEVER
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46241-12090	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46241-12090	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	06/1993 - 09/1994	1
46241-12090	AE10#,CE100,EE10#	08/1991 - 06/1993	1
46241-12110	CE100,EE10#..XL	05/1999 - 12/2999	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	09/1994 - 09/1995	1
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	08/1991 - 09/1994	1
46249-12010	AE101,CE100,EE10#..L,STD,XL,XLI	09/1995 - 04/1997	1
46249-12010	EE105;AE10#,EE100..GL,GLI TYPE B:REFER TO ILLUSTRATION	04/1997 - 12/2999	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	09/1994 - 09/1995	1
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	08/1991 - 09/1994	1
46249-12010	AE101,CE100,EE10#..L,STD,XL,XLI	09/1995 - 04/1997	1
46249-12010	EE105;AE10#,EE100..GL,GLI TYPE B:REFER TO ILLUSTRATION	04/1997 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12020	AE10#,CE100,EE10#	09/1994 - 09/1995	1
46341-12020	AE101,CE100,EE10#	05/1999 - 12/2999	1
46341-12020	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46341-12020	AE10#,CE100,EE10#	09/1995 - 05/1999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12020	AE10#,CE100,EE10#	09/1994 - 09/1995	1
46341-12020	AE101,CE100,EE10#	05/1999 - 12/2999	1
46341-12020	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46341-12020	AE10#,CE100,EE10#	09/1995 - 05/1999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12210	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46410-12250	CE100,EE10#..XL	05/1999 - 12/2999	1
46410-12210	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12210	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46410-12250	CE100,EE10#..XL	05/1999 - 12/2999	1
46410-12210	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746	AE10#,CE100,EE10#	08/1991 - 09/1994	2
90949-01746	AE101,CE100,EE10#	05/1999 - 12/2999	2
90949-01746	AE10#,CE100,EE10#	09/1994 - 09/1995	2
90949-01746	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746	AE10#,CE100,EE10#	08/1991 - 09/1994	2
90949-01746	AE101,CE100,EE10#	05/1999 - 12/2999	2
90949-01746	AE10#,CE100,EE10#	09/1994 - 09/1995	2
90949-01746	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01747	AE10#,CE100,EE10# RH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1995 - 05/1999	1
90949-01744	AE10#,CE100,EE10# LH	09/1995 - 05/1999	1
90949-01744	AE101,CE100,EE10# LH	05/1999 - 12/2999	1
90949-01747	AE101,CE100,EE10# RH	05/1999 - 12/2999	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01747	AE10#,CE100,EE10# RH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1995 - 05/1999	1
90949-01744	AE10#,CE100,EE10# LH	09/1995 - 05/1999	1
90949-01744	AE101,CE100,EE10# LH	05/1999 - 12/2999	1
90949-01747	AE101,CE100,EE10# RH	05/1999 - 12/2999	1
46458 - RETAINER, CABLE
46458-50010	AE10#,CE100,EE10#	08/1991 - 09/1994	2
46458-50010	AE101,CE100,EE10#	05/1999 - 12/2999	2
46458-50010	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46458-50010	AE10#,CE100,EE10#	09/1994 - 09/1995	2
46458 - RETAINER, CABLE
46458-50010	AE10#,CE100,EE10#	08/1991 - 09/1994	2
46458-50010	AE101,CE100,EE10#	05/1999 - 12/2999	2
46458-50010	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46458-50010	AE10#,CE100,EE10#	09/1994 - 09/1995	2
Common parts
90080-17050
90119-08146
90170-06004
90179-06058
91611-60612
91651-40614

(9108-9505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12150J0	AE101,CE100,EE100,101,105..STD,XL,XLI DARK BLUE,TRIM8#	08/1991 - 08/1994	1
46201-12150B0	AE101,CE100,EE10#..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1991 - 05/1995	1
46201-12180B0	AE101,CE100,EE100,104,105..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	05/1995 - 08/1995	1
46201-12180B0	AE101,EE100..SED..(XL,XLI)..TUR;AE101,CE100,EE10#..(L,STD,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1#	08/1996 - 04/1997	1
46201-12180B0	AE101,CE100,EE100,104,105..L,STD,XL,XLI SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
46241 - BOOT, PARKING BRAKE LEVER
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46241-12110	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46241-12090	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46241-12090	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	06/1993 - 09/1994	1
46241-12090	AE10#,CE100,EE10#	08/1991 - 06/1993	1
46241-12110	CE100,EE10#..XL	05/1999 - 12/2999	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	09/1994 - 09/1995	1
46249-12010	AE101,CE100,EE10#..GTAPX,L,STD,XL,XLI	08/1991 - 09/1994	1
46249-12010	AE101,CE100,EE10#..L,STD,XL,XLI	09/1995 - 04/1997	1
46249-12010	EE105;AE10#,EE100..GL,GLI TYPE B:REFER TO ILLUSTRATION	04/1997 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12020	AE10#,CE100,EE10#	09/1994 - 09/1995	1
46341-12020	AE101,CE100,EE10#	05/1999 - 12/2999	1
46341-12020	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46341-12020	AE10#,CE100,EE10#	09/1995 - 05/1999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12210	AE10#,CE100,EE10#	09/1994 - 05/1995	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	09/1995 - 05/1999	1
46410-12250	AE101,CE100,EE100,104,105..L,STD,XL,XLI	05/1995 - 09/1995	1
46410-12250	CE100,EE10#..XL	05/1999 - 12/2999	1
46410-12210	AE10#,CE100,EE10#	08/1991 - 09/1994	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746	AE10#,CE100,EE10#	08/1991 - 09/1994	2
90949-01746	AE101,CE100,EE10#	05/1999 - 12/2999	2
90949-01746	AE10#,CE100,EE10#	09/1994 - 09/1995	2
90949-01746	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01746	AE10#,CE100,EE10#	08/1991 - 09/1994	2
90949-01746	AE101,CE100,EE10#	05/1999 - 12/2999	2
90949-01746	AE10#,CE100,EE10#	09/1994 - 09/1995	2
90949-01746	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01747	AE10#,CE100,EE10# RH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1995 - 05/1999	1
90949-01744	AE10#,CE100,EE10# LH	09/1995 - 05/1999	1
90949-01744	AE101,CE100,EE10# LH	05/1999 - 12/2999	1
90949-01747	AE101,CE100,EE10# RH	05/1999 - 12/2999	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01747	AE10#,CE100,EE10# RH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	08/1991 - 09/1994	1
90949-01744	AE10#,CE100,EE10# LH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1994 - 09/1995	1
90949-01747	AE10#,CE100,EE10# RH	09/1995 - 05/1999	1
90949-01744	AE10#,CE100,EE10# LH	09/1995 - 05/1999	1
90949-01744	AE101,CE100,EE10# LH	05/1999 - 12/2999	1
90949-01747	AE101,CE100,EE10# RH	05/1999 - 12/2999	1
46458 - RETAINER, CABLE
46458-50010	AE10#,CE100,EE10#	08/1991 - 09/1994	2
46458-50010	AE101,CE100,EE10#	05/1999 - 12/2999	2
46458-50010	AE10#,CE100,EE10#	09/1995 - 05/1999	2
46458-50010	AE10#,CE100,EE10#	09/1994 - 09/1995	2
Common parts
90119-08146
90170-06004
90179-06058
90468-14019
91611-60612
91651-40614
93315-14012
96991-10080
