EE104G-AWMDK (1994)

Toyota Corolla Sed/Cp/Wg

Production Jan 1994 - Apr 1997
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )EE104

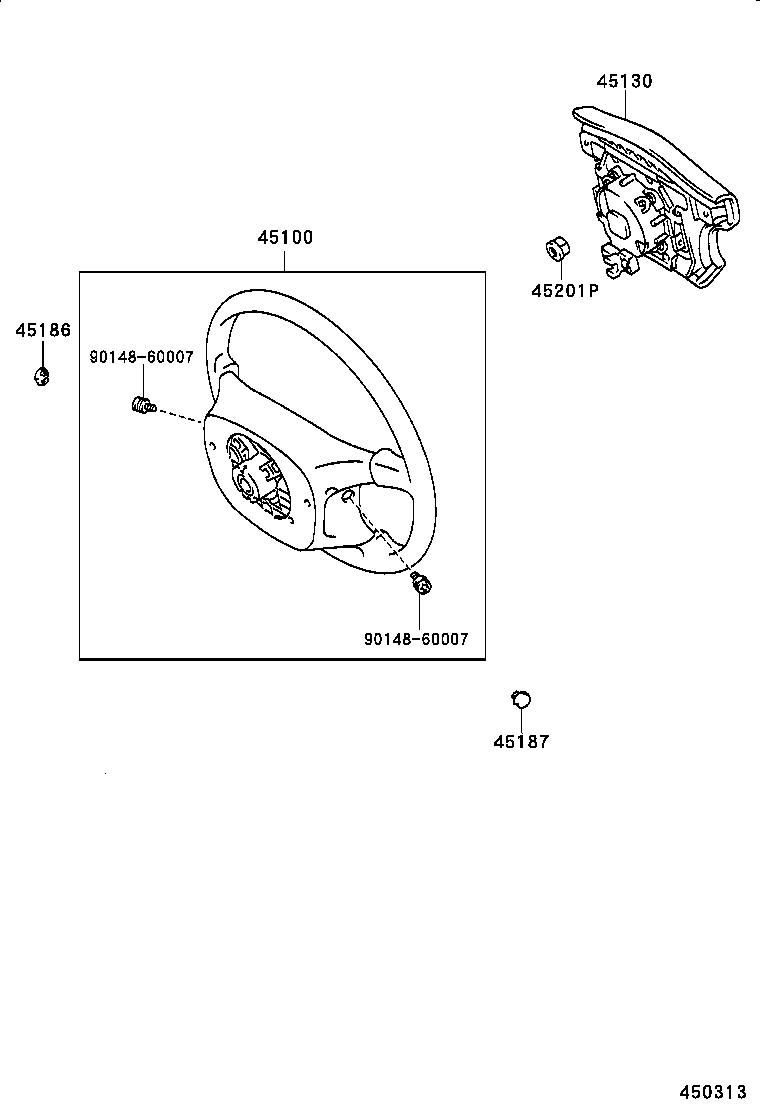

Click highlighted areas on diagram

W(ELECTRICAL TYPE *80)

diagram 45100 45130 45186 45187 45201P 9014860007 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12631P0

EE104

3-SPOKE,URETHANE,LX LIMITED OR L EXTRA TOURING PACKAGE,SHADOW GRAY,TRIM1#

 1
45100-12800B0

EE104

3-SPOKE,URETHANE,LX LIMITED OR L EXTRA TOURING PACKAGE,SHADOW GRAY,TRIM1#

 1
45100-12610P0

AE100,101,CE100,EE10#..(L,LX,STD,XL,XLI)..(GEN,TUR)

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-12820B0

EE104

4-SPOKE,URETHANE,W(MECHANICAL TYPE,*80),SHADOW GRAY,TRIM1#

 1
45100-12880B0

EE104

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-12790B0

EE104;AE101,EE100..GCC

3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-12860B0

EE104

4-SPOKE,URETHANE,W(ELECTRICAL TYPE,*80),SHADOW GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-12691P0

EE104

LX LIMITED OR L EXTRA TOURING PACKAGE,SHADOW GRAY,TRIM1#

 1
45130-12670P0

AE100,101,CE100,EE10#..(L,LX,STD,XL,XLI)..(GEN,TUR)

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-1A010B0

EE104

W(MECHANICAL TYPE,*80),SHADOW GRAY,TRIM1#

 1
45130-1A010B0

EE104

SHADOW GRAY,TRIM1#

 1
45130-12880B0

EE104

LX LIMITED OR L EXTRA TOURING PACKAGE,SHADOW GRAY,TRIM1#

 1
45130-12870B0

EE104;AE101,EE100..GCC

SHADOW GRAY,TRIM1#

 1
45130-12870B0

EE104

W/O(*80),SHADOW GRAY,TRIM1#

 1
45130-1A100B0

EE104

W(MECHANICAL TYPE *80),SHADOW GRAY,TRIM1#

 1
45130-1A050B0

EE104

W(ELECTRICAL TYPE,*80),SHADOW GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-10010B0

EE104

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AE10#,CE100,EE10#

 1
90179-12086

AE10#,CE100,EE10#

 1
Common parts
90148-60007
