EE101R-AEHDK (1992)
Toyota Corolla Sed/Cp/Wg

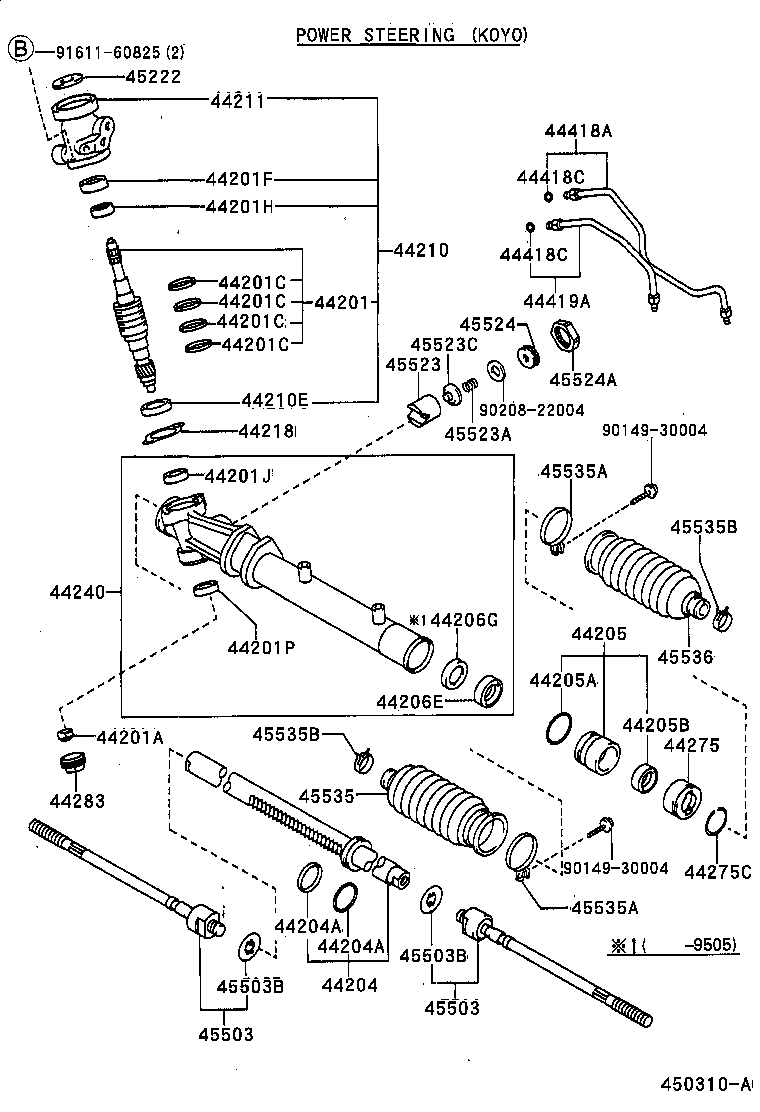

ILLUST NO. 2 OF 2(9108-9208)EE10#..RHD ; (9108-9208)AE101..RHD..SED..GL,XL,XLI ; (9205-9208)AE101..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12300 |
EE10# |
1 | ||
| 44201-12300 |
EE10# |
1 | ||
| 44201-12300 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44201-12300 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44201-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44201-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44201-12300 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44201-12300 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44201-12300 |
EE101;AE101..SEG |
1 | ||
| 44201-12300 |
EE101;AE101..SEG |
1 | ||
| 44201-12300 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44201-12300 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44201-12300 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44201-12300 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-12098 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-12098 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-12098 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90179-12098 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90179-12098 |
EE10# |
1 | ||
| 90179-12098 |
EE10# |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-12030 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-12030 |
EE101;AE101..SEG |
1 | ||
| 90560-12030 |
EE101;AE101..SEG |
1 | ||
| 90560-12030 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90560-12030 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90560-12030 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-12030 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-12030 |
EE10# |
1 | ||
| 90560-12030 |
EE10# |
1 | ||
| 90560-12030 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90560-12030 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90369-19005 |
EE10# |
1 | ||
| 90369-19005 |
EE10# |
1 | ||
| 90369-19005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90369-19005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90369-19005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90369-19005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
EE10# |
1 | ||
| 90363-12008 |
EE10# |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) KOYO |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) KOYO |
1 | ||
| 90363-12008 |
EE10#..RHD;AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90363-12008 |
EE10#..RHD;AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90363-12014 |
AE101..WG..GEN;EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105..RHD NSK |
1 | ||
| 90363-12014 |
AE101..WG..GEN;EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105..RHD NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;EE101,105,108..RHD;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F) NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;EE101,105,108..RHD;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F) NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD NSK |
1 | ||
| 90363-12008 |
EE101 KOYO |
1 | ||
| 90363-12008 |
EE101 KOYO |
1 | ||
| 90363-12014 |
EE101 NSK |
1 | ||
| 90363-12014 |
EE101 NSK |
1 | ||
| 90363-12008 |
AE101..RHD..SED;AE100,EE10#..RHD KOYO |
1 | ||
| 90363-12008 |
AE101..RHD..SED;AE100,EE10#..RHD KOYO |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44204-12030 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44204-12030 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12031 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12031 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12031 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12031 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12031 |
EE101 |
1 | ||
| 44204-12031 |
EE101 |
1 | ||
| 44204-12030 |
EE10# |
1 | ||
| 44204-12030 |
EE10# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24007 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) |
1 | ||
| 90310-24007 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) |
1 | ||
| 90310-24007 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 90310-24007 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 90310-24007 |
EE10# |
1 | ||
| 90310-24007 |
EE10# |
1 | ||
| 90310-24007 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90310-24007 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90310-24007 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 90310-24007 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 90310-24007 |
EE101 |
1 | ||
| 90310-24007 |
EE101 |
1 | ||
| 90311-24010 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 90311-24010 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24008 |
AE101..SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 90310-24008 |
AE101..SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 90310-24007 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90310-24007 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90310-24008 |
EE10# |
1 | ||
| 90310-24008 |
EE10# |
1 | ||
| 90310-24007 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90310-24007 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90310-24008 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90310-24008 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90310-24007 |
EE101;AE101..SEG |
1 | ||
| 90310-24007 |
EE101;AE101..SEG |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90560-24005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 90560-24005 |
EE10# |
1 | ||
| 90560-24005 |
EE10# |
1 | ||
| 90560-24005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90560-24005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90560-24005 |
EE101;AE101..SEG |
1 | ||
| 90560-24005 |
EE101;AE101..SEG |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
EE10# |
1 | ||
| 90560-24005 |
EE10# |
1 | ||
| 90560-24005 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90560-24005 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90560-24005 |
EE101;AE101..SEG |
1 | ||
| 90560-24005 |
EE101;AE101..SEG |
1 | ||
| 90560-24005 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-24005 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-24005 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-24005 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90560-24005 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90560-24005 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12162 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44240-12162 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44240-12161 |
EE10# |
1 | ||
| 44240-12161 |
EE10# |
1 | ||
| 44240-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44240-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44240-12162 |
EE101 |
1 | ||
| 44240-12162 |
EE101 |
1 | ||
| 44240-12162 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44240-12162 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90410-06002 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90410-06002 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
2 | ||
| 90410-06002 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
2 | ||
| 90410-06002 |
EE10# |
2 | ||
| 90410-06002 |
EE10# |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90311-19007 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90311-19007 |
EE10# |
1 | ||
| 90311-19007 |
EE10# |
1 | ||
| 90311-19007 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90311-19007 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90310-23005 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90310-23005 |
EE10# |
1 | ||
| 90310-23005 |
EE10# |
1 | ||
| 90310-23005 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90310-23005 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90521-41003 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90521-41003 |
EE10# |
1 | ||
| 90521-41003 |
EE10# |
1 | ||
| 90521-41003 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90521-41003 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90389-28001 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90389-28001 |
EE10# |
1 | ||
| 90389-28001 |
EE10# |
1 | ||
| 90389-28001 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90389-28001 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12080 |
EE10# |
1 | ||
| 44275-12080 |
EE10# |
1 | ||
| 44275-12080 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 44275-12080 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 44275-12080 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44275-12080 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44275-12080 |
EE101 |
1 | ||
| 44275-12080 |
EE101 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90521-50002 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 90521-50002 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90521-50002 |
AE101..SED;CE100,EE10#;AE101..WG..GCC |
1 | ||
| 90521-50002 |
EE10# |
1 | ||
| 90521-50002 |
EE10# |
1 | ||
| 90521-50002 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 90521-50002 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12040 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 44277-12040 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
1 | ||
| 44277-12040 |
CE100,EE10#;AE101..WG..GCC;AE101..LHD..GLI;AE101..SED..(GL,STD,XL,XLI) |
1 | ||
| 44277-12040 |
CE100,EE10#;AE101..WG..GCC;AE101..LHD..GLI;AE101..SED..(GL,STD,XL,XLI) |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
EE10# |
1 | ||
| 44283-12010 |
EE10# |
1 | ||
| 44283-12010 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44283-12010 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44283-12010 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44283-12010 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12130 |
EE10# |
1 | ||
| 44418-12130 |
EE10# |
1 | ||
| 44418-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44418-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44418-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44418-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44419-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44419-12130 |
EE10# |
1 | ||
| 44419-12130 |
EE10# |
1 | ||
| 44419-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44419-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
EE10# |
1 | ||
| 45222-12090 |
EE10# |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45222-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45222-12080 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45222-12080 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45222-12090 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
EE101 |
1 | ||
| 45222-12090 |
EE101 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 45504-17020 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45504-17020 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 45504-12010 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 45504-12010 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 45504-02010 |
AE100,101..RHD..(GLI,GTAPX,LX,SEG,SJ,XLI) (L) |
1 | ||
| 45504-02010 |
AE100,101..RHD..(GLI,GTAPX,LX,SEG,SJ,XLI) (L) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26075 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 90501-26075 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 90501-32032 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 90501-32032 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12041 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45524-12041 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45524-12041 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45524-12041 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45524-12030 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45524-12030 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90179-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| Common parts | ||||
| 90149-30009 | ||||
| 90208-22003 | ||||

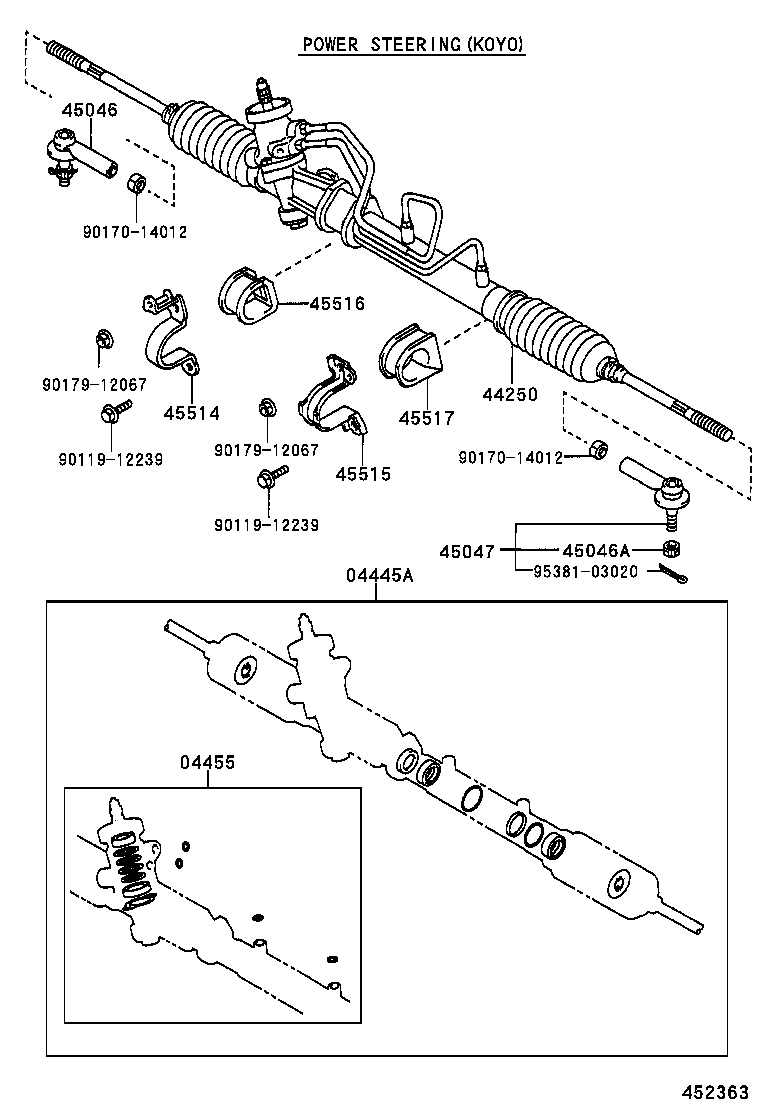

ILLUST NO. 2 OF 2(9205- )AE100,101..RHD..GL,GLI,GTAPX,LX,SEG,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12300 |
EE10# |
1 | ||
| 44201-12300 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44201-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44201-12300 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44201-12300 |
EE101;AE101..SEG |
1 | ||
| 44201-12300 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44201-12300 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-12098 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-12098 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90179-12098 |
EE10# |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
EE10# |
4 | ||
| 90562-33002 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
4 | ||
| 90562-33002 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
4 | ||
| 90560-33005 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90369-19005 |
EE10# |
1 | ||
| 90369-19005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90369-19005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
EE10# |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) KOYO |
1 | ||
| 90363-12008 |
EE10#..RHD;AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90363-12014 |
AE101..WG..GEN;EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105..RHD NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;EE101,105,108..RHD;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F) NSK |
1 | ||
| 90363-12014 |
EE100..RHD..GL;AE101..RHD..(GL,XL);EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD NSK |
1 | ||
| 90363-12008 |
EE101 KOYO |
1 | ||
| 90363-12014 |
EE101 NSK |
1 | ||
| 90363-12008 |
AE101..RHD..SED;AE100,EE10#..RHD KOYO |
1 | ||
| 90363-12008 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44204-12030 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44204-12030 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12031 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44204-12031 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44204-12031 |
EE101 |
1 | ||
| 44204-12030 |
EE10# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 INNER |
1 | ||
| 90562-37004 |
EE10# OUTER |
1 | ||
| 90562-37004 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,OUTER |
1 | ||
| 90301-33003 |
EE10# INNER |
1 | ||
| 90301-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX,INNER |
1 | ||
| 90562-37004 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24007 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) |
1 | ||
| 90310-24007 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 90310-24007 |
EE10# |
1 | ||
| 90310-24007 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90310-24007 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 90310-24007 |
EE101 |
1 | ||
| 90311-24010 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 90560-24005 |
EE10# |
1 | ||
| 90560-24005 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90560-24005 |
EE101;AE101..SEG |
1 | ||
| 90560-24005 |
EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE101,104,105..SED,WG |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12190 |
AE100,101..RHD..(SED,WG) |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12162 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44240-12162 |
EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F) |
1 | ||
| 44240-12161 |
EE10# |
1 | ||
| 44240-12200 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44240-12162 |
EE101 |
1 | ||
| 44240-12162 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12080 |
EE10# |
1 | ||
| 44275-12080 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44275-12080 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 44275-12080 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44275-12080 |
EE101 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
EE10# |
1 | ||
| 44283-12010 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44283-12010 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12130 |
EE10# |
1 | ||
| 44418-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 44418-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12130 |
EE100..RHD..GL;EE101,105,108..RHD;EE100..RHD..(3FC,4F);AE101..RHD..SED..(GL,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 44419-12130 |
EE10# |
1 | ||
| 44419-12130 |
EE100..RHD..GL;AE101..RHD..SED;EE100..RHD..(3FC,4F);AE100,EE101,104,105,108..RHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
EE10# |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45222-12080 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45222-12090 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 45222-12090 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 45222-12090 |
EE101 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29365 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 45503-29385 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# OD=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 45504-17020 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45523-12080 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 45504-12010 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 45504-02010 |
AE100,101..RHD..(GLI,GTAPX,LX,SEG,SJ,XLI) (L) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING),TOYOTA GEAR BOX |
1 | ||
| 90501-32032 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 90501-30015 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
1 | ||
| 90501-26075 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-17010 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12041 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45524-12041 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 45524-12030 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 90179-33003 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-50003 |
AE101..GCC;EE105..STD;EE105..LHD..XL;AE101..RHD..GLI;AE100,CE100,EE100,101;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
2 | ||
| 90460-52001 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,105;AE101..GL,STD,XL W(POWER STEERING) |
2 | ||
| 90460-50003 |
EE100,101..RHD;EE105..RHD..STD;AE101..RHD..(GL,XL) KOYO GEAR BOX |
2 | ||
| 90460-50003 |
AE101..WG;AE101..SED..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# KOYO GEAR BOX |
2 | ||
| 90467-19012 |
AE101..SED;AE101..WG..GCC;AE100,102,CE100,EE10# |
2 | ||
| 90467-19012 |
AE100,101..RHD..(GLI,LX,SEG,XLI) TOYOTA GEAR BOX |
2 | ||
| 90467-19012 |
AE101..GL,STD,XL;AE102,CE100,EE10#;AE101..LHD..(GLI,XLI) |
2 | ||
| 90467-19012 |
AE101..GCC;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101..XLI..TUR;CE100,EE101,105;AE101..LHD..(GL,STD,XL) W(POWER STEERING) |
2 | ||
| 90467-19012 |
AE10#,CE100,EE10# |
2 | ||
| 90467-19017 |
AE100,101..RHD..(GLI,LX,SEG,XLI) KOYO GEAR BOX |
2 | ||
| 90467-19017 |
AE101..GCC;AE101..XLI..TUR;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12070 |
EE10# TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..LHD..(GL,STD,XL);AE100,CE100,EE100,101,105;AE101..RHD..(GTAPX,SEG,SJ,XLI) KOYO GEAR BOX |
1 | ||
| 45535-12070 |
AE101..SED..GEN;AE100,102,CE100,EE10#..GEN TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
EE101 TOYOTA GEAR BOX |
1 | ||
| 45535-12070 |
AE100,102,CE100,EE10#..GEN;AE101..(SED,WG)..(GEN,TUR) TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..GCC;AE101..RHD..GLI;AE100,CE100,EE100,101,105;AE101..GL,GTAPX,SEG,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| 45535-12100 |
EE101,105..RHD;AE101..3FC..XL;AE101..XLI..TUR;AE101..(4FC,5F)..(GL,XL);EE100..LHD..5F..XL..(GEN,TUR) W(POWER STEERING), TOYOTA GEAR BOX |
1 | ||
| 45535-12060 |
AE101..WG;AE101..SED..GCC;CE100,EE100,101,105;AE101..GL,GTAPX,SJ,STD,XL KOYO GEAR BOX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90208-22004 | ||||
| 91611-60825 | ||||
ILLUST NO. 1 OF 2(9205- )AE100,101..RHD..SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12110 |
EE10# |
1 | ||
| 04445-12110 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04445-12110 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 04445-12110 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04445-12110 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 04445-12130 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 04445-12110 |
EE101 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04455-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04455-12090 |
EE10# |
1 | ||
| 04455-10040 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12620 |
AE101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44250-12420 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44250-12420 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
EE10#..RHD;AE101..RHD..SED |
1 | ||
| 44250-12420 |
EE101;AE101..SEG |
1 | ||
| 44250-12440 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
EE101;AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,105..LHD W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE101..GCC;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45515-12170 |
AE101..GCC;AE101..XLI..TUR;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(9108-9505)AE100,101..RHD..GLI,SEG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12110 |
EE10# |
1 | ||
| 04445-12110 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04445-12110 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 04445-12110 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04445-12110 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 04445-12130 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 04445-12110 |
EE101 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04455-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04455-12090 |
EE10# |
1 | ||
| 04455-10040 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12620 |
AE101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44250-12420 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44250-12420 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
EE10#..RHD;AE101..RHD..SED |
1 | ||
| 44250-12420 |
EE101;AE101..SEG |
1 | ||
| 44250-12440 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
EE101;AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,105..LHD W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE101..GCC;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45515-12170 |
AE101..GCC;AE101..XLI..TUR;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(9108-9208)EE10#..RHD ; (9108-9208)AE101..RHD..SED..GL,XL,XLI ; (9205-9208)AE101..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12110 |
EE10# |
1 | ||
| 04445-12110 |
EE10# |
1 | ||
| 04445-12110 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04445-12110 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04445-12110 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 04445-12110 |
EE101,104,105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE101,102,CE100..LHD |
1 | ||
| 04445-12110 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04445-12110 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04445-12110 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 04445-12110 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 04445-12130 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 04445-12130 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 04445-12110 |
EE101 |
1 | ||
| 04445-12110 |
EE101 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04455-12090 |
EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE101..LHD..GLI;CE100,EE101,105,108;AE101..SED..(GL,STD,XL,XLI) TOYOTA GEAR BOX |
1 | ||
| 04455-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04455-12090 |
AE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 04455-12090 |
EE10# |
1 | ||
| 04455-12090 |
EE10# |
1 | ||
| 04455-10040 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 04455-10040 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12620 |
AE101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12620 |
AE101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44250-12420 |
AE100,101..RHD..(SED,WG) TOYOTA GEAR BOX |
1 | ||
| 44250-12420 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44250-12420 |
AE101..RHD..SED;AE100,EE10#..RHD |
1 | ||
| 44250-12420 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
AE100,101,EE10#..RHD..(SED,WG) |
1 | ||
| 44250-12420 |
EE10#..RHD;AE101..RHD..SED |
1 | ||
| 44250-12420 |
EE10#..RHD;AE101..RHD..SED |
1 | ||
| 44250-12420 |
EE101;AE101..SEG |
1 | ||
| 44250-12420 |
EE101;AE101..SEG |
1 | ||
| 44250-12440 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 44250-12440 |
AE100,101..RHD..(SED,WG) KOYO GEAR BOX |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 90171-12028 |
AE10#,CE100,EE10# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE101..CP,SED;AE101..WG..GCC;AE100,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45046-19175 |
AE10#,CE100,EE10# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12110 |
AE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105 |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
EE101;AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,105..LHD W(POWER STEERING) |
1 | ||
| 45514-12090 |
EE101;AE101..GCC;AE101..GL,XL;AE101..XLI..TUR;CE100,EE100,105..LHD W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45514-12090 |
AE101..GCC;AE101..XLI..TUR;AE101..GL,STD,XL;CE100,EE100,101,105 W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE101..GCC;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45515-12170 |
AE101..GCC;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45515-12170 |
AE101..GCC;AE101..XLI..TUR;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45515-12170 |
AE101..GCC;AE101..XLI..TUR;AE100,CE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,GTAPX,SEG,SJ,STD,XL |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45516-12060 |
AE10#,CE100,EE10# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| 45517-12111 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
