EE100R-AEMDS (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - Nov 2001
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9205)2E,3E..MTM ; (9205-9704)5EFE ; (9205-9704)2E..EE100..5F..GCC ; (9205-

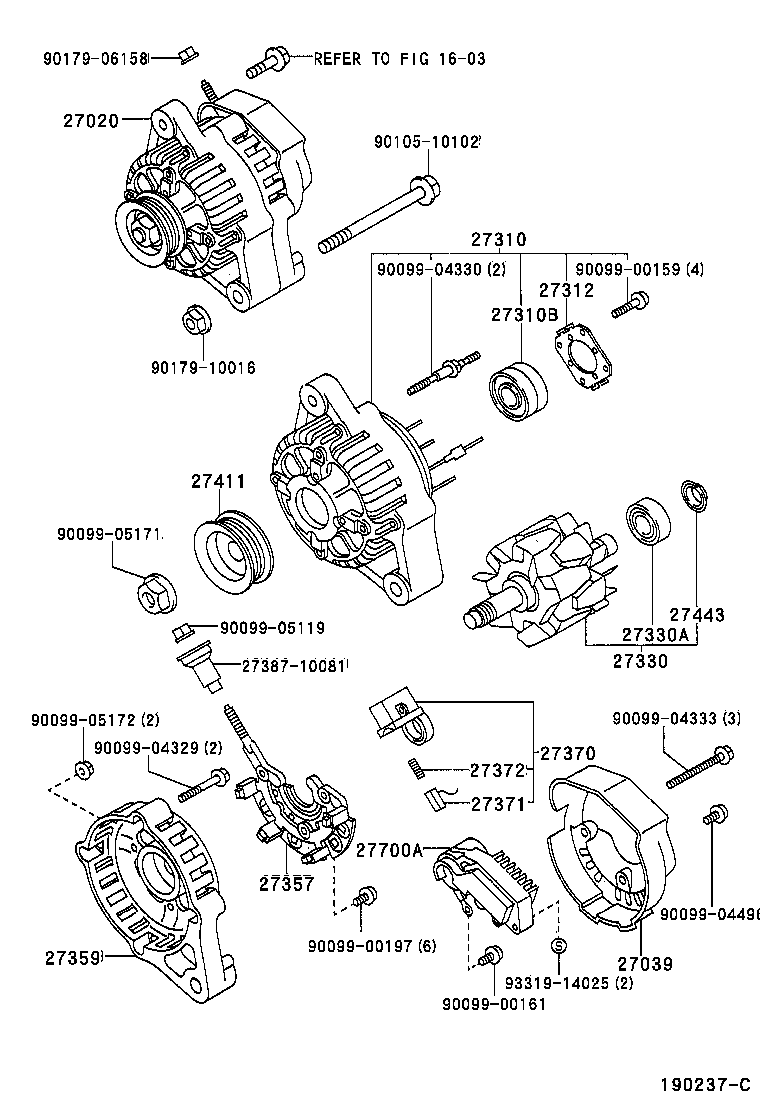

Click highlighted areas on diagram

12V 50A,60A

diagram 1603 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 2738710081 27411 27443 27700A 9009900159 9009900161 9009900197 9009904329 9009904330 9009904333 9009904496 9009905119 9009905171 9009905172 9010510102 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-10100

2E,3E..EE10#..MTM

12V 50A

 1
27060-11260

2E,3E..EE100,105,108..MTM..GEN

12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72150

2E,3E..EE10#..MTM

 1
27039-11190

2E,3E..EE100,105,108..MTM..GEN

 1
27039-11180

2E..EE10#..GEN

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090

2E,3E..EE100,105,108..MTM..GEN

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10198

2E..EE100..LHD..3FC;2E,3E,5EFE..EE100,104,105,108..MTM..(GCC,GEN)

 1
27312 - PLATE, RETAINER
27312-72120

2E..EE100..LHD..3FC;2E,3E,5EFE..EE100,104,105,108..MTM..(GCC,GEN)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150

2E,3E..EE100,105,108..MTM..GEN

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

2E..EE100..LHD..3FC;2E,3E,5EFE..EE100,104,105,108..MTM..(GCC,GEN)

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150

2E,3E..EE100,105,108..MTM..GEN

 1
27357-11180

2E..EE10#..GEN

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72151

2E..EE10#..GEN

 1
27359-72150

2E,3E..EE100,105,108..MTM..GEN

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54450

4AGE,2E,3E..AE101,EE10#

 1
27370-54450

2E..EE100,105..MTM..GEN

 1
27370-58320

2E..EE10#

 1
27370-54450

2E..EE100..MTM..(GEN,TUR);4AGE,2E,3E,4EFE..AE101,EE101,105,108

 1
27371 - BRUSH, ALTERNATOR
27371-70300

2E..EE100..LHD..3FC;4AF,4EFE..AE101,EE101;4AFE,4AGE,5AFE,2E,3E,5EFE..AE100,101,EE100,104,105,108..MTM

 2
27371-70300

2E..EE100;4A#,5AFE,3E..AE10#,EE108..5F

 2
27371-70300

2E..EE100..LHD..3FC;4AF,4EFE..AE101,EE101;4AFE,4AGE,5AFE,2E,5EFE..AE100,101,EE100,104,105..MTM

 2
27371-70300

4AFE,2E..AE101,EE10#..5F..(GL,GLI,XL)

 2
27371-70300

2E..EE100..LHD..3FC;4AFE,7AFE,2E..AE10#,EE100..MTM;4AF,2E,4EFE,5EFE..AE101,EE101,104,105

 2
27371-70300

4AFE..AE101..5F..SJ;4AFE,2E..AE101,EE100..SED;4AGE,5AFE,3E..AE10#,EE108..5F

 2
27371-70300

4AFE,2E..AE101,EE10#..5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

2E..EE100..LHD..3FC;4AF,4EFE..AE101,EE101;4AFE,4AGE,5AFE,2E,3E,5EFE..AE100,101,EE100,104,105,108..MTM

 2
27372-63020

4AFE,2E..AE101,EE10#..5F

 2
27372-63020

4AFE..AE101..5F..SJ;4AFE,2E..AE101,EE100..SED;4AGE,5AFE,3E..AE10#,EE108..5F

 2
27372-63020

4AFE,2E..AE101,EE10#..5F..(GL,GLI,XL)

 2
27372-63020

2E..EE100;4A#,5AFE,3E..AE10#,EE108..5F

 2
27372-63020

2E..EE100..LHD..3FC;4AFE,7AFE,2E..AE10#,EE100..MTM;4AF,2E,4EFE,5EFE..AE101,EE101,104,105

 2
27372-63020

2E..EE100..LHD..3FC;4AF,4EFE..AE101,EE101;4AFE,4AGE,5AFE,2E,5EFE..AE100,101,EE100,104,105..MTM

 2
27411 - PULLEY, ALTERNATOR
27411-10051

2E,3E..EE100,105,108..MTM..GEN

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,2C,2E..AE101,CE100,EE10#..GL,GLI,XL

 1
27443-63020

2E..EE100..MTM;2E..EE100..LHD..3FC;4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE101,104,105

 1
27443-63020

4AFE,2C,2E..AE101,CE100,EE10#

 1
27443-63020

2E..EE100..MTM;2E..EE100..LHD..3FC;4AF#,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE101,104,105

 1
27443-63020

2E..EE100..MTM;2E..EE100..LHD..3FC;4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE101,104,105,108

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11020

2E,3E..EE10#..MTM

 1
27700-10080

2E,3E..EE10#..MTM

 1
27700-11060

2E..EE100..LHD..3FC;2E,3E,5EFE..EE100,104,105,108..MTM..(GCC,GEN)

 1
Common parts
27387-10081
90099-00159
90099-00161
90099-00197
90099-04329
90099-04330
90099-04333
90099-04496
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
93319-14025
Linked diagrams
1603
