EE100R-AEHDS (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - Apr 1997
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )3FC

Click highlighted areas on diagram

A131L,A132L

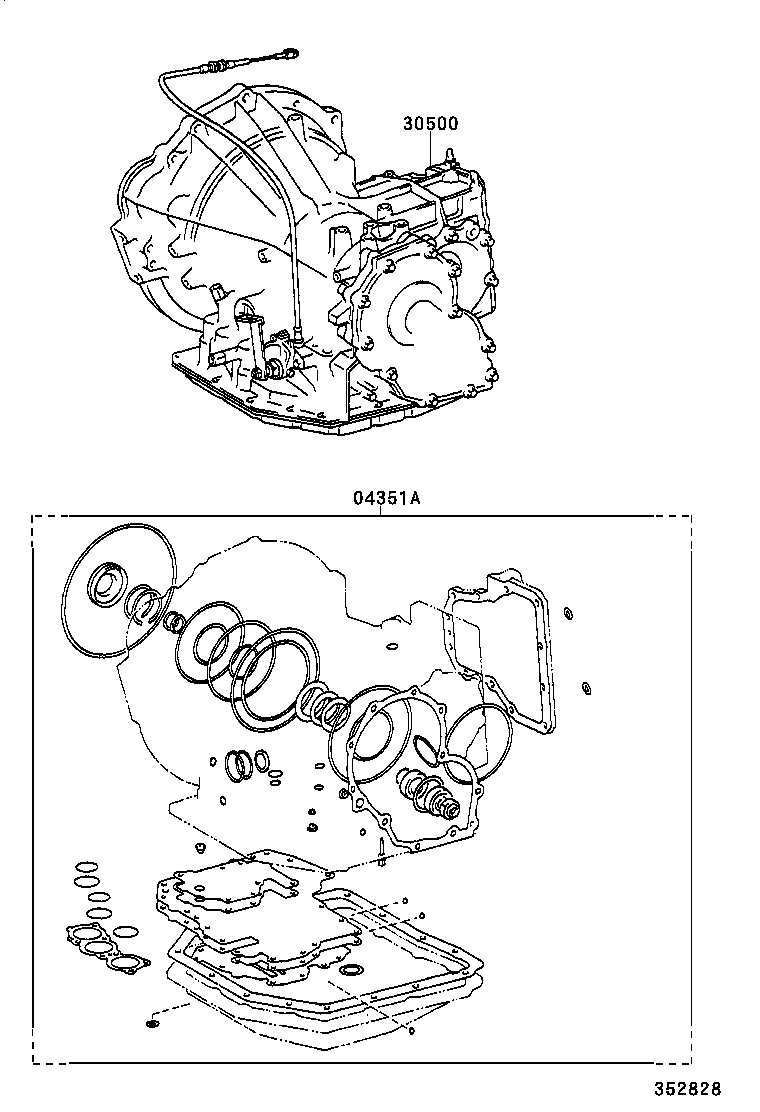

diagram 04351A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-10030

EE100..3FC..GEN

 1
04351-10030

EE100..3FC

 1
04351-12110

EE100,101..3FC..GEN

 1
04351-10050

EE100..3FC..GEN

*AXC=-06A

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-12571

EE100..3FC..GEN

 1
30500-12531

EE100..3FC..GEN

*AXC=-06A

 1
30500-1A130

EE100..3FC..GEN

 1
30500-1A280

EE100..3FC..GEN

*AXC=-06A

 1
