EE100L-AEKRS (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Apr 1997
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(9205- )LHD..SED

Click highlighted areas on diagram

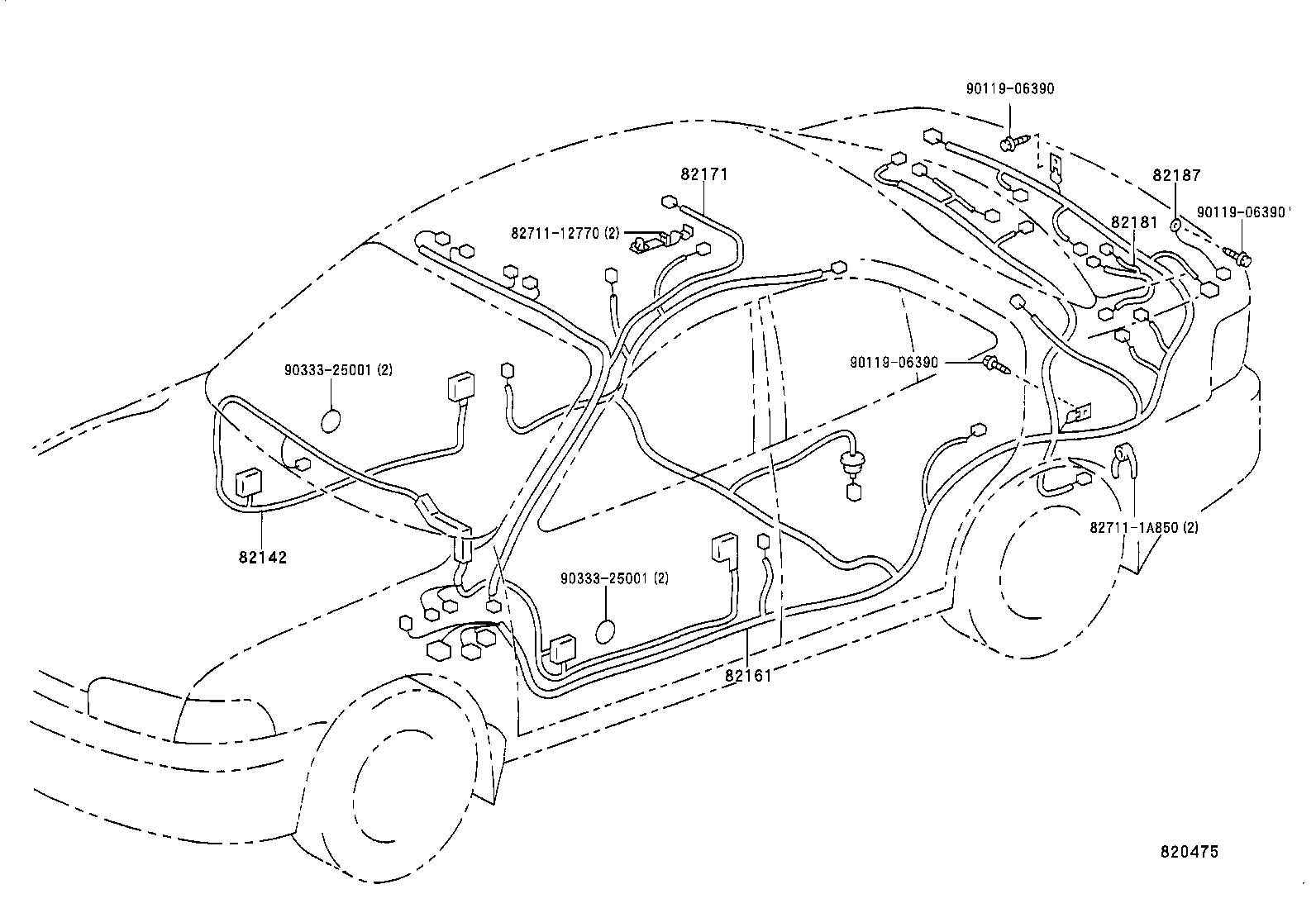

FLOOR & ROOF

diagram 82142 82161 82171 82181 82187 8271112770 827111A850 9011906390 9011906390 9011906390 9033325001 9033325001
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-1H790

AE101,EE100..SED

 1
82161-1K560

AE101,CE100,EE100..LHD..SED..(GCC,GEN)

 1
82161-1K561

AE101,CE100,EE100..LHD..SED..(GCC,GEN)

 1
82171 - WIRE, ROOF, NO.1
82171-12570

AE101,102,CE100,EE100..LHD..SED..(GCC,GEN)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-12240

AE101,CE100,EE100..LHD..GEN

 1
Common parts
82711-12770
82711-1A850
90119-06390
90333-25001

ILLUST NO. 4 OF 9(9205- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8121 82028 82141 82345 82345 8271512160 8271512260 82824F 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906053 9011906053 9011906053 9011906053 9011906657 9015960080 9015960081 9016750002 9016750002 9161160612 9165560616 9165560616 9165560616 9356755014 9356755014 9356855014 9356855014
Part # Description Qty Price
82028 - WIRING SUB-ASSY, COWL
82028-12030

AE10#,EE10#..SED,WG

 1
82028-12050

AE10#,CE100,EE10#..SED,WG

 1
82028-12050

AE10#,CE100,EE10#..SED,WG

 1
82141 - WIRE, INSTRUMENT PANEL
82141-12570

EE100

 1
82141-1A420

AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN

 1
82141-1A421

AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN

 1
82141-1A422

AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN

 1
82141-1A423

AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN

 1
82141-1L270

AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN

 1
82345 - DIODE
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
82345 - DIODE
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
82345-32020

AE10#,CE100,EE10#

TYPE B:REFER TO ILLUSTRATION

 3
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
90159-60081
90167-50002
91611-60612
91655-60616
93567-55014
93568-55014
Linked diagrams
8121
8401
