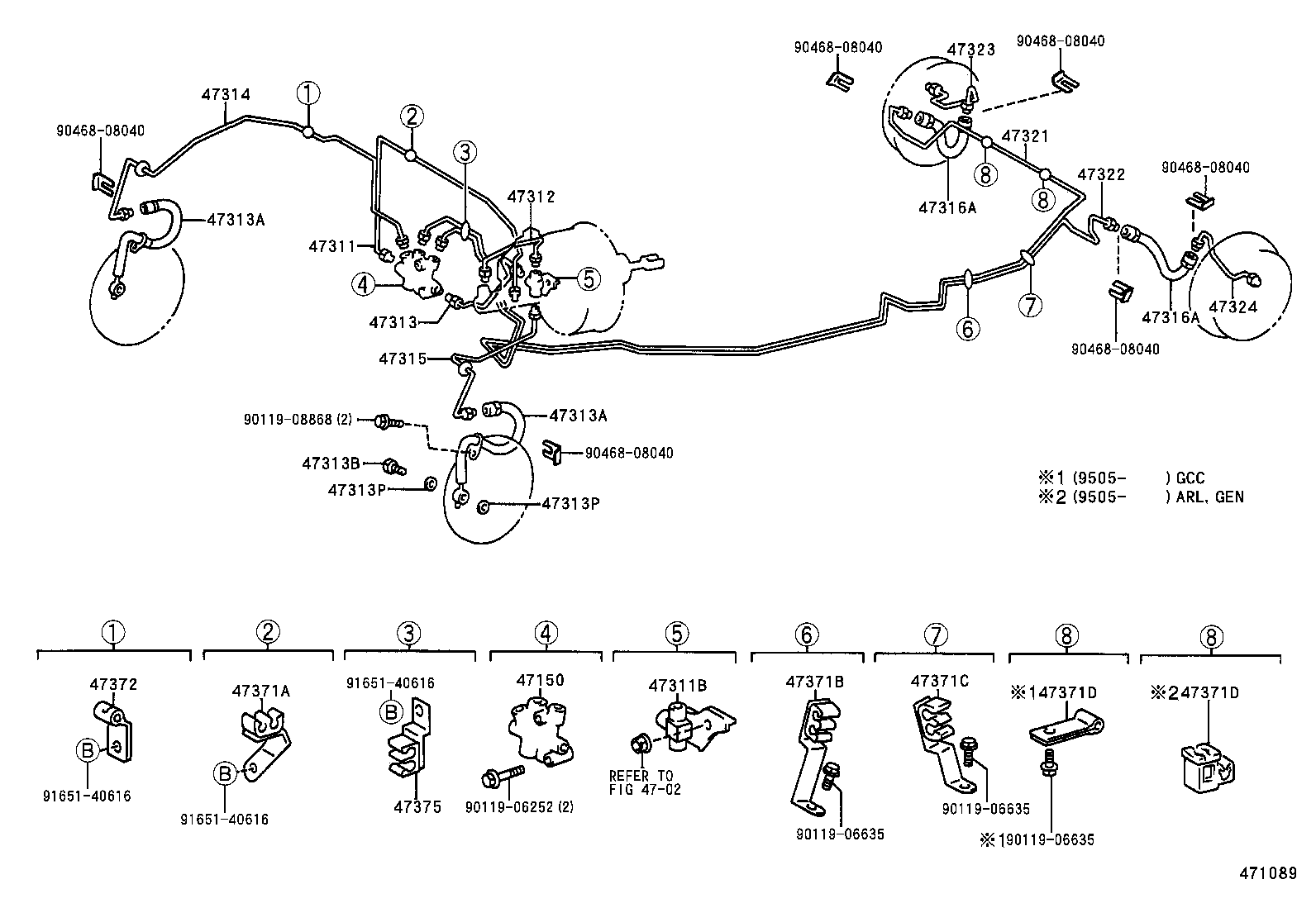

EE100L-AEKRS (1992)
Toyota Corolla Sed/Cp/Wg
(9205- )AE101,102,CE100,EE100..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105 |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 47150-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12490 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12260 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12300 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02798 |
AE10#,CE100,EE10# RH |
1 | ||
| 90947-02799 |
AE10#,CE100,EE10# LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 47314-12370 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02783 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02783 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02783 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02783 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12150 |
AE10#,CE100,EE100..LHD..(GEN,TUR) |
1 | ||
| 47321-12120 |
AE101,102,CE100,EE100..LHD |
1 | ||
| 47321-12120 |
AE101,102,CE100,EE100..LHD |
1 | ||
| 47321-12150 |
AE10#,CE100,EE100..LHD |
1 | ||
| 47321-12150 |
AE10#,CE100,EE100..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12270 |
AE101,102,CE100,EE100..LHD |
1 | ||
| 47322-12300 |
AE10#,CE100,EE100..LHD..(GEN,TUR) |
1 | ||
| 47322-12270 |
AE101,102,CE100,EE100..LHD |
1 | ||
| 47322-12300 |
AE10#,CE100,EE100..LHD |
1 | ||
| 47322-12300 |
AE10#,CE100,EE100..LHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47323-12250 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47324-12210 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12120 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12040 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12040 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12060 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12060 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47371-12150 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
2 | ||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47371-12150 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47371-12150 |
AE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR) |
2 | ||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47371-12150 |
AE10#,CE100,EE100..GL,GLI,STD,XL,XLI |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-08652 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
EE104,105..RHD;AE101,102,CE100,EE100..LHD |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
