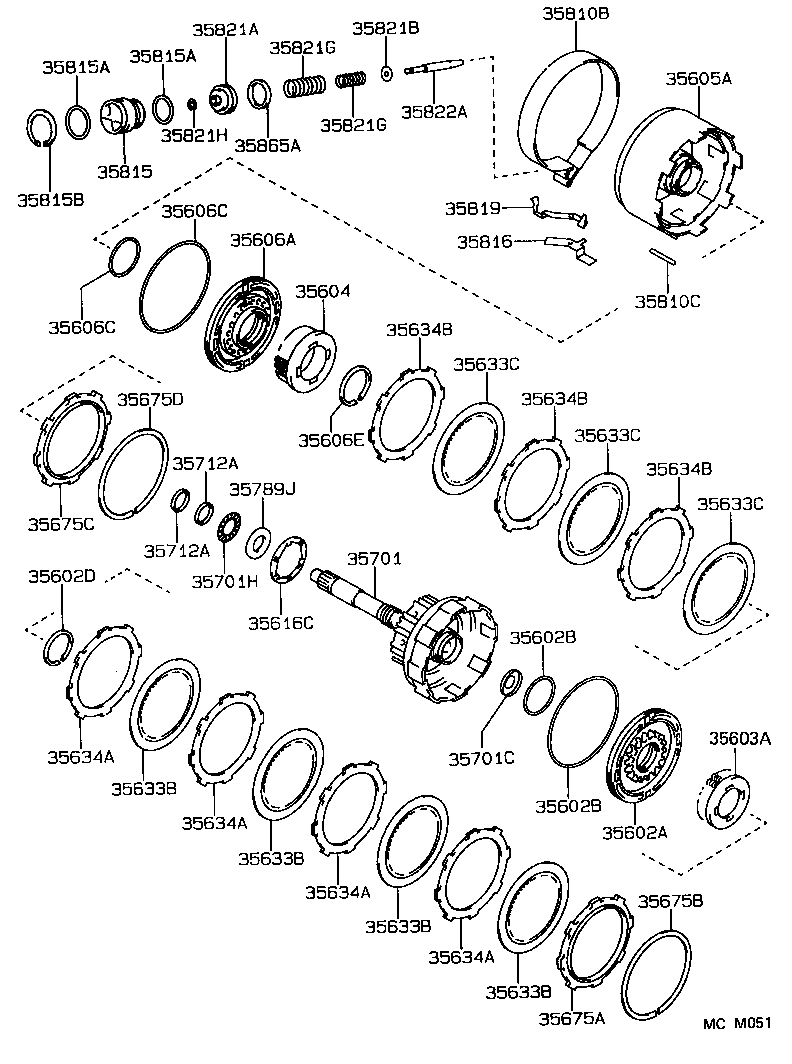

Toyota Corolla sed/cp/wg AE101 BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

Part #	Description	Period	Qty
35602A - PISTON SUB-ASSY, FORWARD CLUTCH
35602-32050	AE10#,EE100,101..ATM	08/1991 - 02/1993	1
35602-12070	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 06/1997	1
35602-32050	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	05/1993 - 04/1997	1
35602-12070	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	1
35602-12070	AE10#..ATM	06/1997 - 11/2001	1
35602-32050	AE100,EE100,101..3FC;AE101..ATM..(GL,SJ,XL)	02/1993 - 05/1993	1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-46002	AE10#,EE100,101..ATM INNER	08/1991 - 05/1993	1
90301-99016	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90301-46002	AE10#..ATM INNER	04/1997 - 11/2001	1
90301-46002	AE10#,EE100,101..(SED,WG)..ATM INNER	09/1994 - 04/1997	1
90301-46002	AE10#,EE100,101..(SED,WG)..ATM INNER	05/1993 - 09/1994	1
90301-99016	AE10#..ATM OUTER	04/1997 - 11/2001	1
90301-99016	AE10#,EE100,101..ATM OUTER	09/1994 - 04/1997	1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-46002	AE10#,EE100,101..ATM INNER	08/1991 - 05/1993	1
90301-99016	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90301-46002	AE10#..ATM INNER	04/1997 - 11/2001	1
90301-46002	AE10#,EE100,101..(SED,WG)..ATM INNER	09/1994 - 04/1997	1
90301-46002	AE10#,EE100,101..(SED,WG)..ATM INNER	05/1993 - 09/1994	1
90301-99016	AE10#..ATM OUTER	04/1997 - 11/2001	1
90301-99016	AE10#,EE100,101..ATM OUTER	09/1994 - 04/1997	1
35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN
90520-44001	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	1
90520-44001	AE10#..ATM	04/1997 - 11/2001	1
90520-44001	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
90520-44001	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-32030	AE10#,EE100,101..ATM	08/1991 - 02/1993	1
35603-32030	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	05/1993 - 04/1997	1
35603-32030	AE100,EE100,101..3FC;AE101..ATM..(GL,SJ,XL)	02/1993 - 05/1993	1
35603-12030	AE10#..ATM	06/1997 - 11/2001	1
35603-12030	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 06/1997	1
35603-12030	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	1
35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-32010	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
35604-32010	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	1
35604-32010	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35604-32010	AE10#..ATM	04/1997 - 11/2001	1
35605A - DRUM SUB-ASSY, DIRECT CLUTCH
35605-20020	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	10/1992 - 09/1994	1
35605-20020	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	09/1994 - 04/1997	1
35605-20020	AE101..ATM	04/1997 - 11/2001	1
35605-20020	AE10#,EE100,101..ATM	08/1991 - 10/1992	1
35606A - PISTON SUB-ASSY, DIRECT CLUTCH
35606-20010	AE10#,EE100,101..ATM	09/1994 - 04/1997	1
35606-20010	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
35606-20010	AE10#..ATM	04/1997 - 11/2001	1
35606C - RING, O (FOR DIRECT CLUTCH PISTON)
90301-57188	AE10#,EE100,101..ATM INNER	08/1991 - 09/1994	1
90301-99016	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90301-57188	AE10#,EE100,101..ATM INNER	09/1994 - 04/1997	1
90301-99016	AE10#,EE100,101..ATM OUTER	09/1994 - 04/1997	1
90301-57188	AE10#..ATM INNER	04/1997 - 11/2001	1
90301-99016	AE10#..ATM OUTER	04/1997 - 11/2001	1
35606C - RING, O (FOR DIRECT CLUTCH PISTON)
90301-57188	AE10#,EE100,101..ATM INNER	08/1991 - 09/1994	1
90301-99016	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90301-57188	AE10#,EE100,101..ATM INNER	09/1994 - 04/1997	1
90301-99016	AE10#,EE100,101..ATM OUTER	09/1994 - 04/1997	1
90301-57188	AE10#..ATM INNER	04/1997 - 11/2001	1
90301-99016	AE10#..ATM OUTER	04/1997 - 11/2001	1
35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN
90520-52002	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
90520-52002	AE10#,EE100,101..ATM	09/1994 - 04/1997	1
90520-52002	AE10#..ATM	04/1997 - 11/2001	1
35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35616-32021	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	1
35616-32021	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
35616-32021	AE10#..ATM	04/1997 - 11/1998	1
35616-32021	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35616-12030	AE101..4FC	11/1998 - 11/2001	1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	4
35633-32050	AE101..4FC	08/1991 - 12/1991	4
35633-32050	AE10#..4FC..(GLI,SEG,SJ,XLI)	12/1991 - 02/1993	4
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 11/2001	4
35633-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	09/1991 - 04/1997	3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	4
35633-32050	AE101..4FC	08/1991 - 12/1991	4
35633-32050	AE10#..4FC..(GLI,SEG,SJ,XLI)	12/1991 - 02/1993	4
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 11/2001	4
35633-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	09/1991 - 04/1997	3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	4
35633-32050	AE101..4FC	08/1991 - 12/1991	4
35633-32050	AE10#..4FC..(GLI,SEG,SJ,XLI)	12/1991 - 02/1993	4
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 11/2001	4
35633-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	09/1991 - 04/1997	3
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	02/1993 - 09/1994	4
35633-32050	AE101..4FC	08/1991 - 12/1991	4
35633-32050	AE10#..4FC..(GLI,SEG,SJ,XLI)	12/1991 - 02/1993	4
35633-12060	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 11/2001	4
35633-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	09/1991 - 04/1997	3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-20030	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	10/1992 - 07/1993	2
35633-20031	AE101..ATM	04/1997 - 05/1998	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	07/1993 - 09/1994	2
35633-12070	AE101..4FC	05/1998 - 11/2001	2
35633-20030	AE10#,EE100,101..ATM	08/1991 - 10/1992	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	09/1994 - 04/1997	2
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-20030	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	10/1992 - 07/1993	2
35633-20031	AE101..ATM	04/1997 - 05/1998	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	07/1993 - 09/1994	2
35633-12070	AE101..4FC	05/1998 - 11/2001	2
35633-20030	AE10#,EE100,101..ATM	08/1991 - 10/1992	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	09/1994 - 04/1997	2
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633-20030	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	10/1992 - 07/1993	2
35633-20031	AE101..ATM	04/1997 - 05/1998	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	07/1993 - 09/1994	2
35633-12070	AE101..4FC	05/1998 - 11/2001	2
35633-20030	AE10#,EE100,101..ATM	08/1991 - 10/1992	2
35633-20031	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM	09/1994 - 04/1997	2
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	08/1991 - 10/1992	4
35634-32010	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	08/1991 - 10/1992	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	09/1994 - 11/2001	4
35634-12040	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	10/1992 - 05/1993	4
35634-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	10/1992 - 04/1997	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	05/1993 - 09/1994	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	08/1991 - 10/1992	4
35634-32010	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	08/1991 - 10/1992	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	09/1994 - 11/2001	4
35634-12040	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	10/1992 - 05/1993	4
35634-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	10/1992 - 04/1997	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	05/1993 - 09/1994	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	08/1991 - 10/1992	4
35634-32010	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	08/1991 - 10/1992	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	09/1994 - 11/2001	4
35634-12040	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	10/1992 - 05/1993	4
35634-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	10/1992 - 04/1997	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	05/1993 - 09/1994	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	08/1991 - 10/1992	4
35634-32010	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	08/1991 - 10/1992	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	09/1994 - 11/2001	4
35634-12040	AE10#..4FC..(GLI,SEG,SJ,XLI) T=1.8	10/1992 - 05/1993	4
35634-12040	AE101..ATM..(GL,XL);AE100,EE100,101..3FC T=1.8	10/1992 - 04/1997	3
35634-12040	AE10#..4FC..(GLI,SEG,XLI) T=1.8	05/1993 - 09/1994	4
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35634-32010	AE10#,EE100,101..(SED,WG)..ATM T=1.8	05/1993 - 07/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	07/1993 - 09/1994	3
35634-32010	AE10#,EE100,101..ATM T=1.8	08/1991 - 05/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	09/1994 - 04/1997	3
35634-12040	AE10#..ATM T=1.8	04/1997 - 11/2001	3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35634-32010	AE10#,EE100,101..(SED,WG)..ATM T=1.8	05/1993 - 07/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	07/1993 - 09/1994	3
35634-32010	AE10#,EE100,101..ATM T=1.8	08/1991 - 05/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	09/1994 - 04/1997	3
35634-12040	AE10#..ATM T=1.8	04/1997 - 11/2001	3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35634-32010	AE10#,EE100,101..(SED,WG)..ATM T=1.8	05/1993 - 07/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	07/1993 - 09/1994	3
35634-32010	AE10#,EE100,101..ATM T=1.8	08/1991 - 05/1993	3
35634-12040	AE10#,EE100,101..(SED,WG)..ATM T=1.8	09/1994 - 04/1997	3
35634-12040	AE10#..ATM T=1.8	04/1997 - 11/2001	3
35675A - FLANGE, FORWARD CLUTCH
35635-50040	AE10#,EE100,101..ATM T=3.40,MARK 45	08/1991 - 05/1993	1
35635-50030	AE10#,EE100,101..ATM T=3.60,MARK 62	08/1991 - 09/1994	1
35675-32060	AE10#,EE100,101..ATM T=3.4	08/1991 - 05/1993	1
35675-12010	AE10#,EE100,101..ATM T=3.2	08/1991 - 09/1994	1
35675-32020	AE101..RHD..4FC..(GLI,SEG) T=3.37	08/1991 - 05/1993	1
35635-50040	AE100,EE100,101..3FC;AE101,102..(SED,WG)..ATM T=3.40,MARK 45	04/1995 - 12/1995	1
35675-32060	AE10#,EE100,101..(SED,WG)..ATM T=3.4	09/1994 - 04/1995	1
35635-50040	AE10#,EE100,101..(SED,WG)..ATM T=3.40,MARK 45	09/1994 - 04/1995	1
35675-32010	AE10#,EE100,101..ATM T=3.0	08/1991 - 09/1994	1
35675-32061	AE10#,EE100..ATM T=3.4	12/1995 - 04/1997	1
35635-50040	AE10#,EE100,101..(SED,WG)..ATM T=3.40,MARK 45	05/1993 - 09/1994	1
35675-17010	AE10#,EE100,101..ATM T=2.8	08/1991 - 09/1994	1
35675-12010	AE10#,EE100,101..ATM T=3.2	09/1994 - 04/1997	1
35675-32060	AE100,EE100,101..3FC;AE101,102..(SED,WG)..ATM T=3.4	04/1995 - 12/1995	1
35675-32060	AE10#,EE100,101..(SED,WG)..ATM T=3.4	05/1993 - 09/1994	1
35635-30060	AE101..4FC T=3.6,MARK 93	01/2001 - 11/2001	1
35675-32010	AE10#..ATM T=3.0	04/1997 - 11/2001	1
35675-12010	AE10#..ATM T=3.2	04/1997 - 11/2001	1
35675-17010	AE10#,EE100,101..ATM T=2.8	09/1994 - 04/1997	1
35675-17010	AE10#..ATM T=2.8	04/1997 - 11/2001	1
35675-32010	AE10#,EE100,101..ATM T=3.0	09/1994 - 04/1997	1
35635-50030	AE10#..ATM T=3.60,MARK 62	04/1997 - 01/2001	1
35675-32020	AE101..RHD..4FC..(GLI,SEG,SJ) T=3.37	05/1993 - 12/2999	1
35675-32061	AE10#,EE100,101..(SED,WG)..ATM T=3.4	04/1995 - 05/1995	1
35675-32061	AE10#..ATM T=3.4	04/1997 - 11/2001	1
35635-50030	AE10#,EE100,101..ATM T=3.60,MARK 62	09/1994 - 04/1997	1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90521-99001	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
90521-99001	AE10#..ATM	04/1997 - 11/2001	1
90521-99001	AE10#,EE100,101..ATM	09/1994 - 04/1997	1
35675C - FLANGE, DIRECT CLUTCH
35675-32060	AE10#..ATM T=3.4	02/1992 - 10/1992	1
35675-32020	AE10#,EE100..ATM T=3.37	08/1991 - 02/1992	1
35675-32010	AE10#,EE100,101..ATM T=3.0	08/1991 - 09/1994	1
35675-32060	AE100..3FC;AE101..(SED,WG)..ATM T=3.4	10/1992 - 09/1994	1
35675-32060	AE100..3FC;AE101..(SED,WG)..ATM T=3.4	09/1994 - 12/1995	1
35675-32061	AE100,EE100,101..3FC;AE101..(SED,WG)..ATM T=3.4	04/1995 - 05/1995	1
35675-32061	AE101..ATM T=3.4	04/1997 - 11/2001	1
35675-32061	AE101,EE100..ATM T=3.4	12/1995 - 04/1997	1
35675-32010	AE10#,EE100,101..ATM T=3.0	09/1994 - 04/1997	1
35675-32010	AE10#..ATM T=3.0	04/1997 - 11/2001	1
35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
90521-99001	AE10#..4FC	05/1997 - 11/2001	1
90521-99001	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
90521-99001	AE10#,EE100,101..ATM	09/1994 - 05/1997	1
35701 - SHAFT SUB-ASSY, INPUT
35701-32031	AE10#..4FC..(GLI,SEG,SJ,XLI)	08/1991 - 05/1993	1
35701-32021	AE101..ATM..(GL,XL);AE100,EE100,101..3FC	08/1991 - 04/1997	1
35701-32031	AE10#..4FC..(GLI,SEG,XLI)	05/1993 - 09/1994	1
35701-32031	AE101,102..4FC..(GLI,SEG,XLI)	12/1994 - 11/2001	1
35701-32031	AE10#..4FC..(GLI,SEG,XLI)	09/1994 - 12/1994	1
35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35789-32040	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	1
35789-32040	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35789-32040	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
35789-32040	AE10#..ATM	04/1997 - 11/2001	1
35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
90374-28005	AE10#,EE100,101..(SED,WG)..ATM OD=42.0	05/1993 - 09/1994	1
90374-28005	AE10#,EE100,101..ATM OD=42.0	08/1991 - 05/1993	1
90374-28005	AE10#..ATM OD=42.0	04/1997 - 11/2001	1
90374-28005	AE10#,EE100,101..(SED,WG)..ATM OD=42.0	09/1994 - 04/1997	1
35712A - RING, INPUT SHAFT OIL SEAL
35712-32010	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	2
35712-32010	AE10#,EE100,101..ATM	08/1991 - 05/1993	2
35712-32010	AE10#..ATM	04/1997 - 11/2001	2
35712-32010	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	2
35712A - RING, INPUT SHAFT OIL SEAL
35712-32010	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	2
35712-32010	AE10#,EE100,101..ATM	08/1991 - 05/1993	2
35712-32010	AE10#..ATM	04/1997 - 11/2001	2
35712-32010	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	2
35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789-32010	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35789-32010	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 04/1997	1
35789-32010	AE10#..ATM	04/1997 - 11/2001	1
35789-32010	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
35810B - BAND ASSY, 2ND COAST BRAKE
35810-32020	AE101..4FC..(GLI,SEG,XLI)	05/1992 - 12/1992	2
35810-32020	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
35810-32020	AE10#,EE100..ATM	08/1991 - 05/1992	1
35810-32020	AE10#,EE100,101..ATM..(GL,GLI,SEG,SJ,XL,XLI)	12/1992 - 09/1994	1
35810-32020	AE10#,EE100,101..ATM..(GL,GLI,SEG,SJ,XL,XLI)	09/1994 - 08/1995	1
35810-32020	AE101..4FC	11/1997 - 12/1997	1
35810-32020	AE101..ATM	12/1997 - 11/2001	1
35810-32020	AE101..ATM	04/1997 - 11/1997	1
35810-32020	AE100,EE100,101..ATM;AE101..ATM..(GL,SJ,XL)	05/1992 - 12/1992	1
35810C - PIN (FOR 2ND COAST BRAKE BAND)
90250-07001	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
90250-07001	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
90250-07001	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
90250-07001	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 08/1995	1
90250-07001	AE101..ATM	04/1997 - 11/2001	1
35815 - COVER, 2ND COAST BRAKE
35815-32010	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
35815-32010	AE101..ATM	04/1997 - 11/1997	1
35815-32010	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
35815-32010	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 08/1995	1
35815-32010	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
35815-32010	AE101..ATM	12/1997 - 11/2001	1
35815-32010	AE101..4FC	11/1997 - 12/1997	1
35815A - RING, O (FOR 2ND COAST BRAKE COVER)
90301-41002	AE101..ATM	04/1997 - 11/1997	2
90301-41002	AE10#,EE100,101..ATM	09/1994 - 08/1995	2
90301-41002	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	2
90301-41002	AE10#,EE100,101..ATM	08/1991 - 09/1994	2
90301-41002	AE101..4FC	11/1997 - 12/1997	2
90301-41002	AE101..ATM	12/1997 - 11/2001	2
35815A - RING, O (FOR 2ND COAST BRAKE COVER)
90301-41002	AE101..ATM	04/1997 - 11/1997	2
90301-41002	AE10#,EE100,101..ATM	09/1994 - 08/1995	2
90301-41002	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	2
90301-41002	AE10#,EE100,101..ATM	08/1991 - 09/1994	2
90301-41002	AE101..4FC	11/1997 - 12/1997	2
90301-41002	AE101..ATM	12/1997 - 11/2001	2
35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
90521-53001	AE10#,EE100,101..(SED,WG)..ATM	05/1993 - 09/1994	1
90521-53001	AE101..ATM	04/1997 - 11/1997	1
90521-53001	AE10#,EE100,101..(SED,WG)..ATM	09/1994 - 08/1995	1
90521-53001	AE10#,EE100,101..ATM	08/1991 - 05/1993	1
90521-53001	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
90521-53001	AE101..ATM	12/1997 - 11/2001	1
90521-53001	AE101..4FC	11/1997 - 12/1997	1
35816 - RETAINER, BRAKE BAND GUIDE PLATE
35816-12010	AE10#,EE100,101..ATM	09/1994 - 04/1997	1
35816-12010	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
35816-12010	AE10#..ATM	04/1997 - 11/2001	1
35819 - PLATE, 2ND COAST BRAKE BAND GUIDE
35819-12020	AE10#..(SED,WG)..4FC	09/1994 - 11/2001	1
35819-12020	AE10#..4FC	08/1991 - 05/1993	1
35819-12020	AE10#..(SED,WG)..4FC	05/1993 - 09/1994	1
35821A - PISTON, 2ND COAST BRAKE
35821-32010	AE10#,EE100,101..ATM	09/1994 - 08/1995	1
35821-32010	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
35821-32010	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
35821-32010	AE101..ATM	04/1997 - 11/1997	1
35821-32010	AE101..4FC	11/1997 - 12/1997	1
35821-32010	AE101..ATM	12/1997 - 11/2001	1
35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
90201-06557	AE101..4FC	11/1997 - 12/1997	1
90201-06557	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
90201-06557	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
90201-06557	AE101..ATM	12/1997 - 11/2001	1
90201-06557	AE10#,EE100,101..ATM	09/1994 - 08/1995	1
90201-06557	AE101..ATM	04/1997 - 11/1997	1
35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
90501-20051	AE10#,EE100,101..ATM INNER	08/1991 - 09/1994	1
90501-26024	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) OUTER	08/1995 - 04/1997	1
90501-20051	AE101..4FC INNER	11/1997 - 12/1997	1
90501-20051	AE10#,EE100,101..ATM INNER	09/1994 - 08/1995	1
90501-26024	AE101..4FC OUTER	11/1997 - 12/1997	1
90501-26024	AE101..ATM OUTER	04/1997 - 11/1997	1
90501-20051	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) INNER	08/1995 - 04/1997	1
90501-26024	AE101..ATM OUTER	12/1997 - 11/2001	1
90501-26024	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90501-26024	AE10#,EE100,101..ATM OUTER	09/1994 - 08/1995	1
90501-20051	AE101..ATM INNER	04/1997 - 11/1997	1
90501-20051	AE101..ATM INNER	12/1997 - 11/2001	1
35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
90501-20051	AE10#,EE100,101..ATM INNER	08/1991 - 09/1994	1
90501-26024	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) OUTER	08/1995 - 04/1997	1
90501-20051	AE101..4FC INNER	11/1997 - 12/1997	1
90501-20051	AE10#,EE100,101..ATM INNER	09/1994 - 08/1995	1
90501-26024	AE101..4FC OUTER	11/1997 - 12/1997	1
90501-26024	AE101..ATM OUTER	04/1997 - 11/1997	1
90501-20051	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) INNER	08/1995 - 04/1997	1
90501-26024	AE101..ATM OUTER	12/1997 - 11/2001	1
90501-26024	AE10#,EE100,101..ATM OUTER	08/1991 - 09/1994	1
90501-26024	AE10#,EE100,101..ATM OUTER	09/1994 - 08/1995	1
90501-20051	AE101..ATM INNER	04/1997 - 11/1997	1
90501-20051	AE101..ATM INNER	12/1997 - 11/2001	1
35821H - RING, E (FOR 2ND COAST BRAKE PISTON)
96160-00500	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
96160-00500	AE101..4FC	11/1997 - 12/1997	1
96160-00500	AE10#,EE100,101..ATM	09/1994 - 08/1995	1
96160-00500	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
96160-00500	AE101..ATM	12/1997 - 11/2001	1
96160-00500	AE101..ATM	04/1997 - 11/1997	1
35822A - ROD, 2ND COAST BRAKE PISTON
35822-32020	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) L=72.4	08/1995 - 04/1997	1
35822-32010	AE10#,EE100,101..ATM L=70.9	09/1994 - 08/1995	1
35822-32010	AE10#,EE100,101..ATM L=70.9	08/1991 - 09/1994	1
35822-32020	AE101..ATM L=72.4	04/1997 - 11/1997	1
35822-32020	AE10#,EE100,101..ATM L=72.4	08/1991 - 09/1994	1
35822-32020	AE10#,EE100,101..ATM L=72.4	09/1994 - 08/1995	1
35822-32020	AE101..4FC L=72.4	11/1997 - 12/1997	1
35822-32010	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI) L=70.9	08/1995 - 04/1997	1
35822-32010	AE101..ATM L=70.9	12/1997 - 11/2001	1
35822-32020	AE101..ATM L=72.4	12/1997 - 11/2001	1
35822-32010	AE101..4FC L=70.9	11/1997 - 12/1997	1
35822-32010	AE101..ATM L=70.9	04/1997 - 11/1997	1
35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL
35865-32010	EE100,101..3FC;AE101..LHD..ATM;AE101..RHD..4FC..(GLI,SEG,XLI)	08/1995 - 04/1997	1
35865-32010	AE10#,EE100,101..ATM	09/1994 - 08/1995	1
35865-32010	AE101..ATM	12/1997 - 11/2001	1
35865-32010	AE101..ATM	04/1997 - 11/1997	1
35865-32010	AE10#,EE100,101..ATM	08/1991 - 09/1994	1
35865-32010	AE101..4FC	11/1997 - 12/1997	1

AE101R-AEPNK (1991)

(9108-9305)ATM ; (9305- )SED,WG..ATM

Part Price Details
