AE101R-AEPEK (1991)
Toyota Corolla Sed/Cp/Wg

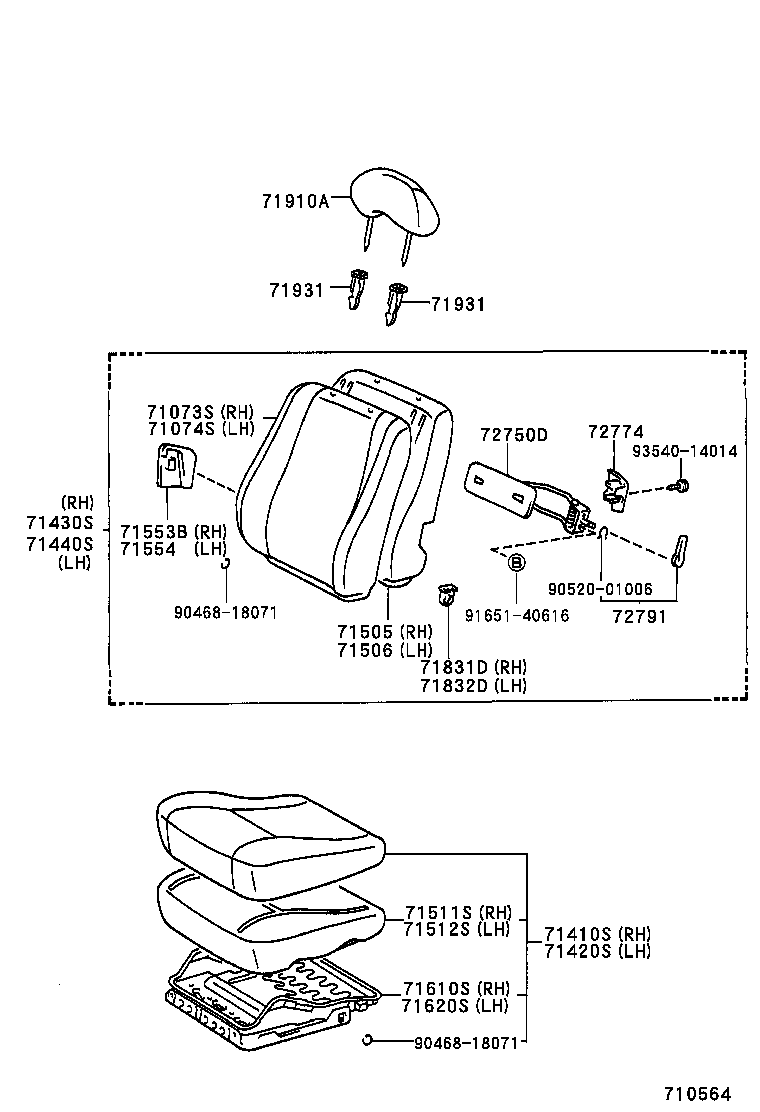

ILLUST NO. 1 OF 2(9108-9505)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K110B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K110J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71073-1K110K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71073-1K111K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71073-1K111B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H050J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71074-1H050K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71074-1H050B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H051K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71074-1H051B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K610B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K610J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K610K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71410-1K611K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71410-1K611B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E530K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71420-1E530B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E530J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-1E531B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E531K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K340J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1K340B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K340K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71430-1K341B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K341K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K270B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K270K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K270J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1K271K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K271B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12160 |
AE101..SEG CKD SPEC |
1 | ||
| 71505-12170 |
AE100..GLI;AE101..SEG |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12110 |
AE101..SEG CKD SPEC |
1 | ||
| 71506-12120 |
AE100..GLI;AE101..SEG |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-12010B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71518-12011K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71518-12011B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71518-12010J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71518-12010K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-12010B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71528-12010J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71528-12010K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71528-12011K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71528-12011B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#,CE100,EE100,101,105..(SED,WG)..(GEN,TUR) |
1 | ||
| 71553-12290 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#,CE100,EE100,101,105..(SED,WG)..(GEN,TUR) |
1 | ||
| 71554-12130 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12370 |
AE10#,EE100..GL,GLI,SEG |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12240 |
AE10#,EE10#..SED,WG |
1 | ||
| 71620-12280 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 71620-12280 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE10#,CE100,EE10#..GEN |
1 | ||
| 71831-16010 |
AE10#,CE100,EE10#..GEN,TUR |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE100,CE100,EE101,104,105,108;AE101..(GTAPX,SEG,SJ,STD,XL,XLI)..GEN |
1 | ||
| 71831-16010 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(GTAPX,SEG,SJ,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A30016 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A300K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
2 | ||
| 71910-1A300J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
2 | ||
| 71910-1A301B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A301K2 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070K0 |
AE100..GLI;AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE100..GLI;AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE100..GLI;AE101..SEG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,EE100,101..SED W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE100,101..SED W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040J0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE101..SEG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040K0 |
AE101..SEG W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070K0 |
AE100..GLI;AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE100..GLI;AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE100..GLI;AE101..SEG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,EE100,101..SED W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE100,101..SED W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040J0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE101..SEG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040K0 |
AE101..SEG W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12090 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-12040 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010K0 |
AE10#,EE100..(GL,GLI,SEG)..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72791-12010B0 |
AE102..4FC;AE100,101,EE100..(GL,GLI,SEG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 72791-12010K0 |
AE101..SEG TAUPE,TRIM9# |
1 | ||
| 72791-12010J0 |
AE10#,EE100..(GL,GLI,SEG)..GEN DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-40616 | ||||
| 93540-14014 | ||||
ILLUST NO. 1 OF 2(9108-9510)SEG
CKD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K110B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K110J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71073-1K110K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71073-1K111K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71073-1K111B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H050J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
1 | ||
| 71074-1H050K0 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71074-1H050B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H051K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71074-1H051B1 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K610B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K610J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K610K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71410-1K611K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71410-1K611B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E530K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71420-1E530B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E530J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-1E531B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E531K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K340J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1K340B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K340K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71430-1K341B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K341K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K270B0 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K270K0 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K270J0 |
AE100..GLI;AE101..SEG ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1K271K1 |
AE100..GLI;AE101..SEG ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K271B1 |
AE100..GLI;AE101..SEG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12160 |
AE101..SEG CKD SPEC |
1 | ||
| 71505-12170 |
AE100..GLI;AE101..SEG |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12110 |
AE101..SEG CKD SPEC |
1 | ||
| 71506-12120 |
AE100..GLI;AE101..SEG |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12810 |
AE101..SEG CKD SPEC |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12810 |
AE101..SEG CKD SPEC |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#,CE100,EE100,101,105..(SED,WG)..(GEN,TUR) |
1 | ||
| 71553-12290 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#,CE100,EE100,101,105..(SED,WG)..(GEN,TUR) |
1 | ||
| 71554-12130 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12370 |
AE10#,EE100..GL,GLI,SEG |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12240 |
AE10#,EE10#..SED,WG |
1 | ||
| 71620-12280 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 71620-12280 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE10#,CE100,EE10#..GEN |
1 | ||
| 71831-16010 |
AE10#,CE100,EE10#..GEN,TUR |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE100,CE100,EE101,104,105,108;AE101..(GTAPX,SEG,SJ,STD,XL,XLI)..GEN |
1 | ||
| 71831-16010 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(GTAPX,SEG,SJ,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A30016 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A300K1 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
2 | ||
| 71910-1A300J0 |
AE100..GLI;AE101..SEG DARK BLUE,TRIM8# |
2 | ||
| 71910-1A301B0 |
AE100..GLI;AE101..SEG SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A301K2 |
AE100..GLI;AE101..SEG TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070K0 |
AE100..GLI;AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE100..GLI;AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE100..GLI;AE101..SEG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,EE100,101..SED W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE100,101..SED W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040J0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE101..SEG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040K0 |
AE101..SEG W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070K0 |
AE100..GLI;AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE100..GLI;AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070J0 |
AE100..GLI;AE101..SEG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,EE100,101..SED W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE100,101..SED W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040J0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE10#,CE100,EE100,101,105..SED,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE101..SEG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE100,101,105..SED,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE101..SEG W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE101..SEG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040K0 |
AE101..SEG W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12090 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-12040 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010K0 |
AE10#,EE100..(GL,GLI,SEG)..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72791-12010B0 |
AE102..4FC;AE100,101,EE100..(GL,GLI,SEG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 72791-12010K0 |
AE101..SEG TAUPE,TRIM9# |
1 | ||
| 72791-12010J0 |
AE10#,EE100..(GL,GLI,SEG)..GEN DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-40616 | ||||
| 93540-14014 | ||||

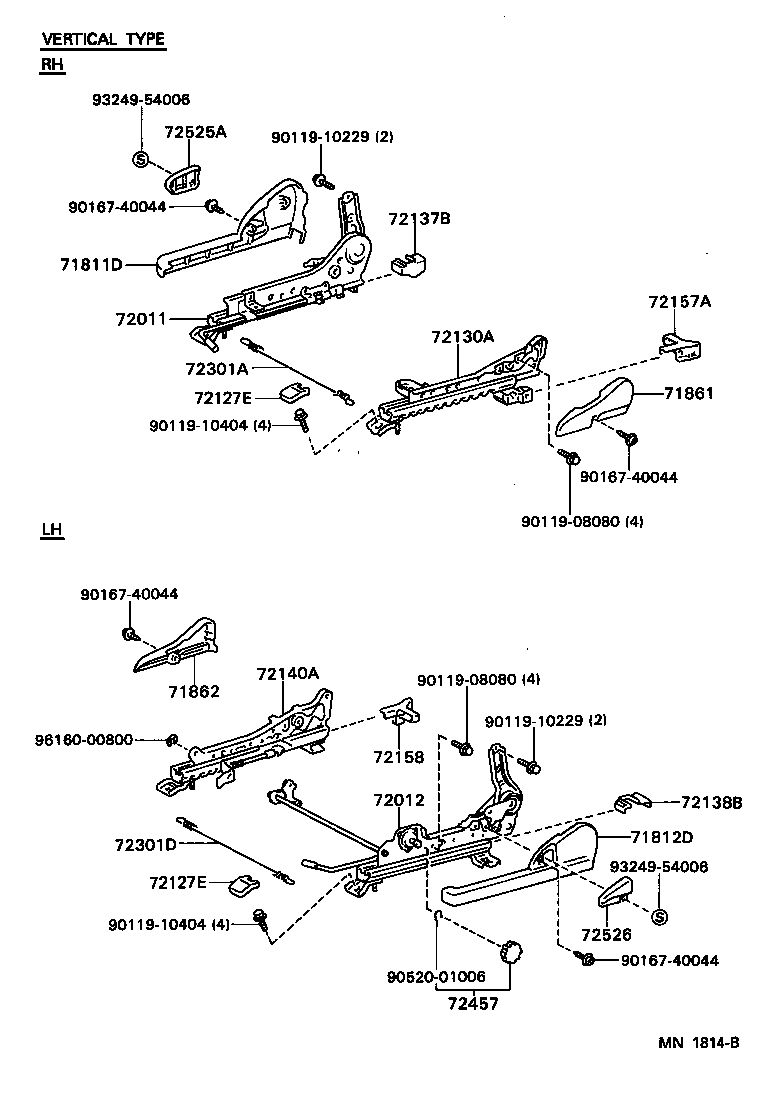

ILLUST NO. 2 OF 2(9108- )RHD..GL,GLI,SEG,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280W3 |
AE10#,EE100..RHD..(GL,GLI,SEG) DARK BLUE,TRIM8# |
1 | ||
| 71811-12280K0 |
AE100,101,EE100..RHD..(GL,GLI,SEG) TAUPE,TRIM9# |
1 | ||
| 71811-12280P0 |
AE100,101,EE100..RHD..(GL,GLI,SEG) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280K0 |
AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220W3 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,105;EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71812-12220K0 |
EE100..RHD;AE100,CE100,EE101;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..(GEN,TUR);AE101..SED..(SEG,STD,XL,XLI)..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 71812-12220P0 |
AE101,EE100..RHD..(GL,GLI);AE101..(SEG,STD,XL,XLI)..(GEN,TUR);AE100,CE100,EE10#..(GLI,L,LX,STD,XL,XLI)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71861-12220K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 71861-12220P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71862-12210P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12610 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(SEG,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 72020-12560 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN;AE100,CE100,EE101,104,105,108 |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..(3FC,4FC,5F) DARK BLUE,TRIM8# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,EE100,101..SED..(3FC,4FC,5F) TAUPE,TRIM9# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..(SED,WG)..(3FC,4FC,5F) SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
3 | ||
| 72127-12010C0 |
AE101..SEG BLACK,TRIM1#,9# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..(3FC,4FC,5F) DARK BLUE,TRIM8# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,EE100,101..SED..(3FC,4FC,5F) TAUPE,TRIM9# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..(SED,WG)..(3FC,4FC,5F) SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
3 | ||
| 72127-12010C0 |
AE101..SEG BLACK,TRIM1#,9# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12600 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72137-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72137-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72138-12040W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72138-12040P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12500 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(SEG,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 72140-12500 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN;AE100,CE100,EE101,104,105,108 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72157-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72157-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72158-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72158-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72158-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 72301-12160 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC TAUPE,TRIM9# |
1 | ||
| 72457-22020J0 |
AE10#,CE100,EE100,101,105..GL,GLI,SEG,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72457-22020B1 |
AE101..GLI..TUR;AE10#,CE100,EE100,101,105..(GL,GLI,SEG,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020K0 |
AE101..GLI..TUR;AE10#,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)..(GCC,GEN) TAUPE,TRIM9# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 72525-12100K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72525-12100P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 72526-12040K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72526-12040P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90168-40043 | ||||
| 90386-12046 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(9205- )LHD..XLI..GEN ; (9205- )EE100..LHD..GL,XL..GEN ; (9205- )AE101,102
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280W3 |
AE10#,EE100..RHD..(GL,GLI,SEG) DARK BLUE,TRIM8# |
1 | ||
| 71811-12280K0 |
AE100,101,EE100..RHD..(GL,GLI,SEG) TAUPE,TRIM9# |
1 | ||
| 71811-12280P0 |
AE100,101,EE100..RHD..(GL,GLI,SEG) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280K0 |
AE101..SEG TAUPE,TRIM9# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220W3 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,105;EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71812-12220K0 |
EE100..RHD;AE100,CE100,EE101;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..(GEN,TUR);AE101..SED..(SEG,STD,XL,XLI)..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 71812-12220P0 |
AE101,EE100..RHD..(GL,GLI);AE101..(SEG,STD,XL,XLI)..(GEN,TUR);AE100,CE100,EE10#..(GLI,L,LX,STD,XL,XLI)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71861-12220K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 71861-12220P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71862-12210P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12610 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12560 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(SEG,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 72020-12560 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN;AE100,CE100,EE101,104,105,108 |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..(3FC,4FC,5F) DARK BLUE,TRIM8# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,EE100,101..SED..(3FC,4FC,5F) TAUPE,TRIM9# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..(SED,WG)..(3FC,4FC,5F) SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
3 | ||
| 72127-12010C0 |
AE101..SEG BLACK,TRIM1#,9# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..(3FC,4FC,5F) DARK BLUE,TRIM8# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,EE100,101..SED..(3FC,4FC,5F) TAUPE,TRIM9# |
3 | ||
| 72127-12010P0 |
AE10#,CE100,EE10#..(SED,WG)..(3FC,4FC,5F) SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
3 | ||
| 72127-12010C0 |
AE101..SEG BLACK,TRIM1#,9# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12600 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72137-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72137-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72138-12040W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72138-12040P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12500 |
EE100..RHD;AE101..RHD..(GL,GLI);AE100,CE100,EE101,104,105;EE100..LHD..(STD,XL)..(GEN,TUR);AE101..(SEG,STD,XL,XLI)..(GEN,TUR) |
1 | ||
| 72140-12500 |
EE100..RHD;AE101..RHD..(GL,GLI);EE100..LHD..(STD,XL)..GEN;AE101..(SEG,STD,XL,XLI)..GEN;AE100,CE100,EE101,104,105,108 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72157-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72157-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030K0 |
AE10#,CE100,EE100,101..SED TAUPE,TRIM9# |
1 | ||
| 72158-12030W3 |
AE10#,CE100,EE100,101,105..SED,WG DARK BLUE,TRIM8# |
1 | ||
| 72158-12030C0 |
AE100;AE101..SEG BLACK,TRIM1#,9# |
1 | ||
| 72158-12030P0 |
AE10#,CE100,EE10#..SED,WG SHADOW GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AE100,101,EE100..RHD..(GL,GLI,SEG) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 72301-12160 |
AE101..SEG,STD,XL,XLI;AE101,EE100..RHD..(GL,GLI);AE100,CE100,EE10#..GLI,L,LX,STD,XL,XLI |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020K0 |
EE101;AE101..SEG;AE101,EE100..SED..GCC TAUPE,TRIM9# |
1 | ||
| 72457-22020J0 |
AE10#,CE100,EE100,101,105..GL,GLI,SEG,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 72457-22020B1 |
AE101..GLI..TUR;AE10#,CE100,EE100,101,105..(GL,GLI,SEG,XL,XLI)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 72457-22020K0 |
AE101..GLI..TUR;AE10#,CE100,EE100,101..SED..(GL,GLI,SEG,XL,XLI)..(GCC,GEN) TAUPE,TRIM9# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 72525-12100K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72525-12100P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040W3 |
AE10#,CE100,EE100,101,105..(SED,WG)..GEN DARK BLUE,TRIM8# |
1 | ||
| 72526-12040K0 |
AE10#,CE100,EE100,101..SED..(GEN,TUR) TAUPE,TRIM9# |
1 | ||
| 72526-12040P0 |
AE10#,CE100,EE10#..(SED,WG)..(GEN,TUR) SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
