Toyota Corolla sed/cp/wg AE101 AIR CLEANER

AE101R-AEPEK (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - Oct 1995

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )4AFE,7AFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16430	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17700-16420	4AF..AE101	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17700-16510	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-16480	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-15340	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17700-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17705-16220	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15150	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17705-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17705-16210	4AF..AE101	05/1992 - 12/1993	1
17705-16240	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17705-15180	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17751 - INLET, AIR CLEANER, NO.1
17751-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17752 - INLET, AIR CLEANER, NO.2
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17752-15040	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17881-02040	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17881-15190	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17881-02040	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17881-15190	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17893 - RESONATOR, INTAKE AIR
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17893-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17894-15040	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-02020	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17894-15040	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-02020	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
Common parts
90119-06770
90467-07166
91631-60614
91635-60618
91645-80618
94185-60600

(9108-9505)4AFE,5AFE,7AFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16430	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17700-16420	4AF..AE101	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17700-16510	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-16480	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-15340	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17700-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17705-16220	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15150	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17705-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17705-16210	4AF..AE101	05/1992 - 12/1993	1
17705-16240	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17705-15180	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17751 - INLET, AIR CLEANER, NO.1
17751-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17752 - INLET, AIR CLEANER, NO.2
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17752-15040	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17881-02040	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17881-15190	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17893 - RESONATOR, INTAKE AIR
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17893-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17894-02020	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17894-15040	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-02020	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17894-15030	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
Common parts
90119-06340
90119-06374
90179-06178
90467-07136
91661-60840
91661-B0614

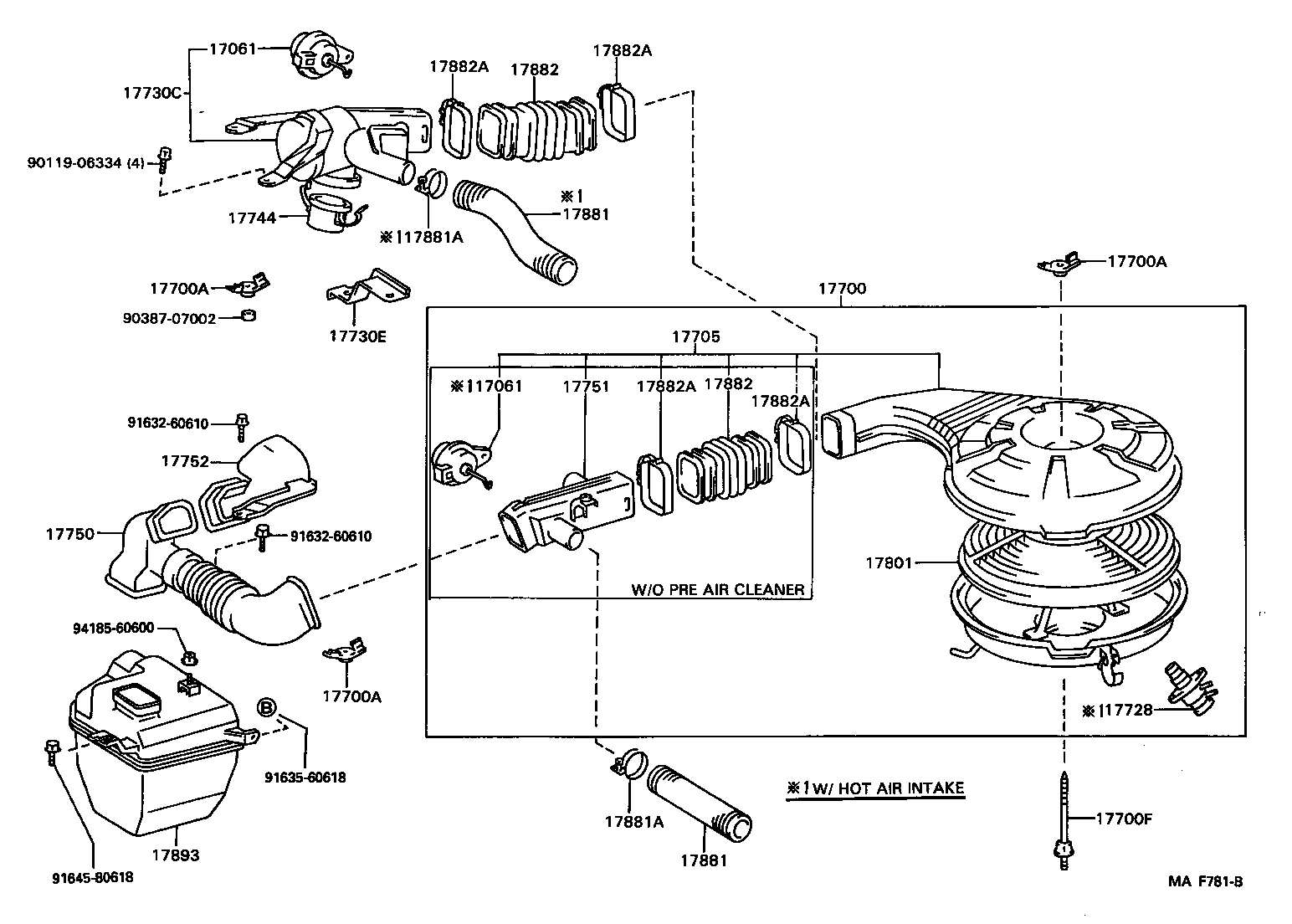

(9205- )4AF

Click highlighted areas on diagram

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-15040	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/2999	1
17061-10010	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/2999	1
17061 - DIAPHRAGM SUB-ASSY
17061-15040	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/2999	1
17061-10010	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-16430	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17700-16420	4AF..AE101	05/1992 - 12/1993	1
17700-15270	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17700-16510	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-16480	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17700-15340	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17700-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010	4AF..AE101	05/1992 - 12/2999	2
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010	4AF..AE101	05/1992 - 12/2999	2
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010	4AF..AE101	05/1992 - 12/2999	2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018	4AF..AE101	05/1992 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17705-16220	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15150	4AF..AE101 W(HOT AIR INTAKE)	05/1992 - 12/1993	1
17705-02040	4AFE,5AFE,7AFE..AE10#..GCC,GEN (L)	01/1993 - 05/1995	1
17705-16210	4AF..AE101	05/1992 - 12/1993	1
17705-16240	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/1993	1
17705-15160	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17705-15180	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17728 - VALVE, THERMOSTATIC
17728-16010	4AF..AE101	05/1992 - 12/2999	1
17730C - CASE, PRECLEANER
17736-16080	4AF..AE101 W(HOT AIR INTAKE & PRE AIR CLEANER)	05/1992 - 12/2999	1
17736-16070	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/2999	1
17730E - BRACKET, PRECLEANER, NO.1
17741-16030	4AF..AE101	05/1992 - 12/2999	1
17744 - CUP, PRECLEANER
17744-16020	4AF..AE101	05/1992 - 12/2999	1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17750-16020	4AF..AE101	05/1992 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17750-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17750-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17752 - INLET, AIR CLEANER, NO.2
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17753-15010	4AFE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17753-02010	4AFE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17752-15040	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17801-15070	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17881-02040	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17881-15190	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
17881-02040	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
17881-15180	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17881-02040	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
17881-15190	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73001	4AFE,5AFE..AE100,101..RHD	08/1991 - 05/1995	2
96111-10730	4AFE..AE101..RHD	05/1995 - 12/2999	2
17882 - HOSE, AIR CLEANER, NO.2
17881-15140	4AF..AE101	05/1992 - 12/2999	1
17881-16180	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/2999	1
17882 - HOSE, AIR CLEANER, NO.2
17881-15140	4AF..AE101	05/1992 - 12/2999	1
17881-16180	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	08/1991 - 09/1994	1
17786-16010	4AF..AE101 W(PRE AIR CLEANER)	05/1992 - 12/1993	2
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	09/1994 - 05/1995	1
90460-42002	4AFE,5AFE,7AFE..AE10#..ATM (J)	09/1994 - 05/1995	1
90080-46146	4AFE,5AFE,7AFE..AE10#..ATM (L)	01/1993 - 09/1994	1
90080-46146	4AFE,7AFE..AE10# TYPE B:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
96111-10380	4AFE,7AFE..AE10# TYPE A:REFER TO ILLUSTRATION	05/1995 - 09/1995	1
17893 - RESONATOR, INTAKE AIR
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	09/1994 - 05/1995	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	08/1991 - 09/1994	1
17893-15050	4AFE,7AFE..AE10#	05/1995 - 09/1995	1
17893-02010	4AFE,4AGE,5AFE,7AFE..AE10# (L)	01/1993 - 09/1994	1
17893-15040	4AFE,4AGE,5AFE,7AFE..AE10# (J)	09/1994 - 05/1995	1
Common parts
90119-06334
90387-07002
91632-60610
91635-60618
91645-80618
94185-60600

AE101R-AEPEK (1991)

(9505- )4AFE,7AFE

(9108-9505)4AFE,5AFE,7AFE

(9205- )4AF

Part Price Details
