AE101R-AEMNK (1991)
Toyota Corolla Sed/Cp/Wg

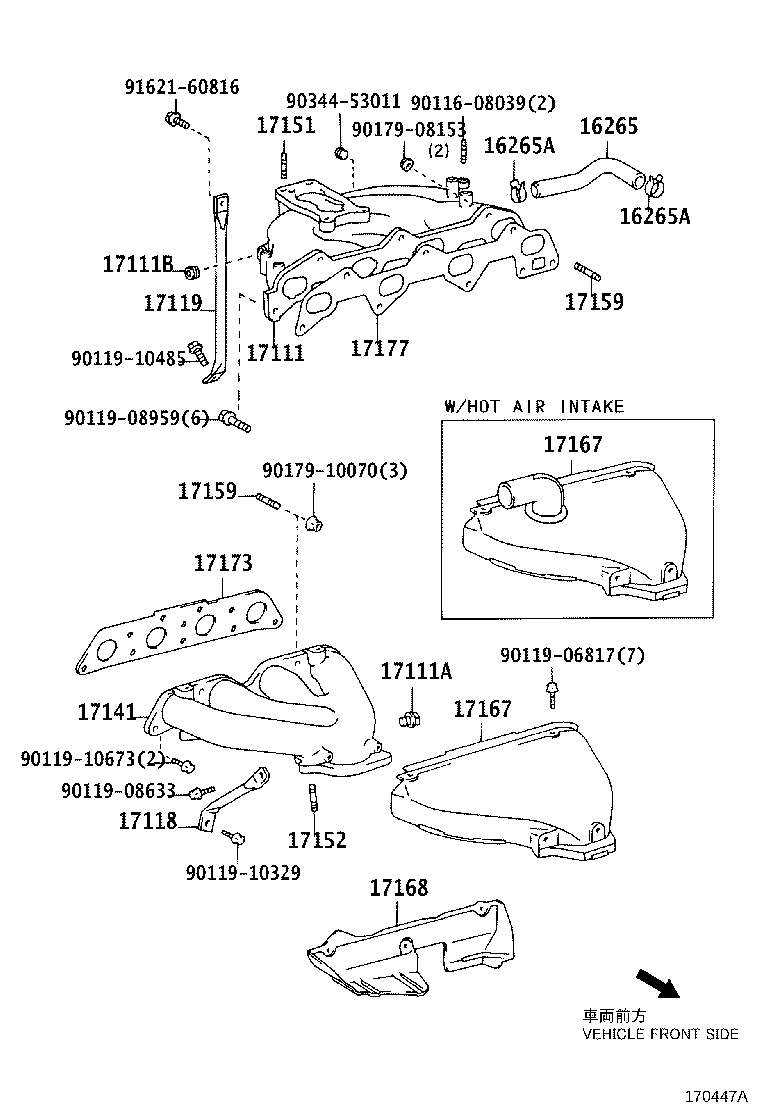

(9205- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 16265-15020 |
4AF..AE101 |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21006 |
4AF..AE101 |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21006 |
4AF..AE101 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16190 |
4AFE..AE101 |
1 | ||
| 17101-16190 |
4AFE,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17101-16080 |
4AF..AE101 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90341-18047 |
4AF#,7AFE..AE101,102..(SED,WG)..(GCC,GEN) |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90344-54003 |
4AF..AE101 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16140 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17118-16050 |
4AF#..AE101..GCC,GEN |
1 | ||
| 17118-16140 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AE101 |
1 | ||
| 17012-15010 |
4AFE,5AFE..AE100,101..GCC,GEN |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16320 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16350 |
4AF#,7AFE..AE101,102..(SED,WG)..(GCC,GEN) W/O PNC 17111A |
1 | ||
| 17141-16300 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92112-60832 |
4AF..AE101 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE10# |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-16070 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17107-16071 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17167-16150 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-16070 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17107-16071 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17167-16150 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16100 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17173-15011 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-16031 |
4AF..AE101 |
1 | ||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-15030 |
4AFE,7AFE..AE10# |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90119-06817 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10485 | ||||
| 90119-10673 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90344-53011 | ||||
| 91621-60816 | ||||

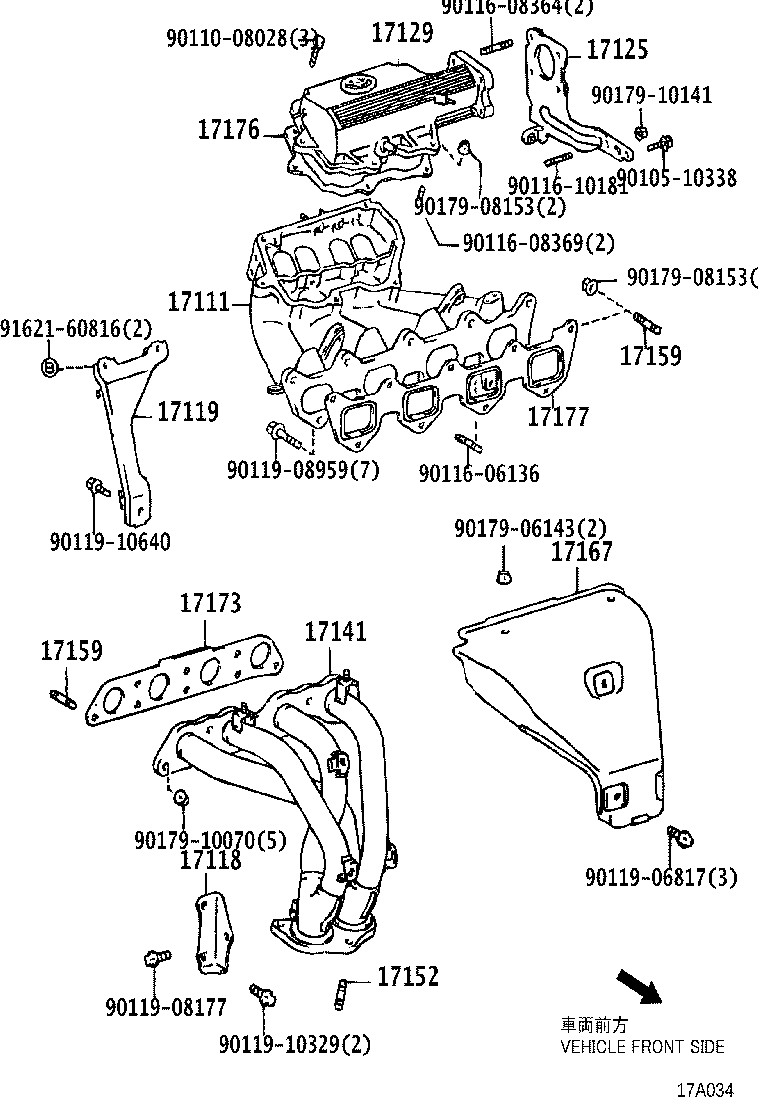

(9108-9707)4AFE,7AFE ; (9707- )4AFE,7AFE..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16190 |
4AFE..AE101 |
1 | ||
| 17101-16190 |
4AFE,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17101-16080 |
4AF..AE101 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90341-18047 |
4AF#,7AFE..AE101,102..(SED,WG)..(GCC,GEN) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16140 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17118-16050 |
4AF#..AE101..GCC,GEN |
1 | ||
| 17118-16140 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AE101 |
1 | ||
| 17012-15010 |
4AFE,5AFE..AE100,101..GCC,GEN |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-15020 |
4AFE,5AFE..AE10# |
1 | ||
| 17125-16080 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-15010 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17109-16030 |
4AFE,7AFE..AE101,102..(SED,WG)..(GCC,GEN) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16320 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16350 |
4AF#,7AFE..AE101,102..(SED,WG)..(GCC,GEN) W/O PNC 17111A |
1 | ||
| 17141-16300 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE10# |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-16070 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17107-16071 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17167-16150 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16100 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17173-15011 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-16031 |
4AF..AE101 |
1 | ||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-15030 |
4AFE,7AFE..AE10# |
1 | ||
| Common parts | ||||
| 90105-10338 | ||||
| 90110-08028 | ||||
| 90116-06136 | ||||
| 90116-08364 | ||||
| 90116-08369 | ||||
| 90116-10181 | ||||
| 90119-06817 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10640 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90179-10141 | ||||
| 91621-60816 | ||||
(9205- )4AFE
SINGAPORE,THAILAND,CHILE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16190 |
4AFE..AE101 |
1 | ||
| 17101-16190 |
4AFE,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17101-16080 |
4AF..AE101 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16140 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17118-16050 |
4AF#..AE101..GCC,GEN |
1 | ||
| 17118-16140 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AE101 |
1 | ||
| 17012-15010 |
4AFE,5AFE..AE100,101..GCC,GEN |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-15020 |
4AFE,5AFE..AE10# |
1 | ||
| 17125-16080 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-15010 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17109-16030 |
4AFE,7AFE..AE101,102..(SED,WG)..(GCC,GEN) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16320 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17141-16330 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17141-16350 |
4AF#,7AFE..AE101,102..(SED,WG)..(GCC,GEN) W/O PNC 17111A |
1 | ||
| 17141-16300 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE10# |
3 | ||
| 90116-10146 |
4AF#,7AFE..AE101,102 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-60825 |
4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 92112-61028 |
4AF..AE101 EXHAUST MANIFOLD |
3 | ||
| 92112-60825 |
4AF#,7AFE..AE10# INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-16070 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI (SINGAPORE OR THAILAND)SPEC |
1 | ||
| 17107-16071 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17167-16170 |
4AFE..AE101..RHD..GLI SINGAPORE SPEC |
1 | ||
| 17167-16150 |
4AF#,7AFE..AE101,102..GCC,GEN |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17173-15011 |
4AF..AE101 W(HOT AIR INTAKE) |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17173-15040 |
4AF#,5AFE,7AFE..AE10# |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17176-15010 |
4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-16031 |
4AF..AE101 |
1 | ||
| 17171-15030 |
4AFE,5AFE,7AFE..AE10# |
1 | ||
| 17171-15030 |
4AFE,7AFE..AE10# |
1 | ||
| Common parts | ||||
| 90105-10338 | ||||
| 90110-08028 | ||||
| 90116-06136 | ||||
| 90116-08364 | ||||
| 90116-08369 | ||||
| 90116-10181 | ||||
| 90119-06817 | ||||
| 90119-08177 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10640 | ||||
| 90179-06143 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90179-10141 | ||||
| 91621-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
