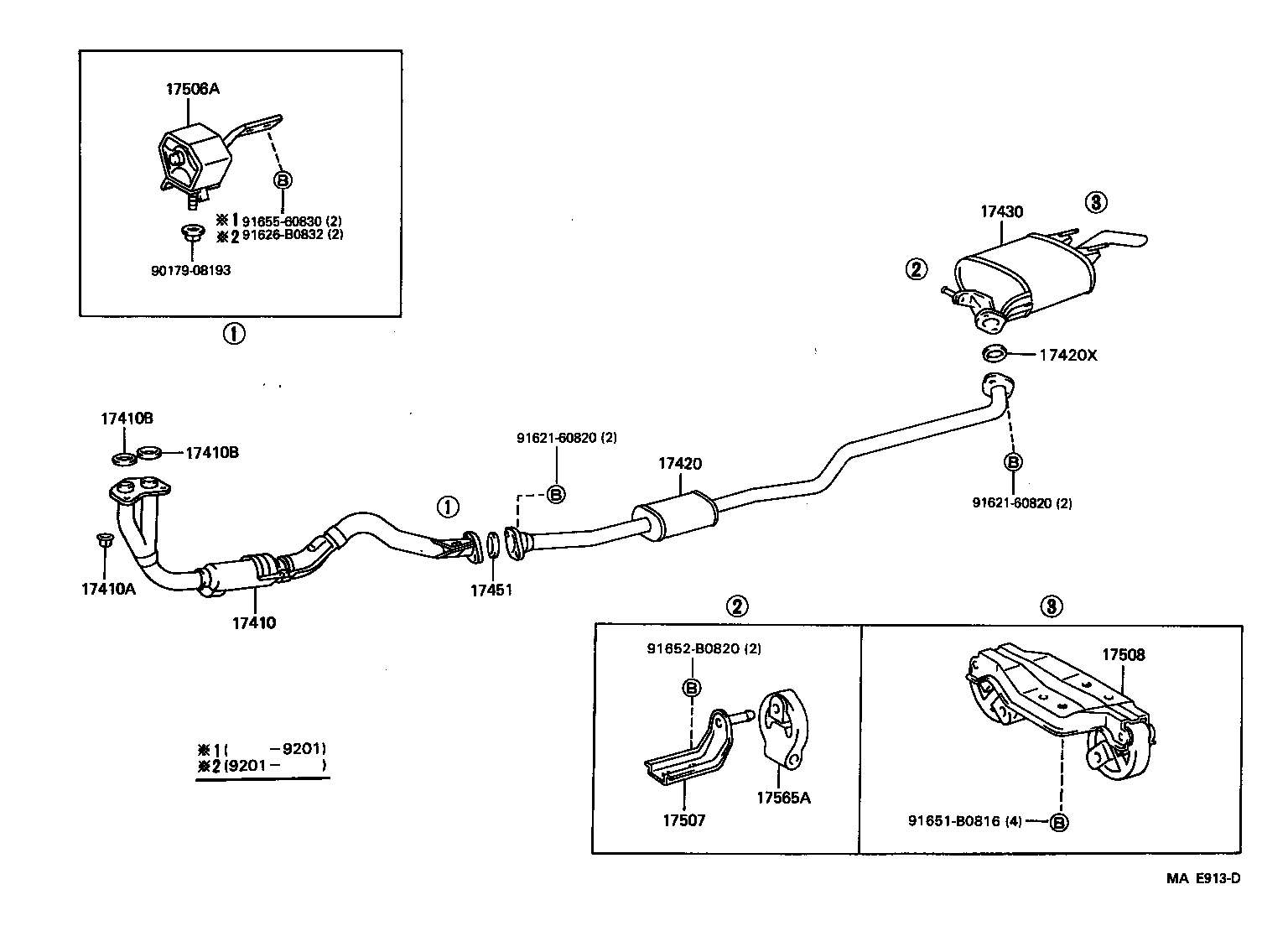

Toyota Corolla sed/cp/wg AE101 EXHAUST PIPE

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-16830	4AF#..AE101..SED,WG	09/1994 - 03/1995	1
17410-16830	4AF#..AE101..SED,WG	08/1991 - 09/1994	1
17410-16830	4AF#..AE101..(SED,WG)..(GCC,GEN)	03/1995 - 12/2999	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105	09/1994 - 09/1995	3
90179-10070	4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105	08/1991 - 09/1994	3
17410B - GASKET, EXHAUST PIPE
90917-06064	4AF#,7AFE..AE101,102	09/1994 - 09/1995	2
90917-06064	4AF#,7AFE..AE101,102	08/1991 - 09/1994	2
17410B - GASKET, EXHAUST PIPE
90917-06064	4AF#,7AFE..AE101,102	09/1994 - 09/1995	2
90917-06064	4AF#,7AFE..AE101,102	08/1991 - 09/1994	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11230	4AF#,7AFE,2E..AE101,102,EE100..SED,WG	09/1994 - 03/1995	1
17420-11230	4AF#,7AFE,2E..AE101,102,EE100..SED,WG	08/1991 - 09/1994	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06074	4AF#,7AFE,2C,2E,4EFE..AE101,102,CE100,EE100,101..SED,WG	09/1994 - 03/1995	1
90917-06074	4AF#,7AFE,2C,2E,4EFE..AE101,102,CE100,EE100,101..SED,WG	08/1991 - 09/1994	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A220	4AF#,7AFE,2E..AE101,102,EE100..SED,WG	09/1994 - 03/1995	1
17430-1A220	4AF#,7AFE,2E..AE101,102,EE100..SED,WG	08/1991 - 09/1994	1
17451 - GASKET, EXHAUST PIPE
90917-06074	4AF#,2C,2E..AE101,CE100,EE100,105..SED,WG	08/1991 - 05/1993	1
90917-06074	4AF#,7AFE,2E..AE101,102,EE100,105..SED,WG	05/1993 - 09/1994	1
90917-06074	4AF#,7AFE,2E..AE101,102,EE100,105..SED,WG	09/1994 - 03/1995	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15070	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE10#	09/1994 - 02/1995	1
17506-15070	4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE10#	08/1991 - 09/1994	1
17506-16120	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE10#	02/1995 - 09/1995	1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15040	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	08/1991 - 09/1994	1
17507-15040	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	09/1994 - 09/1995	1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15050	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	09/1994 - 09/1995	1
17508-15050	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	08/1991 - 09/1994	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	08/1991 - 09/1994	1
17565-16230	4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE..AE10#,CE100,EE100,101	09/1994 - 09/1995	1
Common parts
90179-08193
91621-60820
91626-B0832
91651-B0816
91652-B0820
91655-60830

AE101R-AEMEK (1991)

(9108- )4AF#..SED,WG ; (9309- )7AFE
