AE101L-AWMDKB (1995)

Toyota Corolla Sed/Cp/Wg

Production Sep 1995 - May 1999
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9807- )4AFE..TUR

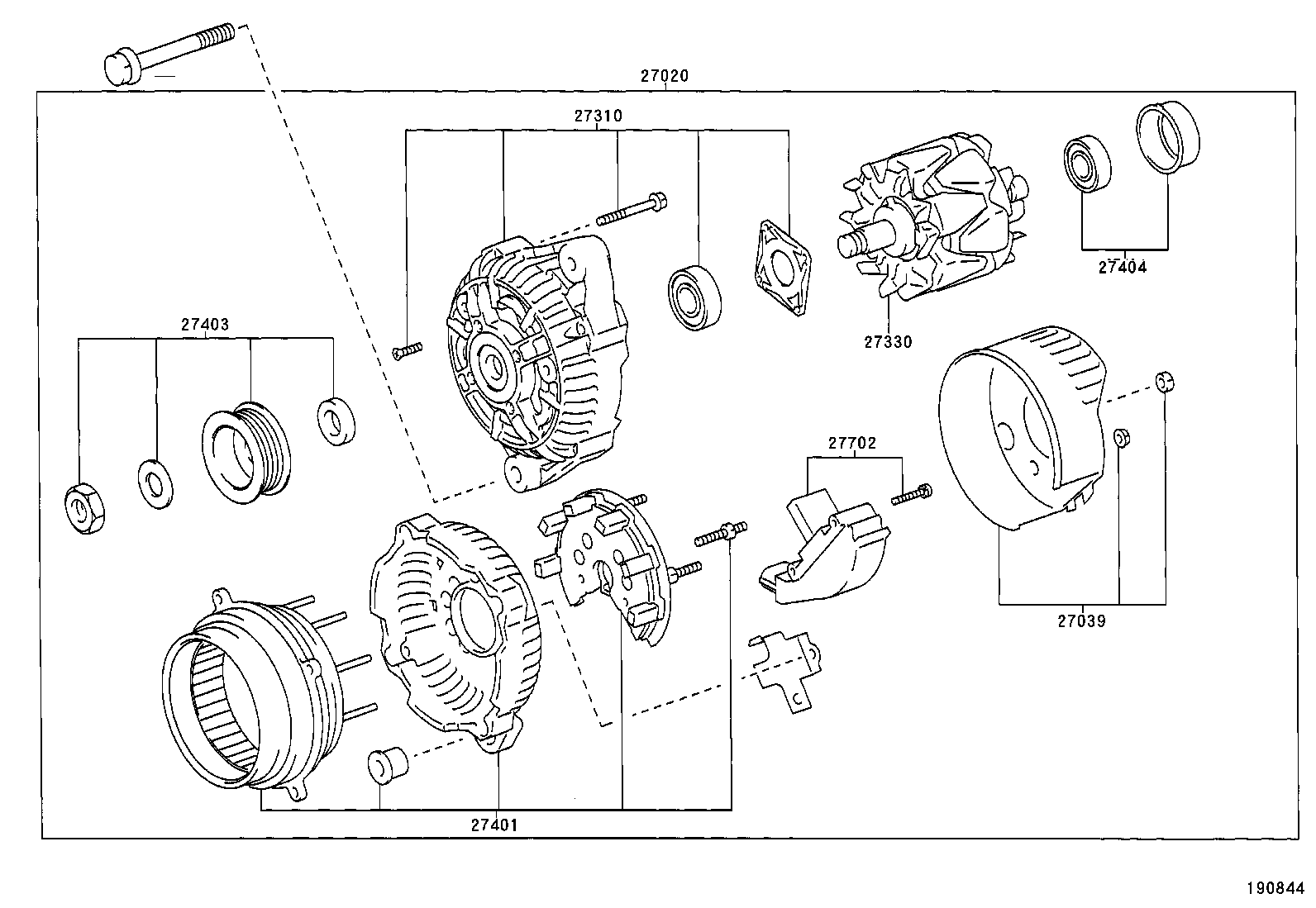

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27310 27330 27401 27403 27404 27702
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-02061

4AFE..AE101..TUR

12V 70A

 1
27060-15080

4AFE..AE101..5F..SEG;4AFE..AE101..5F..TUR

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

2E..EE100..TUR;4AFE,7AFE,4EFE..AE10#,EE101..3FC,5F

 1
27039-16380

2E..EE100..TUR;4AFE,7AFE..AE10#..5F

 1
27039-15171

4AF..AE101

 1
27039-02100

4AFE..AE101..TUR

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-02020

4AFE..AE101..TUR

 1
27310-15170

4AFE,7AFE..AE10#..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

2E..EE100..TUR;4AFE,7AFE..AE10#..5F;4AF,4EFE..AE101,EE101

 1
27330-02020

4AFE..AE101..TUR

 1
27330-64570

4AF..AE101;2E..EE100..TUR;4AFE..AE101..LHD..5F..(GEN,TUR)

 1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-02010

4AFE..AE101..TUR

 1
27403 - PULLEY SET, ALTERNATOR
27403-02010

4AFE..AE101..TUR

 1
27404 - BEARING SET, ALTERNATOR
27404-02010

4AFE..AE101..TUR

 1
27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH
27702-02010

4AFE..AE101..TUR

 1
