Toyota Corolla sed/cp/wg AE101 MOUNTING

AE101L-AWMDKB (1995)

Toyota Corolla Sed/Cp/Wg

Production Sep 1995 - May 1999

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

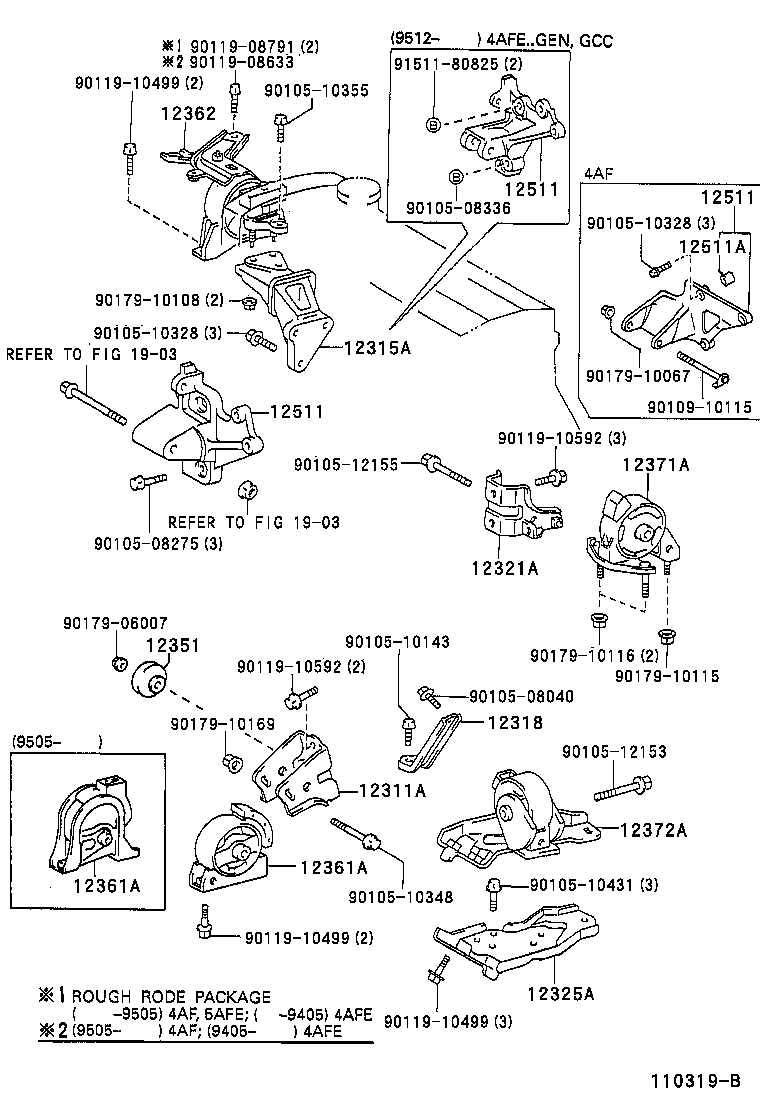

(9108-9711)4AF#,5AFE..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130	4AF#,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
12311-15130	4AF#,7AFE..AE10#	09/1995 - 05/1999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15080	4AFE,5AFE..AE10#	08/1991 - 06/1993	1
12315-15081	4AFE,7AFE..AE10#	09/1995 - 10/1997	1
12315-02040	4AFE..AE101..TUR	10/1997 - 05/1999	1
12318 - STAY, ENGINE MOUNTING, LH
12318-15020	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12318-15080	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12318-16110	4AF#,7AFE..AE10#..5F	09/1995 - 11/1997	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15120	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12321-15120	4AF#,7AFE..AE10#..5F	09/1995 - 05/1999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120	4AF#,4AGE,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12325-15080	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12325-16120	4AF#,7AFE..AE10#..5F	09/1995 - 11/1997	1
12351 - DAMPER, ENGINE MOUNTING
12351-15060	4AF#,7AFE..AE10#..4FC,5F	11/1997 - 05/1999	1
12351-15060	4AF#,7AFE..AE10#	09/1995 - 11/1997	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-11160	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12361-15170	4AF#,7AFE..AE10#..5F	09/1995 - 01/1998	1
12361-15171	4AF#,7AFE..AE10#..5F	01/1998 - 05/1999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-11160	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12361-15170	4AF#,7AFE..AE10#..5F	09/1995 - 01/1998	1
12361-15171	4AF#,7AFE..AE10#..5F	01/1998 - 05/1999	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15020	4AFE,5AFE..AE100,101	08/1991 - 05/1994	1
12305-15040	4AFE,7AFE..AE10#	09/1995 - 05/1999	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15240	4AF#,7AFE..AE10#..5F	09/1995 - 12/1996	1
12371-16220	4AFE,5AFE..AE10#..5F	08/1991 - 03/1992	1
12371-15241	4AF#,7AFE..AE10#..5F	12/1996 - 05/1999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15160	4AF#,5AFE..AE100,101..3FC,5F	08/1991 - 09/1994	1
12372-15171	4AF#,7AFE..AE10#..3FC,5F	09/1995 - 11/1997	1
12372-15200	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-02030	4AFE..AE101..TUR	09/1995 - 03/1998	1
12511-15050	4AFE..AE101..TUR	03/1998 - 05/1999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-02030	4AFE..AE101..TUR	09/1995 - 03/1998	1
12511-15050	4AFE..AE101..TUR	03/1998 - 05/1999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-02030	4AFE..AE101..TUR	09/1995 - 03/1998	1
12511-15050	4AFE..AE101..TUR	03/1998 - 05/1999	1
Common parts
90105-08040
90105-08275
90105-08336
90105-10143
90105-10328
90105-10348
90105-10355
90105-10431
90105-12153
90105-12155
90109-10115
90119-08633
90119-08791
90119-10499
90119-10592
90179-06007
90179-10067
90179-10108
90179-10115
90179-10116
90179-10169
91511-80825
Linked diagrams
1903

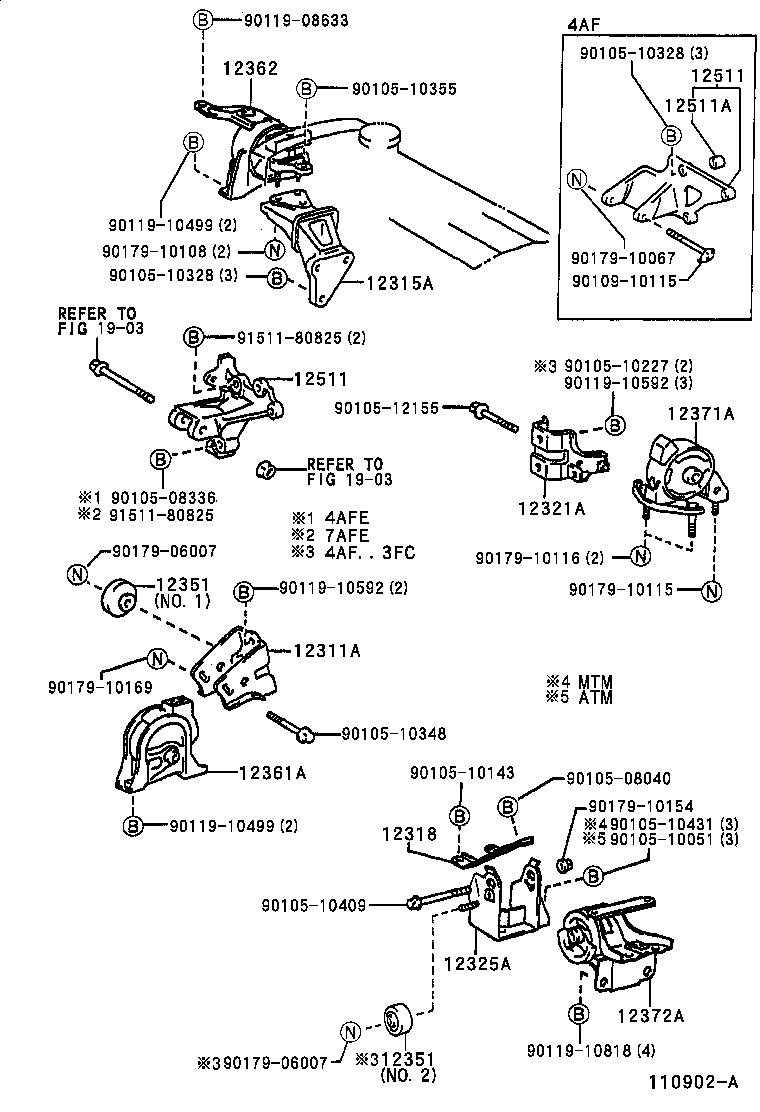

(9711- )4AF#,7AFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130	4AF#,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
12311-15130	4AF#,7AFE..AE10#	09/1995 - 05/1999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15080	4AFE,5AFE..AE10#	08/1991 - 06/1993	1
12315-15081	4AFE,7AFE..AE10#	09/1995 - 10/1997	1
12315-02040	4AFE..AE101..TUR	10/1997 - 05/1999	1
12318 - STAY, ENGINE MOUNTING, LH
12318-15020	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12318-15080	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12318-16110	4AF#,7AFE..AE10#..5F	09/1995 - 11/1997	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15120	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12321-15120	4AF#,7AFE..AE10#..5F	09/1995 - 05/1999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120	4AF#,4AGE,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12325-15080	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12325-16120	4AF#,7AFE..AE10#..5F	09/1995 - 11/1997	1
12351 - DAMPER, ENGINE MOUNTING
12351-15060	4AF#,7AFE..AE10#..4FC,5F	11/1997 - 05/1999	1
12351-15060	4AF#,7AFE..AE10#	09/1995 - 11/1997	1
12351 - DAMPER, ENGINE MOUNTING
12351-15060	4AF#,7AFE..AE10#..4FC,5F	11/1997 - 05/1999	1
12351-15060	4AF#,7AFE..AE10#	09/1995 - 11/1997	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-11160	4AF#,5AFE..AE100,101..5F	08/1991 - 09/1994	1
12361-15170	4AF#,7AFE..AE10#..5F	09/1995 - 01/1998	1
12361-15171	4AF#,7AFE..AE10#..5F	01/1998 - 05/1999	1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15020	4AFE,5AFE..AE100,101	08/1991 - 05/1994	1
12305-15040	4AFE,7AFE..AE10#	09/1995 - 05/1999	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15240	4AF#,7AFE..AE10#..5F	09/1995 - 12/1996	1
12371-16220	4AFE,5AFE..AE10#..5F	08/1991 - 03/1992	1
12371-15241	4AF#,7AFE..AE10#..5F	12/1996 - 05/1999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15160	4AF#,5AFE..AE100,101..3FC,5F	08/1991 - 09/1994	1
12372-15171	4AF#,7AFE..AE10#..3FC,5F	09/1995 - 11/1997	1
12372-15200	4AF#,7AFE..AE10#..5F	11/1997 - 05/1999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-02030	4AFE..AE101..TUR	09/1995 - 03/1998	1
12511-15050	4AFE..AE101..TUR	03/1998 - 05/1999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-02030	4AFE..AE101..TUR	09/1995 - 03/1998	1
12511-15050	4AFE..AE101..TUR	03/1998 - 05/1999	1
Common parts
90105-08040
90105-08336
90105-10051
90105-10143
90105-10227
90105-10328
90105-10348
90105-10355
90105-10409
90105-10431
90105-12155
90109-10115
90119-08633
90119-10499
90119-10592
90119-10818
90179-06007
90179-10067
90179-10108
90179-10115
90179-10116
90179-10154
90179-10169
91511-80825
Linked diagrams
1903

AE101L-AWMDKB (1995)

(9108-9711)4AF#,5AFE..5F

(9711- )4AF#,7AFE
