AE101L-AEPNKB (1994)

Toyota Corolla Sed/Cp/Wg

Production Sep 1994 - Jul 1998

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9703- )AE101..LHD..GLI..GEN,TUR ; (9708-)SED..XLI..TUR

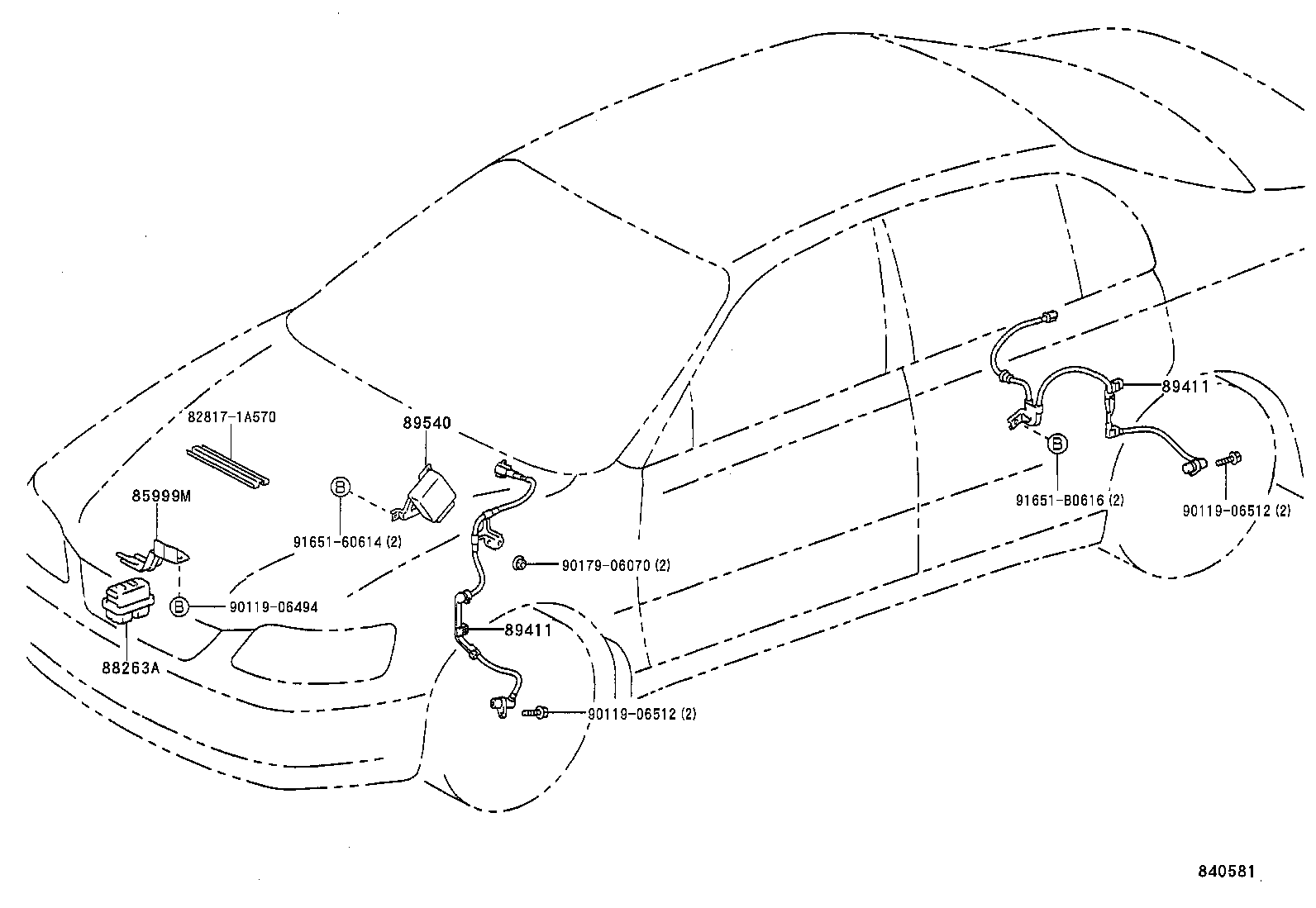

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
85999M - BRACKET, RELAY
85999-12320	AE101..SED..TUR	08/1997 - 12/2999	1
88263A - RELAY, SKID CONTROL
88263-32060	AE101..SED..TUR	08/1997 - 12/2999	1
89411 - SENSOR, SPEED
89542-12040	AE101..SED..TUR FRONT RH	08/1997 - 12/2999	1
89545-12040	AE101..SED..TUR REAR RH	08/1997 - 12/2999	1
89543-12040	AE101..SED..TUR FRONT LH	08/1997 - 12/2999	1
89546-12040	AE101..SED..TUR REAR LH	08/1997 - 12/2999	1
89411 - SENSOR, SPEED
89542-12040	AE101..SED..TUR FRONT RH	08/1997 - 12/2999	1
89545-12040	AE101..SED..TUR REAR RH	08/1997 - 12/2999	1
89543-12040	AE101..SED..TUR FRONT LH	08/1997 - 12/2999	1
89546-12040	AE101..SED..TUR REAR LH	08/1997 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12250	AE101..SED..TUR	08/1997 - 05/1998	1
Common parts
82817-1A570
90119-06494
90119-06512
90179-06070
91651-60614
91651-B0616
