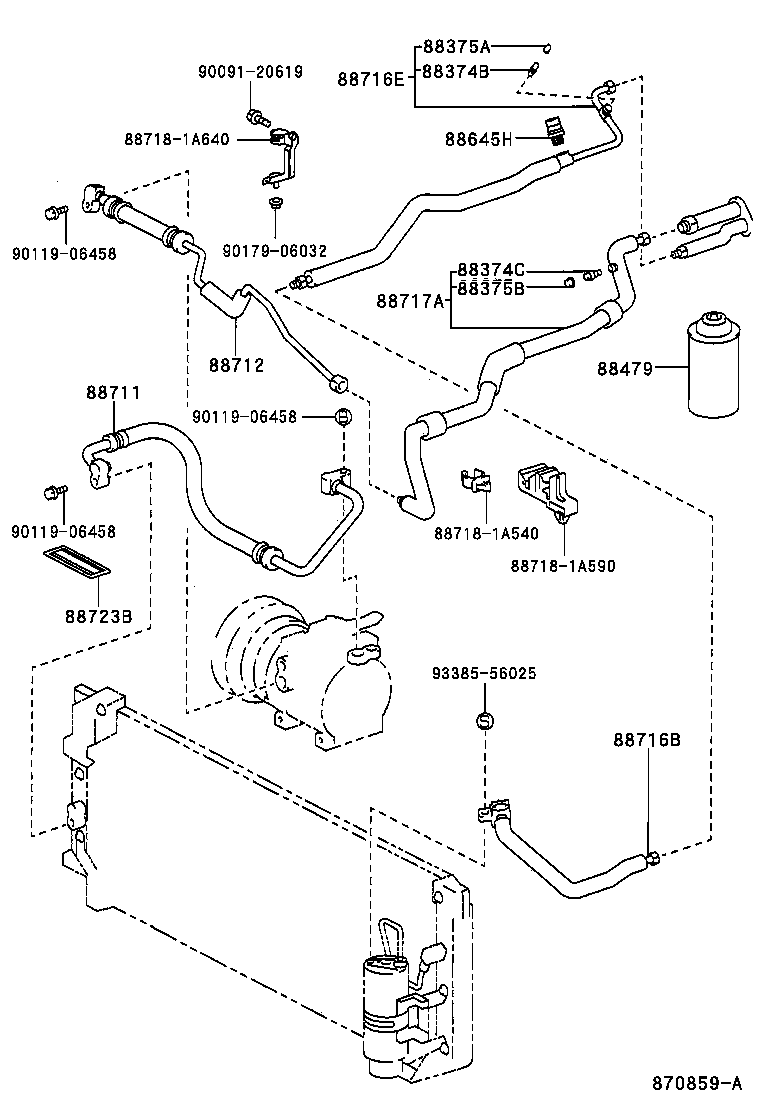

AE101L-AEPDKV (1992)
Toyota Corolla Sed/Cp/Wg
ILLUST NO. 2 OF 3(9505- )AE10#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 48094-10010 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-12020 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-50010 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88711-12780 |
AE101..LHD..(GL,STD,XL) DEALER OPTION |
1 | ||
| 88711-12870 |
AE101..GCC |
1 | ||
| 88711-1A150 |
AE101..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A220 |
AE101,102,EE100,105..LHD |
1 | ||
| 88716-1A020 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88716-1A220 |
AE101,102,EE100,105..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716-1A010 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| 88723-12060 |
AE101,EE100..SED |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| Common parts | ||||
| 88718-1A540 | ||||
| 88718-1A590 | ||||
| 88718-1A640 | ||||
| 90091-20619 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||

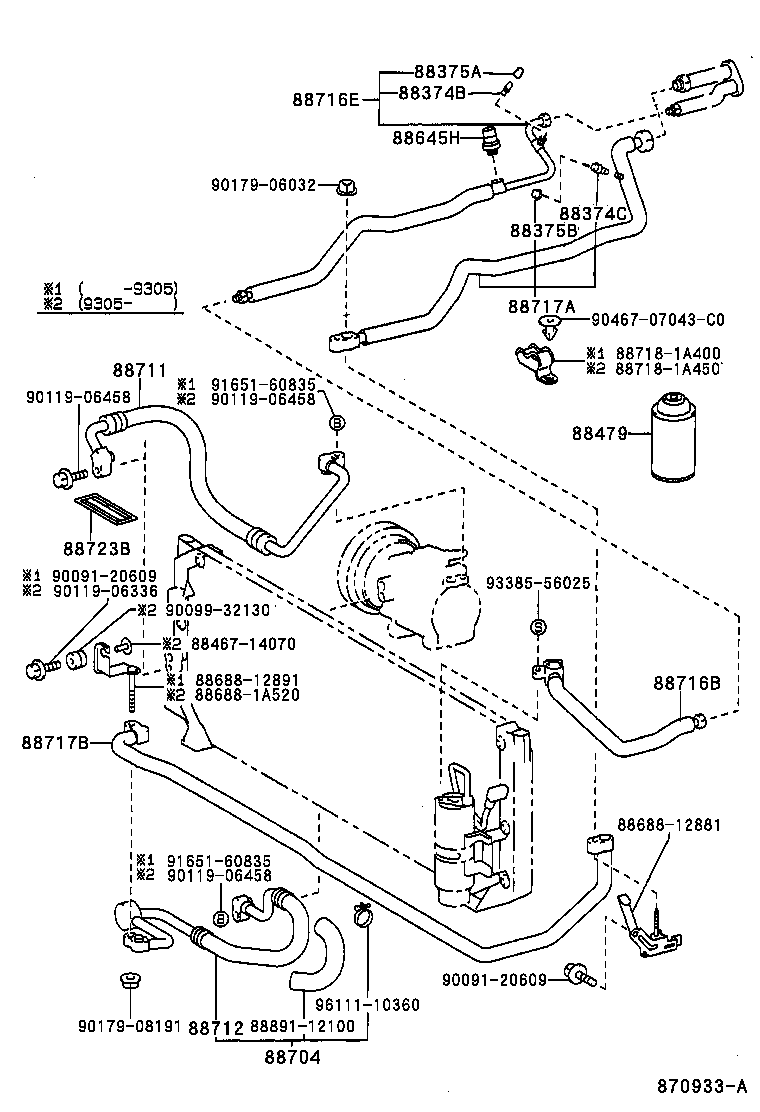

ILLUST NO. 2 OF 3(9108-9505)AE10#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 48094-10010 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-12020 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30290 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88375-30290 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-50010 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12510 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88704-12510 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88711-12780 |
AE101..LHD..(GL,STD,XL) DEALER OPTION |
1 | ||
| 88711-12870 |
AE101..GCC |
1 | ||
| 88711-1A150 |
AE101..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A220 |
AE101,102,EE100,105..LHD |
1 | ||
| 88716-1A020 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88716-1A220 |
AE101,102,EE100,105..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716-1A010 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| 88723-12060 |
AE101,EE100..SED |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-12881 | ||||
| 88688-12891 | ||||
| 88688-1A520 | ||||
| 88718-1A400 | ||||
| 88718-1A450 | ||||
| 88891-12100 | ||||
| 90091-20609 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 90179-08191 | ||||
| 90467-07043C0 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||
| 96111-10360 | ||||

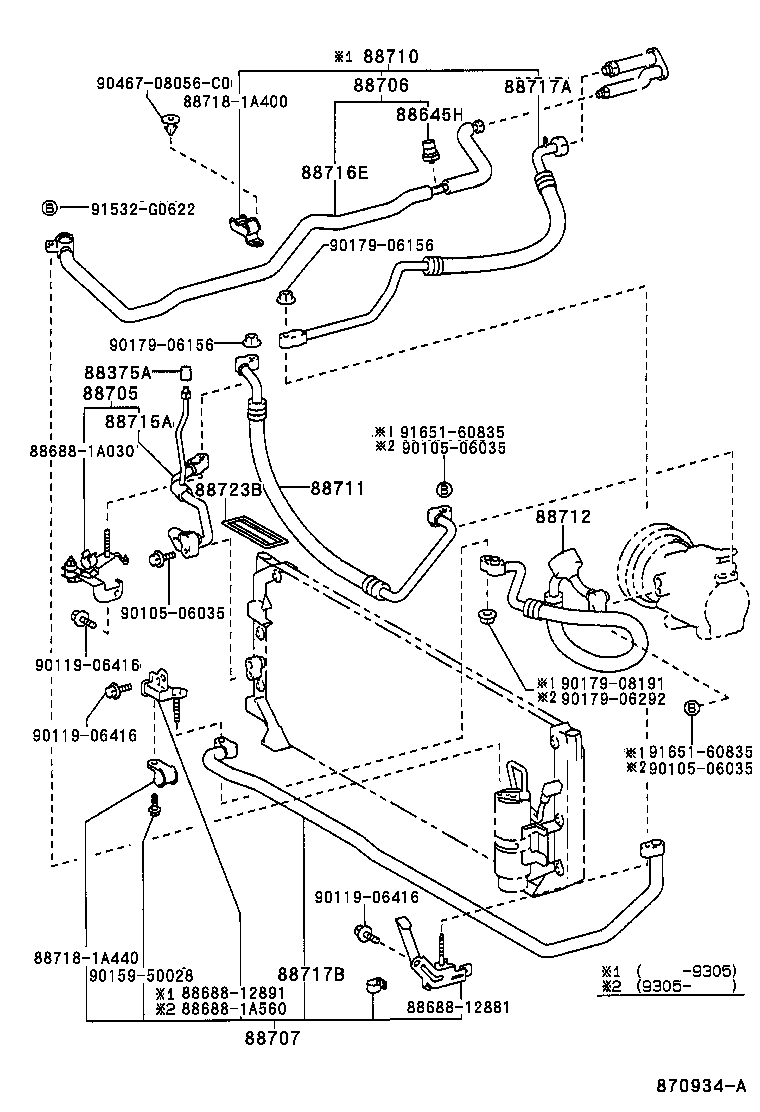

ILLUST NO. 2 OF 3(9108-9505)AE10#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-50010 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-12080 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88705-12080 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88705-12070 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88705-12080 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-12280 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88706-12260 |
AE101..LHD..XL MAKER OPTION |
1 | ||
| 88706-12260 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88706-12280 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-12100 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12400 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88710-12430 |
AE10#..LHD..(GLI,XLI) |
1 | ||
| 88710-12430 |
AE10#..LHD..(GLI,XLI) |
1 | ||
| 88710-12400 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88710-12300 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88711-12780 |
AE101..LHD..(GL,STD,XL) DEALER OPTION |
1 | ||
| 88711-12870 |
AE101..GCC |
1 | ||
| 88711-1A150 |
AE101..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12460 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88715-12460 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88715-12460 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88715-12450 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716-1A010 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| 88723-12060 |
AE101,EE100..SED |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| Common parts | ||||
| 88688-12881 | ||||
| 88688-12891 | ||||
| 88688-1A030 | ||||
| 88688-1A560 | ||||
| 88718-1A400 | ||||
| 88718-1A440 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90159-50028 | ||||
| 90179-06156 | ||||
| 90179-06292 | ||||
| 90179-08191 | ||||
| 90467-08056C0 | ||||
| 91532-G0622 | ||||
| 91651-60835 | ||||
ILLUST NO. 1 OF 3(9108-9312)AE10#,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12110 |
AE10#,EE100,101,105..GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-10020 |
AE10#,EE10# |
1 | ||
| 88453-12080 |
AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88453-10021 |
EE101;AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88453-10021 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR) |
1 | ||
| 88453-10021 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88453-10022 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) MAKER OPTION |
1 | ||
| 88453-10021 |
AE102,EE104;AE101..GL,XL;AE101..WG..GEN;EE100..3FC..GEN;AE101..4FC..XLI..GEN;EE100,105..LHD..MTM..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN DEALER OPTION |
1 | ||
| 88453-10021 |
AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12150 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88454-12130 |
AE10#,EE10# |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12410 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) DEALER OPTION |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88471-12020 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL |
1 | ||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE100,105..GLI,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) |
1 | ||
| 88550-12150 |
AE10#,EE10# |
1 | ||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL |
1 | ||
| 88550-12150 |
AE10#,EE10# |
1 | ||
| 88550-12130 |
AE10#,CE100,EE10# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12210 |
AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88590-12270 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR) |
1 | ||
| 88590-12270 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88590-12270 |
EE101;AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88590-12270 |
AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12360 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88892P - NET, FAN SHROUD | ||||
| 88892-12200 |
AE10#,EE10# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-12130 | ||||
| 88467-12140 | ||||
| 88569-12280 | ||||
| 88688-1A050 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 3(9312- )AE10#,EE10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-10020 |
AE10#,EE10# |
1 | ||
| 88453-12080 |
AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88453-10021 |
EE101;AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88453-10021 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR) |
1 | ||
| 88453-10021 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88453-10022 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) MAKER OPTION |
1 | ||
| 88453-10021 |
AE102,EE104;AE101..GL,XL;AE101..WG..GEN;EE100..3FC..GEN;AE101..4FC..XLI..GEN;EE100,105..LHD..MTM..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN DEALER OPTION |
1 | ||
| 88453-10021 |
AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12150 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88454-12130 |
AE10#,EE10# |
1 | ||
| 88454-12150 |
AE10#,EE10# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12410 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE10#,EE10# |
1 | ||
| 88460-12440 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) DEALER OPTION |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12100 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE10#,CE100,EE10# |
2 | ||
| 88467-12110 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88471-12020 |
AE10#,CE100,EE10# |
1 | ||
| 88471-60010 |
AE10#,CE100,EE10# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88473-12080 |
AE10#,CE100,EE10# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL |
1 | ||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE100,105..GLI,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) |
1 | ||
| 88550-12150 |
AE10#,EE10# |
1 | ||
| 88550-12160 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL |
1 | ||
| 88550-12150 |
AE10#,EE10# |
1 | ||
| 88550-12130 |
AE10#,CE100,EE10# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12210 |
AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88590-12270 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR) |
1 | ||
| 88590-12270 |
AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88590-12270 |
EE101;AE101,EE100..GCC MAKER OPTION |
1 | ||
| 88590-12270 |
AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12360 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE10#,CE100,EE10# |
1 | ||
| 88726-12410 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88569-12280 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 93385-56025 | ||||

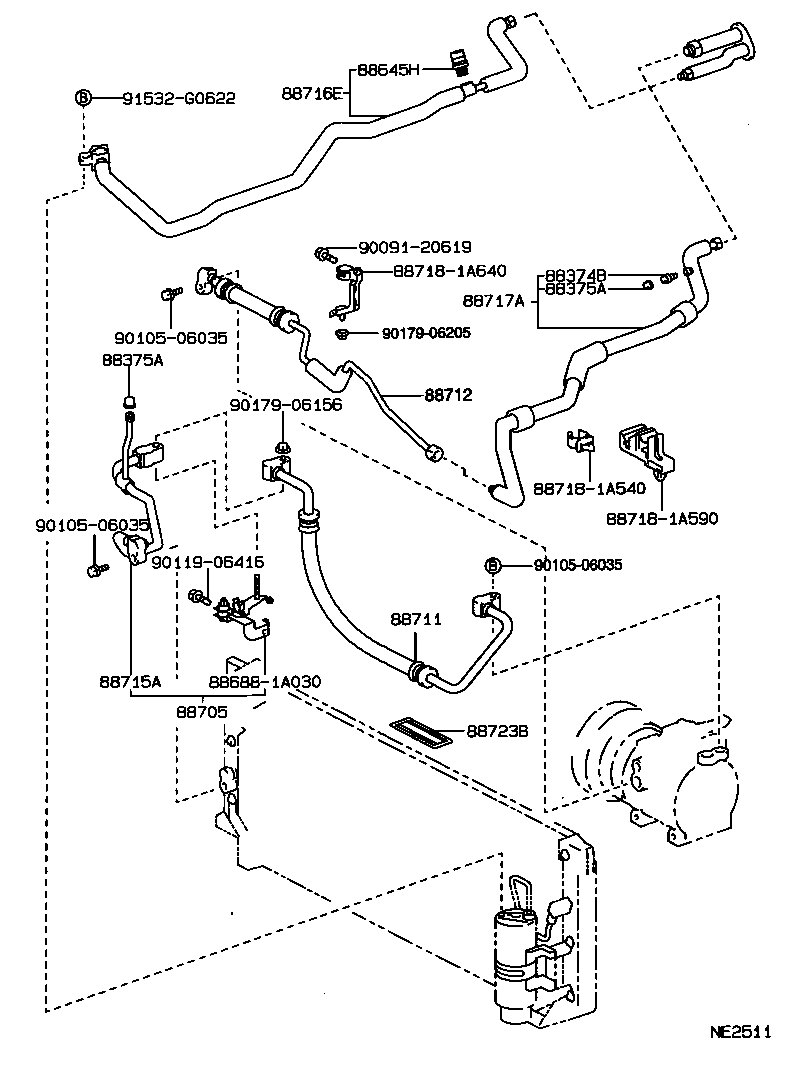

ILLUST NO. 2 OF 3(9505- )AE10#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 48094-10010 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88374-30010 |
AE10#,CE100,EE10# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-24010 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE10#,CE100,EE10# |
1 | ||
| 88375-30280 |
AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-50010 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88645-20050 |
AE10#,CE100,EE10# |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-12080 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88705-12080 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88705-12070 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88705-12080 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12700 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88711-12780 |
AE101..LHD..(GL,STD,XL) DEALER OPTION |
1 | ||
| 88711-12870 |
AE101..GCC |
1 | ||
| 88711-1A150 |
AE101..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88712-1A170 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12460 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88715-12460 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88715-12460 |
AE101..LHD..(GLI,XLI) |
1 | ||
| 88715-12450 |
AE101,EE100,105..LHD..(GL,STD,XL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88716-1A010 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88716-1A210 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12560 |
AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88717-12720 |
AE101,102..LHD..(GLI,XLI) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| 88723-12060 |
AE101,EE100..SED |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE10#,CE100,EE10# |
1 | ||
| 88723-12120 |
AE101,102,CE100,EE100,101,105..SED,WG |
1 | ||
| Common parts | ||||
| 88688-1A030 | ||||
| 88718-1A540 | ||||
| 88718-1A590 | ||||
| 88718-1A640 | ||||
| 90091-20619 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90179-06156 | ||||
| 90179-06205 | ||||
| 91532-G0622 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
