Toyota Corolla sed/cp/wg AE101 MANIFOLD

AE101L-AEMNKB (1994)

Toyota Corolla Sed/Cp/Wg

Production Sep 1994 - Jul 1998

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

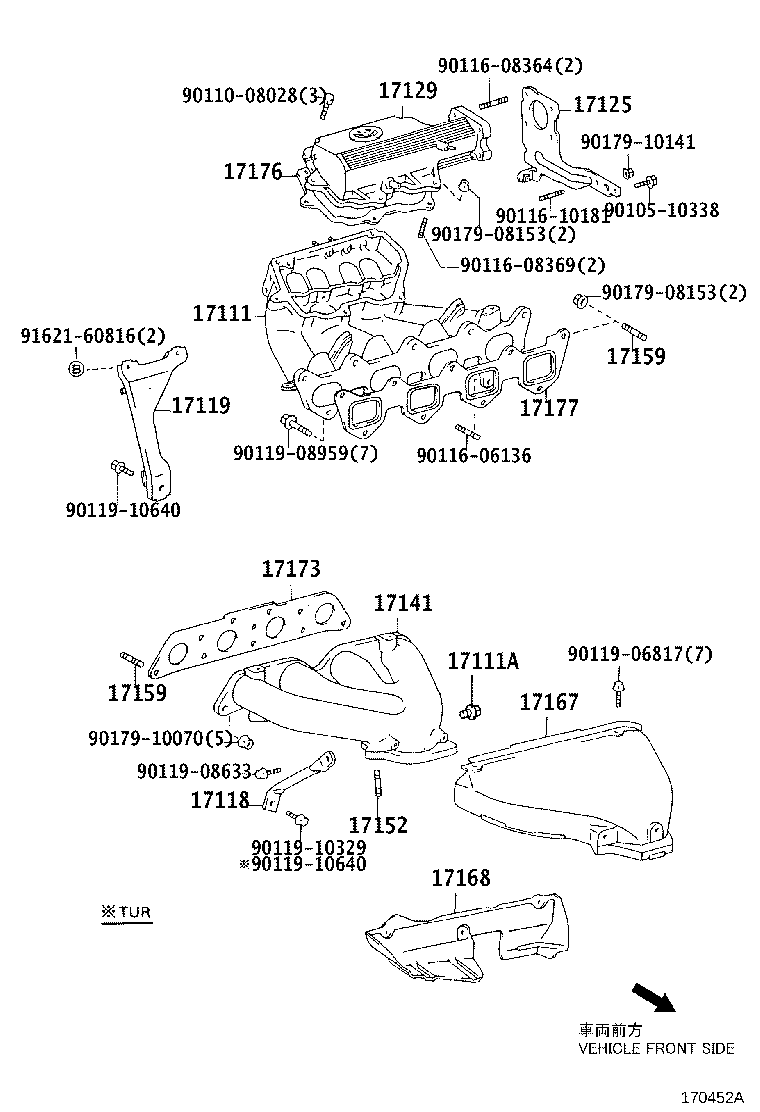

(9108-9707)4AFE,7AFE ; (9707- )4AFE,7AFE..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-16190	4AFE..AE101	08/1991 - 12/1993	1
17101-02030	4AFE..AE101..TUR	09/1994 - 09/1995	1
17101-02030	4AFE..AE101..TUR	09/1995 - 07/1998	1
17118 - STAY, MANIFOLD
17118-02040	4AFE..AE101..TUR	09/1994 - 09/1995	1
17118-02040	4AFE..AE101..TUR	09/1995 - 07/1997	1
17119 - STAY, MANIFOLD, NO.2
17012-02010	4AFE..AE101..TUR	09/1994 - 09/1995	1
17012-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17125 - STAY, SURGE TANK, NO.1
17125-02020	4AFE..AE101..TUR	09/1994 - 09/1995	1
17125-15020	4AFE,5AFE..AE10#	08/1991 - 04/1993	1
17125-02020	4AFE..AE101..TUR	09/1995 - 07/1998	1
17129 - TANK, INTAKE AIR SURGE
17109-02010	4AFE..AE101..TUR	09/1994 - 09/1995	1
17109-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17141 - MANIFOLD, EXHAUST
17141-02050	4AFE..AE101..TUR	09/1994 - 07/1997	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146	4AF#,7AFE..AE101,102	08/1991 - 09/1994	3
90116-10146	4AF#,7AFE..AE10#	09/1995 - 12/2999	3
90116-10146	4AF#,7AFE..AE101,102	09/1994 - 09/1995	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	09/1994 - 09/1995	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	08/1991 - 09/1994	5
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	08/1991 - 09/1994	2
92112-61028	4AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1995 - 12/2999	5
92112-60825	4AF#,7AFE..AE10# INTAKE MANIFOLD	09/1995 - 12/2999	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1994 - 09/1995	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	09/1994 - 09/1995	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	08/1991 - 09/1994	5
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	08/1991 - 09/1994	2
92112-61028	4AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1995 - 12/2999	5
92112-60825	4AF#,7AFE..AE10# INTAKE MANIFOLD	09/1995 - 12/2999	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1994 - 09/1995	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02040	4AFE..AE101..TUR	09/1994 - 09/1995	1
17167-02040	4AFE..AE101..TUR	09/1995 - 07/1997	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-02020	4AFE..AE101..TUR	09/1995 - 07/1997	1
17168-02020	4AFE..AE101..TUR	09/1994 - 09/1995	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040	4AF#,5AFE,7AFE..AE10#	09/1994 - 12/1994	1
17173-02030	4AFE..AE101..TUR	12/1994 - 09/1995	1
17173-15040	4AF#,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-15010	4AFE,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17176-15010	4AFE,5AFE,7AFE..AE10#	09/1994 - 12/1994	1
17176-02010	4AFE..AE101..TUR	12/1994 - 09/1995	1
17176-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030	4AFE,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17171-15030	4AFE,5AFE,7AFE..AE10#	09/1994 - 09/1995	1
17171-15030	4AFE,7AFE..AE10#	09/1995 - 12/2999	1
Common parts
90105-10338
90110-08028
90116-06136
90116-08364
90116-08369
90116-10181
90119-06817
90119-08633
90119-08959
90119-10329
90119-10640
90179-08153
90179-10070
90179-10141
91621-60816

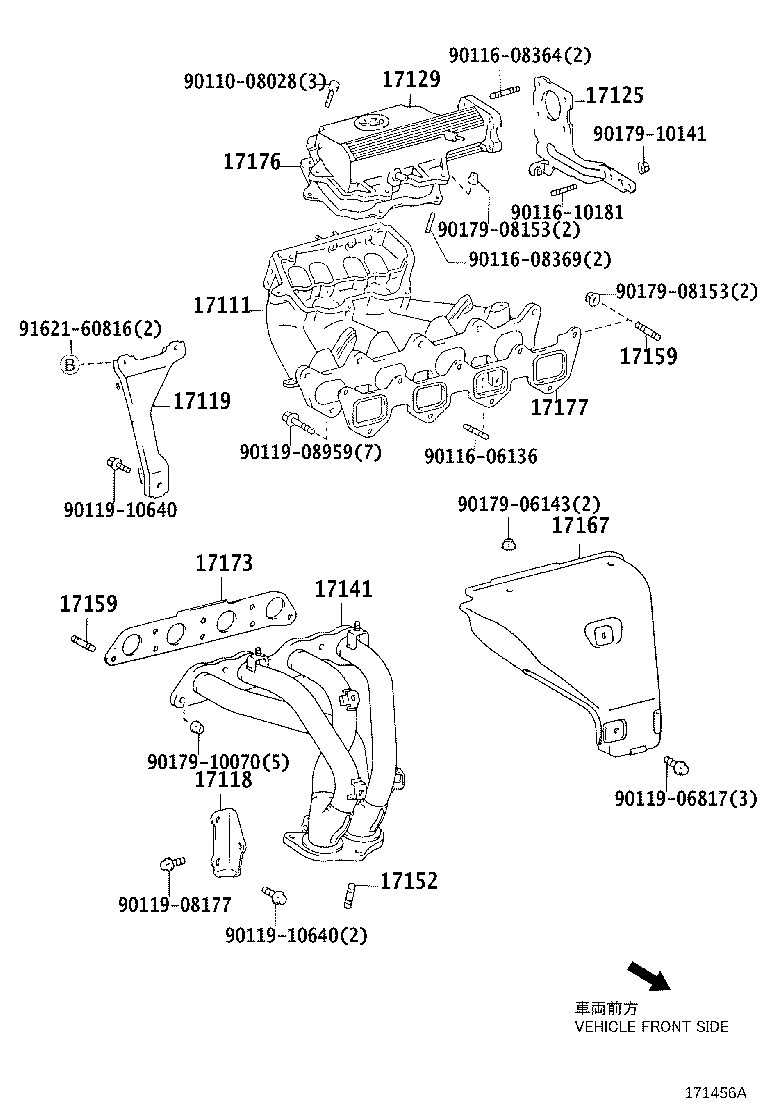

(9707-9807)4AFE..TUR

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-16190	4AFE..AE101	08/1991 - 12/1993	1
17101-02030	4AFE..AE101..TUR	09/1994 - 09/1995	1
17101-02030	4AFE..AE101..TUR	09/1995 - 07/1998	1
17118 - STAY, MANIFOLD
17118-02040	4AFE..AE101..TUR	09/1994 - 09/1995	1
17118-02040	4AFE..AE101..TUR	09/1995 - 07/1997	1
17119 - STAY, MANIFOLD, NO.2
17012-02010	4AFE..AE101..TUR	09/1994 - 09/1995	1
17012-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17125 - STAY, SURGE TANK, NO.1
17125-02020	4AFE..AE101..TUR	09/1994 - 09/1995	1
17125-15020	4AFE,5AFE..AE10#	08/1991 - 04/1993	1
17125-02020	4AFE..AE101..TUR	09/1995 - 07/1998	1
17129 - TANK, INTAKE AIR SURGE
17109-02010	4AFE..AE101..TUR	09/1994 - 09/1995	1
17109-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17141 - MANIFOLD, EXHAUST
17141-02050	4AFE..AE101..TUR	09/1994 - 07/1997	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146	4AF#,7AFE..AE101,102	08/1991 - 09/1994	3
90116-10146	4AF#,7AFE..AE10#	09/1995 - 12/2999	3
90116-10146	4AF#,7AFE..AE101,102	09/1994 - 09/1995	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	09/1994 - 09/1995	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	08/1991 - 09/1994	5
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	08/1991 - 09/1994	2
92112-61028	4AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1995 - 12/2999	5
92112-60825	4AF#,7AFE..AE10# INTAKE MANIFOLD	09/1995 - 12/2999	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1994 - 09/1995	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	09/1994 - 09/1995	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	08/1991 - 09/1994	5
92112-60825	4AF#,5AFE,7AFE..AE10# INTAKE MANIFOLD	08/1991 - 09/1994	2
92112-61028	4AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1995 - 12/2999	5
92112-60825	4AF#,7AFE..AE10# INTAKE MANIFOLD	09/1995 - 12/2999	2
92112-61028	4AFE,5AFE,7AFE..AE10# EXHAUST MANIFOLD	09/1994 - 09/1995	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02040	4AFE..AE101..TUR	09/1994 - 09/1995	1
17167-02040	4AFE..AE101..TUR	09/1995 - 07/1997	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040	4AF#,5AFE,7AFE..AE10#	09/1994 - 12/1994	1
17173-02030	4AFE..AE101..TUR	12/1994 - 09/1995	1
17173-15040	4AF#,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-15010	4AFE,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17176-15010	4AFE,5AFE,7AFE..AE10#	09/1994 - 12/1994	1
17176-02010	4AFE..AE101..TUR	12/1994 - 09/1995	1
17176-02010	4AFE..AE101..TUR	09/1995 - 07/1998	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030	4AFE,5AFE,7AFE..AE10#	08/1991 - 09/1994	1
17171-15030	4AFE,5AFE,7AFE..AE10#	09/1994 - 09/1995	1
17171-15030	4AFE,7AFE..AE10#	09/1995 - 12/2999	1
Common parts
90110-08028
90116-06136
90116-08364
90116-08369
90116-10181
90119-06817
90119-08177
90119-08959
90119-10640
90179-06143
90179-08153
90179-10070
90179-10141
91621-60816

AE101L-AEMNKB (1994)

(9108-9707)4AFE,7AFE ; (9707- )4AFE,7AFE..GEN

(9707-9807)4AFE..TUR
