AE101L-AEMNK (1992)
Toyota Corolla Sed/Cp/Wg
(9205- )LHD..GLI,XLI

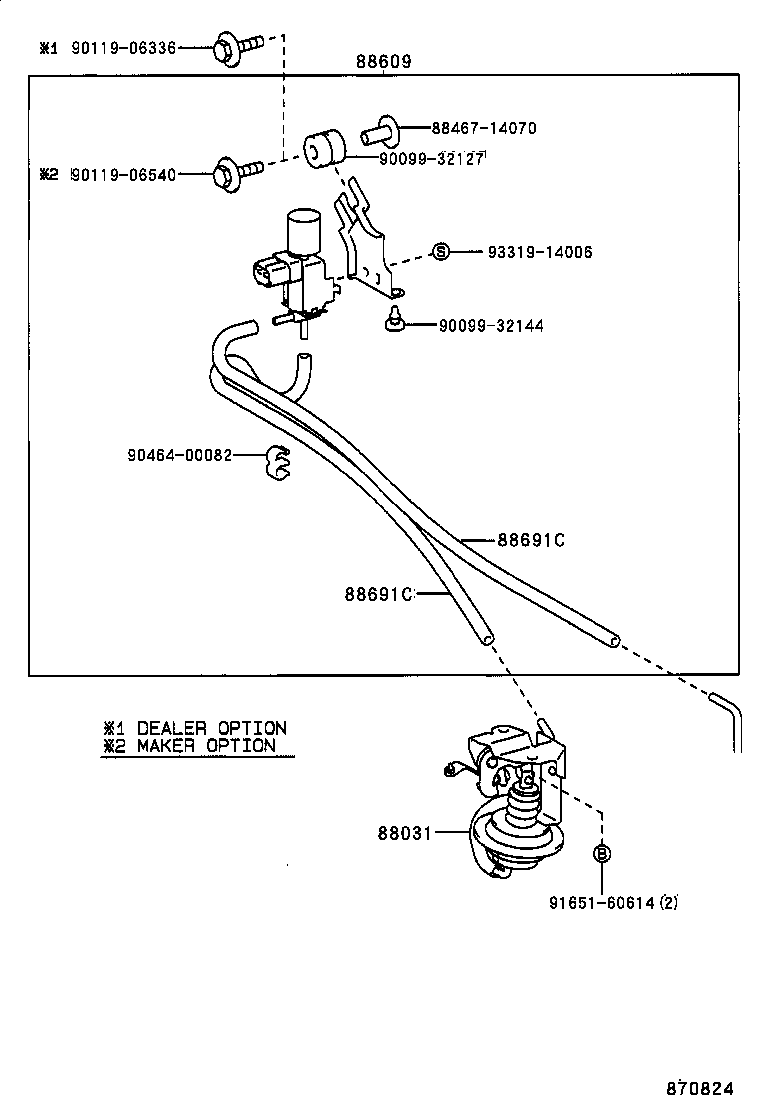

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-1A020 |
AE101,102..LHD..(GLI,XLI)..GEN MAKER OPTION |
1 | ||
| 88690-1A020 |
AE101,102..LHD..(GLI,XLI)..(GEN,TUR) MAKER OPTION |
1 | ||
| 88690-1A070 |
AE101,102..LHD..(GLI,XLI)..(GEN,TUR) DEALER OPTION |
1 | ||
| 88690-1A070 |
AE101,102..LHD..(GLI,XLI)..GEN DEALER OPTION |
1 | ||
| 88690-12811 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12550 |
AE101,102..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12540 |
AE101,102..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| 88689-12550 |
AE10#..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12550 |
AE101,102..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12540 |
AE10#..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| 88689-12540 |
AE101,102..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12550 |
AE101,102..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12540 |
AE101,102..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| 88689-12550 |
AE10#..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12550 |
AE101,102..LHD..(GLI,XLI) NO.2(OUT) |
1 | ||
| 88689-12540 |
AE10#..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| 88689-12540 |
AE101,102..LHD..(GLI,XLI) NO.1(IN) |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88569-32080 | ||||
| 88578-14080 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06336 | ||||
| 90119-06540 | ||||
| 90339-07016 | ||||
| 90467-12049 | ||||
| 93319-15008 | ||||
(9205- )AE101..LHD..GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88690-1A020 |
AE101,102..LHD..(GLI,XLI)..GEN MAKER OPTION |
1 | ||
| 88690-1A020 |
AE101,102..LHD..(GLI,XLI)..(GEN,TUR) MAKER OPTION |
1 | ||
| 88690-1A070 |
AE101,102..LHD..(GLI,XLI)..(GEN,TUR) DEALER OPTION |
1 | ||
| 88690-1A070 |
AE101,102..LHD..(GLI,XLI)..GEN DEALER OPTION |
1 | ||
| 88690-12811 |
AE100..LX;AE101..SED DEALER OPTION |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AE101..LHD..(GL,XL) *H,L=280,MARK=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
AE101..LHD..(GL,XL) *H,L=280,MARK=#* |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32127 | ||||
| 90099-32144 | ||||
| 90119-06336 | ||||
| 90119-06540 | ||||
| 90464-00082 | ||||
| 91651-60614 | ||||
| 93319-14006 | ||||
