Toyota Corolla sed/cp/wg AE101 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COROLLA SED/CP/WG
AE101L-AEMDU (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE101L-AEMDU (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - May 1998

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9505- )AE10#

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
48094-10010	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
48094-10010	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88374C - VALVE, SERVICE, NO.2
88374-12020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
48094-10010	AE101,CE100,EE100,105..LHD	05/1992 - 05/1993	1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88374-30010	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88375-30270	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88375-30290	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88375-30290	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30290	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30290	EE105..LHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30290	AE101..4FC..XLI;AE101,EE105..LHD;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30290	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375-30290	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G	08/1991 - 05/1992	3
90986-02004	AE10#,EE108..(SED,WG)..GEN 250G	01/1993 - 05/1993	3
90986-02004	AE10#,CE100,EE10#..(SED,WG)..GEN 250G	05/1992 - 01/1993	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	09/1995 - 11/1995	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	05/1995 - 09/1995	3
90986-02008	CE100,EE100,101,105..GEN;AE101..RHD..(GLI,SEG,XLI) 200G	05/1993 - 01/1994	3
90986-02007	AE101..LHD..5F..(GL,XL) 250G,MIDDLE EAST SPEC	05/1995 - 05/1998	3
90986-02008	AE101..RHD..WG;EE100..LHD..GL;AE101..RHD..4FC..XLI;AE101..LHD..(GEN,TUR);AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) 200G	11/1995 - 12/2999	3
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88645-50010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88645-20050	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88645-20050	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88645-20050	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88645-20050	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12700	AE100..LX;AE101..SED DEALER OPTION	08/1991 - 05/1992	1
88711-12780	AE101..LHD..(GL,STD,XL)	05/1992 - 07/1992	1
88711-12780	AE101..LHD..(GL,STD,XL) DEALER OPTION	07/1992 - 05/1993	1
88711-12890	AE101..LHD..5F..(GL,STD,XL)	07/1992 - 05/1993	1
88711-1A170	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A050	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88712-1A070	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC	05/1992 - 05/1993	1
88712-1A050	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC,W/0(OIL COOLER)	05/1992 - 05/1993	1
88712-1A180	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC,W/O(OIL COOLER)	05/1995 - 05/1998	1
88712-1A200	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88712-1A180	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A060	AE101,EE100,105..LHD	05/1992 - 05/1993	1
88716-1A220	AE101,102,EE100,105..LHD	09/1994 - 09/1995	1
88716-1A020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88716-1A220	AE101,102,EE100,105..LHD	05/1993 - 09/1994	1
88716-1A060	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88716-1A080	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88717-12580	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
88723-12060	AE101,EE100..SED	08/1991 - 05/1992	1
88723-12060	AE101,CE100,EE100,101,105..(SED,WG)..GEN DEALER OPTION	05/1992 - 05/1993	1
88723-12100	AE101..RHD..(SED,WG);AE101..LHD..ATM..GEN;CE100,EE100,101,105..GEN;AE101..LHD..5F..(GLI,XLI)..GEN MAKER OPTION	05/1992 - 05/1993	1
88723-12100	AE101,EE100..GCC;AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
88723-12120	AE10#,CE100,EE10#	09/1995 - 12/2999	1
88723-12120	AE10#,CE100,EE10#	08/1995 - 09/1995	1
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 08/1995	1
Common parts
88718-1A540
88718-1A590
88718-1A640
90091-20619
90119-06458
90179-06032
93385-56025

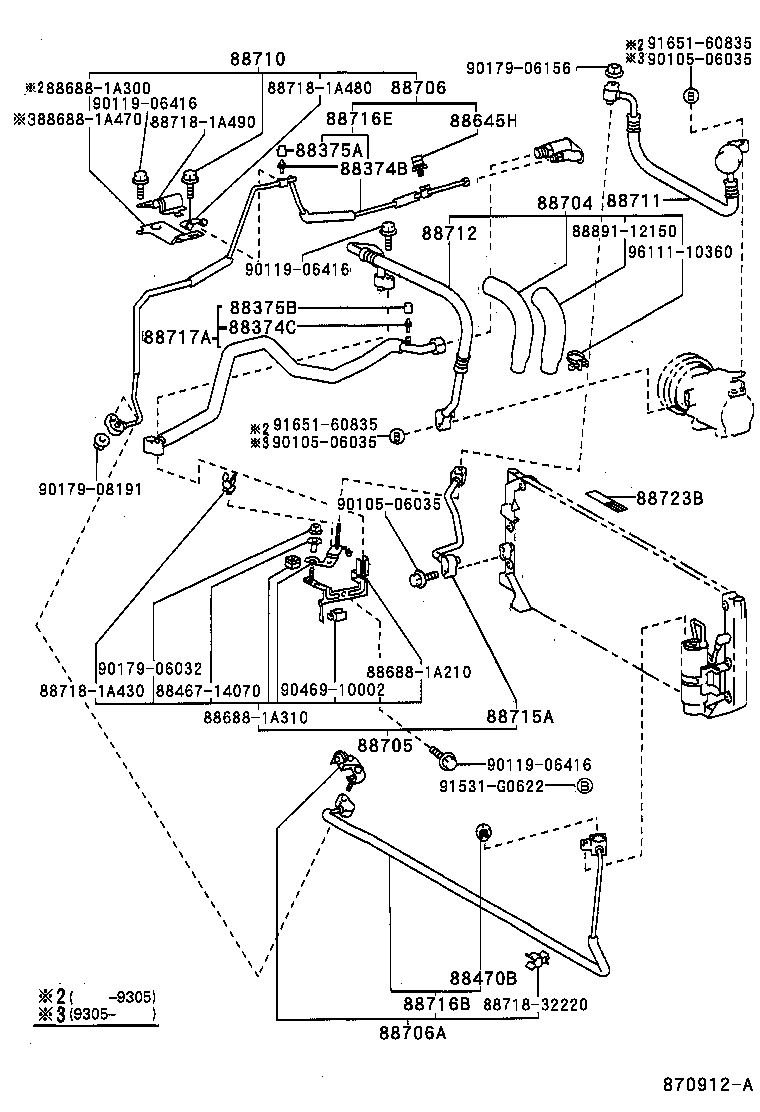

ILLUST NO. 2 OF 3(9205- )AE101,102..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
48094-10010	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
48094-10010	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88374C - VALVE, SERVICE, NO.2
88374-12020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
48094-10010	AE101,CE100,EE100,105..LHD	05/1992 - 05/1993	1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88374-30010	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88375-30270	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88375-30290	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88375-30290	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30290	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30290	EE105..LHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30290	AE101..4FC..XLI;AE101,EE105..LHD;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30290	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375-30290	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88470B - BOLT, FUSE
88475-12020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88475-12020	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88645-50010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88645-20050	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88645-20050	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88645-20050	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88645-20050	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88704 - HOSE SUB-ASSY, SUCTION
88704-12440	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88704-12520	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-12050	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88705-12070	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88706 - PIPE SUB-ASSY, LIQUID
88706-12130	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88706-12130	AE101..LHD..5F..(GL,STD,XL) DEALER OPTION	05/1992 - 05/1993	1
88706-12260	AE101..LHD..XL MAKER OPTION	11/1994 - 05/1995	1
88706-12260	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 11/1994	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-12170	AE101,EE100,105..LHD	05/1992 - 05/1993	1
88706-12290	AE101..LHD..XL MAKER OPTION	11/1994 - 05/1998	1
88706-12290	AE101,102,EE100,105..LHD	09/1994 - 11/1994	1
88706-12290	AE101,102,EE100,105..LHD	05/1993 - 09/1994	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12270	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12700	AE100..LX;AE101..SED DEALER OPTION	08/1991 - 05/1992	1
88711-12780	AE101..LHD..(GL,STD,XL)	05/1992 - 07/1992	1
88711-12780	AE101..LHD..(GL,STD,XL) DEALER OPTION	07/1992 - 05/1993	1
88711-12890	AE101..LHD..5F..(GL,STD,XL)	07/1992 - 05/1993	1
88711-1A170	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A050	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88712-1A070	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC	05/1992 - 05/1993	1
88712-1A050	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC,W/0(OIL COOLER)	05/1992 - 05/1993	1
88712-1A180	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC,W/O(OIL COOLER)	05/1995 - 05/1998	1
88712-1A200	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88712-1A180	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12430	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88715-12450	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88715-12450	AE101,EE100..LHD..(GL,XL) DEALER OPTION	04/1997 - 05/1998	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A060	AE101,EE100,105..LHD	05/1992 - 05/1993	1
88716-1A220	AE101,102,EE100,105..LHD	09/1994 - 09/1995	1
88716-1A020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88716-1A220	AE101,102,EE100,105..LHD	05/1993 - 09/1994	1
88716-1A060	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88716-1A080	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88717-12580	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
88723-12060	AE101,EE100..SED	08/1991 - 05/1992	1
88723-12060	AE101,CE100,EE100,101,105..(SED,WG)..GEN DEALER OPTION	05/1992 - 05/1993	1
88723-12100	AE101..RHD..(SED,WG);AE101..LHD..ATM..GEN;CE100,EE100,101,105..GEN;AE101..LHD..5F..(GLI,XLI)..GEN MAKER OPTION	05/1992 - 05/1993	1
88723-12100	AE101,EE100..GCC;AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
88723-12120	AE10#,CE100,EE10#	09/1995 - 12/2999	1
88723-12120	AE10#,CE100,EE10#	08/1995 - 09/1995	1
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 08/1995	1
Common parts
88467-14070
88688-1A210
88688-1A300
88688-1A310
88688-1A470
88718-1A430
88718-1A480
88718-1A490
88718-32220
88891-12150
90105-06035
90119-06416
90179-06032
90179-06156
90179-08191
90469-10002
91531-G0622
91651-60835
96111-10360

ILLUST NO. 2 OF 3(9108-9505)AE10#

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
48094-10010	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
48094-10010	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88374C - VALVE, SERVICE, NO.2
88374-12020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
48094-10010	AE101,CE100,EE100,105..LHD	05/1992 - 05/1993	1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88374-30010	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88375-30270	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88375-30290	AE10#,CE100,EE10#	08/1994 - 09/1994	1
88375-30290	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30290	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30290	EE105..LHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30290	AE101..4FC..XLI;AE101,EE105..LHD;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30290	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375-30290	AE10#,CE100,EE10#..SED,WG	05/1993 - 08/1994	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G	08/1991 - 05/1992	3
90986-02004	AE10#,EE108..(SED,WG)..GEN 250G	01/1993 - 05/1993	3
90986-02004	AE10#,CE100,EE10#..(SED,WG)..GEN 250G	05/1992 - 01/1993	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	09/1995 - 11/1995	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	05/1995 - 09/1995	3
90986-02008	CE100,EE100,101,105..GEN;AE101..RHD..(GLI,SEG,XLI) 200G	05/1993 - 01/1994	3
90986-02007	AE101..LHD..5F..(GL,XL) 250G,MIDDLE EAST SPEC	05/1995 - 05/1998	3
90986-02008	AE101..RHD..WG;EE100..LHD..GL;AE101..RHD..4FC..XLI;AE101..LHD..(GEN,TUR);AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) 200G	11/1995 - 12/2999	3
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88645-50010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88645-20050	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88645-20050	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88645-20050	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88645-20050	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88704 - HOSE SUB-ASSY, SUCTION
88704-12440	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88704-12520	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12700	AE100..LX;AE101..SED DEALER OPTION	08/1991 - 05/1992	1
88711-12780	AE101..LHD..(GL,STD,XL)	05/1992 - 07/1992	1
88711-12780	AE101..LHD..(GL,STD,XL) DEALER OPTION	07/1992 - 05/1993	1
88711-12890	AE101..LHD..5F..(GL,STD,XL)	07/1992 - 05/1993	1
88711-1A170	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A050	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88712-1A070	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC	05/1992 - 05/1993	1
88712-1A050	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC,W/0(OIL COOLER)	05/1992 - 05/1993	1
88712-1A180	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC,W/O(OIL COOLER)	05/1995 - 05/1998	1
88712-1A200	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88712-1A180	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A060	AE101,EE100,105..LHD	05/1992 - 05/1993	1
88716-1A220	AE101,102,EE100,105..LHD	09/1994 - 09/1995	1
88716-1A020	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88716-1A220	AE101,102,EE100,105..LHD	05/1993 - 09/1994	1
88716-1A060	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88716-1A080	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88717-12580	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
88723-12060	AE101,EE100..SED	08/1991 - 05/1992	1
88723-12060	AE101,CE100,EE100,101,105..(SED,WG)..GEN DEALER OPTION	05/1992 - 05/1993	1
88723-12100	AE101..RHD..(SED,WG);AE101..LHD..ATM..GEN;CE100,EE100,101,105..GEN;AE101..LHD..5F..(GLI,XLI)..GEN MAKER OPTION	05/1992 - 05/1993	1
88723-12100	AE101,EE100..GCC;AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
88723-12120	AE10#,CE100,EE10#	09/1995 - 12/2999	1
88723-12120	AE10#,CE100,EE10#	08/1995 - 09/1995	1
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 08/1995	1
Common parts
88467-14070
88688-12881
88688-12891
88688-1A520
88718-1A400
88718-1A450
88891-12100
90091-20609
90099-32130
90119-06336
90119-06458
90179-06032
90179-08191
90467-07043C0
91651-60835
93385-56025
96111-10360

ILLUST NO. 2 OF 3(9108-9505)AE10#

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88645-50010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88645-20050	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88645-20050	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88645-20050	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88645-20050	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-12050	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88705-12070	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88706 - PIPE SUB-ASSY, LIQUID
88706-12130	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88706-12130	AE101..LHD..5F..(GL,STD,XL) DEALER OPTION	05/1992 - 05/1993	1
88706-12260	AE101..LHD..XL MAKER OPTION	11/1994 - 05/1995	1
88706-12260	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 11/1994	1
88707 - PIPE SUB-ASSY, SUCTION
88707-12100	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 11/1994	1
88707-12100	AE101..LHD..XL MAKER OPTION	11/1994 - 05/1998	1
88707-12070	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12270	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12700	AE100..LX;AE101..SED DEALER OPTION	08/1991 - 05/1992	1
88711-12780	AE101..LHD..(GL,STD,XL)	05/1992 - 07/1992	1
88711-12780	AE101..LHD..(GL,STD,XL) DEALER OPTION	07/1992 - 05/1993	1
88711-12890	AE101..LHD..5F..(GL,STD,XL)	07/1992 - 05/1993	1
88711-1A170	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A050	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88712-1A070	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC	05/1992 - 05/1993	1
88712-1A050	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC,W/0(OIL COOLER)	05/1992 - 05/1993	1
88712-1A180	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC,W/O(OIL COOLER)	05/1995 - 05/1998	1
88712-1A200	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88712-1A180	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12430	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88715-12450	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88715-12450	AE101,EE100..LHD..(GL,XL) DEALER OPTION	04/1997 - 05/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88716-1A080	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88717-12580	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
88723-12060	AE101,EE100..SED	08/1991 - 05/1992	1
88723-12060	AE101,CE100,EE100,101,105..(SED,WG)..GEN DEALER OPTION	05/1992 - 05/1993	1
88723-12100	AE101..RHD..(SED,WG);AE101..LHD..ATM..GEN;CE100,EE100,101,105..GEN;AE101..LHD..5F..(GLI,XLI)..GEN MAKER OPTION	05/1992 - 05/1993	1
88723-12100	AE101,EE100..GCC;AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
88723-12120	AE10#,CE100,EE10#	09/1995 - 12/2999	1
88723-12120	AE10#,CE100,EE10#	08/1995 - 09/1995	1
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 08/1995	1
Common parts
88688-12881
88688-12891
88688-1A030
88688-1A560
88718-1A400
88718-1A440
90105-06035
90119-06416
90159-50028
90179-06156
90179-06292
90179-08191
90467-08056C0
91532-G0622
91651-60835

ILLUST NO. 1 OF 3(9108-9312)AE10#,EE10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-12110	AE10#,EE100,101,105..GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI	08/1991 - 05/1993	1
88453A - FAN, COOLING
88453-10020	AE10#,EE10#	08/1991 - 12/1991	1
88453-10021	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR)	05/1995 - 08/1995	1
88453-10021	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	08/1995 - 09/1995	1
88453-10022	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) MAKER OPTION	01/1996 - 12/2999	1
88453-12080	AE10#,EE10#..GEN,TUR	09/1994 - 05/1995	1
88453-10021	AE102,EE104;AE101..GL,XL;AE101..WG..GEN;EE100..3FC..GEN;AE101..4FC..XLI..GEN;EE100,105..LHD..MTM..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN DEALER OPTION	01/1996 - 04/1997	1
88453-10021	AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	09/1995 - 01/1996	1
88453-10021	AE101..4FC..XLI;AE10#,EE100..LHD..GEN DEALER OPTION	04/1997 - 05/1998	1
88454A - SHROUD, FAN
88454-12150	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI)	11/1995 - 12/2999	1
88454-12150	AE10#,EE10#	12/1993 - 09/1994	1
88454-12150	AE10#,EE10#	09/1994 - 09/1995	1
88454-12130	AE10#,EE10#	08/1991 - 12/1993	1
88454-12150	AE10#,EE10#	09/1995 - 11/1995	1
88460 - CONDENSER ASSY, COOLER
88460-12440	AE10#,EE10#	05/1993 - 09/1994	1
88460-12440	AE10#,EE10#	09/1994 - 09/1995	1
88460-12410	AE10#,EE10#	08/1991 - 05/1993	1
88460-12440	AE10#,EE10#	09/1995 - 11/1995	1
88460-12440	AE101..LHD;AE101..4FC..XLI;AE102,EE100..GLI,XL DEALER OPTION	04/1997 - 05/1998	1
88460-12440	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) DEALER OPTION	11/1995 - 04/1997	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12100	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12100	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12100	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12100	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12100	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12100	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12110	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12110	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12110	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12110	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12110	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12110	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88471-60010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88471-60010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
88471-12020	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88471-60010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
88473-12080	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88473-12080	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88473-12080	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G	08/1991 - 05/1992	3
90986-02004	AE10#,EE108..(SED,WG)..GEN 250G	01/1993 - 05/1993	3
90986-02004	AE10#,CE100,EE10#..(SED,WG)..GEN 250G	05/1992 - 01/1993	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	09/1995 - 11/1995	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	05/1995 - 09/1995	3
90986-02008	CE100,EE100,101,105..GEN;AE101..RHD..(GLI,SEG,XLI) 200G	05/1993 - 01/1994	3
90986-02007	AE101..LHD..5F..(GL,XL) 250G,MIDDLE EAST SPEC	05/1995 - 05/1998	3
90986-02008	AE101..RHD..WG;EE100..LHD..GL;AE101..RHD..4FC..XLI;AE101..LHD..(GEN,TUR);AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) 200G	11/1995 - 12/2999	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL	08/1995 - 09/1995	1
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE100,105..GLI,STD,XL;AE101..LHD..SED..5F..(GLI,XLI)	05/1995 - 08/1995	1
88550-12150	AE10#,EE10#	12/1993 - 09/1994	1
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL	09/1995 - 12/2999	1
88550-12150	AE10#,EE10#	09/1994 - 05/1995	1
88550-12130	AE10#,CE100,EE10#	08/1991 - 12/1993	1
88590 - BLOWER ASSY, W/SHROUD
88590-12270	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR)	05/1995 - 08/1995	1
88590-12210	AE10#,EE10#..GEN	08/1991 - 09/1994	1
88590-12270	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	08/1995 - 09/1995	1
88590-12210	AE10#,EE10#..GEN,TUR	09/1994 - 05/1995	1
88590-12270	AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	09/1995 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12410	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88726-12410	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88726-12360	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88726-12410	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88726-12410	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
88892P - NET, FAN SHROUD
88892-12200	AE10#,EE10#	08/1991 - 12/1993	1
Common parts
82711-2B640
88467-12130
88467-12140
88569-12280
88688-1A050
88897-12250
88899-12290
90091-20609
90099-00192
90099-04117
90099-04119
90119-06336
90119-06502
90179-06032
93385-56025

ILLUST NO. 1 OF 3(9312- )AE10#,EE10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-10020	AE10#,EE10#	08/1991 - 12/1991	1
88453-10021	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR)	05/1995 - 08/1995	1
88453-10021	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	08/1995 - 09/1995	1
88453-10022	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) MAKER OPTION	01/1996 - 12/2999	1
88453-12080	AE10#,EE10#..GEN,TUR	09/1994 - 05/1995	1
88453-10021	AE102,EE104;AE101..GL,XL;AE101..WG..GEN;EE100..3FC..GEN;AE101..4FC..XLI..GEN;EE100,105..LHD..MTM..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN DEALER OPTION	01/1996 - 04/1997	1
88453-10021	AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	09/1995 - 01/1996	1
88453-10021	AE101..4FC..XLI;AE10#,EE100..LHD..GEN DEALER OPTION	04/1997 - 05/1998	1
88454A - SHROUD, FAN
88454-12150	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI)	11/1995 - 12/2999	1
88454-12150	AE10#,EE10#	12/1993 - 09/1994	1
88454-12150	AE10#,EE10#	09/1994 - 09/1995	1
88454-12130	AE10#,EE10#	08/1991 - 12/1993	1
88454-12150	AE10#,EE10#	09/1995 - 11/1995	1
88460 - CONDENSER ASSY, COOLER
88460-12440	AE10#,EE10#	05/1993 - 09/1994	1
88460-12440	AE10#,EE10#	09/1994 - 09/1995	1
88460-12410	AE10#,EE10#	08/1991 - 05/1993	1
88460-12440	AE10#,EE10#	09/1995 - 11/1995	1
88460-12440	AE101..LHD;AE101..4FC..XLI;AE102,EE100..GLI,XL DEALER OPTION	04/1997 - 05/1998	1
88460-12440	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE10#..GLI,L,STD,XL;AE101..LHD..SED..5F..(GLI,XLI) DEALER OPTION	11/1995 - 04/1997	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12100	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12100	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12100	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12100	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12100	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12100	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12110	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12110	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12110	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	AE10#,CE100,EE10#	09/1994 - 09/1995	2
88467-12110	AE10#,CE100,EE10#	09/1995 - 11/1995	2
88467-12110	AE10#,CE100,EE10#	08/1991 - 09/1994	2
88467-12110	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88471-60010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88471-60010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
88471-12020	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88471-60010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
88473-12080	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88473-12080	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88473-12080	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL 250G	08/1991 - 05/1992	3
90986-02004	AE10#,EE108..(SED,WG)..GEN 250G	01/1993 - 05/1993	3
90986-02004	AE10#,CE100,EE10#..(SED,WG)..GEN 250G	05/1992 - 01/1993	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	09/1995 - 11/1995	3
90986-02008	AE101..LHD..(GEN,TUR);AE101..RHD..(GLI,SEG,XLI);AE102,CE100,EE10#..GEN,TUR 200G	05/1995 - 09/1995	3
90986-02008	CE100,EE100,101,105..GEN;AE101..RHD..(GLI,SEG,XLI) 200G	05/1993 - 01/1994	3
90986-02007	AE101..LHD..5F..(GL,XL) 250G,MIDDLE EAST SPEC	05/1995 - 05/1998	3
90986-02008	AE101..RHD..WG;EE100..LHD..GL;AE101..RHD..4FC..XLI;AE101..LHD..(GEN,TUR);AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) 200G	11/1995 - 12/2999	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL	08/1995 - 09/1995	1
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE102,EE100,105..GLI,STD,XL;AE101..LHD..SED..5F..(GLI,XLI)	05/1995 - 08/1995	1
88550-12150	AE10#,EE10#	12/1993 - 09/1994	1
88550-12160	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,EE100,104,105..GLI,L,STD,XL	09/1995 - 12/2999	1
88550-12150	AE10#,EE10#	09/1994 - 05/1995	1
88550-12130	AE10#,CE100,EE10#	08/1991 - 12/1993	1
88590 - BLOWER ASSY, W/SHROUD
88590-12270	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE102,EE100,105..(GLI,STD,XL)..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR)	05/1995 - 08/1995	1
88590-12210	AE10#,EE10#..GEN	08/1991 - 09/1994	1
88590-12270	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	08/1995 - 09/1995	1
88590-12210	AE10#,EE10#..GEN,TUR	09/1994 - 05/1995	1
88590-12270	AE101..GL,XL;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..WG..(GEN,TUR);AE101..LHD..4FC..GLI..(GEN,TUR);AE101..LHD..SED..5F..(GLI,XLI)..(GEN,TUR);AE102,EE100,104,105..(GLI,L,STD,XL)..(GEN,TUR)	09/1995 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12410	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88726-12410	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88726-12360	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88726-12410	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88726-12410	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 12/2999	1
Common parts
82711-2B640
88569-12280
88897-12250
88899-12290
90091-20609
90099-04117
90099-04119
90119-06336
90119-06502
93385-56025

ILLUST NO. 2 OF 3(9505- )AE10#

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE10#,CE100,EE10#	09/1994 - 09/1995	1
48094-10010	AE101..SED;AE100,EE10#..GL,L,LX,STD,XL	08/1991 - 05/1992	1
88374-30010	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88374-30010	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88374-30010	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88374-30010	AE10#,CE100,EE10#	11/1997 - 12/2999	1
48094-10010	AE10#,CE100,EE10#..SED,WG	05/1992 - 05/1993	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88375-24010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88375-30280	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88375-30280	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88375-30280	EE105..RHD;AE10#,CE100,EE100	11/1997 - 12/2999	1
88375-30280	EE105..RHD;AE101..LHD;AE101..4FC..XLI;AE102,CE100,EE100..GLI,XL	04/1997 - 11/1997	1
88375-30280	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 04/1997	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AE10#,CE100,EE10#	09/1995 - 11/1995	1
88645-50010	AE10#,CE100,EE10#	08/1991 - 05/1993	1
88645-20050	AE10#,CE100,EE10#	11/1997 - 12/2999	1
88645-20050	AE10#,CE100,EE10#	09/1994 - 09/1995	1
88645-20050	AE10#,CE100,EE10#	05/1993 - 09/1994	1
88645-20050	AE101..WG;AE101..GL,XL;EE100..LHD..GL;AE101..LHD..4FC..GLI;AE101..SED..4FC..XLI;AE101..LHD..SED..5F..(GLI,XLI);AE102,CE100,EE10#..GLI,L,STD,XL	11/1995 - 11/1997	1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-12050	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88705-12070	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12700	AE100..LX;AE101..SED DEALER OPTION	08/1991 - 05/1992	1
88711-12780	AE101..LHD..(GL,STD,XL)	05/1992 - 07/1992	1
88711-12780	AE101..LHD..(GL,STD,XL) DEALER OPTION	07/1992 - 05/1993	1
88711-12890	AE101..LHD..5F..(GL,STD,XL)	07/1992 - 05/1993	1
88711-1A170	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A050	AE101..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88712-1A070	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC	05/1992 - 05/1993	1
88712-1A050	AE101..LHD..5F..(GL,STD,XL) MIDDLE EAST SPEC,W/0(OIL COOLER)	05/1992 - 05/1993	1
88712-1A180	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC,W/O(OIL COOLER)	05/1995 - 05/1998	1
88712-1A200	AE101..LHD..5F..(GL,XL) MIDDLE EAST SPEC	05/1995 - 05/1998	1
88712-1A180	AE101..LHD..(GL,XL)	05/1995 - 05/1998	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12430	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88715-12450	AE101,EE100,105..LHD..(GL,STD,XL)	05/1993 - 04/1997	1
88715-12450	AE101,EE100..LHD..(GL,XL) DEALER OPTION	04/1997 - 05/1998	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A010	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88716-1A080	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560	AE101..SED;AE100,EE100..GL,LX,STD,XL DEALER OPTION	08/1991 - 05/1992	1
88717-12580	AE101,EE100,105..LHD..(GL,STD,XL)	05/1992 - 05/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
88723-12060	AE101,EE100..SED	08/1991 - 05/1992	1
88723-12060	AE101,CE100,EE100,101,105..(SED,WG)..GEN DEALER OPTION	05/1992 - 05/1993	1
88723-12100	AE101..RHD..(SED,WG);AE101..LHD..ATM..GEN;CE100,EE100,101,105..GEN;AE101..LHD..5F..(GLI,XLI)..GEN MAKER OPTION	05/1992 - 05/1993	1
88723-12100	AE101,EE100..GCC;AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
88723-12120	AE10#,CE100,EE10#	09/1995 - 12/2999	1
88723-12120	AE10#,CE100,EE10#	08/1995 - 09/1995	1
88723-12120	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 08/1995	1
Common parts
88688-1A030
88718-1A540
88718-1A590
88718-1A640
90091-20619
90105-06035
90119-06416
90179-06156
90179-06205
91532-G0622

AE101L-AEMDU (1992)

ILLUST NO. 2 OF 3(9505- )AE10#

ILLUST NO. 2 OF 3(9205- )AE101,102..LHD

ILLUST NO. 2 OF 3(9108-9505)AE10#

ILLUST NO. 2 OF 3(9108-9505)AE10#

ILLUST NO. 1 OF 3(9108-9312)AE10#,EE10#

ILLUST NO. 1 OF 3(9312- )AE10#,EE10#

ILLUST NO. 2 OF 3(9505- )AE10#

Part Price Details
