Toyota Corolla sed/cp/wg AE101 WIRING & CLAMP

AE101L-AEMDU (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - May 1998

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(9205- )LHD..SED

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12130	AE101,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI) W(*EL)	08/1993 - 12/1993	1
82142-12130	AE101,CE100,EE100..LHD..(GL,GLI,XL,XLI) W(*EL)	05/1992 - 08/1993	1
82142-12090	AE101,CE100,EE100..LHD..(GL,GLI,XL,XLI) W(PW & EL)	05/1992 - 12/1993	1
82142-12131	AE101,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W(*EL)	12/1993 - 05/1996	1
82142-12120	AE101,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W(MOON ROOF)	05/1992 - 11/1997	1
82142-12091	AE101..WG..GCC;EE100..LHD..(GL,XL)..(GCC,GEN);AE101,CE100..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W(PW & EL)	12/1993 - 05/1998	1
82142-12131	AE101..WG..GCC;EE100..LHD..(GL,XL)..(GCC,GEN);AE101,CE100..LHD..SED..(GCC,GEN) W(*EL)	05/1996 - 05/1998	1
82161 - WIRE, FLOOR
82161-1H790	AE101,EE100..SED	08/1991 - 05/1992	1
82161-1K560	AE101,CE100,EE100..LHD..SED..(GCC,GEN)	05/1992 - 11/1994	1
82161-1K561	AE101,CE100,EE100..LHD..SED..(GCC,GEN)	11/1994 - 05/1995	1
82161-1L510	AE101,CE100,EE100..LHD..SED..(GCC,GEN)	05/1995 - 05/1998	1
82171 - WIRE, ROOF, NO.1
82171-12570	AE101,102,CE100,EE100..LHD..SED..(GCC,GEN)	05/1992 - 05/1995	1
82171-12580	AE101,CE100,EE100..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W(MOON ROOF)	05/1992 - 11/1997	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-12240	AE101,CE100,EE100..LHD..GEN	05/1992 - 09/1994	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12170	AE101,102,CE100,EE100..LHD..SED..(GCC,GEN)	05/1992 - 05/1998	1
Common parts
82711-12770
82711-1A850
90119-06390
90333-25001

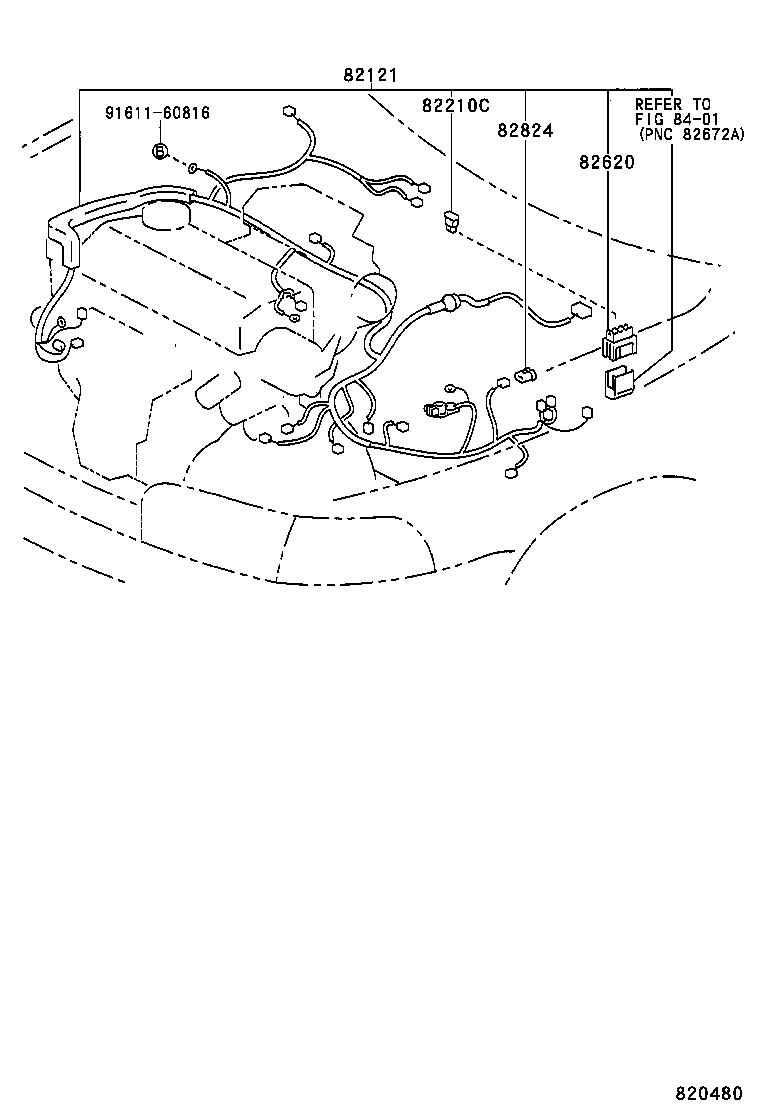

ILLUST NO. 2 OF 9(9205- )AE101..GL,STD,XL

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1H540	AE101..SED..5F	08/1991 - 05/1992	1
82121-1K610	AE101..5F..XL VENEZUELA SPEC	05/1992 - 05/1993	1
82121-1K380	AE101..LHD..5F..(GL,STD,XL)	05/1992 - 05/1993	1
82121-1L230	AE101..LHD..5F..(GL,STD,XL)	05/1993 - 11/1994	1
82121-1L280	AE101..5F..XL VENEZUELA SPEC	05/1993 - 11/1994	1
82121-1L231	AE101..LHD..5F..(GL,STD,XL)	11/1994 - 05/1995	1
82121-1L281	AE101..5F..XL VENEZUELA SPEC	11/1994 - 05/1995	1
82121-1N120	AE101..5F..XL VENEZUELA SPEC	05/1995 - 11/1997	1
82121-1N050	AE101..LHD..5F..(GL,XL)	05/1995 - 11/1997	1
82210C - FUSIBLE LINK
90982-08246	AE100;AE101..5F;AE101..4FC..SJ 100A,TERM.:MALE,BLUE	08/1991 - 05/1992	1
90982-08188	AE10#,CE100,EE100,101,104,105 30A,TERM.:FEMALE,PNK	08/1991 - 09/1994	2
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	09/1994 - 09/1995	2
90982-08257	EE100;AE10#,EE104,105..GCC,GEN 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08257	EE100;AE10#,EE101,104,105..GCC,GEN 40A,TERM.:MALE,GRN	08/1991 - 05/1995	1
90982-08246	AE10#..GCC,GEN 100A,TERM.:MALE,BLUE	05/1995 - 12/2999	1
90982-08246	AE10#,EE101..GCC,GEN 100A,TERM.:MALE,BLUE	05/1992 - 05/1995	1
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	09/1995 - 04/1997	2
90982-08257	EE100;AE10#,EE105..GEN 40A,TERM.:MALE,GRN	04/1997 - 12/2999	1
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	04/1997 - 12/2999	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12150	AE10#,EE101..GCC,GEN	05/1992 - 05/1995	1
82620-12150	AE100;AE101..5F;AE101..4FC..SJ	08/1991 - 05/1992	1
82620-12150	AE10#..GCC,GEN	05/1995 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	EE100;AE10#,EE101,105..GCC,GEN	04/1994 - 11/1994	1
82824-20050	AE10#,CE100,EE10#..SED,WG	11/1994 - 09/1995	1
82824-20050	AE10#,CE100,EE10#	04/1997 - 12/2999	1
82824-20050	AE10#,EE10#	08/1991 - 04/1994	1
82824-20050	AE10#,CE100,EE10#	09/1995 - 04/1997	1
Common parts
91611-60816
Linked diagrams
8401

ILLUST NO. 4 OF 9(9205- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12030	AE10#,EE10#..SED,WG	08/1991 - 05/1992	1
82028-12050	AE10#,CE100,EE10#..SED,WG	09/1994 - 11/1994	1
82028-12050	AE10#,CE100,EE10#..SED,WG	05/1992 - 09/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-12360	AE101..SED	08/1991 - 05/1992	1
82141-1A420	AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN	05/1992 - 08/1993	1
82141-1A421	AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN	08/1993 - 12/1993	1
82141-1A422	AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN	12/1993 - 11/1994	1
82141-1A423	AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN	11/1994 - 05/1995	1
82141-1L270	AE101,CE100,EE100,105..LHD..(GL,STD,XL)..GEN	05/1995 - 04/1997	1
82141-1L270	AE101,EE100..LHD..(GL,XL)..GEN	04/1997 - 05/1998	1
82345 - DIODE
82345-32020	AE10#,CE100,EE100 TYPE B:REFER TO ILLUSTRATION	04/1997 - 12/2999	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	09/1994 - 09/1995	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	09/1995 - 04/1997	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	08/1991 - 09/1994	3
82345 - DIODE
82345-32020	AE10#,CE100,EE100 TYPE B:REFER TO ILLUSTRATION	04/1997 - 12/2999	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	09/1994 - 09/1995	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	09/1995 - 04/1997	3
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	08/1991 - 09/1994	3
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
90159-60081
90167-50002
91611-60612
91655-60616
93567-55014
93568-55014
Linked diagrams
8121
8401
