Toyota Corolla sed/cp/wg AE101 POWER STEERING TUBE

AE101L-AEMDU (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - May 1998

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

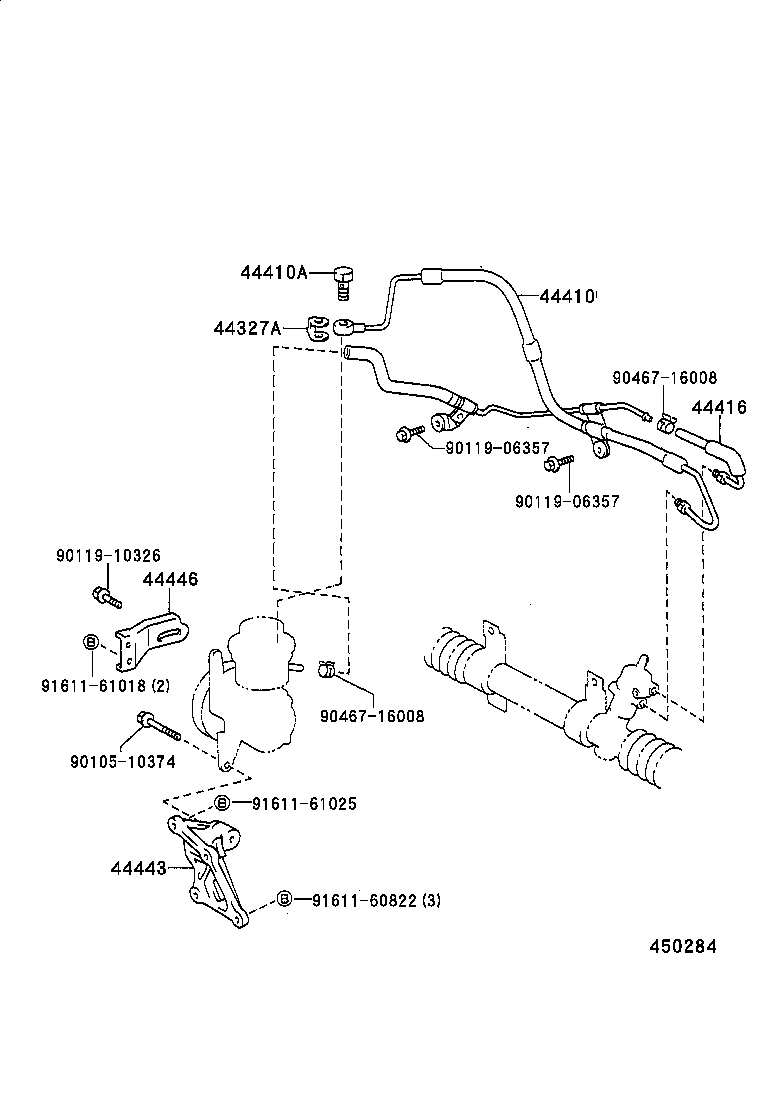

Click highlighted areas on diagram

W(OIL COOLER)

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44327-12010	AE10#,CE100..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 01/1993	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-12140	AE102;AE101..LHD..XL	01/1993 - 05/1998	1
44410 - TUBE ASSY, PRESSURE FEED
44410-12512	AE101..LHD..(GL,STD,XL)	09/1992 - 01/1993	1
44410-12511	AE101..LHD..(GL,STD,XL)	05/1992 - 08/1992	1
44410-12370	AE10#..SED	08/1991 - 05/1992	1
44410-12540	AE101..LHD..XL VENEZUELA SPEC & W(POWER STEERING)	01/1993 - 05/1998	1
44410-12512	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012	AE10#,CE100..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 01/1993	1
90401-16012	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12220	AE10#	08/1991 - 04/1992	1
44406-12160	AE101,CE100,EE100,105..LHD	05/1992 - 01/1993	1
44406-12160	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44443 - BRACKET, PUMP
44443-12100	AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI	09/1994 - 09/1995	1
44443-12100	AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI	05/1992 - 09/1994	1
44446 - STRUT, ADJUSTING
44446-12060	AE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 09/1994	1
44446-12060	AE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI	09/1994 - 09/1995	1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91611-61025
91651-60614

Click highlighted areas on diagram

W/O(OIL COOLER)

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44327-12010	AE10#,CE100..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 01/1993	1
44410 - TUBE ASSY, PRESSURE FEED
44410-12512	AE101..LHD..(GL,STD,XL)	09/1992 - 01/1993	1
44410-12511	AE101..LHD..(GL,STD,XL)	05/1992 - 08/1992	1
44410-12370	AE10#..SED	08/1991 - 05/1992	1
44410-12540	AE101..LHD..XL VENEZUELA SPEC & W(POWER STEERING)	01/1993 - 05/1998	1
44410-12512	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012	AE10#,CE100..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 01/1993	1
90401-16012	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12220	AE10#	08/1991 - 04/1992	1
44406-12160	AE101,CE100,EE100,105..LHD	05/1992 - 01/1993	1
44406-12160	AE101..LHD..XL W(POWER STEERING)	01/1993 - 05/1998	1
44443 - BRACKET, PUMP
44443-12100	AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI	09/1994 - 09/1995	1
44443-12100	AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI	05/1992 - 09/1994	1
44446 - STRUT, ADJUSTING
44446-12060	AE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 09/1994	1
44446-12060	AE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI	09/1994 - 09/1995	1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91611-61025
