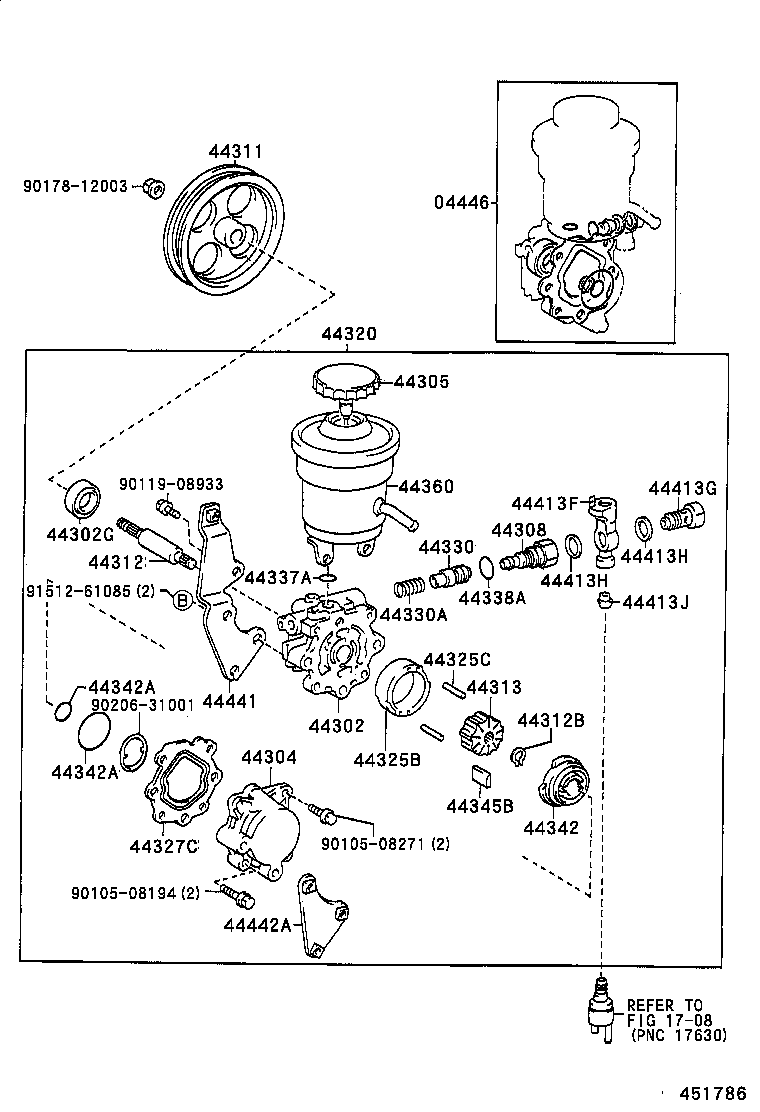

AE101L-AEMDU (1992)
Toyota Corolla Sed/Cp/Wg
(9205- )AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32011 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12160 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 90311-18007 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-26031 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44324-26031 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| 44324-12031 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 44324-26031 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
CE100,EE100,101;AE101,EE104,105,108..(CP,WG)..(GTAPX,L,STD,XL) |
1 | ||
| 44305-22040 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-12110 |
AE10#..SED,WG |
1 | ||
| 44308-12100 |
AE10#..SED |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12090 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44311-12100 |
EE100,101,105 |
1 | ||
| 44311-12090 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| 44311-12090 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 44312-32020 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL NO MARK |
1 | ||
| 44313-22070 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 3 |
1 | ||
| 44313-22080 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 4 |
1 | ||
| 44313-22050 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 1 |
1 | ||
| 44313-26060 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI NO MARK,(J) |
1 | ||
| 44313-22060 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 2 |
1 | ||
| 44313-26080 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 2,(J) |
1 | ||
| 44313-26100 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 4,(J) |
1 | ||
| 44313-26070 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 1,(J) |
1 | ||
| 44313-26090 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 3,(J) |
1 | ||
| 44313-26070 |
AE101,102..SED,WG MARK 1 |
1 | ||
| 44313-26060 |
AE101,102..SED,WG NO MARK |
1 | ||
| 44313-26080 |
AE101,102..SED,WG MARK 2 |
1 | ||
| 44313-26100 |
AE101,102..SED,WG MARK 4 |
1 | ||
| 44313-26090 |
AE101,102..SED,WG MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-12320 |
AE101..SED |
1 | ||
| 44320-12341 |
AE101..GL,STD,XL |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12110 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL NO MARK |
1 | ||
| 44325-12140 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 3 |
1 | ||
| 44325-12120 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 1 |
1 | ||
| 44325-12150 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 4 |
1 | ||
| 44325-12130 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL MARK 2 |
1 | ||
| 44325-12310 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 4 |
1 | ||
| 44325-12270 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI NO MARK |
1 | ||
| 44325-12300 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 3 |
1 | ||
| 44325-12290 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 2 |
1 | ||
| 44325-12280 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI MARK 1 |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=43,OD=4.0 |
1 | ||
| 90250-04047 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=28,OD=4.0 |
1 | ||
| 90250-04071 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-20030 |
AE101..SED MARK C |
1 | ||
| 44330-20020 |
AE101..SED MARK B |
1 | ||
| 44330-20040 |
AE101..SED MARK D |
1 | ||
| 44330-20060 |
AE101..SED MARK F |
1 | ||
| 44330-20010 |
AE101..SED MARK A |
1 | ||
| 44330-20050 |
AE101..SED MARK E |
1 | ||
| 44330-12580 |
AE101..GL,SJ,STD,XL MARK B |
1 | ||
| 44330-12570 |
AE101..GL,SJ,STD,XL MARK A |
1 | ||
| 44330-12600 |
AE101..GL,SJ,STD,XL MARK D |
1 | ||
| 44330-12610 |
AE101..GL,SJ,STD,XL MARK E |
1 | ||
| 44330-12620 |
AE101..GL,SJ,STD,XL MARK F |
1 | ||
| 44330-12590 |
AE101..GL,SJ,STD,XL MARK C |
1 | ||
| 44330-12570 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK A |
1 | ||
| 44330-12600 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK D |
1 | ||
| 44330-12610 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK E |
1 | ||
| 44330-12590 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK C |
1 | ||
| 44330-12620 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK F |
1 | ||
| 44330-12580 |
AE101,102..GL,GLI,SEG,SJ,STD,XL,XLI MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 90501-13034 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 90301-11010 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI ID=19.5,OD=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44342-32010 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 44342-26020 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44342-26020 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 90301-18007 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI INNER |
1 | ||
| 90301-47001 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL |
1 | ||
| 90301-18007 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI INNER |
1 | ||
| 90301-47001 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12030 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=14.993 |
10 | ||
| 44345-12050 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=14.989 |
10 | ||
| 44345-12010 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=14.997 |
10 | ||
| 44345-12040 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=14.991 |
10 | ||
| 44345-26020 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=14.998 |
10 | ||
| 44345-26010 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=15.000 |
10 | ||
| 44345-12020 |
AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL L=14.995 |
10 | ||
| 44345-26030 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=14.996 |
10 | ||
| 44345-26050 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=14.992 |
10 | ||
| 44345-26040 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI L=14.994 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-12160 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44360-12050 |
CE100,EE100,101;AE101,EE104,105,108..(CP,WG)..(GTAPX,L,STD,XL) |
1 | ||
| 44306-12160 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-12150 |
AE101..GL,STD,XL |
1 | ||
| 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 96341-41603 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 90401-16008 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 44413J - SEAT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90410-05035 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-12070 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44441-12070 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-12020 |
AE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 44442-12020 |
AE100;AE101..GL,SJ,STD,XL |
1 | ||
| Common parts | ||||
| 90105-08194 | ||||
| 90105-08271 | ||||
| 90119-08933 | ||||
| 90178-12003 | ||||
| 90206-31001 | ||||
| 91512-61085 | ||||
| Linked diagrams | ||||
| 1708 | ||||
