AE101L-AEMDU (1992)
Toyota Corolla Sed/Cp/Wg

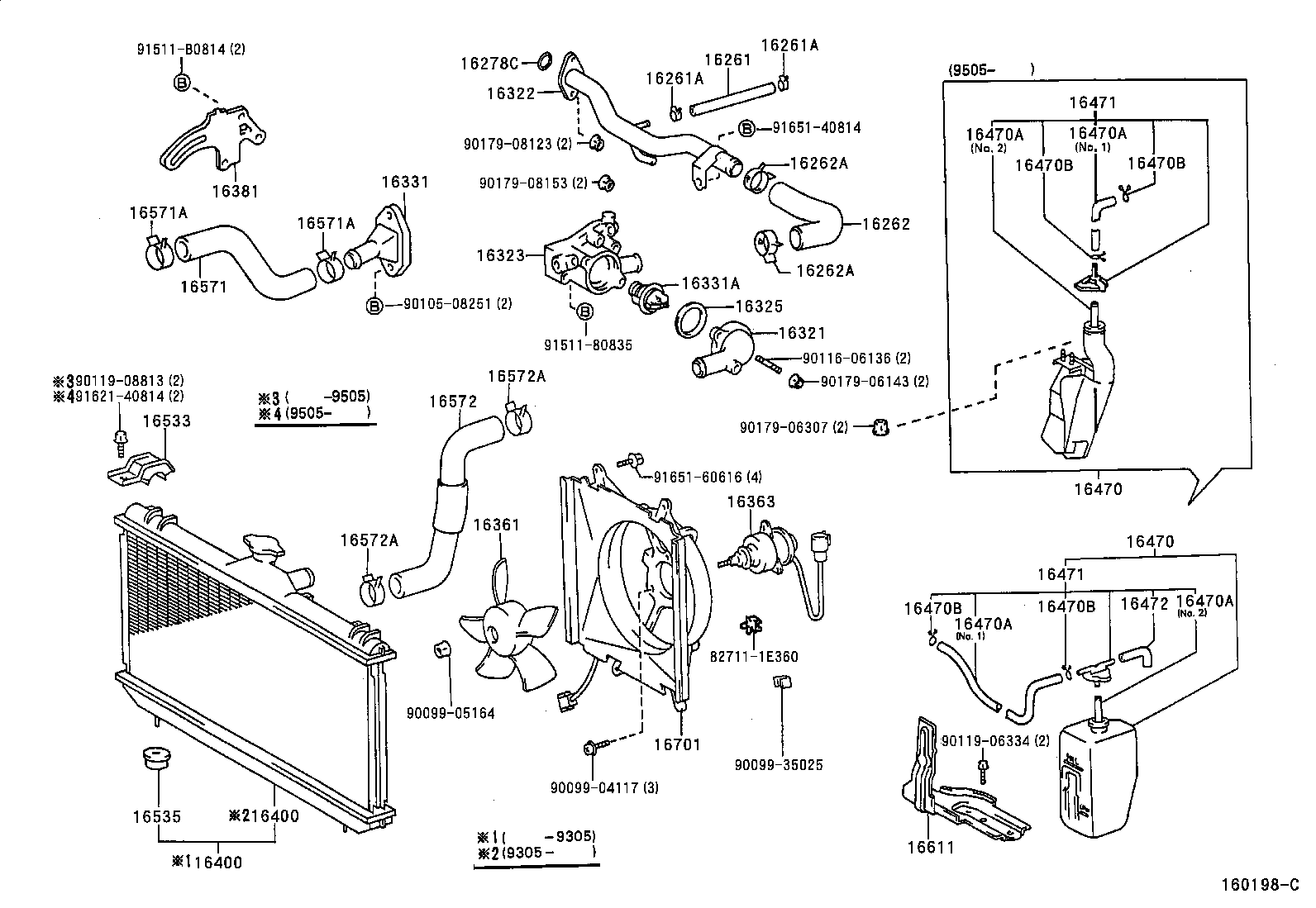

ILLUST NO. 1 OF 2(9205- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-10300 |
4AF..AE101 *H,L=220 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
4AF..AE101 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
4AF..AE101 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15030 |
4AF..AE101 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF..AE101 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF..AE101 |
2 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4AF..AE101 |
1 | ||
| 96761-24035 |
4AF..AE101 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15020 |
4AF,4AGE..AE101 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15041 |
4AF..AE101 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15060 |
4AF..AE101 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AF#,5AFE..AE10# |
1 | ||
| 16325-63011 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AF..AE101..5F;4AFE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03109 |
4AF..AE101 *WAX 82-95 |
1 | ||
| 90916-03046 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-11010 |
4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16361-11010 |
4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15120 |
4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16363-15120 |
4AGE,5AFE..AE100,101;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15060 |
4AF..AE101 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15480 |
4AF..AE101..LHD..5F *ME |
1 | ||
| 16400-15530 |
4AF#,4AGE..AE101..5F..GEN |
1 | ||
| 16400-15480 |
4AF..AE101..5F..XL *ME OR VENEZUELA SPEC |
1 | ||
| 16400-15531 |
4AF#,4AGE..AE101..5F..(GEN,TUR) |
1 | ||
| 16400-15680 |
4AF#..AE101..5F..(GL,GLI,XL,XLI)..GEN |
1 | ||
| 16400-15481 |
4AF..AE101..5F..XL *ME OR VENEZUELA SPEC |
1 | ||
| 16400-16680 |
4AF..AE101..5F |
1 | ||
| 16400-15481 |
4AF..AE101..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15480 |
4AF..AE101..LHD..5F *ME |
1 | ||
| 16400-15530 |
4AF#,4AGE..AE101..5F..GEN |
1 | ||
| 16400-15480 |
4AF..AE101..5F..XL *ME OR VENEZUELA SPEC |
1 | ||
| 16400-15531 |
4AF#,4AGE..AE101..5F..(GEN,TUR) |
1 | ||
| 16400-15680 |
4AF#..AE101..5F..(GL,GLI,XL,XLI)..GEN |
1 | ||
| 16400-15481 |
4AF..AE101..5F..XL *ME OR VENEZUELA SPEC |
1 | ||
| 16400-16680 |
4AF..AE101..5F |
1 | ||
| 16400-15481 |
4AF..AE101..5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15080 |
4AF#,4AGE,5AFE..AE10# |
1 | ||
| 16470-15081 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF#,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF#,7AFE..AE10# |
1 | ||
| 16470-15081 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15080 |
4AF#,4AGE,5AFE..AE10# |
1 | ||
| 16470-15081 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF#,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF#,7AFE..AE10# |
1 | ||
| 16470-15081 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16470-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 90445-12078 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.2 |
1 | ||
| 90445-12078 |
4AF#,7AFE..AE10# NO.2 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
4AF#,7AFE..AE10# NO.1 |
1 | ||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 16478-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.1 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 90445-12078 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.2 |
1 | ||
| 90445-12078 |
4AF#,7AFE..AE10# NO.2 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
4AF#,7AFE..AE10# NO.1 |
1 | ||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 16478-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.1 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 90445-12078 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.2 |
1 | ||
| 90445-12078 |
4AF#,7AFE..AE10# NO.2 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
4AF#,7AFE..AE10# NO.1 |
1 | ||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 16478-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.1 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 90445-12078 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.2 |
1 | ||
| 90445-12078 |
4AF#,7AFE..AE10# NO.2 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
4AF#,7AFE..AE10# NO.1 |
1 | ||
| 16471-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# NO.1 |
1 | ||
| 16478-15090 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) NO.1 |
1 | ||
| 90445-12078 |
4AF#,4AGE,5AFE,7AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-11085 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4AF#,4AGE,5AFE..AE10# |
1 | ||
| 16405-15091 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16405-15100 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) |
1 | ||
| 16405-15100 |
4AF#,7AFE..AE10# |
1 | ||
| 16405-15091 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4AF#,4AGE,5AFE..AE10# |
1 | ||
| 16405-15091 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16405-15100 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) |
1 | ||
| 16405-15100 |
4AF#,7AFE..AE10# |
1 | ||
| 16405-15091 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16477-15080 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-02020 |
4AF#,4AGE,5AFE,7AFE..AE10# (L) |
2 | ||
| 16533-15120 |
4AF#,4AGE,5AFE,7AFE..AE10# (J) |
2 | ||
| 16533-02020 |
4AF#,4AGE,5AFE,7AFE..AE10# (L) |
2 | ||
| 16533-15120 |
4AF#,4AGE,5AFE,7AFE..AE10# (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-15050 |
4A#,5AFE..AE10# TOYOTA GOUSEI |
2 | ||
| 16535-74010 |
4A#,5AFE..AE10# MARUYASU |
2 | ||
| 16535-74010 |
4AF..AE101;4AGE,5AFE..AE10#..5F |
2 | ||
| 16535-74010 |
4AFE..AE101..5F;4AFE..AE101..4FC..GEN;4AF,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16535-74010 |
4AF..AE101;4AGE,5AFE..AE10#..5F;4AFE..AE101..4FC..SJ |
2 | ||
| 16535-74010 |
4AF,4AGE,5AFE..AE10#;4AFE..AE101..4FC..GEN |
2 | ||
| 90916-04002 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(GEN,TUR) MARUYASU |
2 | ||
| 90916-04003 |
4AF,7AFE..AE10#;4AFE..AE101..5F;4AFE..AE101..4FC..(GEN,TUR) TOYOTA GOUSEI |
2 | ||
| 16535-74010 |
4AFE..AE101..5F;4AF,4AGE,5AFE,7AFE..AE10#;4AFE..AE101..4FC..(GEN,TUR) |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15160 |
4AF#,5AFE..AE10# |
1 | ||
| 16571-02040 |
4AF#..AE101 |
1 | ||
| 16571-15160 |
4AF#,4AGE,5AFE..AE100,101 (J) |
1 | ||
| 16571-02030 |
4AF..AE101;4AFE..AE101..5F;4AFE..AE101..4FC..(SEG,XLI);4AFE..AE101..4FC..GLI..(GEN,TUR) (L) |
1 | ||
| 16571-02030 |
4AF#..AE101 (L) |
1 | ||
| 16571-02030 |
4AF#..AE101 (L) |
1 | ||
| 16571-15160 |
4AF#,4AGE,5AFE..AE100,101 (J) |
1 | ||
| 16571-15160 |
4AF#..AE101 (J) |
1 | ||
| 16571-02040 |
4AF#..AE101 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16160 |
4AF..AE101 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 90467-34003 |
4AF#,4AGE,5AFE,7AFE..AE10# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-15020 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16611-15020 |
4AF#,4AGE,5AFE,7AFE..AE10# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15260 |
5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16711-15261 |
5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
1 | ||
| 16711-15261 |
5AFE..AE100;4AF#..AE101..(SED,WG)..5F |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90105-08251 | ||||
| 90116-06136 | ||||
| 90119-06334 | ||||
| 90119-08813 | ||||
| 90179-06143 | ||||
| 90179-06307 | ||||
| 90179-08123 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0814 | ||||
| 91621-40814 | ||||
| 91651-40814 | ||||
| 91651-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
