AE101L-AEMDU (1992)
Toyota Corolla Sed/Cp/Wg
Production
May 1992
-
May 1998
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )4AF

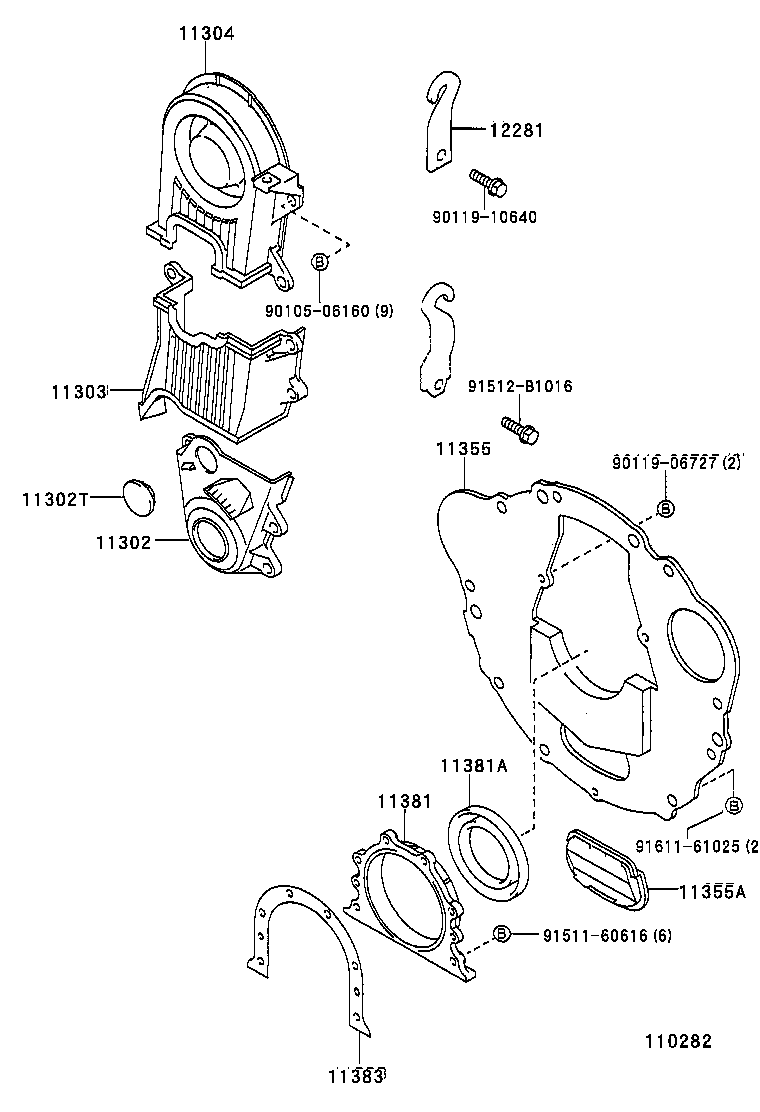

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-15041 |
4AF..AE101 |
1 | ||
| 11302T - PLUG, HOLE | ||||
| 90950-01391 |
4AF..AE101 |
1 | ||
| 11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY | ||||
| 11303-15040 |
4AF..AE101 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11304-15020 |
4AF..AE101 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15070 |
4AF#,4AGE,5AFE,7AFE..AE10#..5F..(GCC,GEN) |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70007 |
4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-16010 |
4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| 11383-15011 |
4A#,5AFE..AE10# |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-15050 |
4AF#,5AFE,7AFE..AE10#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90119-06727 | ||||
| 90119-10640 | ||||
| 91511-60616 | ||||
| 91512-B1016 | ||||
| 91611-61025 | ||||
