AE101L-AEMDKB (1994)
Toyota Corolla Sed/Cp/Wg
Production
Sep 1994
-
Jul 1998
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

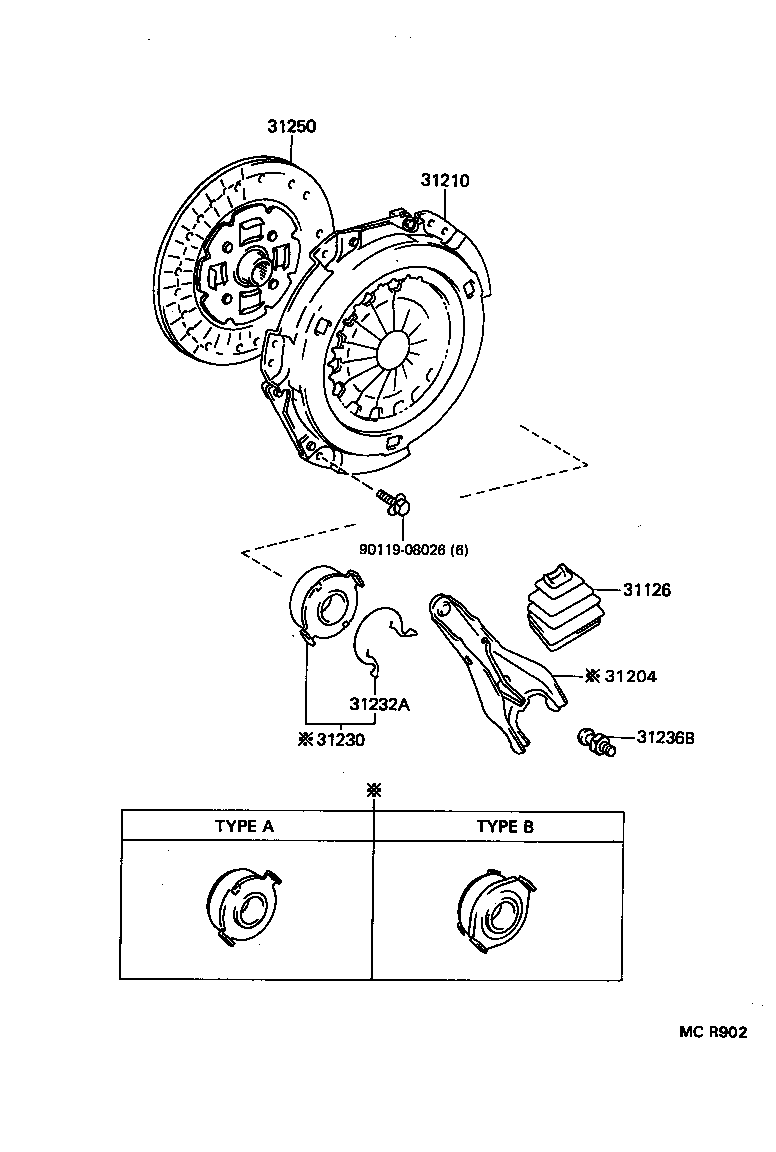

ILLUST NO. 1 OF 2(9409- )AE101..TUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12051 |
AE100,101,EE10#..MTM |
1 | ||
| 31126-12051 |
AE100,101,EE10#..MTM |
1 | ||
| 31126-12051 |
AE10#,EE10#..5F |
1 | ||
| 31126-12051 |
AE10#,EE10#..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-17010 |
AE100,101..5F |
1 | ||
| 31204-17010 |
AE10#..5F |
1 | ||
| 31204-17010 |
AE10#..5F |
1 | ||
| 31204-17010 |
AE101..5F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-05010 |
AE101..5F..TUR |
1 | ||
| 31210-05010 |
AE101..5F..TUR |
1 | ||
| 31210-12180 |
EE100,101,105..MTM |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-05010 |
AE101..5F..TUR TYPE B |
1 | ||
| 31230-12170 |
AE101..5F..TUR TYPE A |
1 | ||
| 31230-12170 |
AE101..5F |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-12070 |
AE100,101..5F TYPE 4 |
1 | ||
| 31232-05010 |
AE101..5F..TUR TYPE 8 |
1 | ||
| 31232-12070 |
AE100,101..5F TYPE 4 |
1 | ||
| 31232-12070 |
AE10#..5F TYPE 4 |
1 | ||
| 31232-16031 |
EE105..LHD..STD;EE100,101,104..MTM;AE101,EE105..5F..(GL,GLI,SEG,XL,XLI) TYPE 5 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-12020 |
AE101..5F |
1 | ||
| 31236-12020 |
AE101..5F..TUR |
1 | ||
| 31236-12020 |
AE100,101..5F |
1 | ||
| 31236-12020 |
AE101..5F..TUR |
1 | ||
| 31236-12020 |
AE10#..5F |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-10120 |
EE100,101,105..MTM |
1 | ||
| 31250-05010 |
AE101..5F..TUR |
1 | ||
| 31250-05010 |
AE101..5F..TUR |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
