AE101L-AEMDK (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Apr 1997
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )4AF

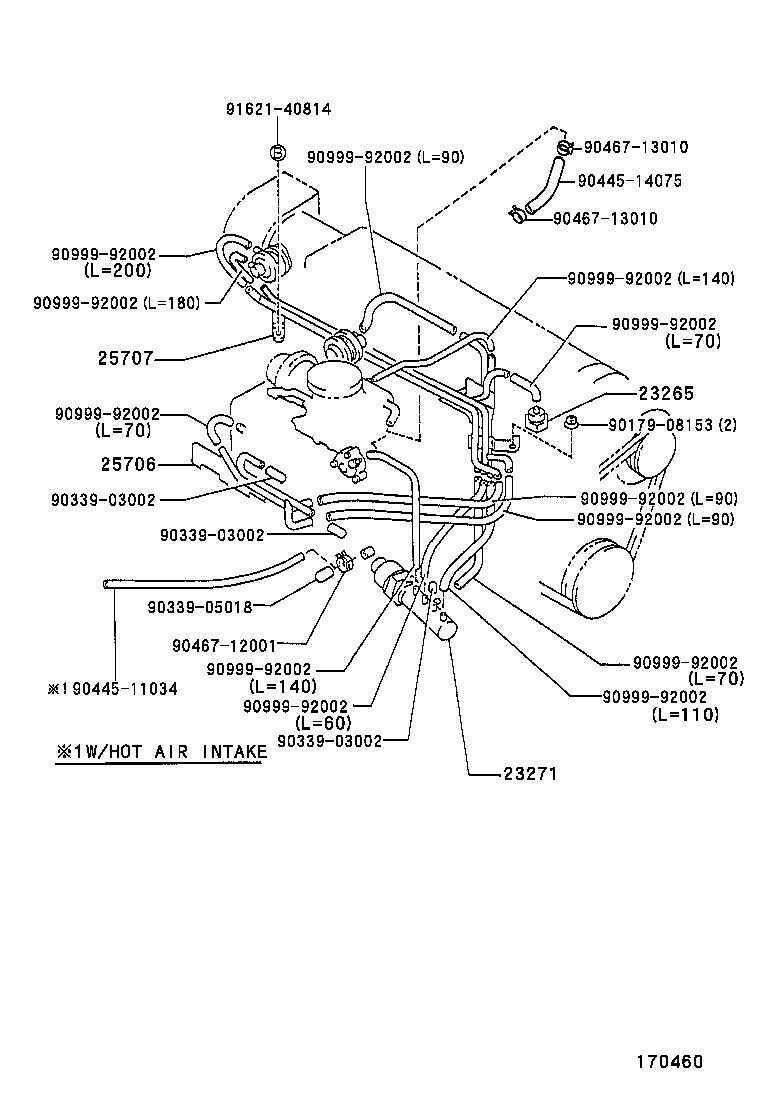

Click highlighted areas on diagram

diagram 23265 23271 25706 25707 9017908153 9033903002 9033903002 9033903002 9033905018 9044511034 9044514075 9046712001 9046713010 9046713010 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

4AF#,5AFE,7AFE..AE10#

 1
90917-11022

4AF#,5AFE,7AFE..AE10#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE101

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16061

4AF..AE101

 1
Common parts
90179-08153
90339-03002
90339-05018
90445-11034
90445-14075
90467-12001
90467-13010
90999-92002
91621-40814
