Toyota Corolla sed/cp/wg AE101 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA SED/CP/WG
AE101-ACPGK (1991)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

AE101-ACPGK (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122

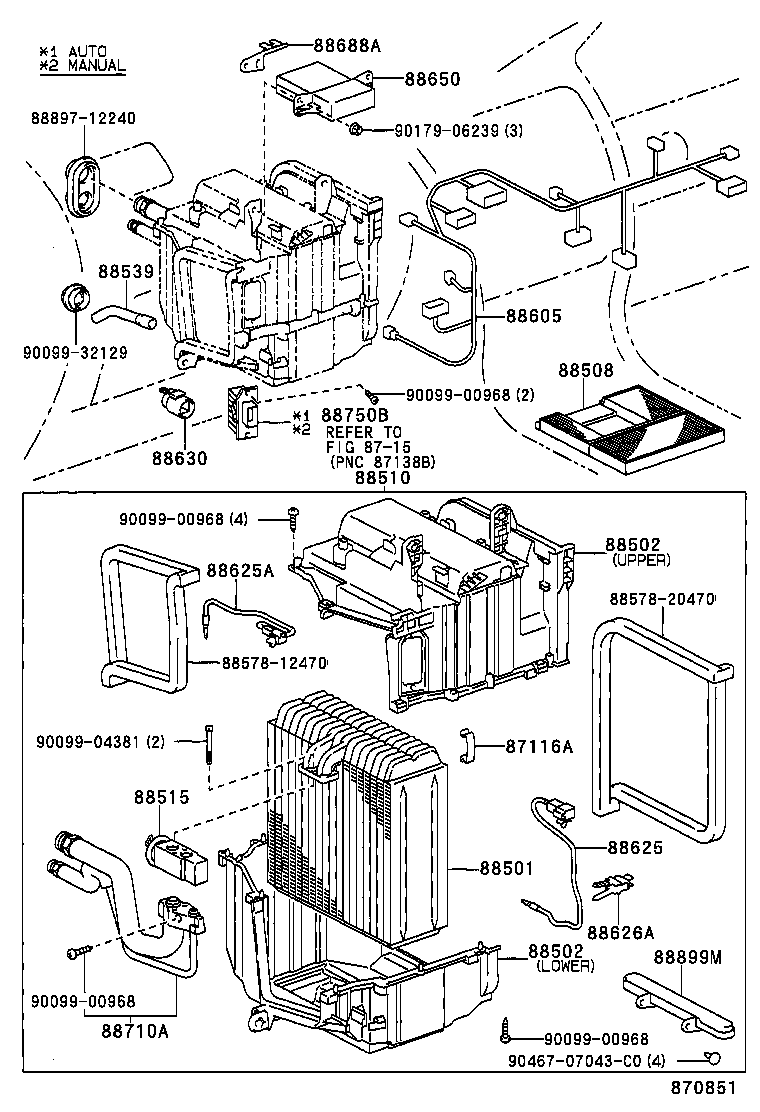

ILLUST NO. 1 OF 2(9108-9508)CP ; (9108-9508)AE100,EE104,108

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AE10#,CE100,EE10#	08/1991 - 09/1994	3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12360	AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI)	08/1991 - 05/1993	1
88501-12390	AE100,101,EE10#..RHD	08/1993 - 03/1995	1
88501-12390	AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI)	05/1993 - 08/1993	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12170	AE101..CP;AE100,EE108 LOWER	08/1991 - 10/1992	1
88502-12160	AE10#,EE108..L,LX,SJ UPPER	05/1992 - 08/1993	1
88502-12200	AE10#,EE100,101,105..RHD..(GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI) LOWER	10/1992 - 11/1992	1
88502-12180	AE101..CP;AE100..GLI UPPER	08/1991 - 05/1992	1
88502-12180	AE100,101..LX,SJ AUTO,UPPER	05/1992 - 05/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12170	AE101..CP;AE100,EE108 LOWER	08/1991 - 10/1992	1
88502-12160	AE10#,EE108..L,LX,SJ UPPER	05/1992 - 08/1993	1
88502-12200	AE10#,EE100,101,105..RHD..(GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI) LOWER	10/1992 - 11/1992	1
88502-12180	AE101..CP;AE100..GLI UPPER	08/1991 - 05/1992	1
88502-12180	AE100,101..LX,SJ AUTO,UPPER	05/1992 - 05/1995	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-12010	AE101..CP;AE100,EE108	08/1991 - 10/1992	1
88510 - UNIT ASSY, COOLER
88510-12840	AE101..SJ;AE100..GLI	08/1991 - 05/1992	1
88510-12840	AE101..SJ AUTOMATIC AIR CONDITIONER	05/1992 - 10/1992	1
88510-12841	AE101..SJ AUTO,DEALER OPT.	10/1992 - 05/1993	1
88510-1A130	AE101..SJ	05/1992 - 10/1992	1
88510-1A131	AE101..SJ	10/1992 - 05/1993	1
88510-1A280	AE100,101..LX,SJ AUTO,DEALER OPT.	05/1993 - 05/1995	1
88510-1A260	AE101..SJ	05/1993 - 05/1995	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AE10#,CE100,EE10#..GEN	08/1993 - 09/1994	1
88515-14062	AE101,CE100,EE100,101,105	11/1992 - 05/1993	1
88515-14062	AE10#,CE100,EE10#	08/1991 - 11/1992	1
88515-20100	AE10#,CE100,EE10#	05/1993 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12120	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88539-12120	AE10#,CE100,EE10#	09/1994 - 03/1995	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1E610	AE101..SJ;AE100..GLI	08/1991 - 05/1992	1
88605-1E610	AE101..SJ W(AUTOMATIC AIR CONDITIONER)	05/1992 - 06/1994	1
88605-1E710	AE101..SJ	05/1992 - 05/1993	1
88605-1H710	AE101..SJ	06/1994 - 05/1995	1
88605-1H630	AE101..SJ	05/1993 - 06/1994	1
88605-1H681	AE101..SJ W(AUTOMATIC AIR CONDITIONER)	06/1994 - 05/1995	1
88625 - THERMISTOR, COOLER, NO.1
88625-12240	AE100;AE101..CP	08/1991 - 05/1993	1
88625-12240	AE100;AE101..SJ	05/1993 - 05/1995	1
88626A - HOLDER, THERMISTOR
88626-28010	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-12140	AE100;AE101..CP	08/1991 - 05/1995	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A410	AE101..SJ	05/1992 - 05/1993	1
88650-1A460	AE101..CP;AE100..GLI	08/1991 - 05/1992	1
88650-1A460	AE10#..LX,SJ AUTOMATIC AIR CONDITIONER	05/1992 - 05/1993	1
88650-1A850	AE100,101..LX,SJ AUTOMATIC AIR CONDITIONER	05/1993 - 05/1995	1
88650-1A870	AE101..SJ	05/1993 - 05/1995	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A430	AE101..SJ	05/1992 - 05/1995	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12240	AE10#,EE10#..RHD	08/1991 - 05/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-12010	AE100;AE101..CP	08/1991 - 05/1995	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-12110	AE101..CP;AE100,EE108	08/1991 - 10/1992	1
Common parts
88578-12470
88578-20470
88897-12240
90099-00968
90099-04381
90099-32129
90179-06239
90467-07043C0
Linked diagrams
8715

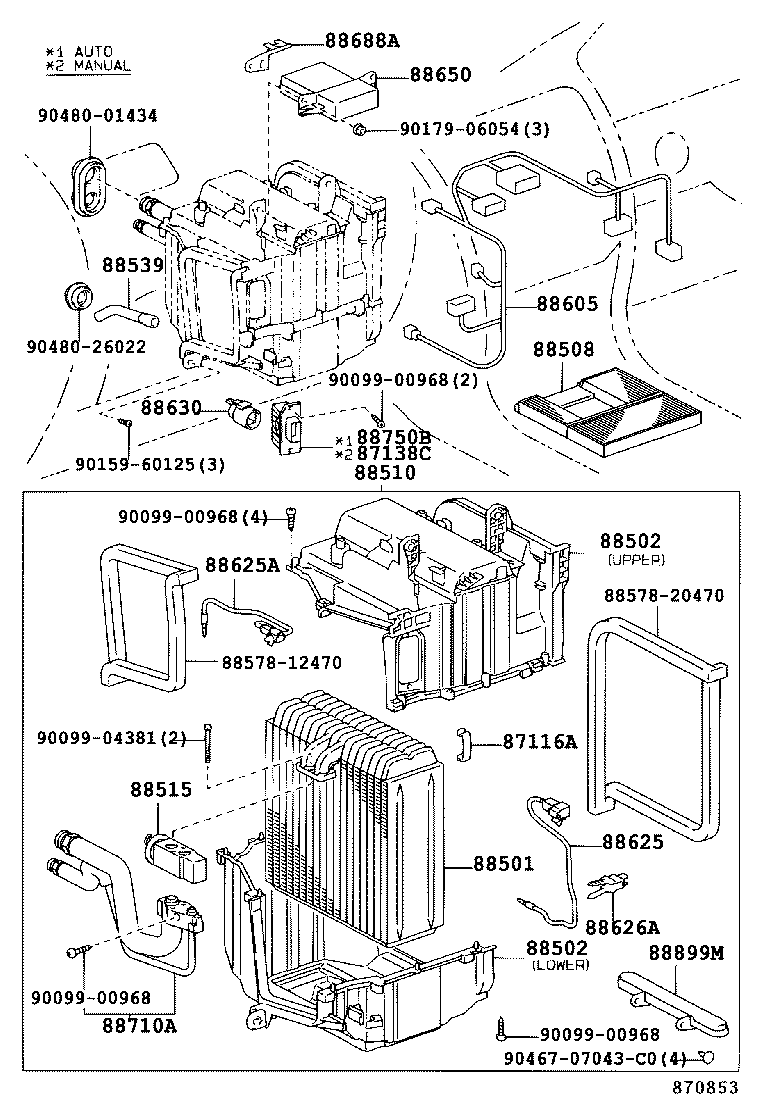

ILLUST NO. 1 OF 2(9108- )CP ; (9108- )AE100,EE104,108

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AE10#,CE100,EE10#	08/1991 - 09/1994	3
87138C - RESISTOR, BLOWER
87138-12130	AE101,EE100,101,105..RHD..(GL,GLI,SEG,SJ,STD,XL,XLI)	05/1992 - 05/1995	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12360	AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI)	08/1991 - 05/1993	1
88501-12390	AE100,101,EE10#..RHD	08/1993 - 03/1995	1
88501-12390	AE10#,EE10#..RHD..(GL,GLI,GTAPX,L,SEG,SJ,STD,XL,XLI)	05/1993 - 08/1993	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12170	AE101..CP;AE100,EE108 LOWER	08/1991 - 10/1992	1
88502-12160	AE10#,EE108..L,LX,SJ UPPER	05/1992 - 08/1993	1
88502-12200	AE10#,EE100,101,105..RHD..(GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI) LOWER	10/1992 - 11/1992	1
88502-12180	AE101..CP;AE100..GLI UPPER	08/1991 - 05/1992	1
88502-12180	AE100,101..LX,SJ AUTO,UPPER	05/1992 - 05/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12170	AE101..CP;AE100,EE108 LOWER	08/1991 - 10/1992	1
88502-12160	AE10#,EE108..L,LX,SJ UPPER	05/1992 - 08/1993	1
88502-12200	AE10#,EE100,101,105..RHD..(GL,GLI,GTAPX,SEG,SJ,STD,XL,XLI) LOWER	10/1992 - 11/1992	1
88502-12180	AE101..CP;AE100..GLI UPPER	08/1991 - 05/1992	1
88502-12180	AE100,101..LX,SJ AUTO,UPPER	05/1992 - 05/1995	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-12010	AE101..CP;AE100,EE108	08/1991 - 10/1992	1
88510 - UNIT ASSY, COOLER
88510-12840	AE101..SJ;AE100..GLI	08/1991 - 05/1992	1
88510-12840	AE101..SJ AUTOMATIC AIR CONDITIONER	05/1992 - 10/1992	1
88510-12841	AE101..SJ AUTO,DEALER OPT.	10/1992 - 05/1993	1
88510-1A130	AE101..SJ	05/1992 - 10/1992	1
88510-1A131	AE101..SJ	10/1992 - 05/1993	1
88510-1A280	AE100,101..LX,SJ AUTO,DEALER OPT.	05/1993 - 05/1995	1
88510-1A260	AE101..SJ	05/1993 - 05/1995	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AE10#,CE100,EE10#..GEN	08/1993 - 09/1994	1
88515-14062	AE101,CE100,EE100,101,105	11/1992 - 05/1993	1
88515-14062	AE10#,CE100,EE10#	08/1991 - 11/1992	1
88515-20100	AE10#,CE100,EE10#	05/1993 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12120	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88539-12120	AE10#,CE100,EE10#	09/1994 - 03/1995	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1E610	AE101..SJ;AE100..GLI	08/1991 - 05/1992	1
88605-1E610	AE101..SJ W(AUTOMATIC AIR CONDITIONER)	05/1992 - 06/1994	1
88605-1E710	AE101..SJ	05/1992 - 05/1993	1
88605-1H710	AE101..SJ	06/1994 - 05/1995	1
88605-1H630	AE101..SJ	05/1993 - 06/1994	1
88605-1H681	AE101..SJ W(AUTOMATIC AIR CONDITIONER)	06/1994 - 05/1995	1
88625 - THERMISTOR, COOLER, NO.1
88625-12240	AE100;AE101..CP	08/1991 - 05/1993	1
88625-12240	AE100;AE101..SJ	05/1993 - 05/1995	1
88626A - HOLDER, THERMISTOR
88626-28010	AE10#,CE100,EE10#	08/1991 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-12140	AE100;AE101..CP	08/1991 - 05/1995	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A410	AE101..SJ	05/1992 - 05/1993	1
88650-1A460	AE101..CP;AE100..GLI	08/1991 - 05/1992	1
88650-1A460	AE10#..LX,SJ AUTOMATIC AIR CONDITIONER	05/1992 - 05/1993	1
88650-1A850	AE100,101..LX,SJ AUTOMATIC AIR CONDITIONER	05/1993 - 05/1995	1
88650-1A870	AE101..SJ	05/1993 - 05/1995	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A430	AE101..SJ	05/1992 - 05/1995	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12240	AE10#,EE10#..RHD	08/1991 - 05/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-12010	AE100;AE101..CP	08/1991 - 05/1995	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-12110	AE101..CP;AE100,EE108	08/1991 - 10/1992	1
Common parts
88578-12470
88578-20470
90099-00968
90099-04381
90159-60125
90179-06054
90467-07043C0
90480-01434
90480-26022

AE101-ACPGK (1991)

ILLUST NO. 2 OF 2(9108- )

ILLUST NO. 1 OF 2(9108-9508)CP ; (9108-9508)AE100,EE104,108

ILLUST NO. 1 OF 2(9108- )CP ; (9108- )AE100,EE104,108
