AE101-ACPGK (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9505)CP

Click highlighted areas on diagram

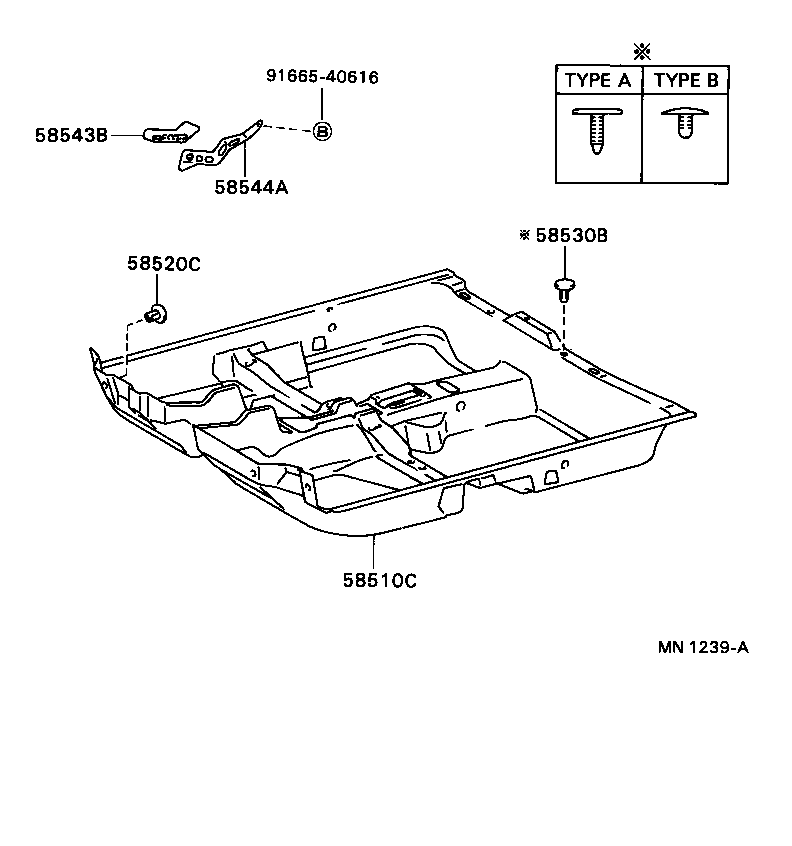

diagram 58510C 58520C 58530B 58543B 58544A 9166540616
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1E23022

AE101..SJ

BLACK,TRIM20,21,22

 1
58510-1E24022

AE101..SJ

COLD AREA SPEC,BLACK,TRIM20,21,22

 1
58510-1E23122

AE101..SJ

BLACK,TRIM20,21,22

 1
58510-1E24122

AE101..SJ

COLD AREA SPEC,BLACK,TRIM20,21,22

 1
58510-1E23122

AE101..CP

BLACK,TRIM2#

 1
58510-1E24122

AE101..CP

COLD AREA SPEC,BLACK,TRIM2#

 1
58510-1E24222

AE101..CP

COLD AREA SPEC,BLACK,TRIM2#

 1
58510-1E23222

AE101..CP

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE101..SJ

BLACK,TRIM20,21,22

 2
90467-0906811

AE101..SJ

BLACK,TRIM20,21,22

 2
90467-0906822

AE101..CP

BLACK,TRIM2#

 2
90467-0906822

AE101..CP

BLACK,TRIM2#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704901

AE101..SJ

BLACK,TRIM20,21,22,TYPE B

 2
90467-0602301

AE101..SJ

BLACK,TRIM20,21,22,TYPE A

 1
90467-0602301

AE101..CP

BLACK,TRIM2#,TYPE A

 1
90467-07049C0

AE101..CP

BLACK,TRIM2#,TYPE B

 2
90467-0602301

AE101..CP

BLACK,TRIM2#

 1
90467-07049C0

AE101..SJ

BLACK,TRIM20,21,22,TYPE B

 2
58543B - BRACKET, FLOOR CARPET, RH
58543-12011

AE101..CP,SED;AE101,EE105..LHD..WG;AE100,102,CE100,EE100,101,108

 1
58543-12011

AE101..CP

 1
58543-12010

AE10#,EE10#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-12020

AE101..CP

 1
58544-12021

AE101..CP

 1
58544-12011

AE101..RHD..SED;AE100,EE100,101,108..RHD

 1
Common parts
91665-40616
