AE101-ACMZF (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9505)CP

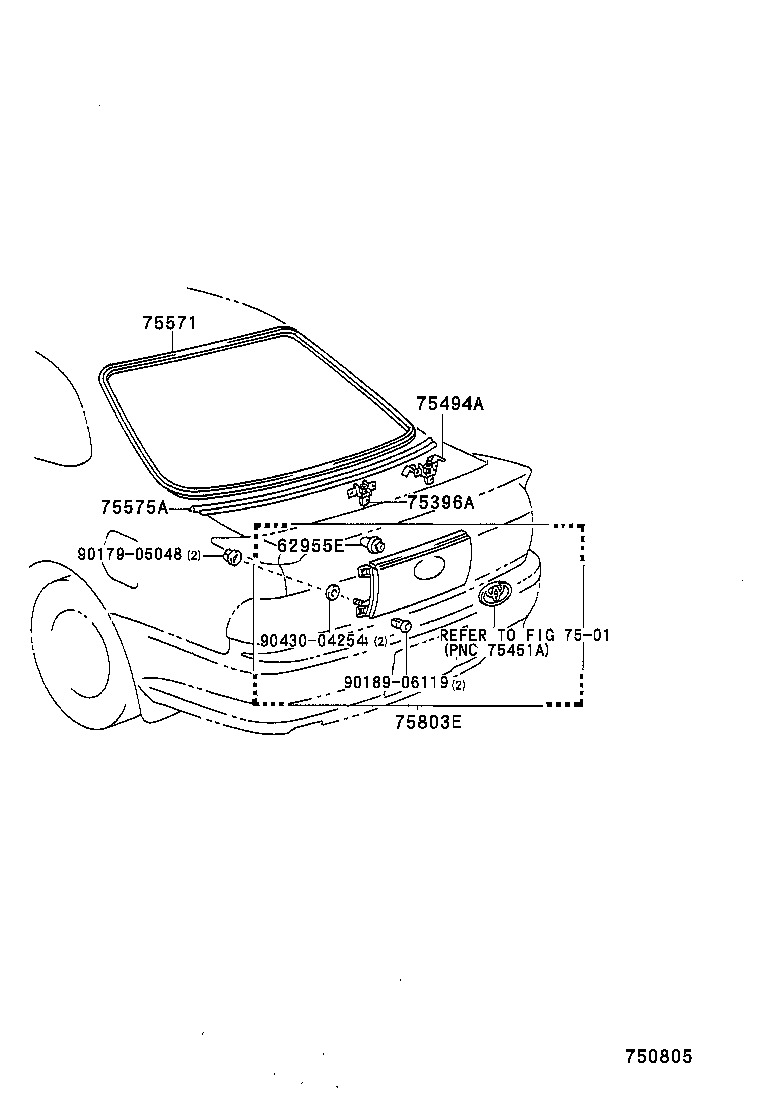

Click highlighted areas on diagram

diagram 62955E 7501 75396A 75494A 75571 75575A 75803E 9017905048 9018906119 9043004254
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

AE101..CP

 1
75396A - CLIP, OUTSIDE MOULDING, NO.2
75396-12100

AE101..CP

 5
75494A - CLIP, OUTSIDE MOULDING, NO.3
75496-12030

AE101..CP

RH

 1
75497-12020

AE101..CP

LH

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12620

AE101..CP

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12380

AE101..CP

 1
75803E - MOULDING SUB-ASSY, LOWER BACK PANEL
75803-12120

AE101..CP

 1
75803-12140

AE101..CP

 1
Common parts
90179-05048
90189-06119
90430-04254
Linked diagrams
7501
