AE101-ACMZF (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9505)4AGE

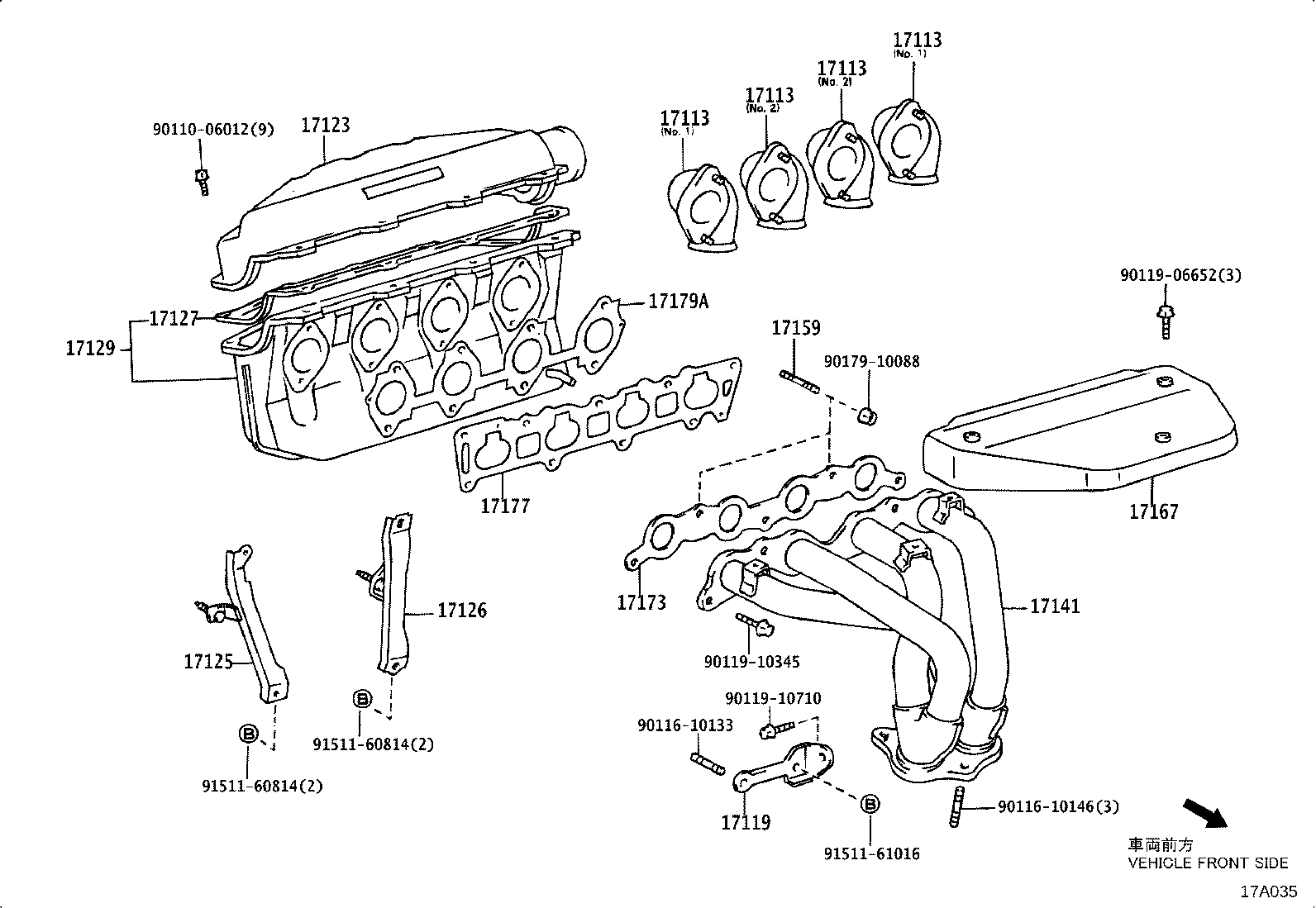

Click highlighted areas on diagram

diagram 17113 17113 17113 17113 17119 17123 17125 17126 17127 17129 17141 17159 17167 17173 17177 17179A 9011006012 9011610133 9011610146 9011906652 9011910345 9011910710 9017910088 9151160814 9151160814 9151161016
Part # Description Qty Price
17113 - PIPE, INTAKE
17113-16010

4AGE..AE101

NO.1

 2
17115-16010

4AGE..AE101

NO.2

 2
17113 - PIPE, INTAKE
17113-16010

4AGE..AE101

NO.1

 2
17115-16010

4AGE..AE101

NO.2

 2
17113 - PIPE, INTAKE
17113-16010

4AGE..AE101

NO.1

 2
17115-16010

4AGE..AE101

NO.2

 2
17113 - PIPE, INTAKE
17113-16010

4AGE..AE101

NO.1

 2
17115-16010

4AGE..AE101

NO.2

 2
17119 - STAY, MANIFOLD, NO.2
17118-16090

4AGE..AE101

 1
17123 - COVER, SURGE TANK
17123-16010

4AGE..AE101

 1
17125 - STAY, SURGE TANK, NO.1
17125-16060

4AGE..AE101

 1
17126 - STAY, SURGE TANK, NO.2
17126-16010

4AGE..AE101

 1
17127 - GASKET, SURGE TANK COVER
17127-16010

4AGE..AE101

 1
17129 - TANK, INTAKE AIR SURGE
17129-16020

4AGE..AE101

 1
17141 - MANIFOLD, EXHAUST
17141-16280

4AGE..AE101

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10037

4AGE..AE101

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16160

4AGE..AE101

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-16020

4AGE..AE101

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-16020

4AGE..AE101

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-16010

4AGE..AE101

 1
Common parts
90110-06012
90116-10133
90116-10146
90119-06652
90119-10345
90119-10710
90179-10088
91511-60814
91511-61016
