AE101-ACMGK (1991)
Toyota Corolla Sed/Cp/Wg

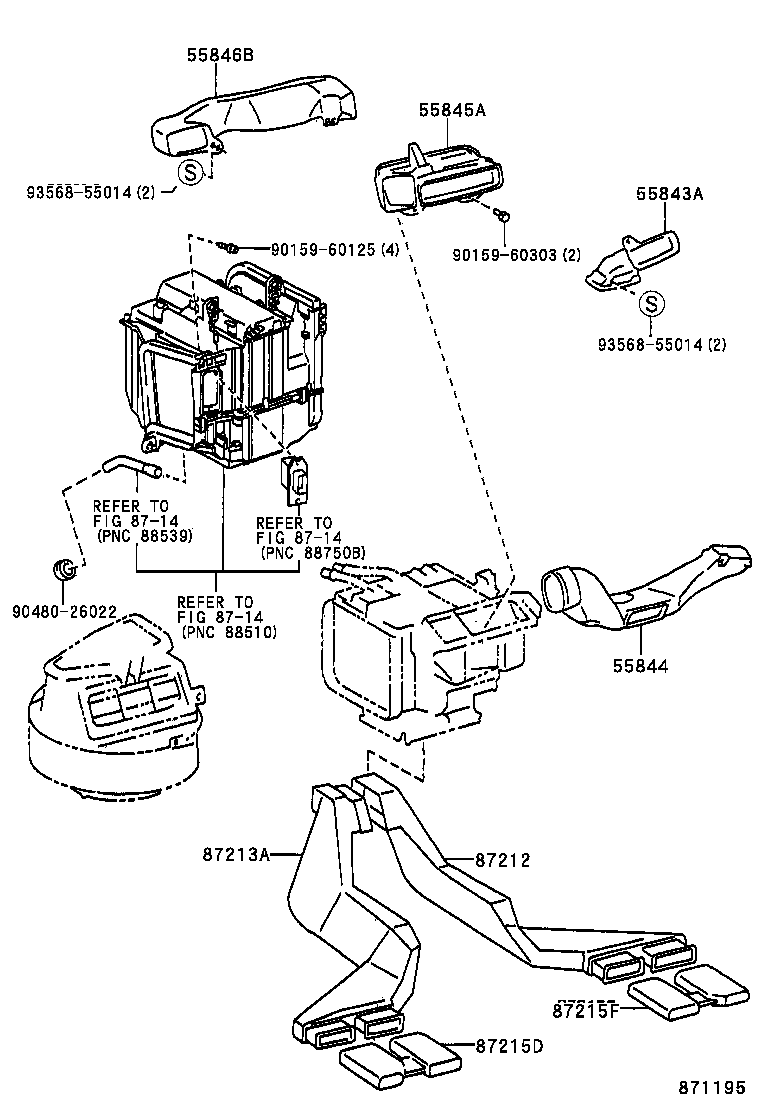

ILLUST NO. 2 OF 3(9108- )CP
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12220 |
AE101..CP |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12320 |
AE101..CP |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12160 |
AE101..CP |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12170 |
AE101..CP |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
AE101..CP;AE100,EE104,108 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

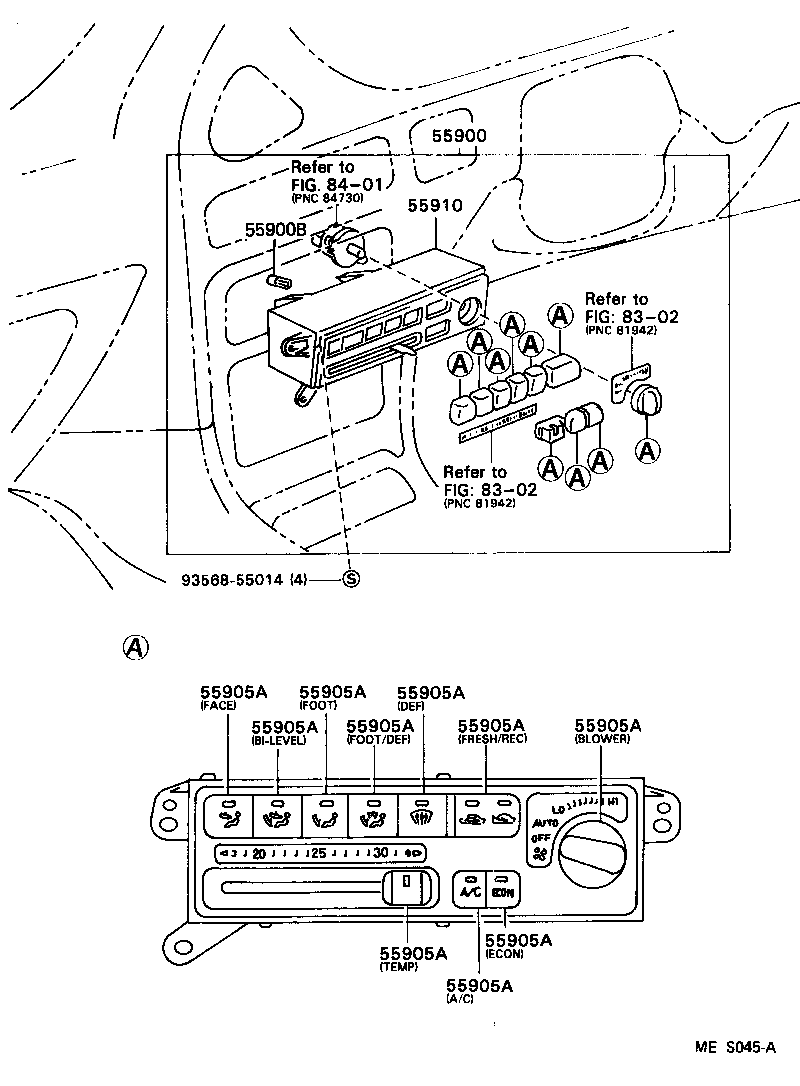

ILLUST NO. 1 OF 3(9108- )CP
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-12610 |
AE101..CP |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70002 |
AE101..CP 14V 1.54W |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12590 |
AE101..CP |
1 | ||
| 55910-12590 |
AE101..SJ W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 55910-12581 |
AE101..SJ |
1 | ||
| 55910-12580 |
AE101..SJ |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(9108- )GL,GLI,L,LX,SEG,SJ,STD,XL,XLI
CONTROL(SEG;W/BOOST VENTILATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12180 |
AE101..CP FOOT |
1 | ||
| 55905-12170 |
AE101..CP BI-LEVEL |
1 | ||
| 55905-12250 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55905-12210 |
AE101..CP FRESH/RECIRCU |
1 | ||
| 55905-12220 |
AE101..CP A/C |
1 | ||
| 55905-12200 |
AE101..CP DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12160 |
AE101..CP FACE |
1 | ||
| 55905-12230 |
AE101..CP ECON |
1 | ||
| 55905-12190 |
AE101..CP FOOT/DEFROSTER |
1 | ||
| 55905-89115 |
AE101..SJ |
4 | ||
| 55905-12240 |
AE101..CP TEMP. |
1 | ||
| 55905-12251 |
AE101..CP BLOWER SWITCH |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12340 |
AE101..SJ |
1 | ||
| 55906-12341 |
AE101..SJ |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12370 |
AE101..SJ |
1 | ||
| 55907-12371 |
AE101..SJ |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12270 |
AE101..SJ |
1 | ||
| 55908-12271 |
AE101..SJ |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12250 |
AE101..SJ |
1 | ||
| 55909-12251 |
AE101..SJ |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12590 |
AE101..CP |
1 | ||
| 55910-12590 |
AE101..SJ W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 55910-12581 |
AE101..SJ |
1 | ||
| 55910-12580 |
AE101..SJ |
1 | ||
| 55916A - LEVER, COOLER CONTROL | ||||
| 55916-12060 |
AE101..SJ |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-12120 |
AE101..SJ |
1 | ||
| 55917-12140 |
AE101..SJ |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-12120 |
AE101..SJ |
1 | ||
| 55917-12140 |
AE101..SJ |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9108-9508)SED,WG ; (9508- )AE10#,CE100,EE100,101,105
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12220 |
AE101..CP |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12320 |
AE101..CP |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12160 |
AE101..CP |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12170 |
AE101..CP |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12080 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87213A - DUCT, AIR REAR NO.2 | ||||
| 87213-12050 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-12010 |
AE101..CP;AE100,EE104,108 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12020 |
AE101..CP;AE100,EE104,108 |
1 | ||
| Common parts | ||||
| 88578-12410 | ||||
| 88578-12440 | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||

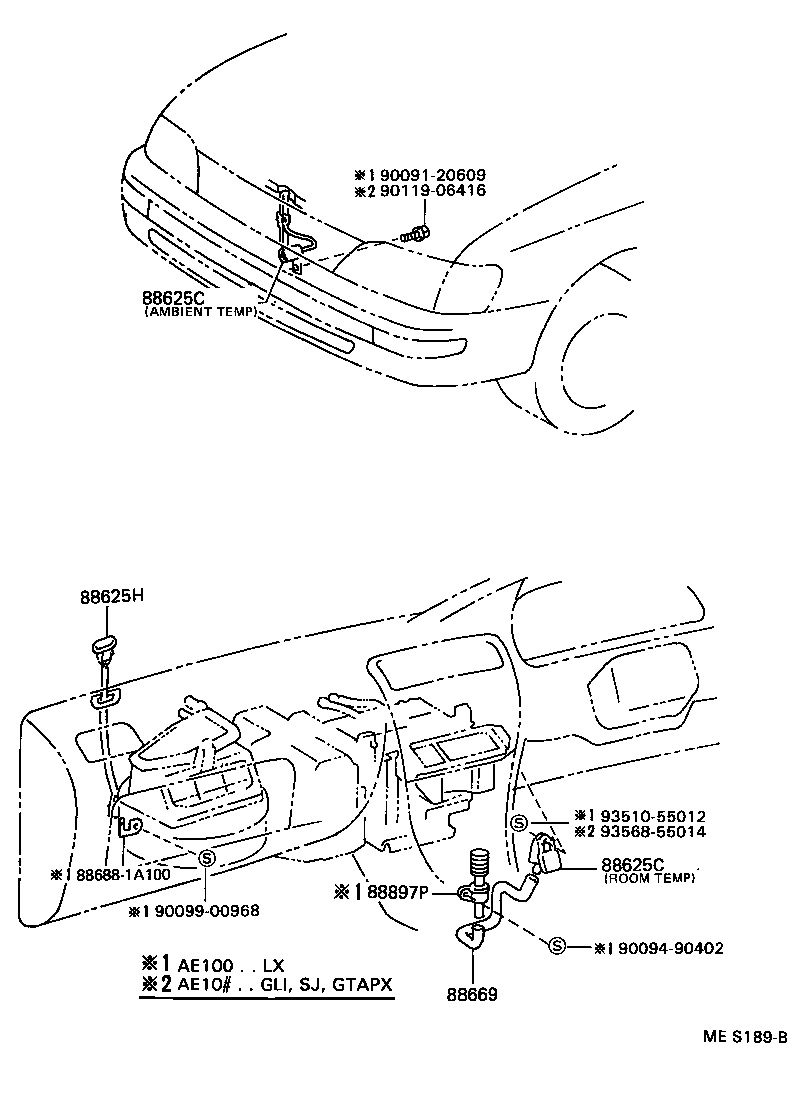

ILLUST NO. 3 OF 3(9108- )GLI,GTAPX,LX,SJ
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88790-12020 |
AE100;AE101..CP ROOM TEMP |
1 | ||
| 88625-12260 |
AE100;AE101..CP AMBIENT TEMP |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-12020 |
AE100;AE101..CP ROOM TEMP |
1 | ||
| 88625-12260 |
AE100;AE101..CP AMBIENT TEMP |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-12290 |
AE101..CP |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-12030 |
AE101..CP;AE100..GLI |
1 | ||
| 88669-12030 |
AE100,101..LX,SJ W(AUTO AIR CONDITIONER) |
1 | ||
| 88669-12040 |
AE101..SJ W(AUTO AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88688-1A100 | ||||
| 90091-20609 | ||||
| 90094-90402 | ||||
| 90099-00968 | ||||
| 90119-06416 | ||||
| 93510-55012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
