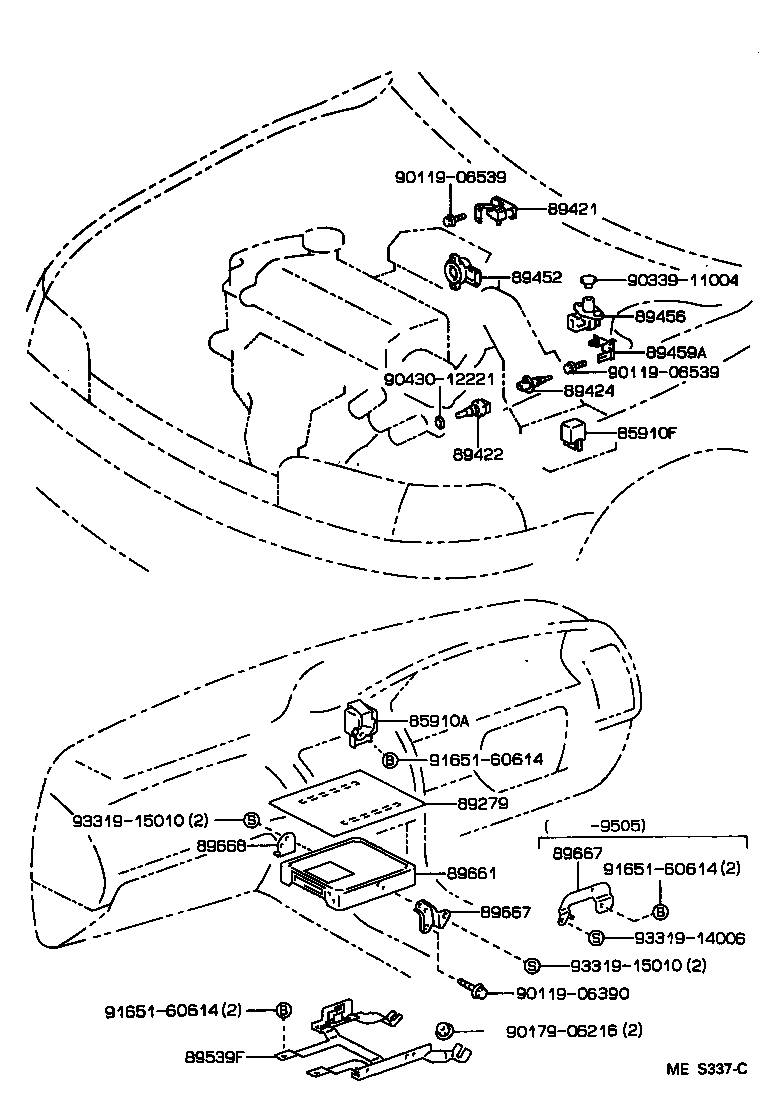

Toyota Corolla sed/cp/wg AE101 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12070	AE101..SJ	08/1991 - 05/1995	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009	AE10#	08/1991 - 05/1992	1
90987-02009	AE100;AE101..CP	05/1992 - 06/1992	1
90987-02009	AE101..LHD..XLI;AE101..GLI,GTAPX,SJ;AE100,102,EE101,104	11/1992 - 09/1994	1
90987-02009	AE101..CP;AE100,EE101;AE101..LHD..(GLI,XLI)	07/1992 - 11/1992	1
90987-02009	AE101..CP;AE100,EE101	06/1992 - 07/1992	1
90987-02009	AE101..LHD..XLI;AE101..GLI,GTAPX,SJ;AE100,102,EE101,104	09/1994 - 05/1995	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12080	AE10#,EE101..GLI,GTAPX,LX,SEG,SJ,XLI	08/1991 - 07/1993	1
89279-12110	AE101..5F..SJ;AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,XLI	07/1994 - 09/1994	1
89279-12080	AE101..5F..SJ;AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,XLI	07/1993 - 02/1994	1
89279-12080	AE101..5F..SJ;AE10#,EE101..GLI,GTAPX,LX,SEG,XLI	02/1994 - 07/1994	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12060	AE10#,EE101..RHD..(GLI,LX,SEG,SJ,XLI) FUJI	08/1991 - 06/1992	1
89420-12070	AE10#,EE101..RHD..(GLI,LX,SEG,SJ,XLI) NIPPONDENSO	08/1991 - 06/1992	1
89420-12060	AE100;AE101..SJ FUJI	06/1992 - 05/1993	1
89420-12070	AE100;AE101..SJ NIPPONDENSO	06/1992 - 05/1993	1
89420-12070	AE100,101,EE101,104..RHD..(GLI,L,LX,SEG,SJ,XLI)	05/1993 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	AE10#..GLI,GTAPX,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	AE10#,EE101,104..GLI,L,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090	AE10#..GLI,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
89452-22090	AE10#..GLI,LX,SEG,SJ,XLI	09/1994 - 05/1995	1
89539F - BRACKET, COMPUTER
89539-12050	AE10#,EE100,101,104,105	08/1991 - 02/1994	1
89539-12050	AE100,102,EE101,104;AE101,EE100,105..LHD;AE101..RHD..(GLI,GTAPX,SEG,SJ,XLI)	02/1994 - 09/1994	1
89539-12050	AE100,102,EE101,104;AE101,EE100,105..LHD;AE101..RHD..(GLI,GTAPX,SEG,SJ,XLI)	09/1994 - 05/1995	1
89661 - COMPUTER, ENGINE CONTROL
89661-12750	AE101..5F..SJ	08/1991 - 02/1992	1
89661-12751	AE101..5F..SJ	02/1992 - 05/1993	1
89661-12752	AE101..5F..SJ	05/1993 - 08/1994	1
89661-12753	AE101..5F..SJ	08/1994 - 05/1995	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12110	AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
89667-12110	AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI	09/1994 - 05/1995	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12110	AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
89667-12110	AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI	09/1994 - 05/1995	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12050	AE10#,EE101,104..GLI,GTAPX,L,LX,SEG,SJ,XLI	08/1991 - 09/1994	1
Common parts
90119-06390
90119-06539
90179-06216
90339-11004
90430-12221
91651-60614
93319-14006
93319-15010

AE101-ACMGK (1991)

(9108- )AE10#..GLI,LX,SEG,SJ,XLI
