AE101-ACMGK (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9505)CP

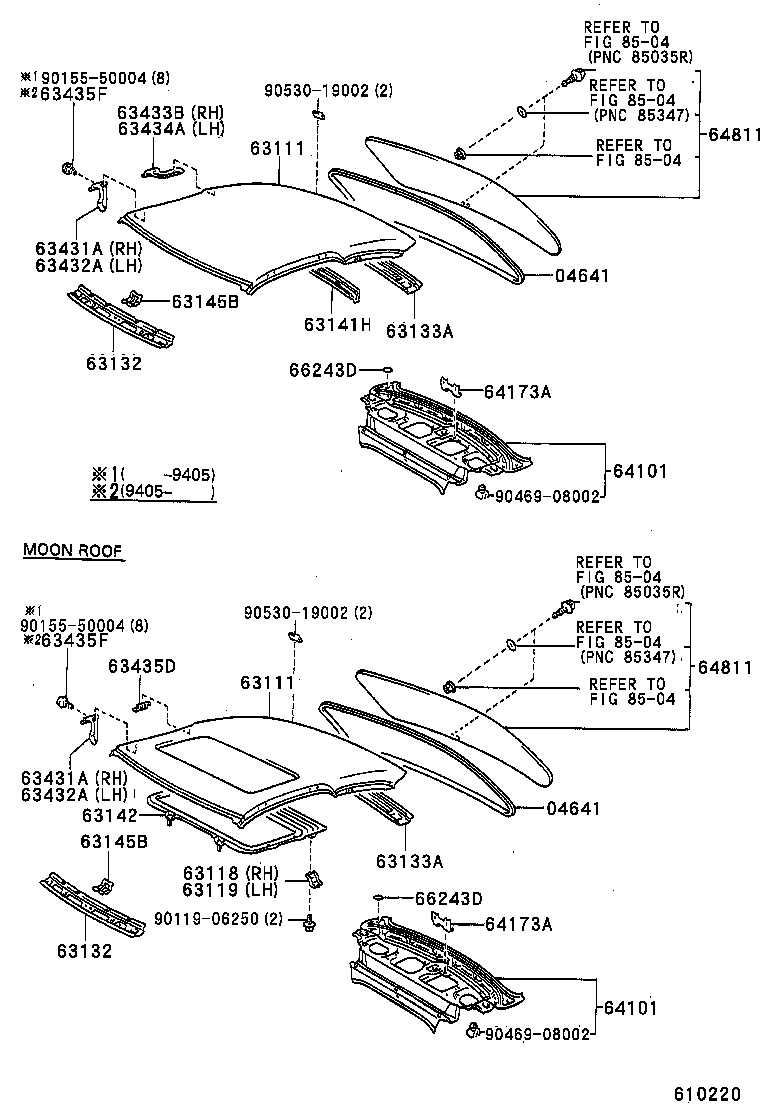

Click highlighted areas on diagram

diagram 04641 04641 63111 63111 63118 63119 63132 63132 63133A 63133A 63141H 63142 63145B 63145B 63431A 63431A 63432A 63432A 63433B 63434A 63435D 63435F 63435F 64101 64101 64173A 64173A 64811 64811 66243D 66243D 8504 8504 8504 8504 8504 8504 9011906250 9015550004 9015550004 9046908002 9046908002 9053019002 9053019002
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

AE10#,CE100,EE100,101..CP,SED

 1
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

AE10#,CE100,EE100,101..CP,SED

 1
63111 - PANEL, ROOF
63111-12580

AE101..CP

W(*MR)

 1
63111-12570

AE101..CP

 1
63111 - PANEL, ROOF
63111-12580

AE101..CP

W(*MR)

 1
63111-12570

AE101..CP

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-12030

AE101..CP

 1
63119 - SUPPORT, ROOF PANEL, LH
63119-12030

AE101..CP

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12190

AE101..CP

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12190

AE101..CP

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12210

AE101..CP

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12210

AE101..CP

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-12180

AE101..CP

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12900

AE101..CP

 1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-12110

AE101..CP

 1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-12110

AE101..CP

 1
63431A - BRACKET, ROOF INNER RACK, NO.1 RH
63431-12030

AE101..CP

 1
63431A - BRACKET, ROOF INNER RACK, NO.1 RH
63431-12030

AE101..CP

 1
63432A - BRACKET, ROOF INNER RACK, NO.1 LH
63432-12030

AE101..CP

 1
63432A - BRACKET, ROOF INNER RACK, NO.1 LH
63432-12030

AE101..CP

 1
63433B - BRACKET, ROOF INNER RACK, NO.2 RH
63433-12030

AE101..CP

 1
63434A - BRACKET, ROOF INNER RACK, NO.2 LH
63434-12030

AE101..CP

 1
63435D - BRACKET, ROOF INNER RACK, NO.3
63435-12020

AE101..CP

 2
63435F - SEAL, ROOF CARRIER, NO.1
63435-12030

AE101..CP

 8
63435F - SEAL, ROOF CARRIER, NO.1
63435-12030

AE101..CP

 8
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12520

AE101..CP

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12520

AE101..CP

 1
64173A - BRACKET, HIGH MOUNTING STOP LAMP
64173-12070

AE101..SJ

 1
64173A - BRACKET, HIGH MOUNTING STOP LAMP
64173-12070

AE101..SJ

 1
64811 - GLASS, BACK WINDOW
64811-1A570

AE101..SJ

*EHTT,T=3.5,GRAY

 1
64811-1A590

AE101..SJ

*EHTT,T=3.5,GRAY,W(DIVERSITY ANTENNA)

 1
64811-1A580

AE101..SJ

*EHTT,T=3.5,GRAY,W(*RW)

 1
64811-1A600

AE101..SJ

*EHTT,T=3.5,GRAY,W(*RW & DIVERSITY ANTENNA)

 1
64811-1A660

AE101..CP

*TT,T=3.5,BLUE,W(*RW & DIVERSITY ANTENNA)

 1
64811-1A640

AE101..CP

*EHTT,T=3.5,BLUE,W(*RW)

 1
64811-1A630

AE101..CP

*EHTT,T=3.5,BLUE

 1
64811-1A650

AE101..CP

*EHTT,T=3.5,BLUE,W(DIVERSITY ANTENNA)

 1
64811 - GLASS, BACK WINDOW
64811-1A570

AE101..SJ

*EHTT,T=3.5,GRAY

 1
64811-1A590

AE101..SJ

*EHTT,T=3.5,GRAY,W(DIVERSITY ANTENNA)

 1
64811-1A580

AE101..SJ

*EHTT,T=3.5,GRAY,W(*RW)

 1
64811-1A600

AE101..SJ

*EHTT,T=3.5,GRAY,W(*RW & DIVERSITY ANTENNA)

 1
64811-1A660

AE101..CP

*TT,T=3.5,BLUE,W(*RW & DIVERSITY ANTENNA)

 1
64811-1A640

AE101..CP

*EHTT,T=3.5,BLUE,W(*RW)

 1
64811-1A630

AE101..CP

*EHTT,T=3.5,BLUE

 1
64811-1A650

AE101..CP

*EHTT,T=3.5,BLUE,W(DIVERSITY ANTENNA)

 1
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AE10#,CE100,EE100,101..CP,SED

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AE10#,CE100,EE100,101..CP,SED

 2
Common parts
90119-06250
90155-50004
90469-08002
90530-19002
Linked diagrams
8504

(9108-9505)CP

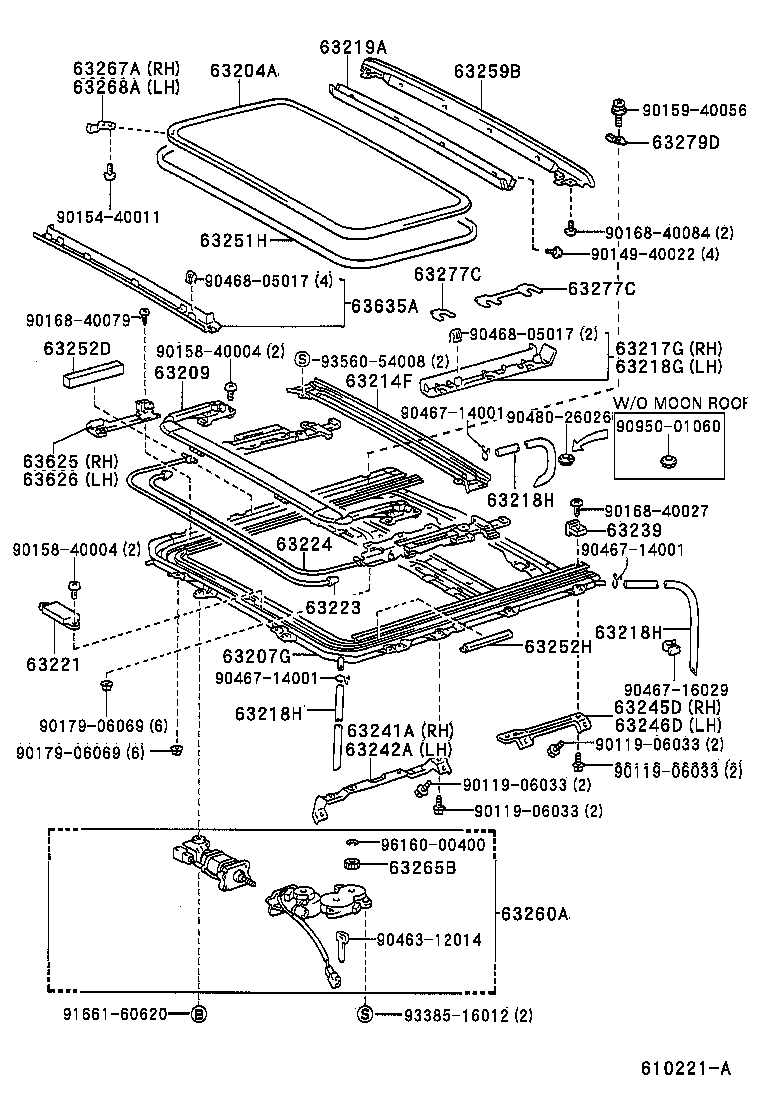

Click highlighted areas on diagram

diagram 63204A 63207G 63209 63214F 63217G 63218G 63218H 63218H 63218H 63219A 63221 63223 63224 63239 63241A 63242A 63245D 63246D 63251H 63252D 63252H 63259B 63260A 63265B 63267A 63268A 63277C 63277C 63279D 63625 63626 63635A 9011906033 9011906033 9011906033 9011906033 9014940022 9015440011 9015840004 9015840004 9015940056 9016840027 9016840079 9016840084 9017906069 9017906069 9046312014 9046714001 9046714001 9046714001 9046716029 9046805017 9046805017 9048026026 9095001060 9166160620 9338516012 9356054008 9616000400
Part # Description Qty Price
63204A - PANEL SUB-ASSY, SLIDING ROOF, INNER
63204-12070

AE101..CP

*SERT,T=4.0,GRAY

 1
63204-12071

AE101..CP

*TT,T=4.0,GRAY

 1
63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE
63207-12121

AE101..CP

 1
63207-12100

AE101..CP

 1
63207-12120

AE101..CP

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-12090

AE101..CP

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-12050

AE101..CP

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-12070

AE101..CP

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-12080

AE101..CP

 1
63218H - HOSE, SLIDING ROOF DRAIN
63249-12180

AE101..CP

REAR

 2
63249-12170

AE101..CP

FRONT

 2
63249-12181

AE101..CP

REAR

 2
63218H - HOSE, SLIDING ROOF DRAIN
63249-12180

AE101..CP

REAR

 2
63249-12170

AE101..CP

FRONT

 2
63249-12181

AE101..CP

REAR

 2
63218H - HOSE, SLIDING ROOF DRAIN
63249-12180

AE101..CP

REAR

 2
63249-12170

AE101..CP

FRONT

 2
63249-12181

AE101..CP

REAR

 2
63219A - GARNISH, SLIDING ROOF, REAR
63219-12050

AE101..CP

 1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-12070

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-12100

AE101..CP

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-12090

AE101..CP

 1
63239 - STOPPER, SLIDING ROOF PANEL
63239-12020

AE101..CP;AE100..GLI

 2
63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63241-12050

AE101..CP

 1
63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63242-12030

AE101..CP

 1
63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63245-12040

AE101..CP

 1
63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63246-12030

AE101..CP

 1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-12130

AE101..CP

 1
63252D - WEATHERSTRIP, SLIDING ROOF HOUSING
63252-12040

AE101..CP

 2
63252H - DAM, SLIDING ROOF HOUSING
63252-12050

AE101..CP

 2
63259B - HOLDER, SLIDING ROOF WEATHERSTRIP
63259-12080

AE101..CP

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-12070

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-12020

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

 1
63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH
63267-32020

AE101..CP;AE100..GLI

 1
63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH
63268-32020

AE101..CP;AE100..GLI

 1
63277C - SHIM, SLIDING ROOF PANEL
63277-20030

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=1.0,T=1.0,28X30

 1
63277-20020

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=1.0,T=1.0,124X30

 1
63277-20040

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=2.0,T=2.0,124X30

 1
63277-20050

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=2.0,T=2.0,28X30

 1
63277C - SHIM, SLIDING ROOF PANEL
63277-20030

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=1.0,T=1.0,28X30

 1
63277-20020

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=1.0,T=1.0,124X30

 1
63277-20040

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=2.0,T=2.0,124X30

 1
63277-20050

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

T=2.0,T=2.0,28X30

 1
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-12020

AE100,101,CE100,EE100,101..(CP,SED)..(GL,GLI,GTAPX,SEG,SJ,XL,XLI)..(GCC,GEN)

 2
63625 - BLOCK, SLIDING ROOF GUIDE, RH
63625-12020

AE101..CP

 1
63626 - BLOCK, SLIDING ROOF GUIDE, LH
63626-12020

AE101..CP

 1
63635A - GARNISH, SLIDING ROOF, FRONT
63635-12040

AE101..CP

 1
Common parts
90119-06033
90149-40022
90154-40011
90158-40004
90159-40056
90168-40027
90168-40079
90168-40084
90179-06069
90463-12014
90467-14001
90467-16029
90468-05017
90480-26026
90950-01060
91661-60620
93385-16012
93560-54008
96160-00400
