AE101-ACMGK (1991)
Toyota Corolla Sed/Cp/Wg
(9108-9505)CP

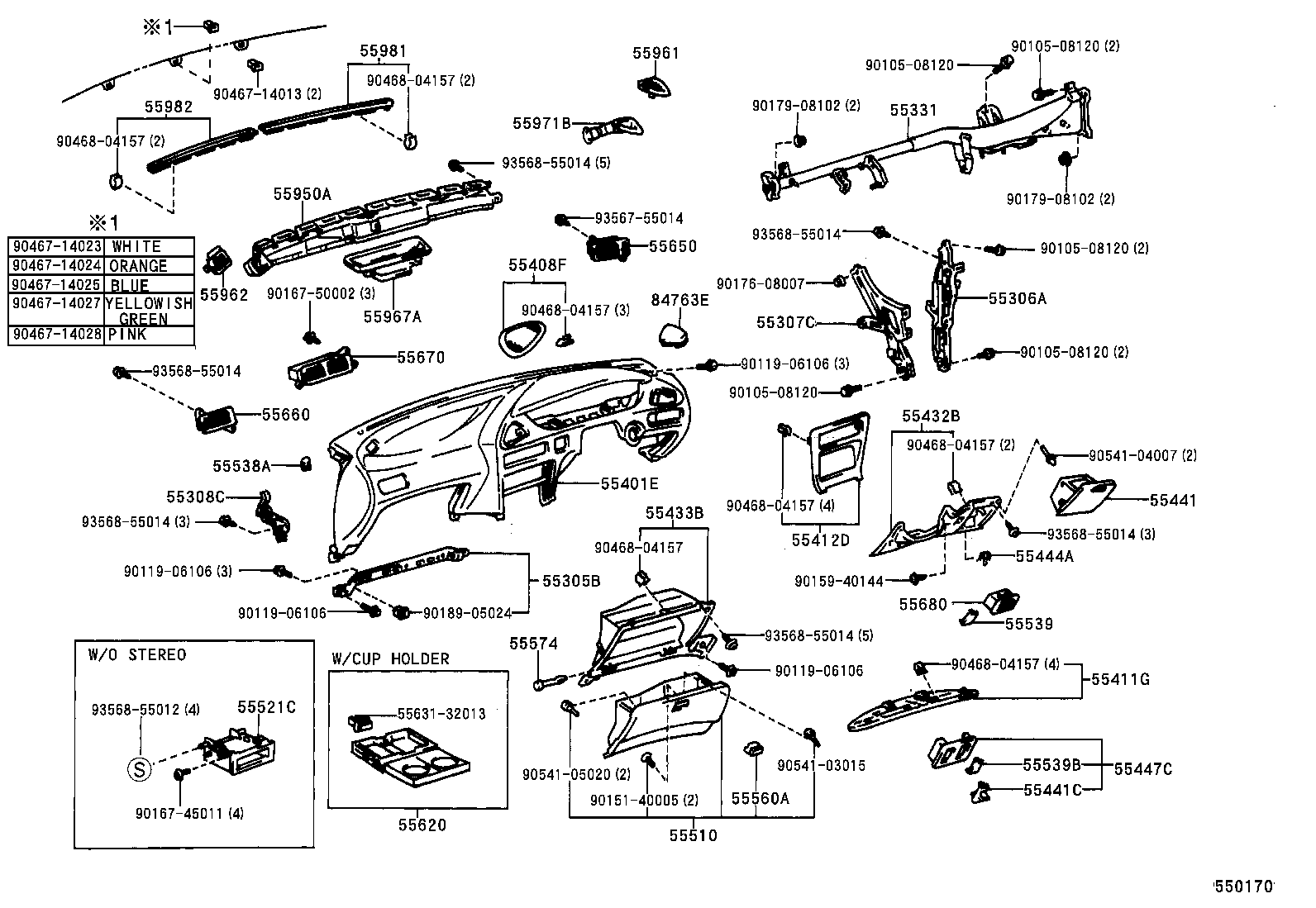

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-12120 |
AE101..CP |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12160 |
AE101..CP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12210 |
AE101..CP |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12190 |
AE101..CP |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12250 |
AE101..CP |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-1231022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55401-1232022 |
AE101..SJ W(LIVE SOUND),BLACK,TRIM20,21,22 |
1 | ||
| 55401-1232022 |
AE101..CP W(LIVE SOUND),BLACK,TRIM2# |
1 | ||
| 55401-1231022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-1201022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55408-1201022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12880 |
AE101..CP |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-12470 |
AE101..CP |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12340C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55432-12341C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12100C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55433-12100C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-12060C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55440-12060C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014011 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55441-2014011 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55441-20140C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12030 |
AE101..CP |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-1207022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55447-1207022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12320C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55550-12320C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AE101..CP W/O(RADIO) |
2 | ||
| 55521-16030 |
AE101..CP |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-2006022 |
AE101..SJ BLACK,TRIM2# |
1 | ||
| 55538-2006022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55539-2008001 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55539-12130C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-3201011 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55539-3201011 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55539-32010C0 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1208001 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55560-1208001 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE10#,CE100,EE10# |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-12030 |
AE101..CP |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-1220022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55650-1220022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-1222022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55660-1222022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1216022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55670-1216022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1705001 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55680-89101C0 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12150 |
AE101..CP |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1219022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55961-1219022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1217022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55962-1217022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-12040 |
AE101..CP |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-12120 |
AE101..CP |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-1206022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55981-1206022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-1206022 |
AE101..CP BLACK,TRIM2# |
1 | ||
| 55982-1206022 |
AE101..SJ BLACK,TRIM20,21,22 |
1 | ||
| 84763E - HOLE COVER, OUTER MIRROR SWITCH | ||||
| 84763-12100 |
AE101..CP |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90159-40144 | ||||
| 90167-45011 | ||||
| 90167-50002 | ||||
| 90176-08007 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90468-04157 | ||||
| 90541-03015 | ||||
| 90541-04007 | ||||
| 90541-05020 | ||||
| 93567-55014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
