AE100-AEPEK (1991)

Toyota Corolla Sed/Cp/Wg

Production Aug 1991 - May 1995
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )SEG ; (9108- )AE100..GLI

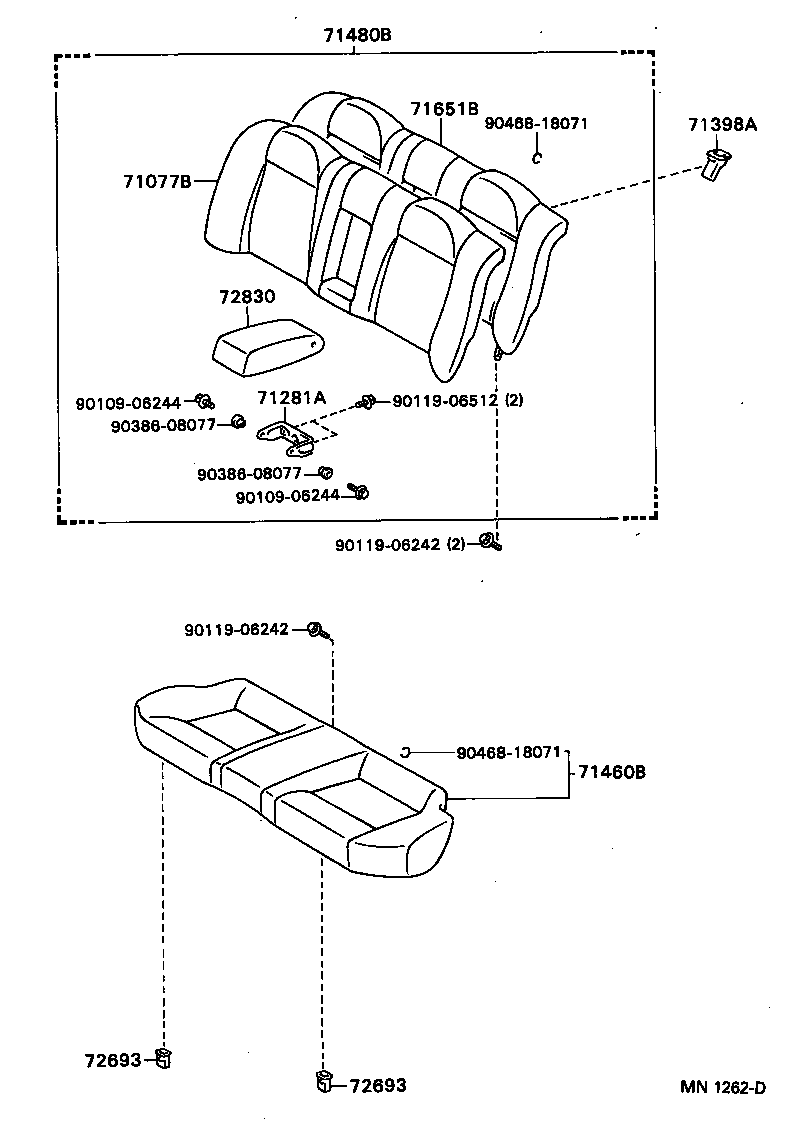

Click highlighted areas on diagram

diagram 71077B 71281A 71398A 71460B 71480B 71651B 72693 72693 72830 9010906244 9010906244 9011906242 9011906242 9011906512 9038608077 9038608077 9046818071 9046818071
Part # Description Qty Price
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1K620B0

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
71077-1K620J0

AE100..GLI;AE101..SEG

DARK BLUE,TRIM8#

 1
71077-1K620K0

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
71077-1K621K1

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
71077-1K621B1

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-12030

AE100..GLI;AE101..SEG

 1
71398A - HOLDER, REAR SEAT BACK
71398-12030

AE101..SED..(SEG,STD,XL,XLI);AE100,CE100,EE100,101..SED..(GLI,LX,STD,XL,XLI)

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1E800J0

AE100..GLI;AE101..SEG

DARK BLUE,TRIM8#

 1
71460-1E800B0

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
71460-1E800K1

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
71460-1E801B1

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
71460-1E801K2

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1K600J0

AE100..GLI;AE101..SEG

***,DARK BLUE,TRIM8#

 1
71480-1K600K1

AE100..GLI;AE101..SEG

***,TAUPE,TRIM9#

 1
71480-1K600B0

AE100..GLI;AE101..SEG

***,SHADOW GRAY,TRIM1#

 1
71480-1K601B1

AE100..GLI;AE101..SEG

***,SHADOW GRAY,TRIM1#

 1
71480-1K601K2

AE100..GLI;AE101..SEG

***,TAUPE,TRIM9#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12110

AE100..GLI;AE101..SEG

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

AE10#,CE100,EE100,101..CP,SED

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020

AE10#,CE100,EE100,101..CP,SED

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-12070B0

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
72830-12070K0

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
72830-12071B1

AE100..GLI;AE101..SEG

SHADOW GRAY,TRIM1#

 1
72830-12071K1

AE100..GLI;AE101..SEG

TAUPE,TRIM9#

 1
72830-12070J0

AE100..GLI;AE101..SEG

DARK BLUE,TRIM8#

 1
Common parts
90109-06244
90119-06242
90119-06512
90386-08077
90468-18071
