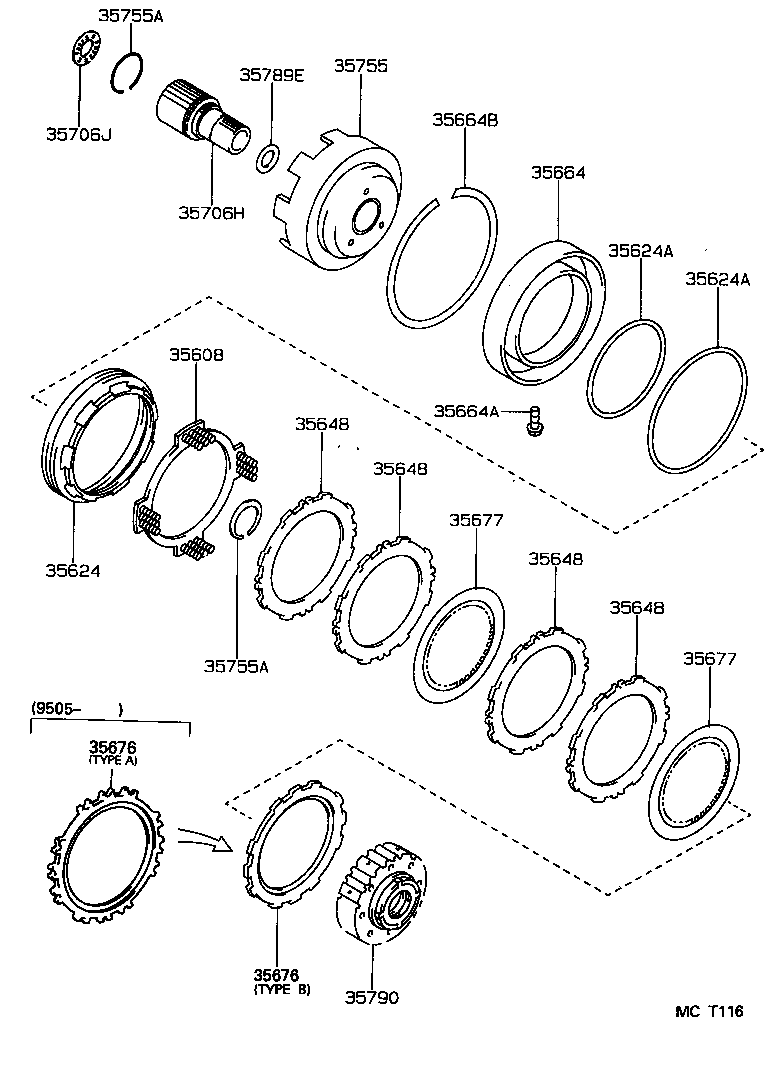

AE100-AEPEK (1991)
Toyota Corolla Sed/Cp/Wg
(9108-9305)ATM ; (9305- )SED,WG..ATM
A131L,A132L,A240L,A240E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-32010 |
AE10#,EE100,101..ATM |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-32010 |
AE10#,EE100,101..ATM |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AE10#,EE100,101..ATM OUTER |
1 | ||
| 90301-99021 |
AE10#,EE100,101..ATM INNER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AE10#,EE100,101..ATM OUTER |
1 | ||
| 90301-99021 |
AE10#,EE100,101..ATM INNER |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE10#..(SED,WG)..ATM T=1.8 |
3 | ||
| 35648-32010 |
AE10#..ATM T=1.8 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE10#..(SED,WG)..ATM T=1.8 |
3 | ||
| 35648-32010 |
AE10#..ATM T=1.8 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE10#..(SED,WG)..ATM T=1.8 |
3 | ||
| 35648-32010 |
AE10#..ATM T=1.8 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35648-32010 |
AE10#..(SED,WG)..ATM T=1.8 |
3 | ||
| 35648-32010 |
AE10#..ATM T=1.8 |
3 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-32010 |
AE10#,EE100,101..ATM |
1 | ||
| 35664A - BOLT (FOR 2ND BRAKE CYLINDER) | ||||
| 90109-06060 |
AE10#,EE100,101..ATM |
1 | ||
| 90109-06060 |
AE10#,EE100,101..(SED,WG)..ATM |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90521-99013 |
AE10#,EE100,101..ATM |
1 | ||
| 90521-99013 |
AE10#,EE100,101..(SED,WG)..ATM |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-32010 |
AE10#,EE100..ATM T=3.5 |
1 | ||
| 35676-32010 |
AE101..3FC;AE101..4FC..SJ;AE100,EE100,101..ATM T=3.5 |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-32010 |
AE10#,EE100..ATM T=3.5 |
1 | ||
| 35676-32010 |
AE101..3FC;AE101..4FC..SJ;AE100,EE100,101..ATM T=3.5 |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35677-20040 |
AE10#..(SED,WG)..4FC |
3 | ||
| 35677-20050 |
AE10#..SED..4FC |
3 | ||
| 35677-20040 |
AE10#..(SED,WG)..4FC |
3 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35677-20040 |
AE10#..(SED,WG)..4FC |
3 | ||
| 35677-20050 |
AE10#..SED..4FC |
3 | ||
| 35677-20040 |
AE10#..(SED,WG)..4FC |
3 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-32030 |
AE10#,EE100,101..ATM |
1 | ||
| 35706-12010 |
AE10#,EE100,101..ATM |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-30006 |
AE10#,EE100,101..ATM |
1 | ||
| 90374-30006 |
AE10#,EE100,101..(SED,WG)..ATM |
1 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-32020 |
AE10#,EE100,101..ATM |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-44002 |
AE10#,EE100,101..ATM T=1.2,ID=44.0 |
1 | ||
| 90520-47003 |
AE10#,EE100,101..ATM T=2.3,ID=47.1 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-44002 |
AE10#,EE100,101..ATM T=1.2,ID=44.0 |
1 | ||
| 90520-47003 |
AE10#,EE100,101..ATM T=2.3,ID=47.1 |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-22010 |
AE10#,EE100,101..ATM |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-32050 |
AE10#,EE100,101..ATM |
1 | ||
