AE100-AEMDK (1991)
Toyota Corolla Sed/Cp/Wg
ILLUST NO. 2 OF 2(9305-9505)CP ; (9305-9505)AE100 ; (9703-9708)AE101..LHD..GLI ; (9708- )AE101..L
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12020 |
AE100;AE101..SJ TOYOTA |
1 | ||
| 44510-12040 |
AE100;AE101..SJ AISIN |
1 | ||
| 44510-12090 |
AE100;AE101..SJ |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12031 |
AE100;AE101..CP |
1 | ||
| 44551-12040 |
AE100;AE101..CP |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10184 |
AE100;AE101..CP |
1 | ||
| 90904-12006 |
AE100;AE101..CP |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12020 |
AE100;AE101..CP |
1 | ||
| 44591-12030 |
AE100;AE101..CP |
1 | ||
| 44591-12031 |
AE100;AE101..CP |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-12020 |
AE100;AE101..CP |
1 | ||
| 44592-12010 |
AE100;AE101..CP |
1 | ||
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
(9108-9704)AE100,101,CE100,EE100,101..RHD ; (9704- )AE101,CE100,EE100..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20280 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105 |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 47150-12160 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47311-12530 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47311-12440 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47311-12540 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,EE10#..RHD |
1 | ||
| 90412-10116 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12290 |
AE10#,EE10#..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12260 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47313-12250 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47313-12330 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47313-12340 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12400 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47314-12320 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47314-12360 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12450 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47315-12460 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12100 |
AE100,101,EE100,101..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12260 |
AE100,101,EE100,101..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47371-12100 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE100;AE101..CP W(ABS) |
1 | ||
| 90461-06119 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||

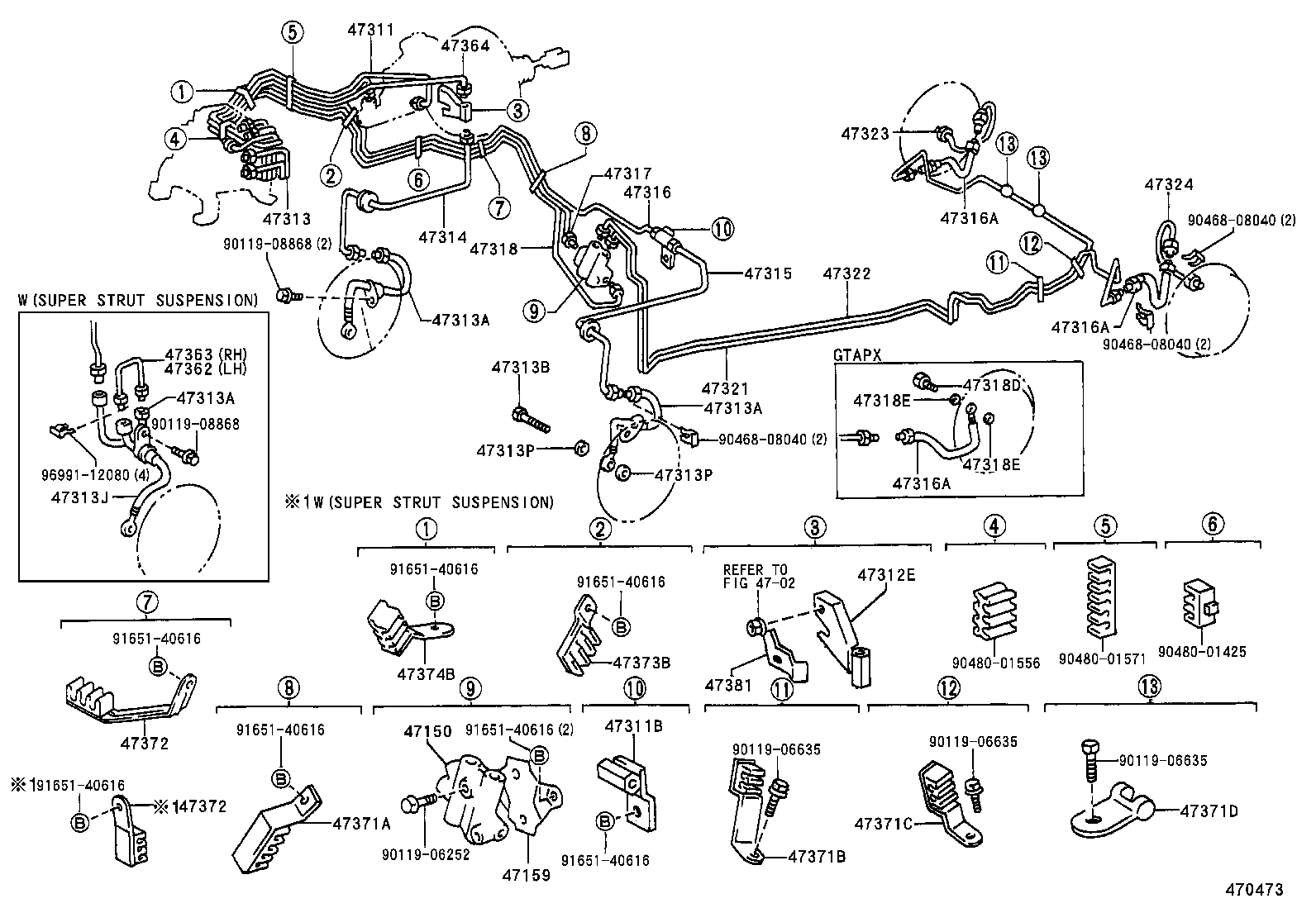

ILLUST NO. 1 OF 2(9108-9505)CP ; (9108-9505)AE100
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20280 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105 |
1 | ||
| 47150-12270 |
EE100..LHD;AE101..LHD..GLI;AE101..GL,SJ,STD,XL,XLI;AE100,102,CE100,EE101,104,105,108 |
1 | ||
| 47150-12160 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12450 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47311-12530 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47311-12440 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47311-12540 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10262 |
AE10#,EE10#..RHD |
1 | ||
| 90412-10116 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10183 |
AE100;AE101..CP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12260 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47313-12250 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47313-12330 |
AE100;AE101..SJ W(ABS) |
1 | ||
| 47313-12340 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#,CE100,EE10# LH |
1 | ||
| 90947-02659 |
AE10#,CE100,EE10# RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#,CE100,EE10# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#,CE100,EE10# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12400 |
AE100,101,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47314-12320 |
AE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI) |
1 | ||
| 47314-12360 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12450 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47315-12460 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12190 |
AE100;AE101..SJ |
1 | ||
| 47316-12280 |
AE100;AE101..SJ |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02809 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 90947-02657 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12040 |
AE100;AE101..SJ |
1 | ||
| 47317-12120 |
AE100;AE101..SJ |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12250 |
AE100;AE101..SJ |
1 | ||
| 47318-12180 |
AE100;AE101..SJ |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12100 |
AE100,101,EE100,101..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12260 |
AE100,101,EE100,101..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12020 |
AE100;AE101..SJ |
1 | ||
| 47364-12090 |
AE100;AE101..SJ |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE100;AE101..CP W(ABS) |
1 | ||
| 47371-12100 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12010 |
AE10#,CE100,EE100,101 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47375-12020 |
AE10#,CE100,EE100,101 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 90461-08687 |
AE10#,CE100,EE100,101 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE100;AE101..CP W(ABS) |
1 | ||
| 90461-06119 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12020 |
AE100;AE101..CP W(ABS) |
1 | ||
| 90461-06119 |
AE100,101,CE100,EE10#..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-12010 |
AE100;AE101..CP |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12020 |
AE100;AE101..CP |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-12190 |
AE100..3FC,5F;AE101..CP..5F |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01425 | ||||
| 90480-01556 | ||||
| 90480-01571 | ||||
| 91651-40616 | ||||
| 96991-12080 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 2(9108-9305)CP ; (9108-9305)AE100
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12020 |
AE100;AE101..SJ TOYOTA |
1 | ||
| 44510-12040 |
AE100;AE101..SJ AISIN |
1 | ||
| 44510-12090 |
AE100;AE101..SJ |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-12010 |
AE100;AE101..SJ |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12010 |
AE100;AE101..SJ |
3 | ||
| 44545-12020 |
AE100;AE101..CP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE100;AE101..CP |
3 | ||
| 44546-12010 |
AE100;AE101..SJ |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12031 |
AE100;AE101..CP |
1 | ||
| 44551-12040 |
AE100;AE101..CP |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10184 |
AE100;AE101..CP |
1 | ||
| 90904-12006 |
AE100;AE101..CP |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-12021 |
AE100;AE101..CP |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12020 |
AE100;AE101..CP |
1 | ||
| 44591-12030 |
AE100;AE101..CP |
1 | ||
| 44591-12031 |
AE100;AE101..CP |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-12020 |
AE100;AE101..CP |
1 | ||
| 44592-12010 |
AE100;AE101..CP |
1 | ||
| Common parts | ||||
| 90109-08218 | ||||
| 90119-08966 | ||||
| 90179-06045 | ||||
| 90179-08189 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||
| 94614-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
