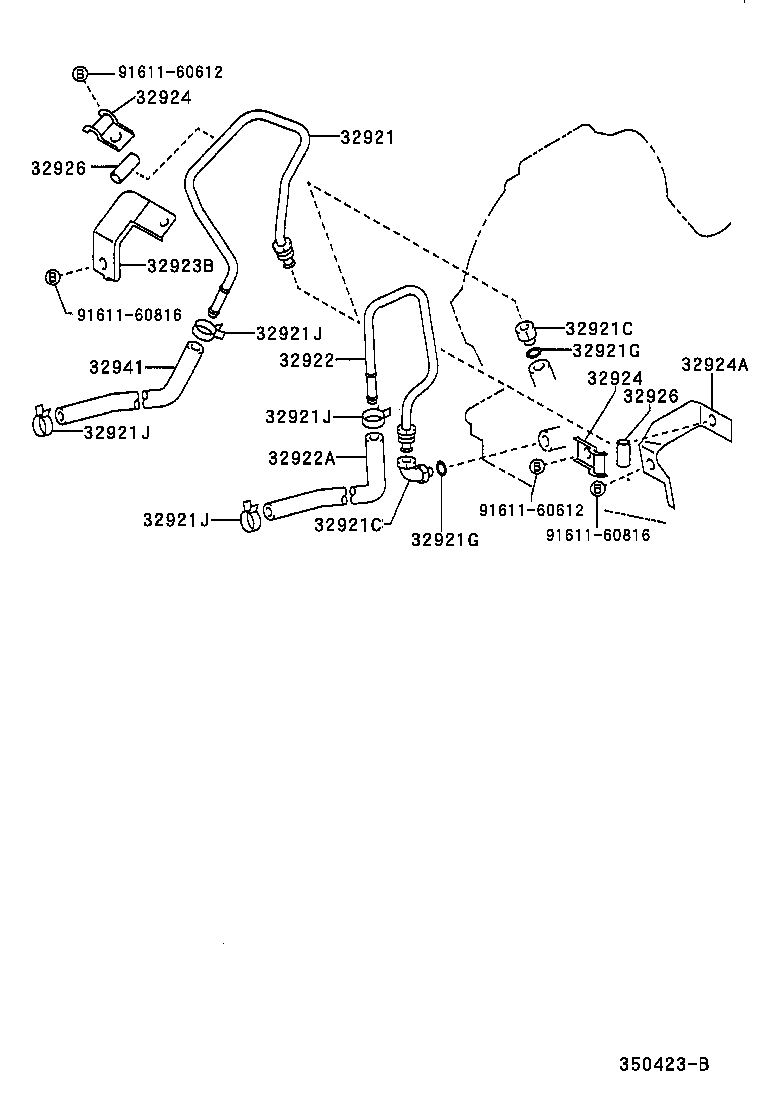

AE100-AEHDK (1991)
Toyota Corolla Sed/Cp/Wg
(9108- )AE100,101..3FC
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12290 |
AE100..3FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
AE100,101,EE100,101..3FC OUTLET |
1 | ||
| 90404-14007 |
AE100,101,EE100,101..3FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
AE100,101,EE100,101..3FC OUTLET |
1 | ||
| 90404-14007 |
AE100,101,EE100,101..3FC INLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE10#,EE100,101..ATM |
2 | ||
| 90301-10189 |
AE10#,EE100,101..(SED,WG)..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE10#,EE100,101..ATM |
2 | ||
| 90301-10189 |
AE10#,EE100,101..(SED,WG)..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE10#,EE100,101..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE10#,EE100,101..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE10#,EE100,101..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE10#,EE100,101..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12291 |
AE100,101..3FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15050 |
AE100,101..3FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-12160 |
AE100,101..3FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE10#,EE100,101..(SED,WG)..ATM |
2 | ||
| 90462-10082 |
AE10#,EE100,101..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE10#,EE100,101..(SED,WG)..ATM |
2 | ||
| 90462-10082 |
AE10#,EE100,101..ATM |
2 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32924-12040 |
AE100,101..3FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE10#..3FC L=25,ID=8 |
2 | ||
| 32926-10010 |
AE10#..(SED,WG)..ATM L=30,ID=8 |
1 | ||
| 32926-10010 |
AE10#..(SED,WG)..ATM L=30,ID=8 |
1 | ||
| 32926-10010 |
AE10#,EE100,101..3FC L=30,ID=8 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE10#..3FC L=25,ID=8 |
2 | ||
| 32926-10010 |
AE10#..(SED,WG)..ATM L=30,ID=8 |
1 | ||
| 32926-10010 |
AE10#..(SED,WG)..ATM L=30,ID=8 |
1 | ||
| 32926-10010 |
AE10#,EE100,101..3FC L=30,ID=8 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-12260 |
AE100,101..3FC |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
