Toyota Corolla lb EE110 WIRING & CLAMP

EE110R-ALMDS (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(9704- )

Click highlighted areas on diagram

FUSIBLE LINK REPAIR

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	AE11#,EE110	04/1997 - 10/1999	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12070

AE11#,EE110

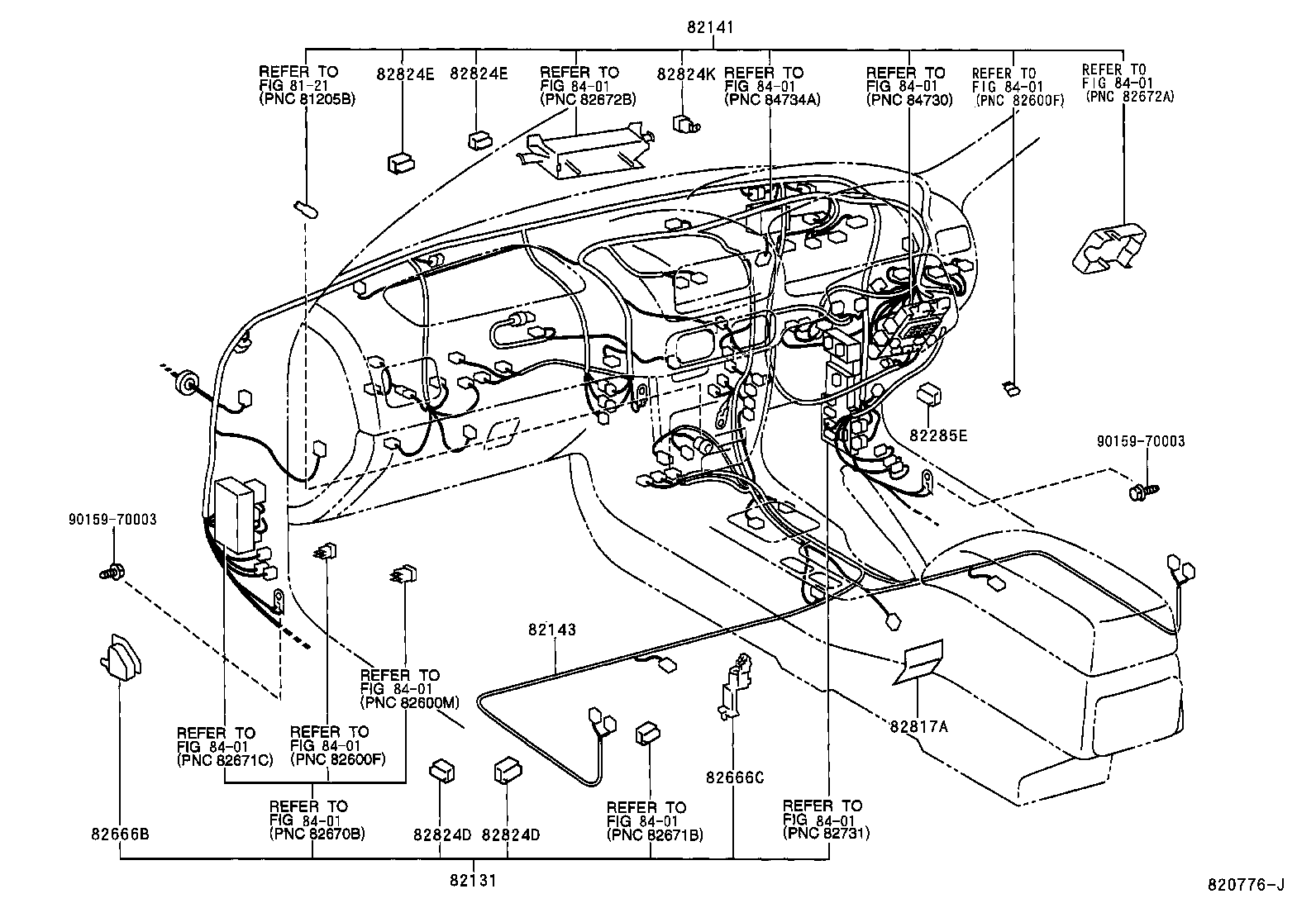

ILLUST NO. 3 OF 7(9704- )RHD

Click highlighted areas on diagram

COWL,INSTRUMENT PANEL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L540	EE110..GEN	04/1997 - 10/1999	1
82141 - WIRE, INSTRUMENT PANEL
82141-1N440	AE111,EE110..RHD..(GEN,NZ)	04/1997 - 10/1999	1
82141-1N460	AE111,EE110..RHD..(GEN,NZ) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12010	AE11#,EE110..ARL,GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
82285E - WIRE, ILLUMINATION
82285-12020	AE11#,EE110..GCC,GEN	04/1997 - 10/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12230	AE11#,EE110..RHD	04/1997 - 10/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12190	AE11#,EE110..RHD	04/1997 - 10/1999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE11#,EE110	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,EE110	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,EE110	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12200	AE11#,EE110 NO.2	04/1997 - 10/1999	1
82824-12220	AE111,EE110..RHD..GEN	04/1997 - 10/1999	3
82824-12210	AE111,EE110..RHD..GEN W(80,DRIVER SIDE) OR W(80,DRIVER SIDE & PASSENGER SIDE),BLACK	04/1997 - 10/1999	3
82824-12220	AE11#,EE110..GCC,GEN NATURAL	04/1997 - 10/1999	2
82824E - CONNECTOR, WIRING HARNESS
82824-12200	AE11#,EE110 NO.2	04/1997 - 10/1999	1
82824-12220	AE111,EE110..RHD..GEN	04/1997 - 10/1999	3
82824-12210	AE111,EE110..RHD..GEN W(80,DRIVER SIDE) OR W(80,DRIVER SIDE & PASSENGER SIDE),BLACK	04/1997 - 10/1999	3
82824-12220	AE11#,EE110..GCC,GEN NATURAL	04/1997 - 10/1999	2
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE11#,EE110..RHD BLACK	04/1997 - 10/1999	1
82824-30130	AE11#,EE110..RHD	04/1997 - 10/1999	1
Common parts
90159-70003
Linked diagrams
8121
8401

ILLUST NO. 4 OF 7(9704- )RHD

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A640	EE110..GEN W(POWER DOOR LOCK)	04/1997 - 03/1999	1
82151-1E010	AE112,EE110..GCC,GEN W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 03/1999	1
82151-1A650	AE111..ARL;AE11#,EE110..RHD..(GLI,XL) W(POWER DOOR LOCK & POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82151-1A640	AE111,EE110..RHD..(XL,XLI) W(POWER DOOR LOCK)	03/1999 - 10/1999	1
82151-1E010	AE112..GCC;AE111,EE110..XL,XLI W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	03/1999 - 10/1999	1
82152 - WIRE, FRONT DOOR, LH
82152-1A370	EE110..GEN W(POWER DOOR LOCK)	04/1997 - 03/1999	1
82151-1E010	EE110..GEN	04/1997 - 03/1999	1
82152-1A370	AE111,EE110..RHD..(XL,XLI) W(POWER DOOR LOCK)	03/1999 - 10/1999	1
82151-1E010	AE112..GCC;AE111,EE110..XL,XLI W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	03/1999 - 10/1999	1
82152-1A380	AE111,EE110..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12310	AE11#,EE110..XL,XLI	04/1997 - 10/1999	1
82153-12330	AE112..GCC;AE112..GLI..ARL;AE111,EE110..ARL,GCC,GEN W(POWER WINDOW)	04/1997 - 10/1999	1
82154 - WIRE, REAR DOOR, NO.2
82154-12320	AE112..GCC;AE112..GLI..ARL;AE111,EE110..ARL,GCC,GEN W(POWER WINDOW)	04/1997 - 10/1999	1
82153-12310	AE11#,EE110..XL,XLI	04/1997 - 10/1999	1
82161 - WIRE, FLOOR
82161-1L870	AE111,EE110..RHD..GEN	04/1997 - 08/1998	1
82161-1L870	EE110..GEN	08/1998 - 10/1999	1
82171 - WIRE, ROOF, NO.1
82171-12590	AE11#,EE110..RHD	04/1997 - 10/1999	1
82171-12710	AE11#,EE110..RHD..(ARL,GEN) W(MOON ROOF)	04/1997 - 10/1999	1
82184 - WIRE, BACK DOOR, NO.1
82184-12480	AE11#,EE110	04/1997 - 10/1999	1
82185 - WIRE, BACK DOOR, NO.2
82185-12600	AE11#,EE110	04/1997 - 10/1999	1
82824J - CONNECTOR, WIRING HARNESS
82824-12210	AE111,EE110..RHD..GEN	05/1997 - 10/1999	3
82824W - CONNECTOR, WIRING HARNESS
82824-30130	AE112..GCC;AE111,EE110..XL,XLI	03/1999 - 10/1999	2
82824-30130	AE11#,EE110..RHD NO.2	04/1997 - 10/1999	1
82824-30130	AE112,EE110..GCC,GEN NO.1	04/1997 - 03/1999	2
Common parts
90119-06390
90159-60545
90159-70003
Linked diagrams
8401

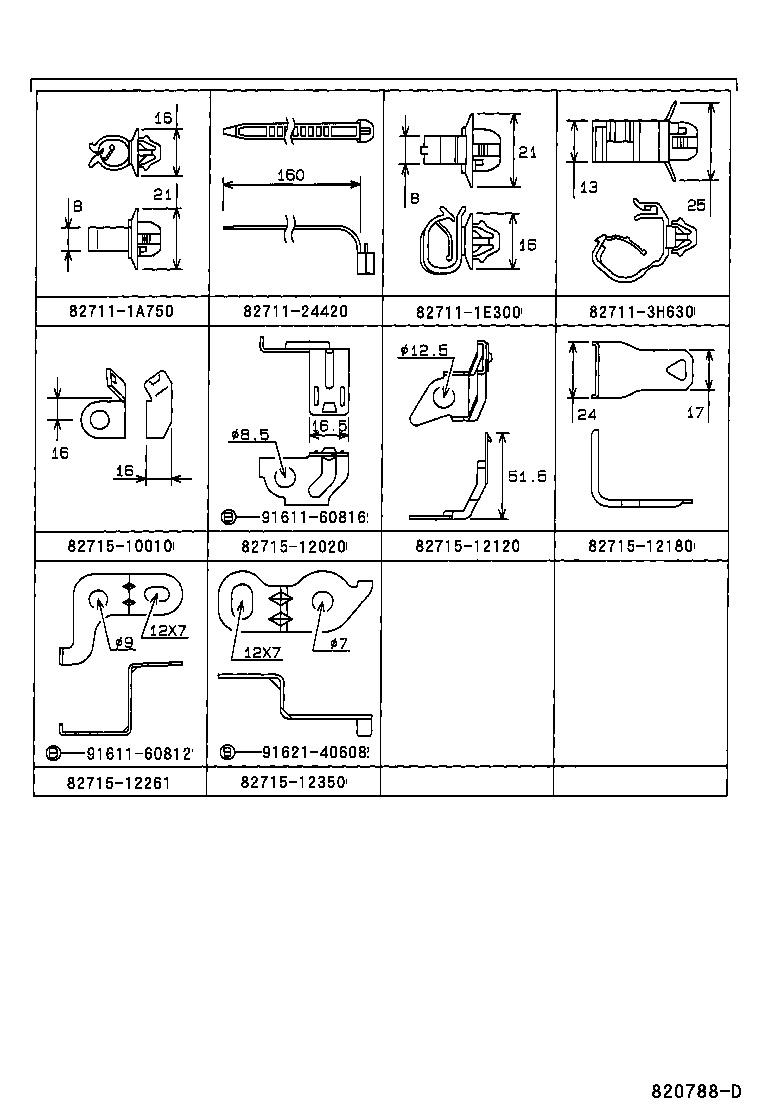

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1A750
82711-1E300
82711-24420
82711-3H630
82715-10010
82715-12020
82715-12120
82715-12180
82715-12261
82715-12350
91611-60812
91611-60816
91621-40608

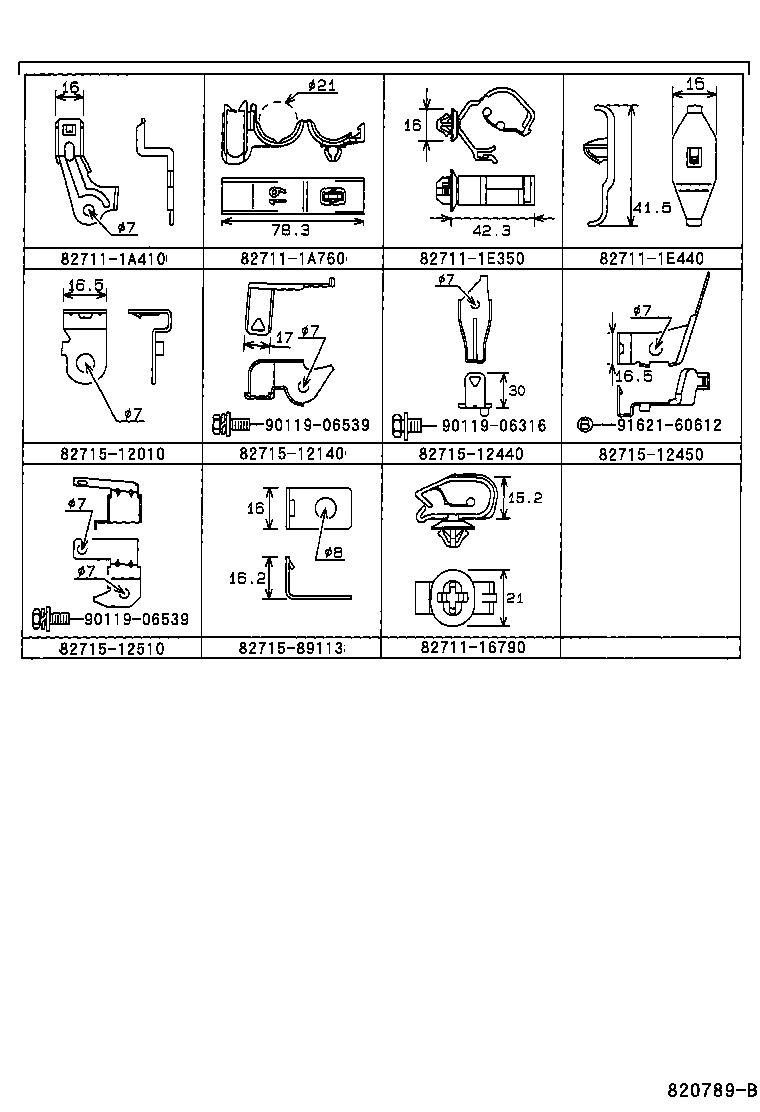

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-16790
82711-1A410
82711-1A760
82711-1E350
82711-1E440
82715-12010
82715-12140
82715-12440
82715-12450
82715-12510
82715-89113
90119-06316
90119-06539
91621-60612

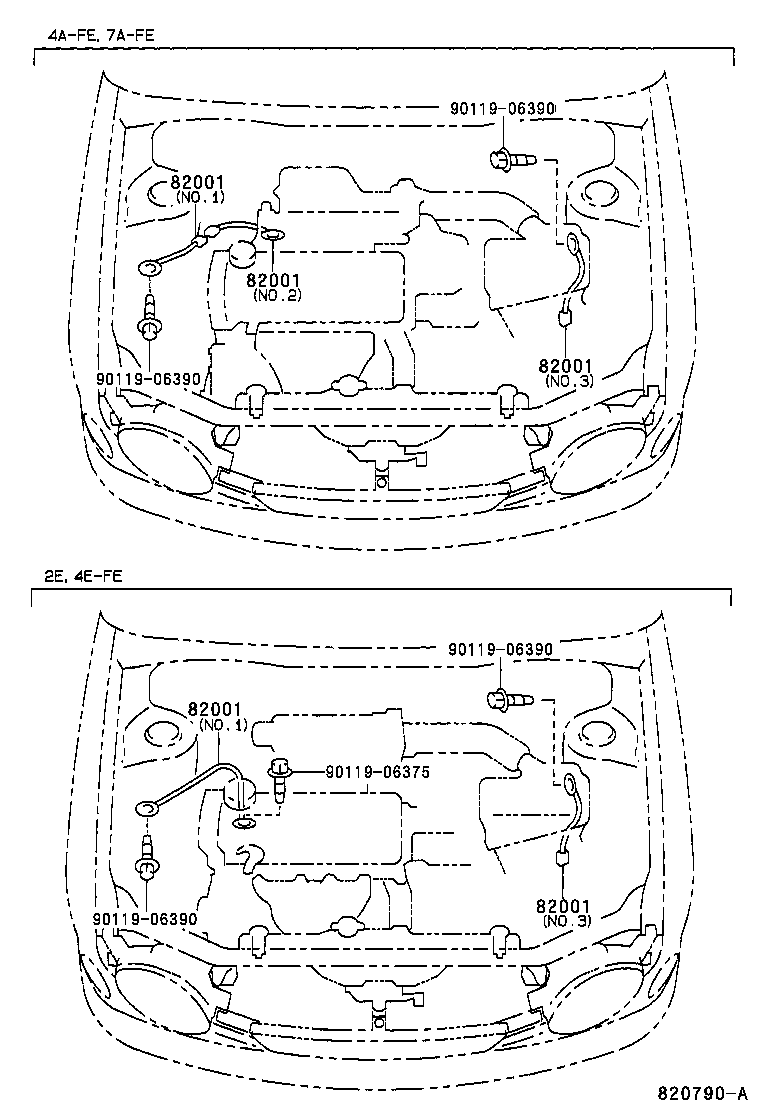

ILLUST NO. 6 OF 7(9704- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07351	AE11#,EE110 NO.3	04/1997 - 10/1999	1
90980-07341	EE110 NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE11#,EE110 NO.3	04/1997 - 10/1999	1
90980-07341	EE110 NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE11#,EE110 NO.3	04/1997 - 10/1999	1
90980-07341	EE110 NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE11#,EE110 NO.3	04/1997 - 10/1999	1
90980-07341	EE110 NO.1	04/1997 - 10/1999	1
82001 - CABLE, BOND, NO.1
90980-07351	AE11#,EE110 NO.3	04/1997 - 10/1999	1
90980-07341	EE110 NO.1	04/1997 - 10/1999	1
Common parts
90119-06375
90119-06390

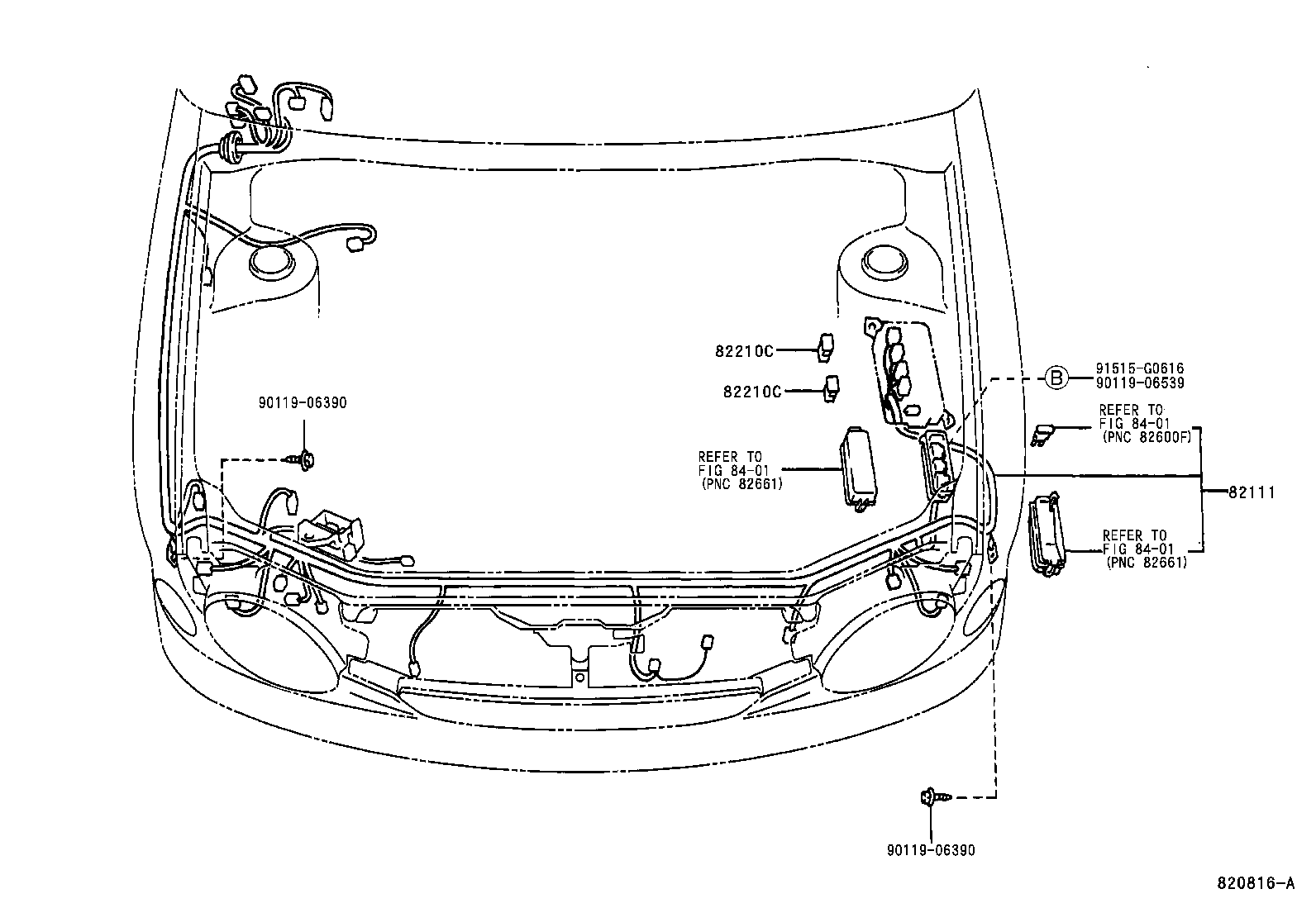

ILLUST NO. 2 OF 7(9704- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H870	AE111,EE110..RHD..(GEN,NZ)	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE11#,EE110 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08246	AE11#,EE110 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	EE110;AE11#..ARL,GEN,NZ 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE11#,EE110 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08246	AE11#,EE110 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	EE110;AE11#..ARL,GEN,NZ 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
Common parts
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401

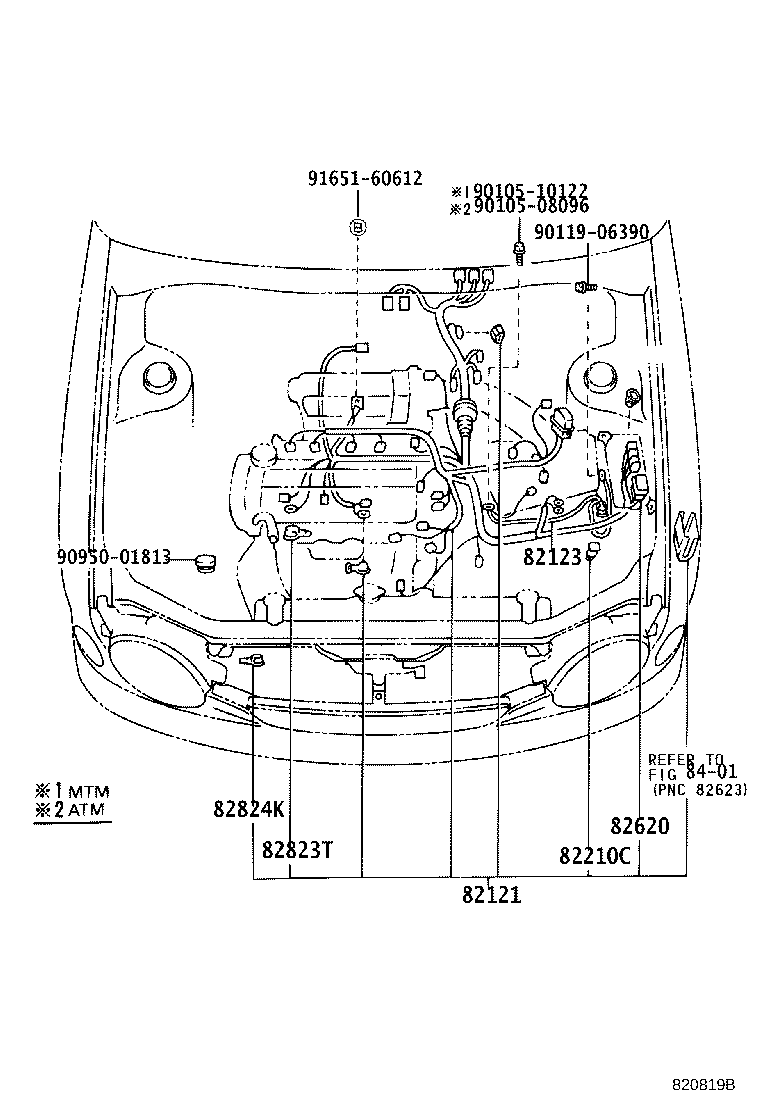

ILLUST NO. 1 OF 7(9704- )EE110

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1N850	EE110..GEN	04/1997 - 08/1999	1
82121-1N851	EE110..GEN	08/1999 - 10/1999	1
82123 - WIRE, ENGINE, NO.3
82123-12310	AE11#,EE110..GCC,GEN W(BATTERY=32B24L OR 34B19L)	04/1997 - 10/1999	1
82123-12290	AE111,EE110;AE112..ARL,GCC	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08282	AE11#,EE110 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08246	AE11#,EE110 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08280	EE110;AE11#..ARL,GEN,NZ 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-13020	AE11#,EE110	04/1997 - 10/1999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	AE111,EE110..(GL,XL)..GEN	04/1997 - 10/1999	1
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE11#,EE110..RHD BLACK	04/1997 - 10/1999	1
82824-30130	AE11#,EE110..RHD	04/1997 - 10/1999	1
Common parts
90105-08096
90105-10122
90119-06390
90950-01813
91651-60612
Linked diagrams
8401
