EE110R-ALMDS (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

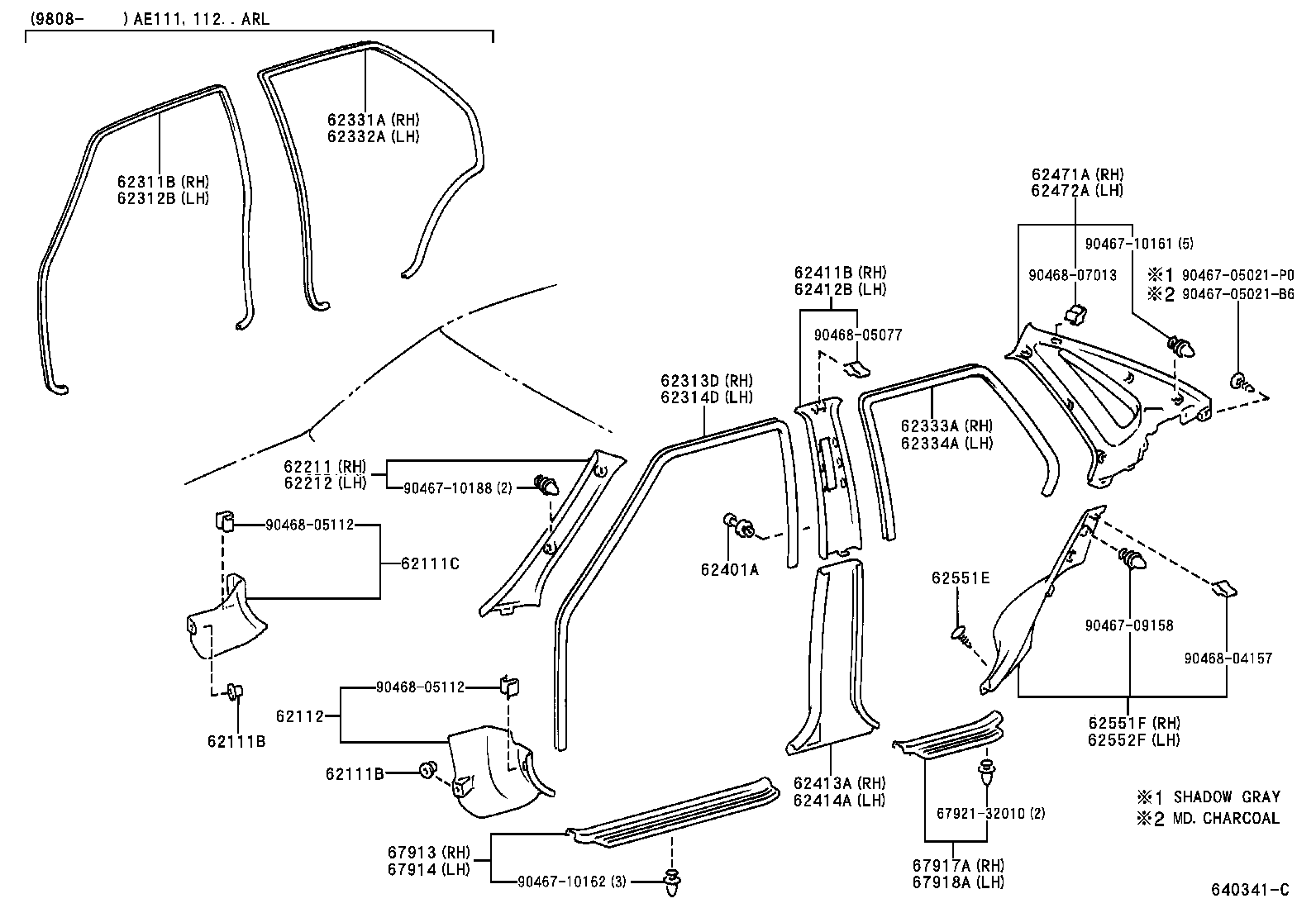

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62211 62212 62311B 62312B 62313D 62314D 62331A 62332A 62333A 62334A 62401A 62411B 62412B 62413A 62414A 62471A 62472A 62551E 62551F 62552F 67913 67914 67917A 67918A 6792132010 9046705021B6 9046705021P0 9046709158 9046710161 9046710162 9046710188 9046804157 9046805077 9046805112 9046805112 9046807013
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505022

AE11#,EE110..RHD

BLACK,TRIM1#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505022

AE11#,EE110..RHD

BLACK,TRIM1#

 1
62111C - BOARD, COWL SIDE TRIM, RH
62111-12231B1

AE11#,EE110..RHD

MD.CHARCOAL,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-12240B1

AE11#,EE110..RHD

MD.CHARCOAL,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-12300B0

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-12300B0

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-12180B1

AE11#,EE110..GCC,GEN,NZ

MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-12080B1

AE11#,EE110..GCC,GEN,NZ

MD.CHARCOAL,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-12140B1

AE11#,EE110..GCC,GEN,NZ

MD.CHARCOAL,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-12040B1

AE11#,EE110..GCC,GEN,NZ

MD.CHARCOAL,TRIM1#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-07071B6

AE11#,EE110

MD.CHARCOAL,TRIM1#

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-12500B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-12500B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12220B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12220B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-12750B0

AE11#,EE110..GCC,GEN

MD.CHARCOAL,TRIM1#

 1
62471-12760B0

AE11#,EE110..GCC,GEN,NZ

W(REAR SEAT BELT),MD.CHARCOAL,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-12750B0

AE11#,EE110..GCC,GEN

MD.CHARCOAL,TRIM1#

 1
62472-12760B0

AE11#,EE110..GCC,GEN,NZ

W(REAR SEAT BELT),MD.CHARCOAL,TRIM1#

 1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-06089B3

AE11#,EE110

MD.CHARCOAL,TRIM1#

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-12150B0

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-12140B0

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12240B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12210B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12110B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12100B1

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
Common parts
67921-32010
90467-05021B6
90467-05021P0
90467-09158
90467-10161
90467-10162
90467-10188
90468-04157
90468-05077
90468-05112
90468-07013
