EE110L-ALMDSV (1997)

Toyota Corolla Lb

Production Apr 1997 - Aug 2000
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

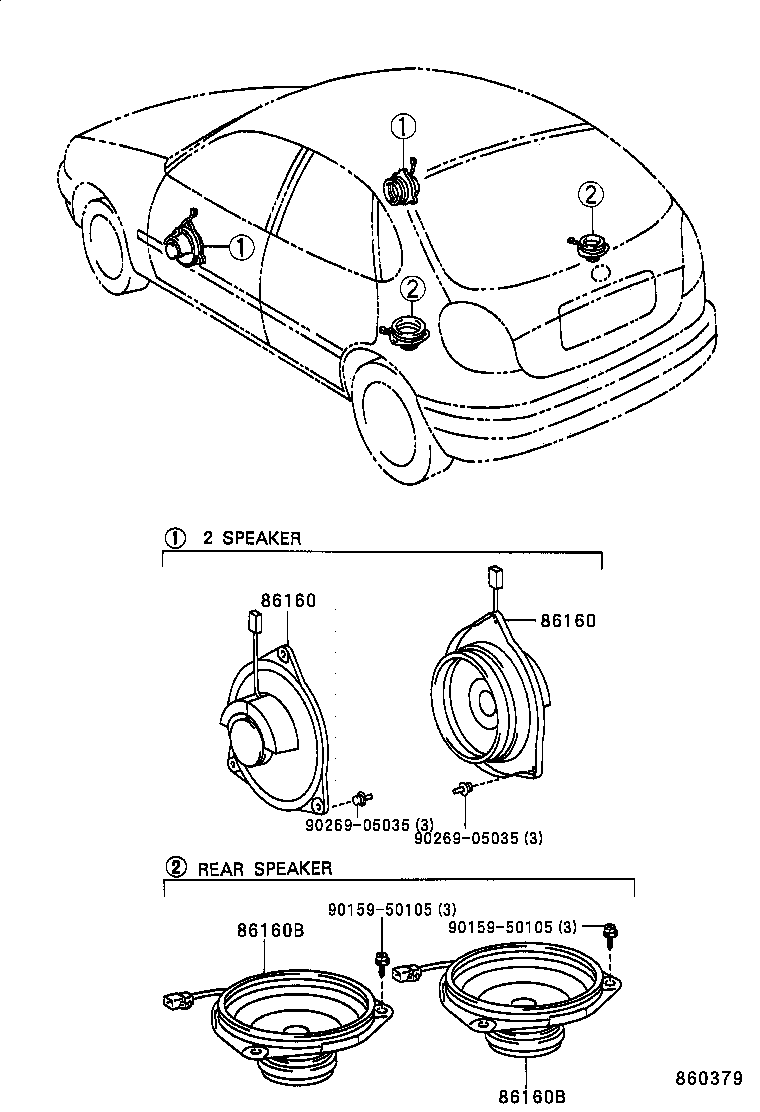

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 9015950105 9015950105 9026905035 9026905035
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12820

AE11#,EE110

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12820

AE11#,EE110

 2
86160B - SPEAKER ASSY, REAR
86160-1A050

AE11#,EE110

 2
86160B - SPEAKER ASSY, REAR
86160-1A050

AE11#,EE110

 2
Common parts
90159-50105
90269-05035
