EE110L-ALMDSV (1997)
Toyota Corolla Lb

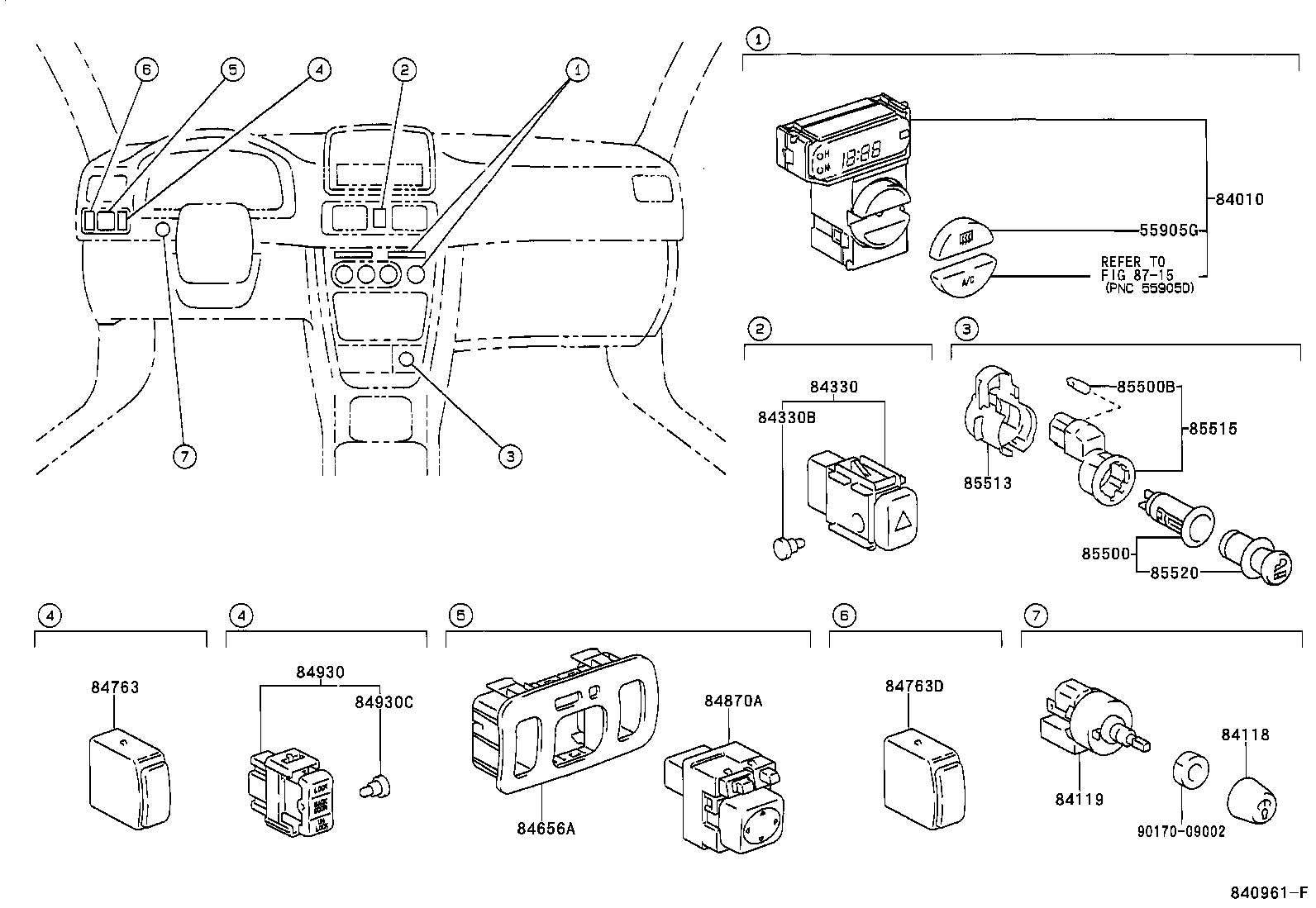

ILLUST NO. 3 OF 6(9704- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12560B1 |
AE11#,EE110..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12560B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84010-12220B0 |
AE112,EE110..GCC W/O(REAR WINDOW DEFOGGER & CLOCK),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12200B0 |
AE112,EE110..GCC W/O(REAR WINDOW DEFOGGER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12110B0 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12180B0 |
AE112,EE110..GCC W/O(CLOCK),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12200B0 |
AE112,EE110..GCC W/O(REAR WINDOW DEFOGGER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12090B0 |
AE112,EE110..GCC W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12090B0 |
AE11#,EE110..LHD W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12180B0 |
AE112,EE110..GCC W/O(CLOCK),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12220B0 |
AE112,EE110..GCC W/O(REAR WINDOW DEFOGGER & CLOCK),DK.CHARCOAL,TRIM1# |
1 | ||
| 84010-12110B0 |
AE11#,EE110..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
AE11#,EE110 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12180 |
AE11#,EE110 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12400 |
AE11#,EE110 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AE11#,EE110 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12060B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12040B1 |
AE11#,EE110..GCC,GEN W(AIR CONDITIONER),DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12060B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12060B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 84656-12060B1 |
AE112,EE110..GCC,GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-12110B1 |
AE11#,EE110 DK.CHARCOAL,TRIM1# |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-12110B1 |
AE11#,EE110 DK.CHARCOAL,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
AE11#,EE110 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12160 |
AE112..GCC;AE111,EE110..ARL,GCC |
1 | ||
| 84930-12160 |
AE112,EE110..GCC,GEN |
1 | ||
| 84930-12160 |
AE112..GCC;AE111,EE110..XL,XLI |
1 | ||
| 84930-12160 |
AE112,EE110..GCC |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
AE112,EE110..GCC,GEN 14V 0.91W |
1 | ||
| 84999-10310 |
AE112,EE110..GCC 14V 0.91W |
1 | ||
| 84999-10310 |
AE112..GCC;AE111,EE110..XL,XLI 14V 0.91W |
1 | ||
| 84999-10310 |
AE112..GCC;AE111,EE110..ARL,GCC 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE11#,EE110 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
AE11#,EE110 14V 1.4W,W(CAP) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE11#,EE110 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12100 |
AE11#,EE110 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE11#,EE110 |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| Linked diagrams | ||||
| 8715 | ||||

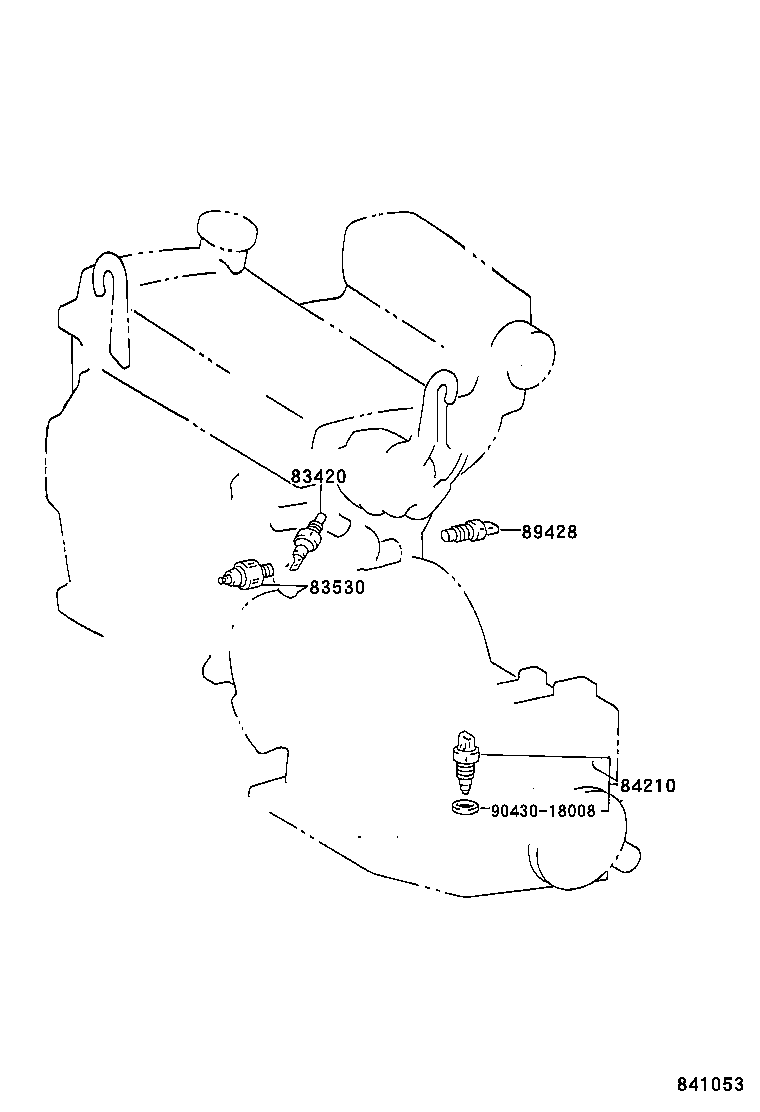

ILLUST NO. 1 OF 6(9704- )EE110
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE111,EE110..GL,XL |
1 | ||
| 83420-16020 |
EE110..GCC |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AE111..GLI..GEN;AE112,EE110..GCC |
1 | ||
| 83530-28020 |
AE11#,EE110..GLI,XL,XLI DENSO |
1 | ||
| 83530-60020 |
AE11#,EE110..GLI,XL,XLI YAZAKI |
1 | ||
| 83530-30090 |
AE11#,EE110..GLI,XL,XLI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE11#,EE110..5F |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE11#,EE110 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||

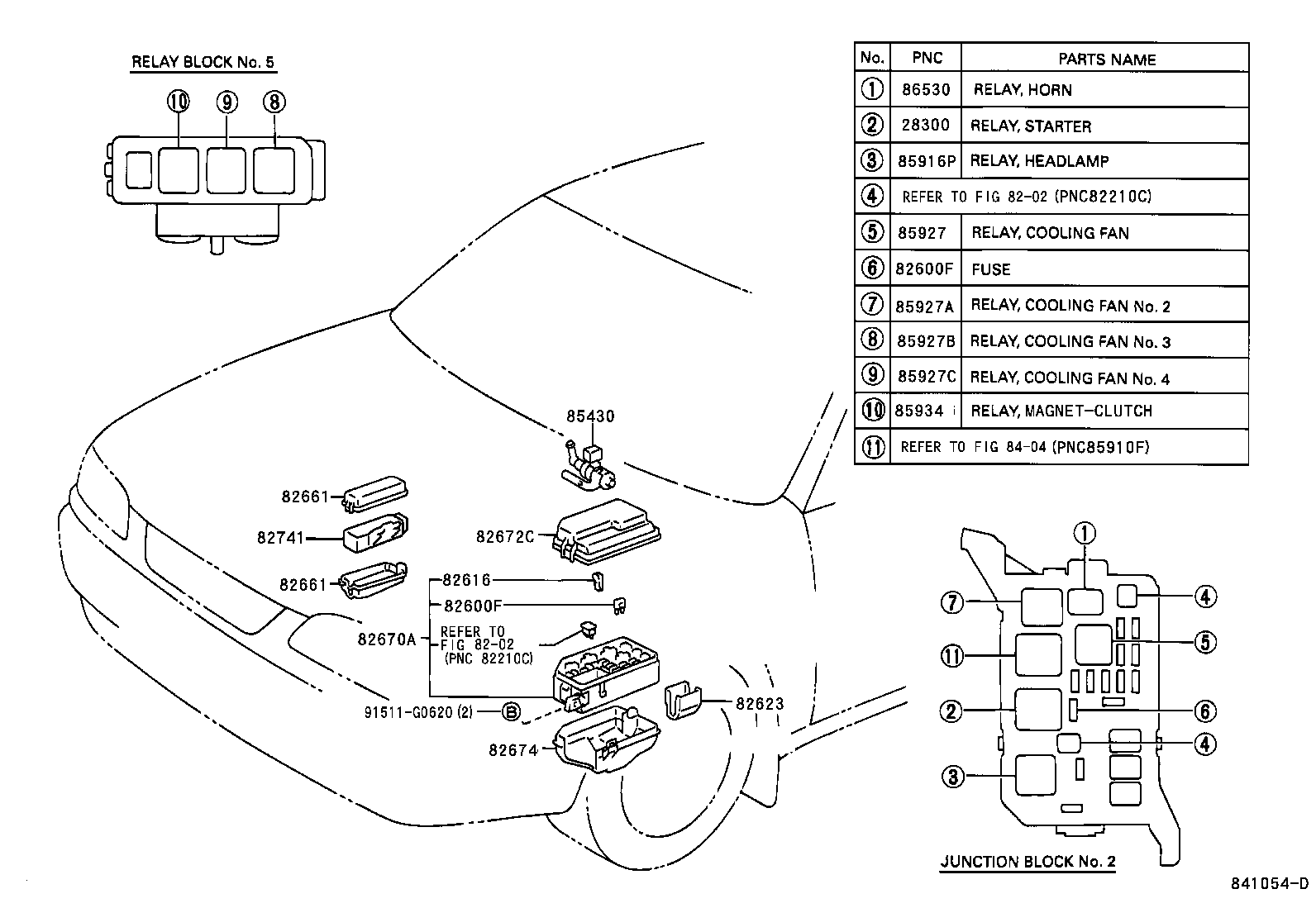

ILLUST NO. 2 OF 6(9704- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2E..EE110..GCC;4AFE,7AFE..AE11#..GCC,GEN |
1 | ||
| 28300-10020 |
4AF#,7AFE,2E..AE11#,EE110 |
1 | ||
| 28300-10020 |
4AF#,7AFE,2E..AE11#,EE110..ARL,GCC,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
AE111..GLI;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82022 |
AE111..GLI;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09007 |
EE110..GCC;AE111..GLI..GEN 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90982-09009 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82021 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82023 |
AE112,EE110..GCC 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE112,EE110..GCC 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09011 |
EE110 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82031 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EE110 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82024 |
AE112,EE110..GCC 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82021 |
EE110 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90982-09011 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE11#;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82022 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82022 |
AE111;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82022 |
EE110 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
EE110 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09013 |
AE11#,EE110..LHD 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE11#,EE110..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82023 |
AE11#,EE110..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-09007 |
EE110;AE11#..GEN,NZ 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82020 |
AE11#,EE110..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09010 |
AE111,EE110..LHD 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09011 |
AE111,EE110..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09003 |
AE11#,EE110 15A |
1 | ||
| 90982-09013 |
AE11#,EE110 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09011 |
EE110;AE11#..ARL,GEN 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82022 |
AE11#;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09010 |
EE110;AE11#..ARL,GEN,NZ 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09009 |
EE110;AE11#..ARL,GEN,NZ 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82031 |
AE11#;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
AE111..GLI;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82022 |
AE111..GLI;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09007 |
EE110..GCC;AE111..GLI..GEN 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90982-09009 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82021 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82023 |
AE112,EE110..GCC 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE112,EE110..GCC 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09011 |
EE110 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82031 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EE110 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82024 |
AE112,EE110..GCC 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82021 |
EE110 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90982-09011 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82022 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82022 |
AE111;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82022 |
EE110 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
EE110 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09013 |
AE11#,EE110..LHD 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE11#,EE110..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82023 |
AE11#,EE110..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-09007 |
EE110;AE11#..GEN,NZ 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82020 |
AE11#,EE110..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09010 |
AE111,EE110..LHD 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09011 |
AE111,EE110..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09003 |
AE11#,EE110 15A |
1 | ||
| 90982-09013 |
AE11#,EE110 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09011 |
EE110;AE11#..ARL,GEN 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82022 |
AE11#;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09010 |
EE110;AE11#..ARL,GEN,NZ 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82021 |
AE11#;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
EE110;AE11#..ARL,GEN,NZ 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82031 |
AE11#;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AE11#,EE110 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-13010 |
AE11#,EE110 |
1 | ||
| 82623-13010 |
AE111..GLI..GEN;AE112,EE110..GCC |
1 | ||
| 82623-13010 |
EE110..GCC |
1 | ||
| 82623-13010 |
AE111,EE110..GL,XL |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE11#,EE110 LOWER |
1 | ||
| 82661-12200 |
AE11#,EE110 UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE11#,EE110 LOWER |
1 | ||
| 82661-12200 |
AE11#,EE110 UPPER |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82721-12040 |
EE110..GCC |
1 | ||
| 82721-12040 |
AE111,EE110..GL,XL |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12360 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 82672-12360 |
AE11#,EE110 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-12010 |
AE11#,EE110 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12010 |
AE11#,EE110 |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09043 |
EE110..GCC |
1 | ||
| 90925-09043 |
EE110..GCC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE11#,EE110 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-04002 |
AE11#,EE110 |
1 | ||
| 85925-17010 |
AE11#,EE110 |
1 | ||
| 90987-04002 |
AE111..GLI..GEN;AE112,EE110..GCC |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90084-98011 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) BOSCH |
1 | ||
| 90084-98011 |
AE11#,EE110 BOSCH |
1 | ||
| 90987-03003 |
AE11#,EE110 DENSO |
1 | ||
| 90987-03003 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) DENSO |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04004 |
AE11#,EE110 PART NUMBER LABEL=90987-04004 |
1 | ||
| 90080-87009 |
AE11#,EE110 PART NUMBER LABEL=90080-87009 |
1 | ||
| 85927C - RELAY, COOLING FAN, NO.4 | ||||
| 90987-02012 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 90987-02012 |
AE11#,EE110 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 90987-02012 |
AE11#,EE110 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
EE110..GCC;AE11#..GLI,XLI |
1 | ||
| 90987-02012 |
AE112,EE110..GCC |
1 | ||
| 90987-02012 |
AE112,EE110..GCC |
1 | ||
| 90987-02012 |
AE11#,EE110 |
1 | ||
| Common parts | ||||
| 91511-G0620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

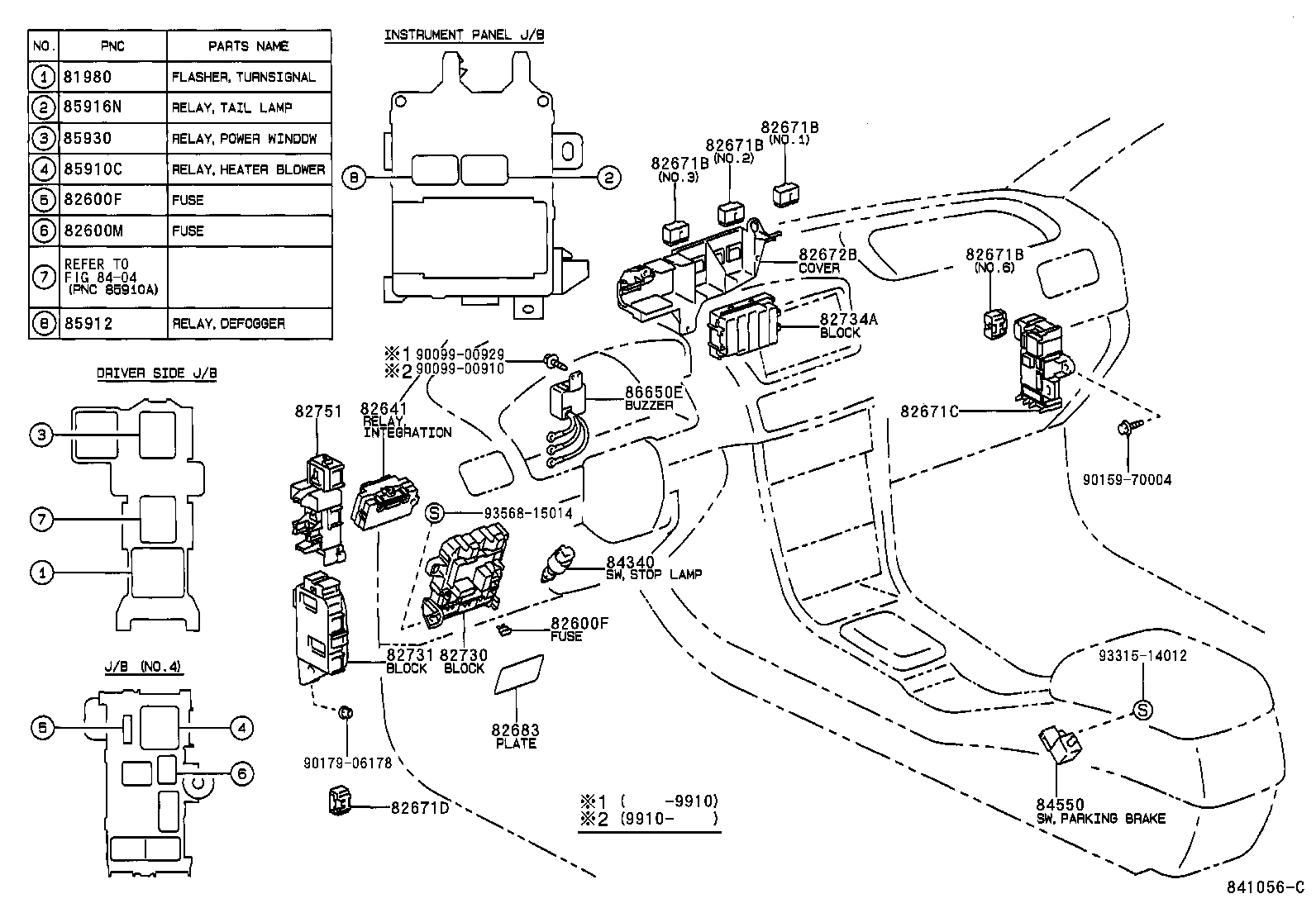

ILLUST NO. 4 OF 6(9704- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) DENSO |
1 | ||
| 81980-12110 |
AE11#,EE110 DENSO |
1 | ||
| 81980-12110 |
EE110..GCC;AE11#..GLI,XLI DENSO |
1 | ||
| 81980-12110 |
AE11#,EE110 DENSO |
1 | ||
| 81980-12110 |
AE11#,EE110 |
1 | ||
| 81980-12110 |
AE111..GLI..GEN;AE112,EE110..GCC |
1 | ||
| 81980-32010 |
AE11#,EE110 PART NUMBER LABEL=81980-32010,DENSO |
1 | ||
| 81980-0W010 |
AE11#,EE110 TRIDON |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
AE111..GLI;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82022 |
AE111..GLI;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09007 |
EE110..GCC;AE111..GLI..GEN 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90982-09009 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82021 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82023 |
AE112,EE110..GCC 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE112,EE110..GCC 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09011 |
EE110 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82031 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EE110 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82024 |
AE112,EE110..GCC 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82021 |
EE110 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90982-09011 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82022 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82022 |
AE111;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82022 |
EE110 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
EE110 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09013 |
AE11#,EE110..LHD 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE11#,EE110..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82023 |
AE11#,EE110..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-09007 |
EE110;AE11#..GEN,NZ 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82020 |
AE11#,EE110..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09010 |
AE111,EE110..LHD 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09011 |
AE111,EE110..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09003 |
AE11#,EE110 15A |
1 | ||
| 90982-09013 |
AE11#,EE110 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09011 |
EE110;AE11#..ARL,GEN 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82022 |
AE11#;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09010 |
EE110;AE11#..ARL,GEN,NZ 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82021 |
AE11#;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
EE110;AE11#..ARL,GEN,NZ 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82031 |
AE11#;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
AE111..GLI;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82022 |
AE111..GLI;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09007 |
EE110..GCC;AE111..GLI..GEN 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90982-09009 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82021 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82023 |
AE112,EE110..GCC 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82020 |
AE112,EE110..GCC 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09011 |
EE110 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82031 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09010 |
EE110 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EE110 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82024 |
AE112,EE110..GCC 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82021 |
EE110 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
AE111..GLI;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90982-09011 |
EE110..GCC;AE11#..RHD..(ARL,GEN) 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09013 |
AE112,EE110..GCC 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82022 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82022 |
AE111;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82022 |
EE110 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09009 |
EE110 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AE111;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 90982-09013 |
AE11#,EE110..LHD 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82021 |
AE111;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82024 |
AE11#,EE110..LHD 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82023 |
AE11#,EE110..LHD 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-09007 |
EE110;AE11#..GEN,NZ 5A,MINI FUSE,TAN,(J) |
1 | ||
| 90080-82020 |
AE11#,EE110..LHD 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09010 |
AE111,EE110..LHD 15A,MINI FUSE,BLUE |
4 | ||
| 90982-09011 |
AE111,EE110..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09003 |
AE11#,EE110 15A |
1 | ||
| 90982-09013 |
AE11#,EE110 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-09011 |
EE110;AE11#..ARL,GEN 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82022 |
AE11#;EE110..GCC 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09010 |
EE110;AE11#..ARL,GEN,NZ 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90080-82021 |
AE11#;EE110..GCC 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09009 |
EE110;AE11#..ARL,GEN,NZ 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82031 |
AE11#;EE110..GCC 5A,MINI FUSE,TAN,(L) |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE11#,EE110 40A,GREEN |
1 | ||
| 90982-10001 |
AE11#;EE110..GCC 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12170 |
AE112,EE110..GCC W(POWER DOOR LOCK) |
1 | ||
| 82641-12130 |
AE112,EE110..GCC |
1 | ||
| 82641-12170 |
AE112,EE110..GCC W(POWER DOOR LOCK) |
1 | ||
| 82641-12130 |
AE112,EE110..GCC |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11#,EE110 NO.2 |
1 | ||
| 82671-30370 |
AE11#,EE110 NO.1,6 |
2 | ||
| 82671-30350 |
AE11#,EE110 NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11#,EE110 NO.2 |
1 | ||
| 82671-30370 |
AE11#,EE110 NO.1,6 |
2 | ||
| 82671-30350 |
AE11#,EE110 NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11#,EE110 NO.2 |
1 | ||
| 82671-30370 |
AE11#,EE110 NO.1,6 |
2 | ||
| 82671-30350 |
AE11#,EE110 NO.3 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11#,EE110 NO.2 |
1 | ||
| 82671-30370 |
AE11#,EE110 NO.1,6 |
2 | ||
| 82671-30350 |
AE11#,EE110 NO.3 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12200 |
AE112,EE110..GCC |
1 | ||
| 82671-12200 |
AE11#,EE110..LHD |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11#,EE110 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12370 |
AE11#,EE110 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-12210 |
AE11#,EE110..LHD |
1 | ||
| 82683-12210 |
AE112,EE110..GCC |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-02010 |
AE112,EE110..GCC |
1 | ||
| 82732-02010 |
AE11#,EE110..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-12020 |
AE11#,EE110..LHD |
1 | ||
| 82731-12020 |
AE112,EE110..GCC |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-12010 |
AE11#,EE110 |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-13010 |
AE11#,EE110 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE11#,EE110 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE11#,EE110 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE11#,EE110 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
AE11#,EE110 PART NUMBER LABEL=90987-02012 |
1 | ||
| 90080-87008 |
AE11#,EE110 PART NUMBER LABEL=90080-87008 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AE11#,EE110 |
1 | ||
| 90987-02012 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 90987-02012 |
AE11#,EE110 |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12060 |
AE112,EE110..GCC |
1 | ||
| 86650-12060 |
AE112,EE110..GCC |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90159-70004 | ||||
| 90179-06178 | ||||
| 93315-14012 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8404 | ||||

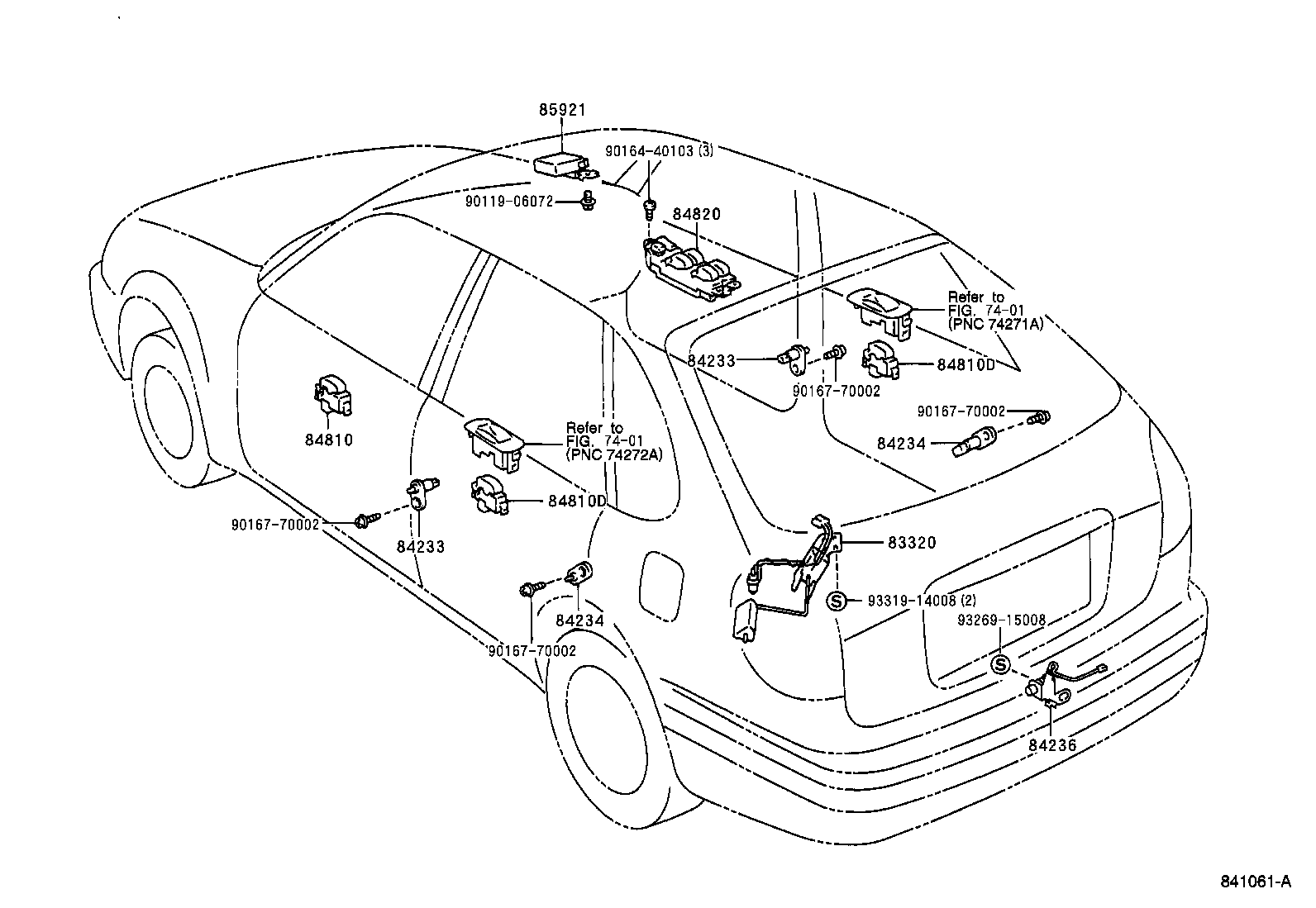

ILLUST NO. 6 OF 6(9704- )
ROOF,FLOOR,DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12511 |
AE11#,EE110 |
1 | ||
| 83320-12511 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) |
1 | ||
| 83320-12512 |
AE11#,EE110 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE11#,EE110 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE11#,EE110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE11#,EE110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE11#,EE110 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12110 |
AE11#,EE110 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE11#,EE110 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC) |
2 | ||
| 84810-12080 |
AE112..GCC;AE112..GLI..ARL;AE111,EE110..ARL,GCC,GEN |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC) |
2 | ||
| 84810-12080 |
AE112..GCC;AE112..GLI..ARL;AE111,EE110..ARL,GCC,GEN |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12450 |
AE112,EE110..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12340 |
AE112,EE110..GCC |
1 | ||
| 84820-12360 |
AE112,EE110..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12360 |
AE112,EE110..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12400 |
AE112,EE110..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 84820-12340 |
AE11#,EE110..LHD |
1 | ||
| 84820-12400 |
AE112,EE110..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12061 |
AE11#,EE110..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90164-40103 | ||||
| 90167-70002 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 5 OF 6(9704- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE11#,EE110 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12440 |
AE11#,EE110..LHD |
1 | ||
| 84140-12440 |
AE112,EE110..GCC |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12080 |
AE112;AE111,EE110..ARL,GCC,GEN W(VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E370 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER) |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-1E340 |
AE112,EE110..GCC |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC |
1 | ||
| 84310-1E370 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84310-1E360 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84310-1E340 |
AE112,EE110..GCC |
1 | ||
| 84310-1E370 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER) |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-1E360 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE11#,EE110 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A690 |
AE112,EE110..GCC |
1 | ||
| 84652-10630 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84652-10630 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84652-1A690 |
AE112,EE110..GCC |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 5 OF 6(9704- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE11#,EE110 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12440 |
AE11#,EE110..LHD |
1 | ||
| 84140-12440 |
AE112,EE110..GCC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E370 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER) |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-1E340 |
AE112,EE110..GCC |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC |
1 | ||
| 84310-1E370 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84310-1E360 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84310-1E340 |
AE112,EE110..GCC |
1 | ||
| 84310-1E370 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER) |
1 | ||
| 84310-1E350 |
AE112,EE110..GCC W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-1E360 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE112,EE110..GCC |
1 | ||
| 84312-12050 |
AE11#,EE110..(GL,XL,XLI)..(GCC,GEN) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE11#,EE110 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A690 |
AE112,EE110..GCC |
1 | ||
| 84652-10630 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84652-10630 |
AE112,EE110..GCC W(INTERMITTENT WIPER) |
1 | ||
| 84652-1A690 |
AE112,EE110..GCC |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
