EE110L-ALMDSV (1997)

Toyota Corolla Lb

Production Apr 1997 - Aug 2000
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

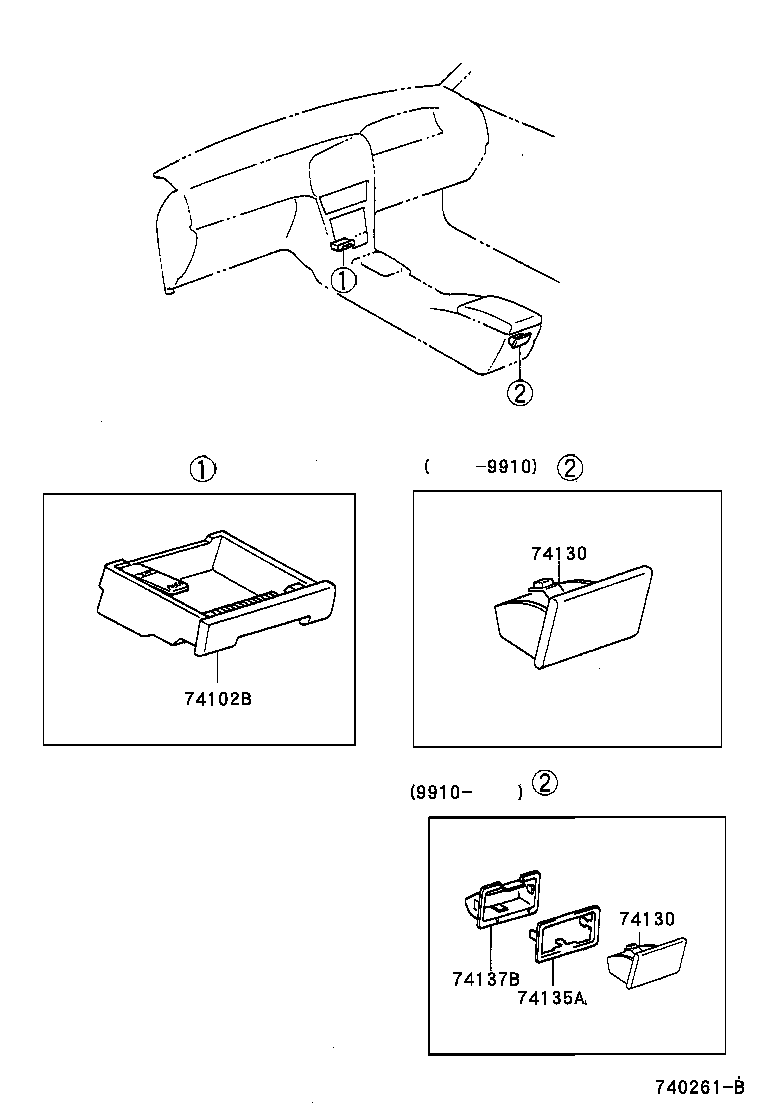

Click highlighted areas on diagram

diagram 74102B 74130 74130 74135A 74137B
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12250B1

AE11#,EE110..LHD

DK.CHARCOAL,TRIM1#

 1
74102-12250B1

AE112,EE110..GCC

DK.CHARCOAL,TRIM1#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-12020B3

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-12020B3

AE11#,EE110

MD.CHARCOAL,TRIM1#

 1
