EE110L-ALMDSV (1997)

Toyota Corolla Lb

Production Apr 1997 - Aug 2000
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

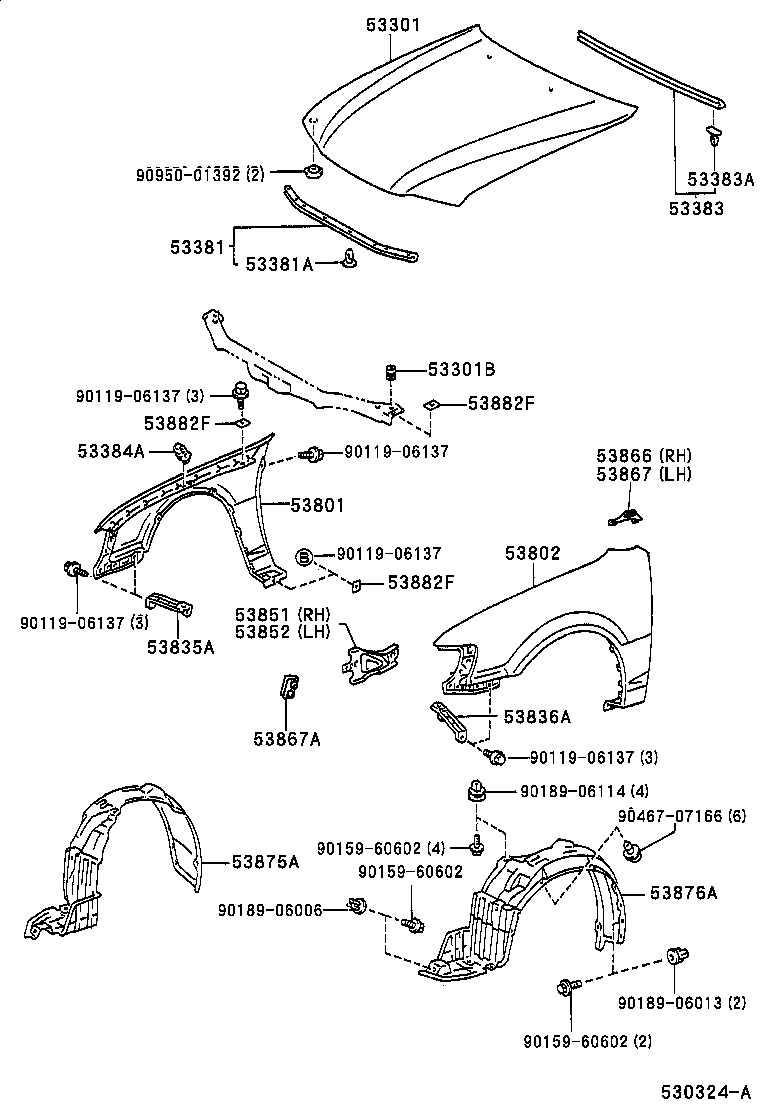

Click highlighted areas on diagram

diagram 53301 53301B 53381 53381A 53383 53383A 53384A 53801 53802 53835A 53836A 53851 53852 53866 53867 53867A 53875A 53876A 53882F 53882F 53882F 9011906137 9011906137 9011906137 9011906137 9011906137 9015960602 9015960602 9015960602 9018906006 9018906013 9018906114 9046707166 9095001392
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12820

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53301-12820

AE11#,EE110

 1
53301B - CUSHION, HOOD BUMPER
90541-15021

AE11#,EE110

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12170

AE11#,EE110

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE11#,EE110

 8
53383 - SEAL, HOOD TO COWL TOP
53383-12130

AE11#,EE110..LHD

 1
53383-12130

AE112,EE110..GCC

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08108

AE11#,EE110

 8
53384A - BUMPER, FENDER TO HOOD
53384-20060

AE11#,EE110

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-1H080

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53811-1H080

AE11#,EE110

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-1E850

AE11#,EE110

 1
53812-1E850

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-12110

AE11#,EE110

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53836-12070

AE11#,EE110

 1
53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53851-12050

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53851-12050

AE11#,EE110

 1
53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH
53852-12050

AE11#,EE110

 1
53852-12050

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-12010

AE11#,EE110

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-12010

AE11#,EE110

 1
53867A - RETAINER, FRONT FENDER
53867-12030

AE11#,EE110

 2
53875A - LINER, FRONT FENDER, RH
53875-12260

AE11#,EE110

 1
53875-12260

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53876A - LINER, FRONT FENDER, LH
53876-12250

AE11#,EE110

 1
53876-12250

AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)

 1
53882F - SEAL, FRONT FENDER
53882-16030

AE11#,EE110

 8
53882F - SEAL, FRONT FENDER
53882-16030

AE11#,EE110

 8
53882F - SEAL, FRONT FENDER
53882-16030

AE11#,EE110

 8
Common parts
90119-06137
90159-60602
90189-06006
90189-06013
90189-06114
90467-07166
90950-01392
